Adastra RMC120D 120W 100V Mixer-Amplifier with DAB+ & BT

£40999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

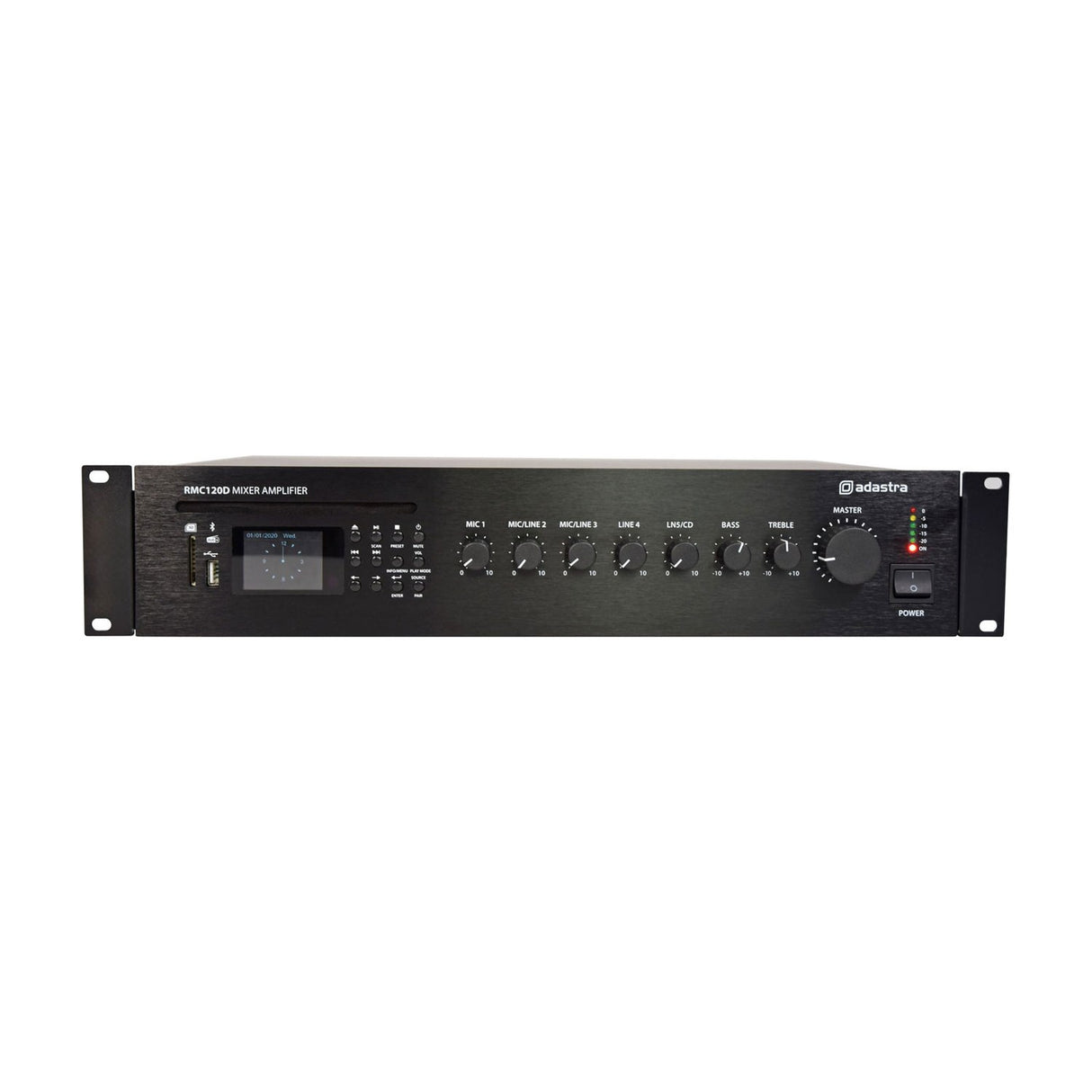

The Adastra RMC120D is a 100V line mixer-amplifier with a built-in multi-format media player, made for commercial sound installations. It offers five input channels, including a balanced XLR microphone input with switchable phantom power and Vox override, two mic/line jack inputs and two RCA line inputs. The class AB amplifier section is paired with a digital switch-mode power supply and a 100V transformer, giving reliable power delivery from an energy efficient design.

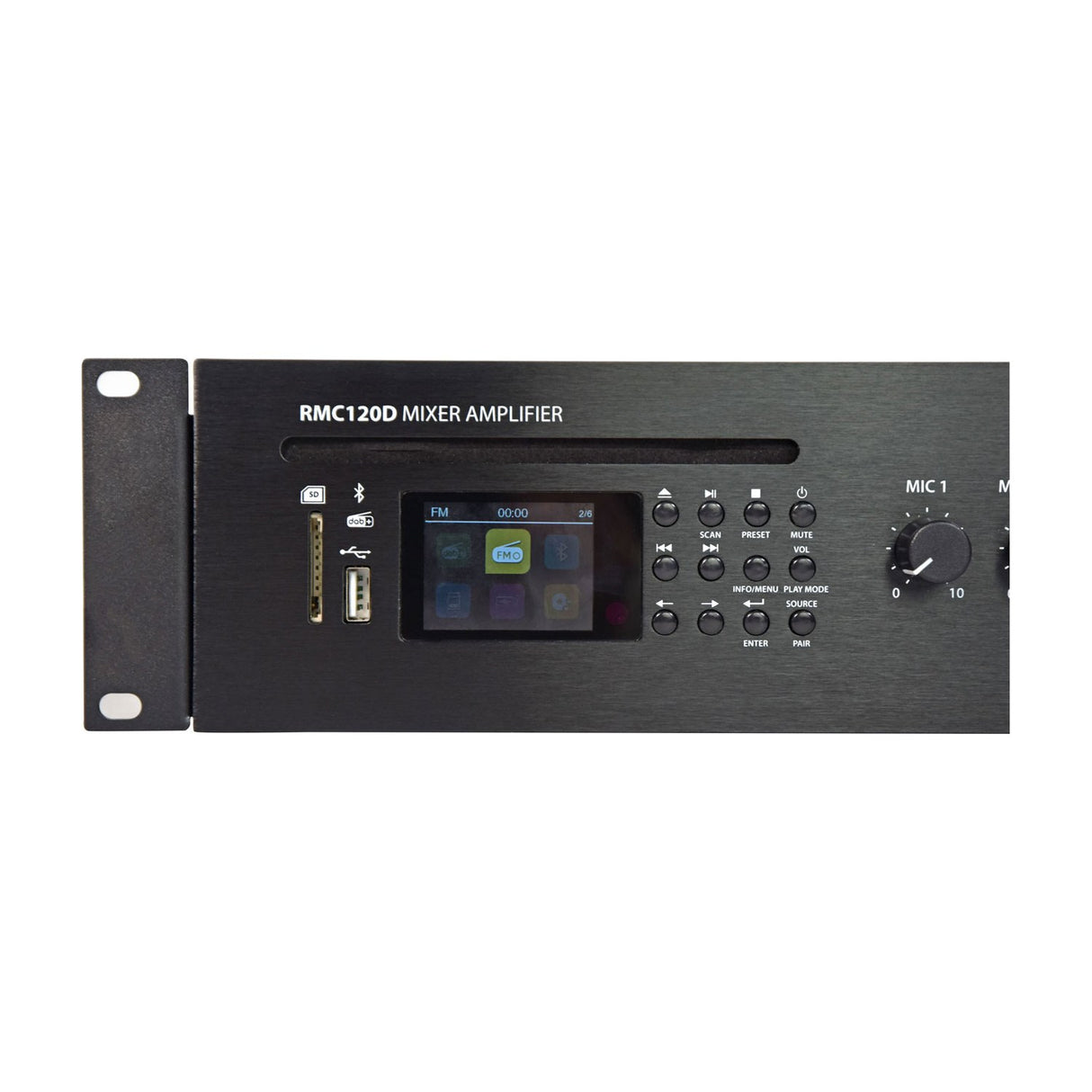

Media playback is well covered. A slot-feed CD player sits alongside a USB/SD mp3 player and an integral DAB+ and FM radio tuner, so you can run stored music or broadcast radio from one unit. The Bluetooth 5.0 receiver pairs to a smartphone for wireless playback of tracks. Bass and treble EQ plus a master volume control shape the overall output, which can drive either low impedance 4-16 Ohm speakers or 100V line speakers via the COM terminals.

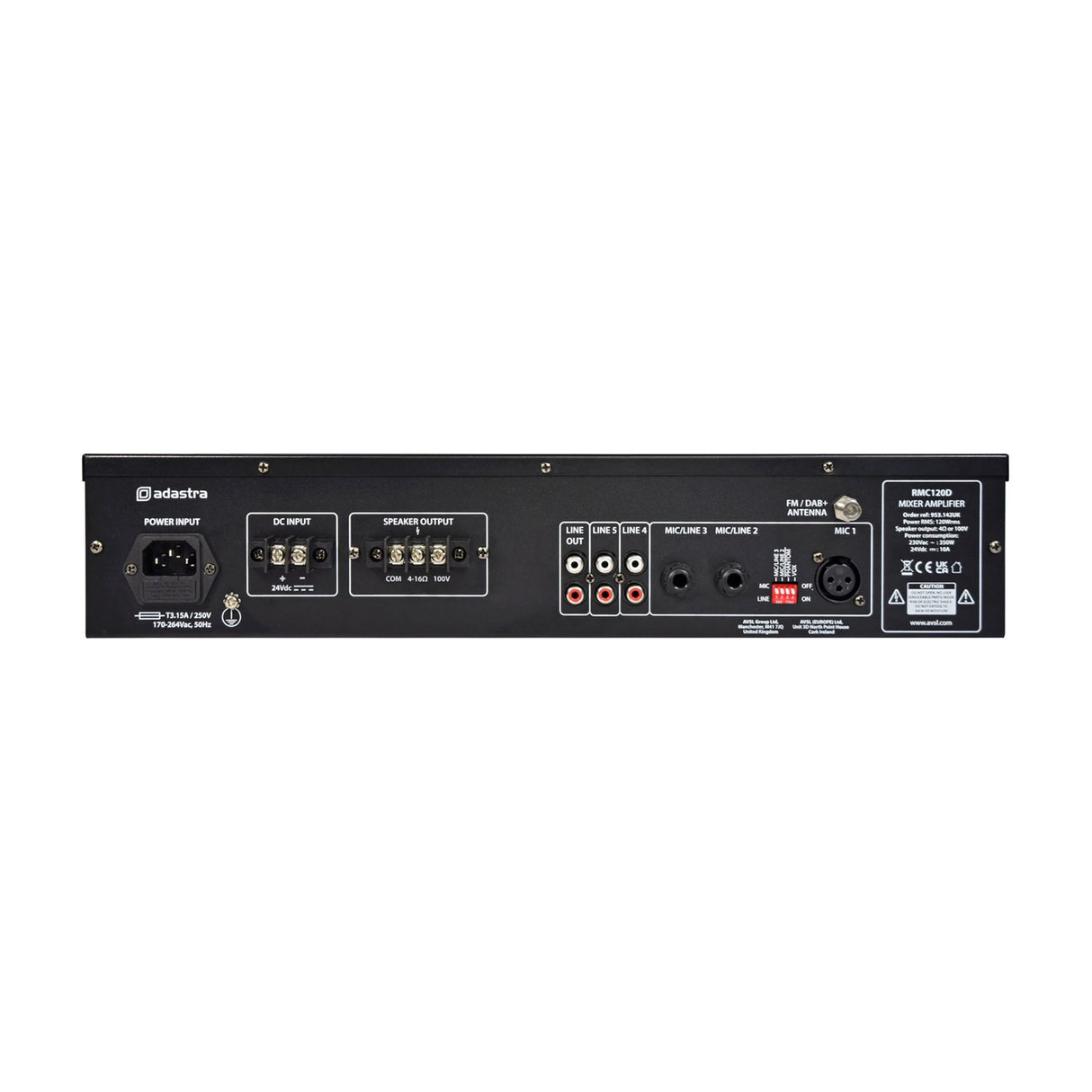

Rear panel switches handle mic/line selection on inputs 2 and 3, phantom power and Vox, so you can set the unit up to suit the room. The RMC120D measures 433 x 320 x 89mm and is supplied with 19-inch rack-mount ears (US: rack ears) for standard installation. An optional remote control is available separately (SPR000708). It runs from a 170-264Vac mains supply and includes a 24Vdc screw-terminal input for backup or DC operation. This is a practical single-box solution where you need paging, background music and radio from one amplifier.

Specification
Weight 7.00KG
Power : rms 120Wrms (100V or 4 Ohm)
Fuse T3.15A
Power supply 170-264Vac, 50Hz (IEC)
DC power 24Vdc (screw terminals)
Inputs Mic XLR, 2 x mic/line jack, 2 x RCA line
Input sensitivity : mic 1 (balanced) -53dBV
Input impedance : mic 1 5k Ohm
Input sensitivity : line (unbalanced) -15dBV (-18.5dBV line 5)
Input impedance : inputs 2-5 1k Ohm
Line output RCA
Speaker outputs 100V / 4-16 Ohm / COM terminals
Bluetooth version 5.0
Controls Mic1, mic/line2+3, line4+5 (USB), bass, treble, master volume
Equaliser : bass 100Hz ±10dB
Equaliser : treble 10kHz ±10dB
Rear panel switches Mic/Line (2 + 3), Phantom, Vox
Phantom power +20V (MIC 1 input)
THD <1.0%
Dimensions 433mm x 320mm x 89mm
Downloads

Product Manual

Frequently Asked

How many input channels does the RMC120D have?

It has five input channels: a balanced XLR microphone input, two mic/line jack inputs and two RCA line inputs.

Can it drive both 100V line and low impedance speakers?

Yes. The speaker outputs cover 100V line, 4-16 Ohm low impedance and COM terminals, so you can choose the setup that suits your system.

What media sources are built in?

There is a slot-feed CD player, a USB/SD mp3 player, a DAB+ and FM radio tuner, and a Bluetooth 5.0 receiver for wireless playback from a phone.

Does the microphone input support phantom power?

Yes. The XLR mic 1 input has switchable +20V phantom power and a Vox override function, set via the rear panel switches.

Can the RMC120D be rack-mounted?

Yes. It ships with 19-inch rack-mount ears and measures 433 x 320 x 89mm.

Is a remote control included?

No. An optional remote control (part SPR000708) is available separately.
