Adastra RM480D 100V Mixer-Amplifier with DAB+ & Bluetooth

£52999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

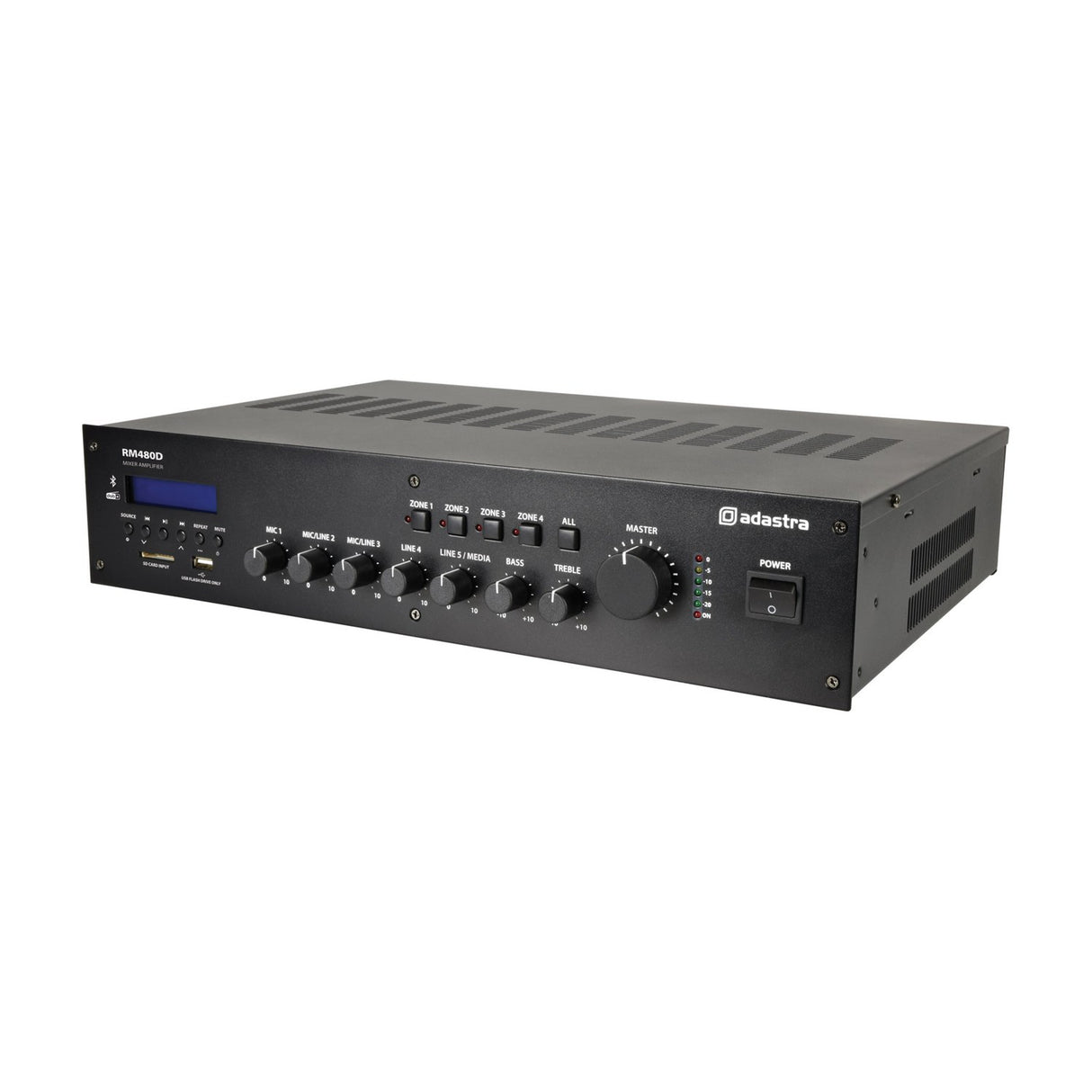

The Adastra RM480D is a 5-channel 100V mixer-amplifier built for commercial sound installations. It powers 100V line speakers or standard low-impedance speakers down to a 4 Ohm load, so it suits a wide range of setups from shops and cafes to larger multi-room venues. The unit fits a standard 19" rack in a 2U space, and the rack ears are supplied. Output is handled across 4 switchable zones plus a separate 'always on' output for priority alert speakers, giving you control over which areas receive audio.

Input options cover most needs on site. There is an XLR input with switchable +20V phantom power, 2 mic/line jack inputs, 2 RCA line inputs, and 1 RCA line output. The onboard media player brings together a DAB+/FM radio tuner, front-mounted USB and SD ports, and a Bluetooth 5.0 receiver with a unique serial ID for easy pairing management. A switchable VOX voiceover feature automatically lowers the background music when a signal is detected on mic input 1, which is handy for announcements over music.

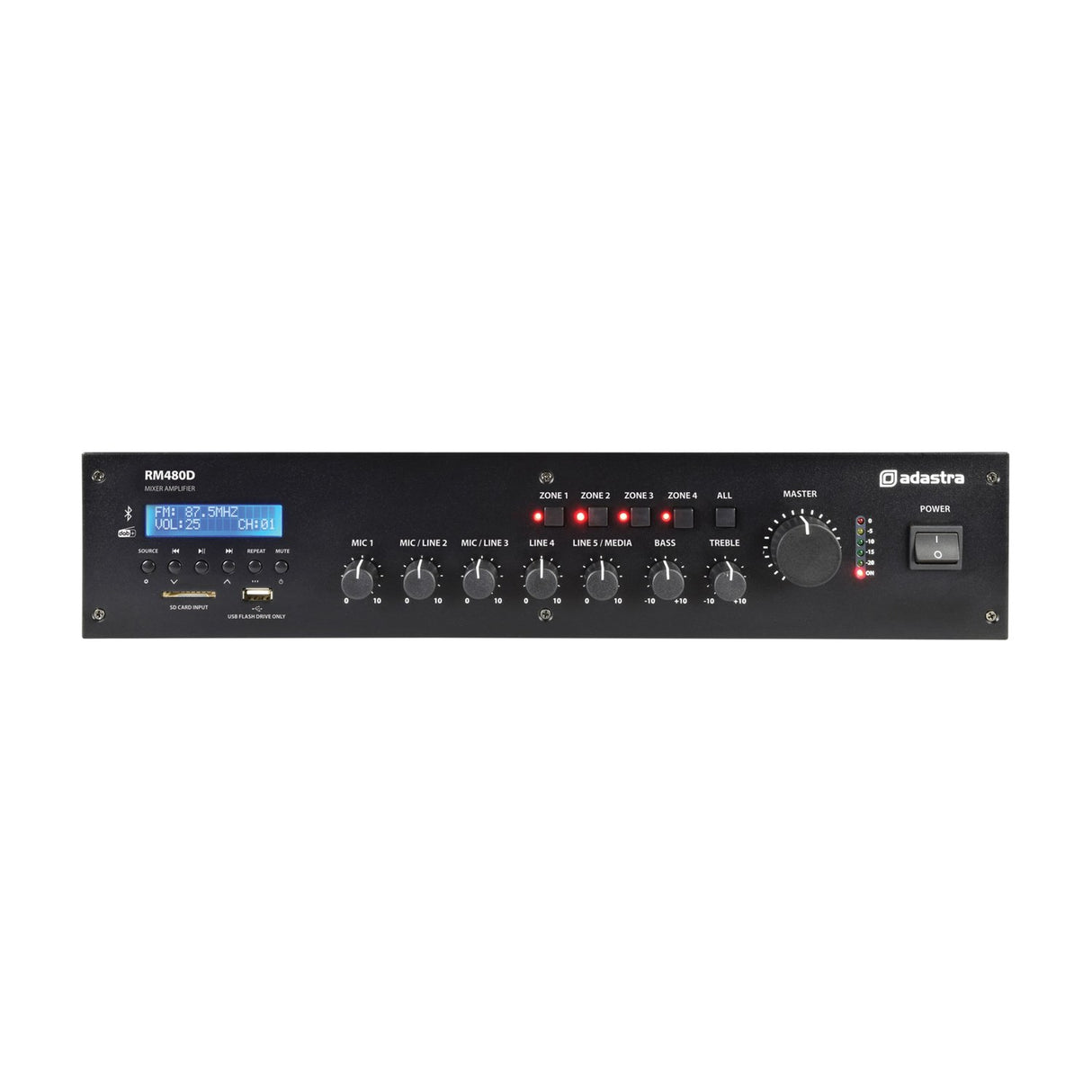

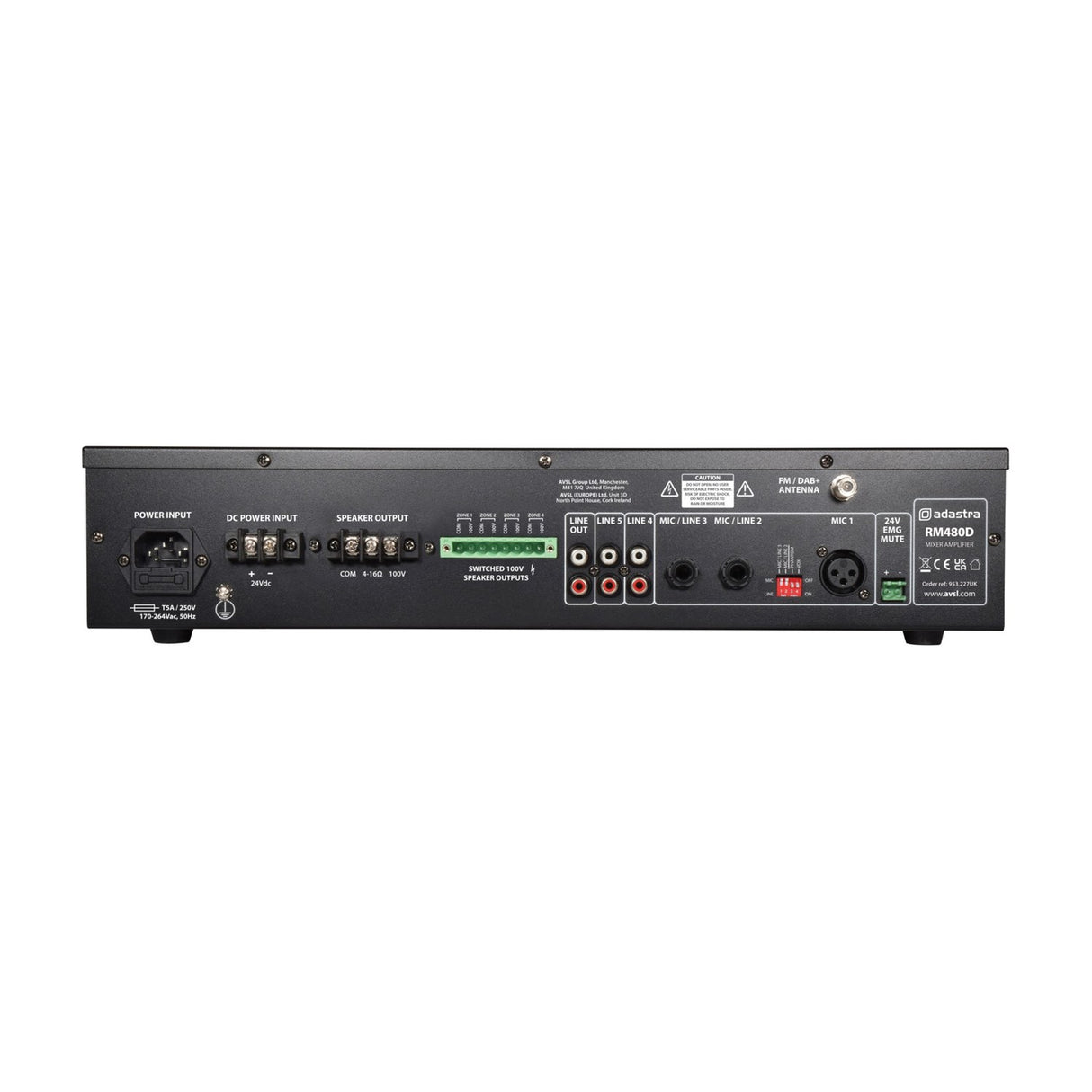

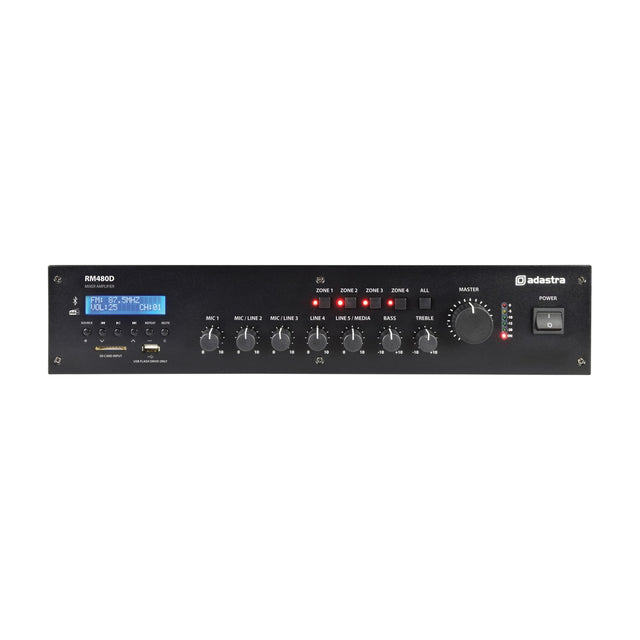

Front panel controls include separate level controls for mic 1, mic/line 2+3 and line 4+5, along with bass, treble and master volume. The bass equaliser works at 100Hz (±10dB) and the treble at 10kHz (±10dB). For life-safety and priority use, the rear panel carries 24V emergency mute contacts that silence all inputs except mic 1 when triggered. The RM480D runs from 230Vac mains or a 24Vdc backup supply via screw terminals, so it can stay working during a power interruption when paired with a suitable battery source.

Specification
Weight 9.66KG
Dimensions 433mm x 410mm x 88mm
Fuse T6.3A
Output power : rms 480W
Power supply 170-264Vac, 50Hz (IEC)
DC power 24Vdc (screw terminals)
Inputs Mic XLR, 2 x mic/line jack, 2 x RCA line
Input sensitivity : mic 1 (balanced) -53dBV
Input impedance : mic 1 5k Ohm
Input sensitivity : line (unbalanced) -15dBV (-18.5dBV line 5)
Input impedance : inputs 2-5 1k Ohm
Line output RCA
Speaker outputs 4 switched + 1 non-switched 100V / 4-16 Ohm / COM
Bluetooth version 5.0
Controls Mic1, mic/line2+3, line4+5, bass, treble, master volume
Equaliser : bass 100Hz ±10dB
Equaliser : treble 10kHz ±10dB
Rear panel switches Phantom, Vox, Mic/Line (2 + 3)
Phantom power +20V (mic 1 XLR, switchable)
Audio source DAB+/FM tuner, USB/SD player, Bluetooth receiver
Emergency control 24V contacts - mute all except Mic.1 when triggered
THD <1.0%
Downloads

Product Manual

Frequently Asked

Can the RM480D drive standard low-impedance speakers?

Yes. As well as 100V line speakers, it will power standard speakers down to a 4 Ohm load, with an optional 4-16 Ohm output available.

How many speaker zones does it support?

There are 4 switchable 100V zones plus 1 non-switched output that stays on for priority alert speakers.

What audio sources are built in?

The integrated media player gives you a DAB+/FM tuner, USB and SD playback, and a Bluetooth 5.0 receiver.

Does it have a backup power option?

Yes. It runs from 230Vac mains or a 24Vdc supply via screw terminals, so it can keep working during a mains failure.

How does the voiceover feature work?

The switchable VOX function automatically lowers the background music volume when a signal is detected on mic input 1.

How much rack space does it need?

It takes up 2U in a standard 19" rack, and the rack ears are supplied.
