Adastra RM4460 Zoning 100V 4 x 60W Mixer-Amplifier

£45999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

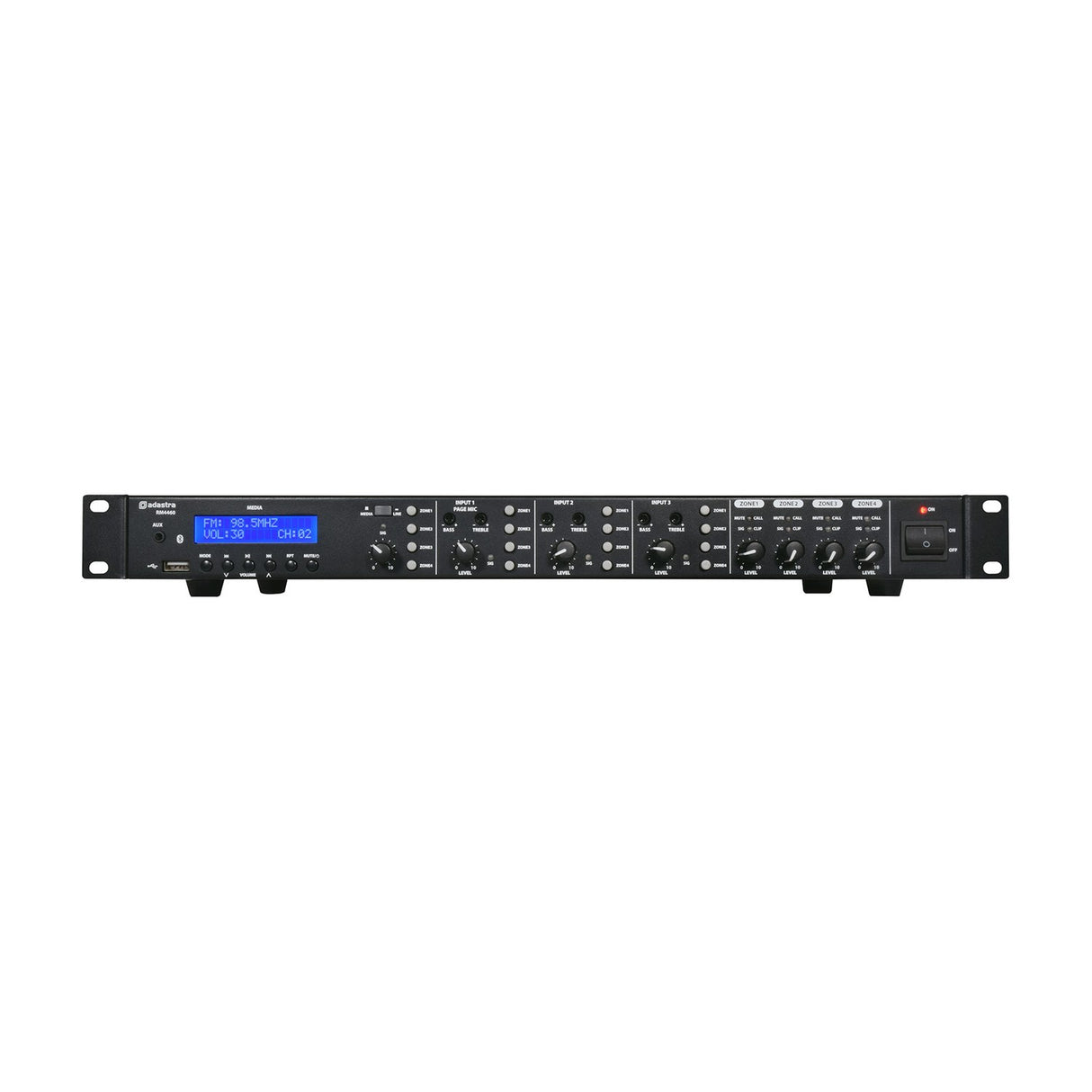

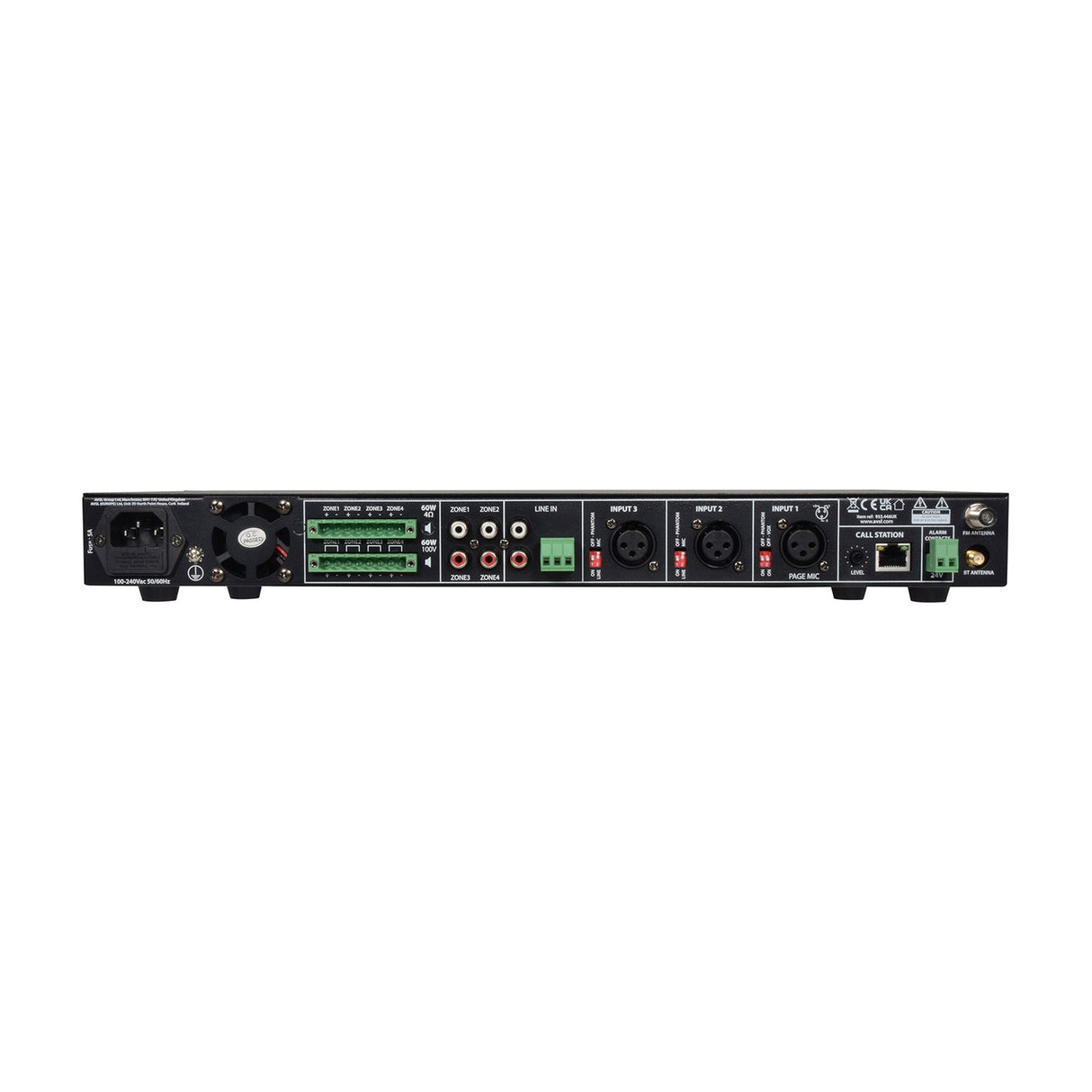

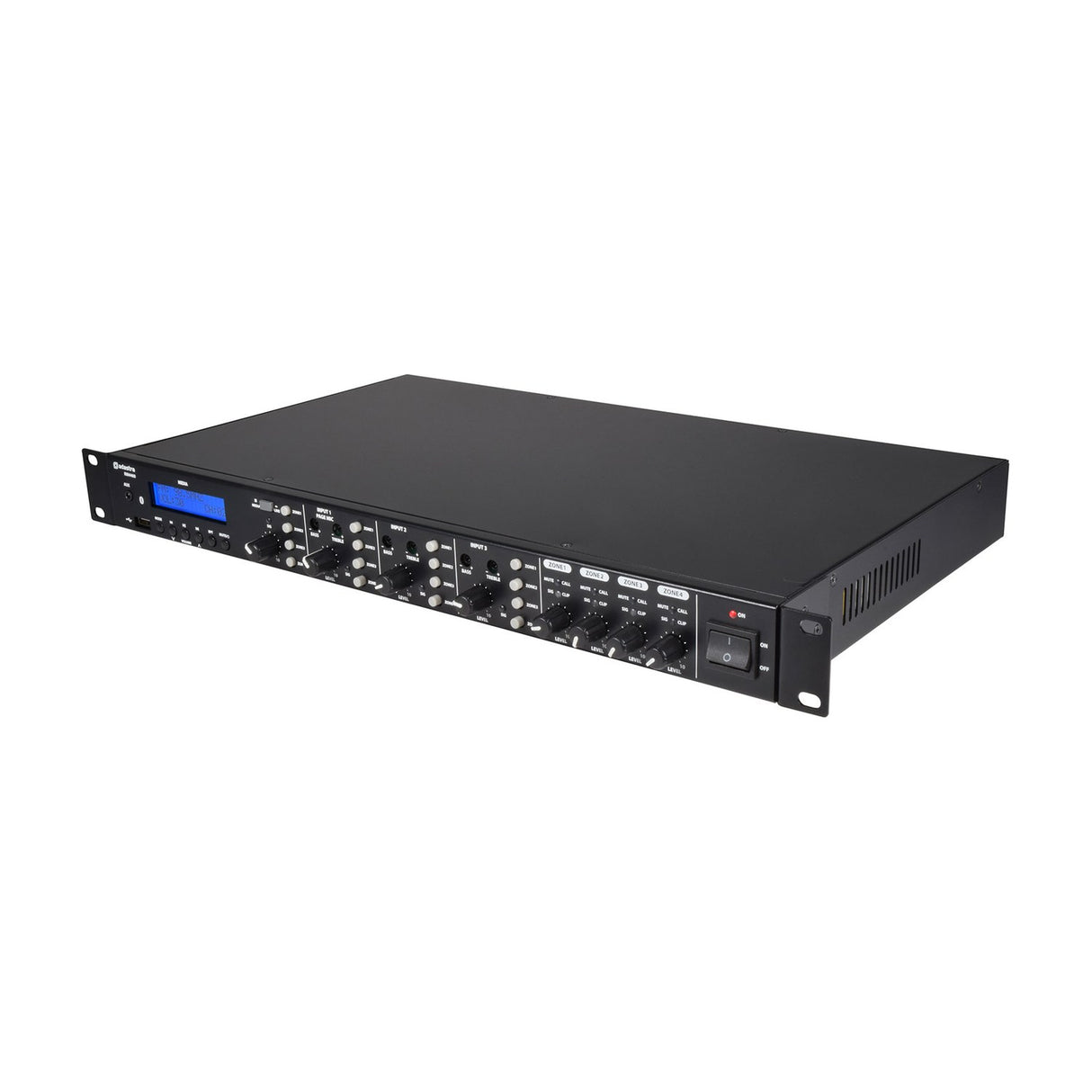

The Adastra RM4460 is a 1U 19-inch rack-mountable quad amplifier built around four independent class-D amplifiers, each rated at 60W. Every output can feed either 100V line speakers or low impedance (4 or 8 ohm) speakers, chosen by connecting the upper or lower screw terminals on the rear panel. This makes it a practical option for zoned background music and announcements across shops, offices, gyms and similar venues where each area needs its own sound.

Each of the four inputs can be routed to any or all of the four output zones, and every zone has its own level control plus a line level output for adding more amplifiers or powered speakers later. Inputs include a paging mic with switchable Vox to override other channels, two balanced mic/line inputs with switchable phantom power, and a separate line input on RCA or screw terminals. Channels 1 to 3 have bass and treble controls for tone adjustment. An internal media player handles audio from a USB pen drive, FM radio and Bluetooth 5.0 for wireless playback from a smartphone.

For life safety systems, 24V EMG contacts on screw terminals mute inputs 2 to 4 when triggered by a fire alarm. If area-specific paging is needed, the optional CS4 call station (953.146UK) connects over RJ45 and gives you a fully independent zoning setup. The RM4460 measures 482 x 283 x 43mm, weighs 6.85kg and runs from a 100/240Vac IEC supply. Protection covers short circuit, overload and overheating, so the unit stays reliable in continuous background music use.

Specification
Power supply 100/240Vac, 50/60Hz (IEC)
Fuse rating 5A
Inputs Paging mic, 2 x mic/line, 1 x line/media player
Input connections 3 x XLR, 1 x RCA/screw terminal, RJ45 (CS4), 3.5mm Aux
Output connections 4 x 100V (+/-), 4 x 4 Ohm (+/-), 4 x RCA (line level)
Call station input RJ45
Audio source USB player, FM tuner and Bluetooth receiver
Fire alarm contacts 24V screw terminals
Output power : rms 4 x 60W (100V or 4 Ohm)
Input sensitivity : mic -38dBV
Input impedance : mic 5k Ohm
Input sensitivity : line -10dBV
Input impedance : line 10k Ohm
Input sensitivity : call station 0dBV
Input impedance : call station 10k Ohm
Equaliser : bass 100Hz ±10dB
Equaliser : treble 10kHz ±10dB
Phantom power +20V (switchable inputs 1-3)
Bluetooth version 5.0
THD +N <2% @1kHz (rated power)
Protection Short circuit, overload, overheat
Dimensions 482mm x 283mm x 43mm
Weight 6.85KG
Downloads

Product Manual

Frequently Asked

Can the RM4460 drive both 100V and low impedance speakers?

Yes. Each of the four outputs can deliver up to 60W to either 100V line speakers or low impedance 4 or 8 ohm speakers, selected by using the upper or lower screw terminals on the rear panel.

How many zones does it support?

It has four independent output zones. Any of the four inputs can be sent to any or all zones, and each zone has its own level control and a line level output for expansion.

What audio sources are built in?

There is an internal media player that reads audio files from a USB pen drive, tunes FM radio stations and receives audio over Bluetooth 5.0 from a smartphone.

Does it work with a fire alarm system?

Yes. It has 24V EMG contacts on screw terminals that mute inputs 2 to 4 when the fire alarm is triggered.

Is a paging mic or call station included?

The amplifier has a paging mic input with switchable Vox. For area-specific paging you can add the optional CS4 call station (953.146UK), which connects via RJ45.

Will it fit in a standard rack?

Yes. It is a 1U 19-inch rack-mountable unit measuring 482 x 283 x 43mm and weighing 6.85kg.
