Adastra RF-12U Open 19" Wall or Desktop Rack Frame

£9999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

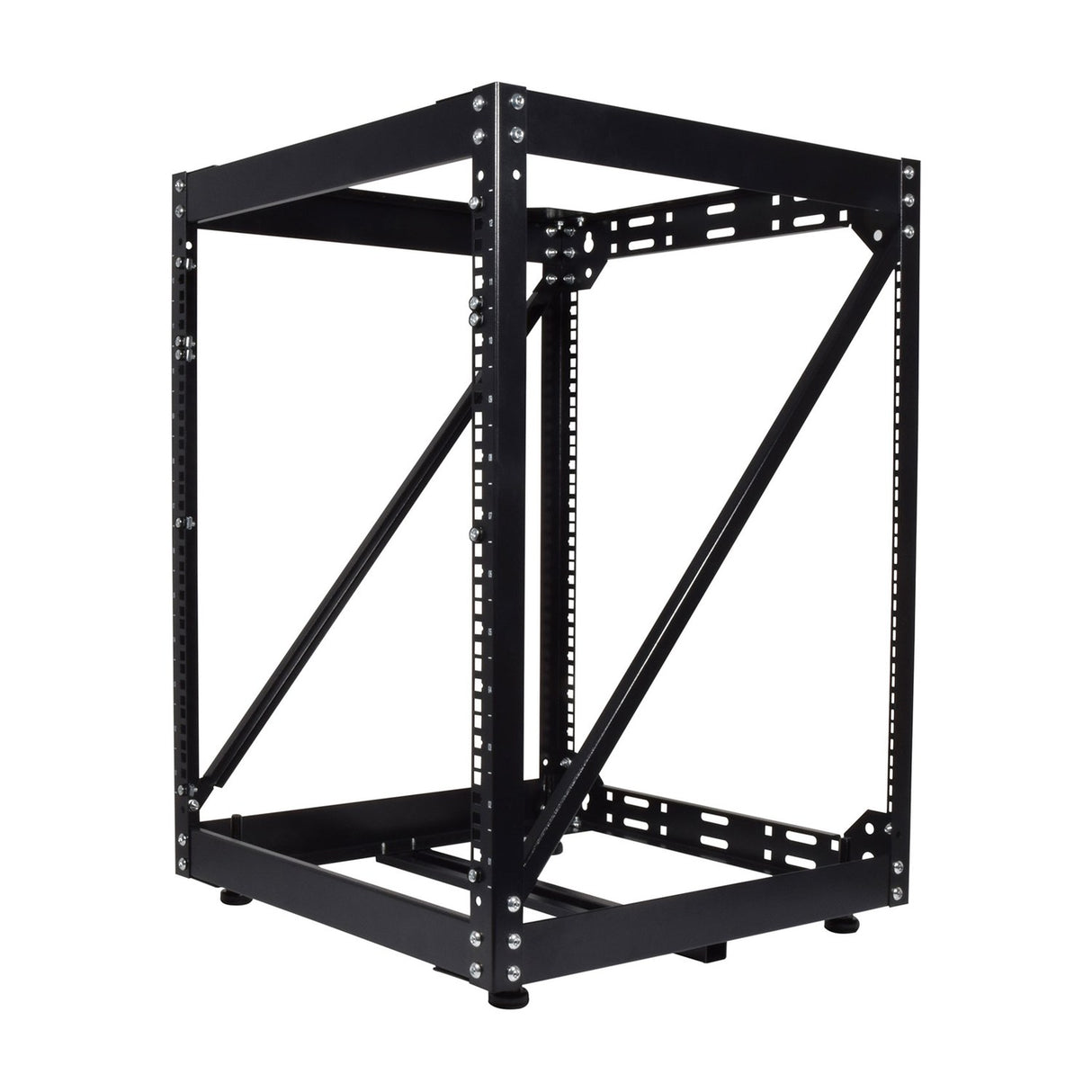

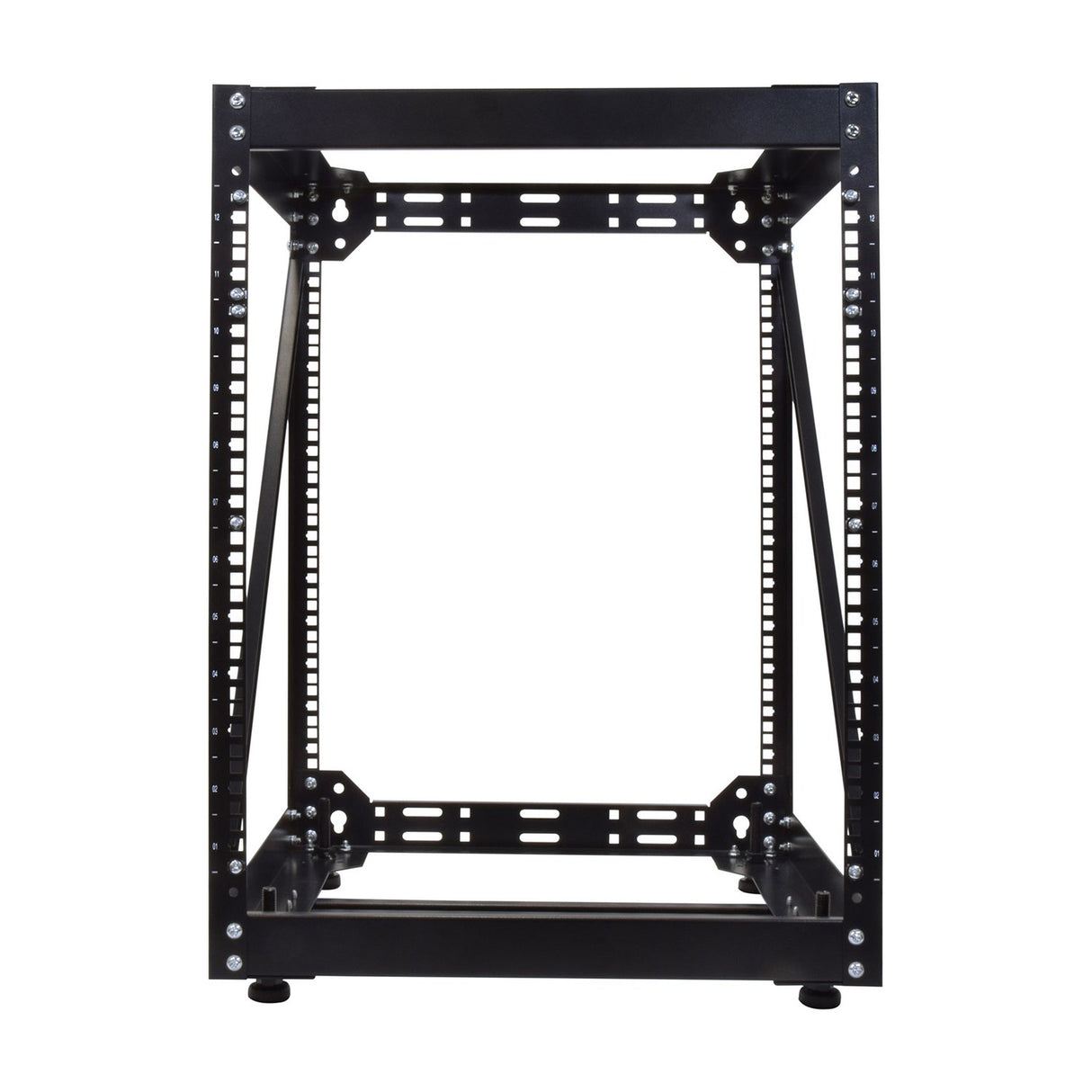

The Adastra RF-12U is a 12U open rack frame for mounting 19" equipment, built for either free standing or wall mounted use. It arrives as a self-assembly kit and goes together with basic tools, so you can set it up to suit your space. The open sides keep everything accessible and let air move freely around your gear, which helps with cooling for amplifiers, mixers and other rack kit.

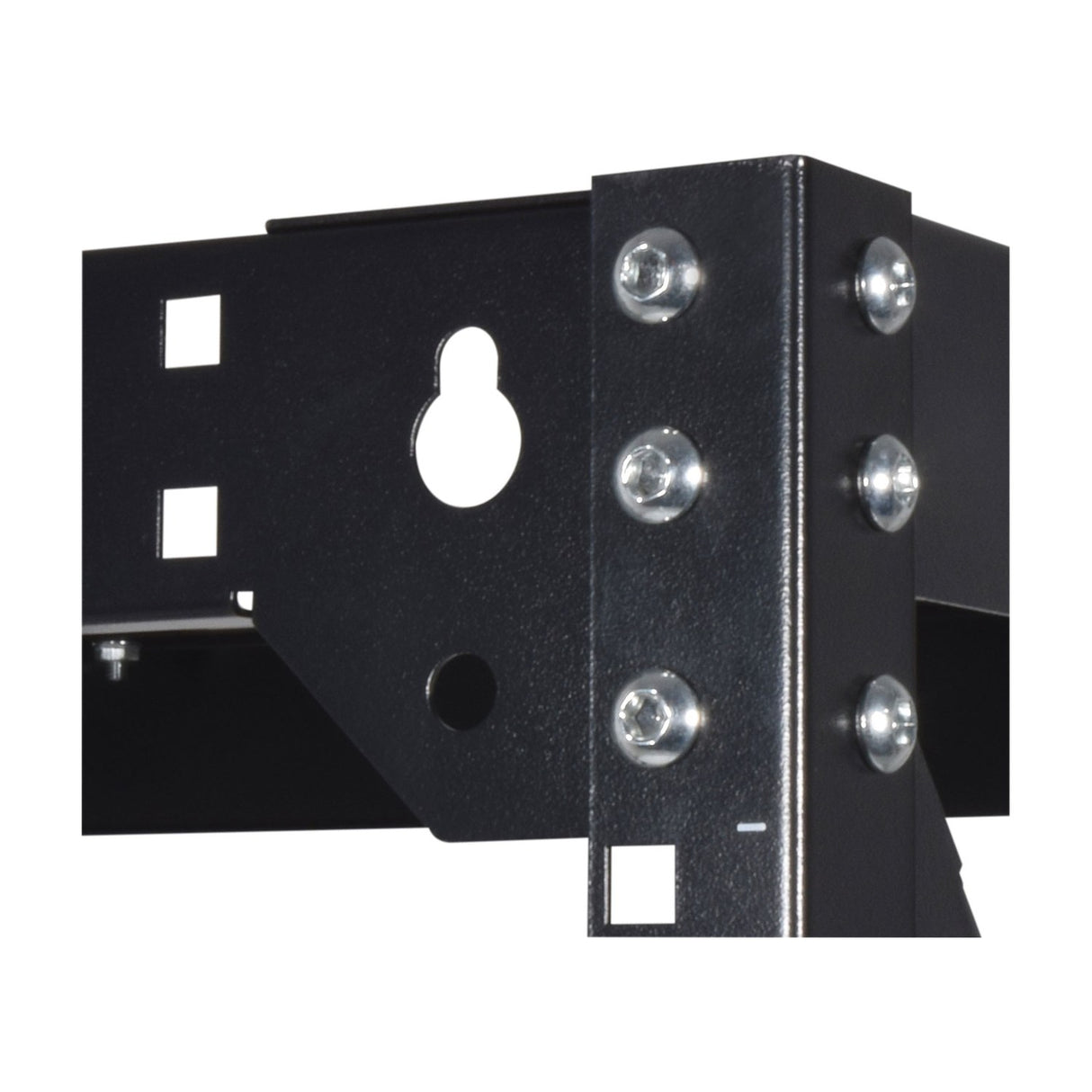

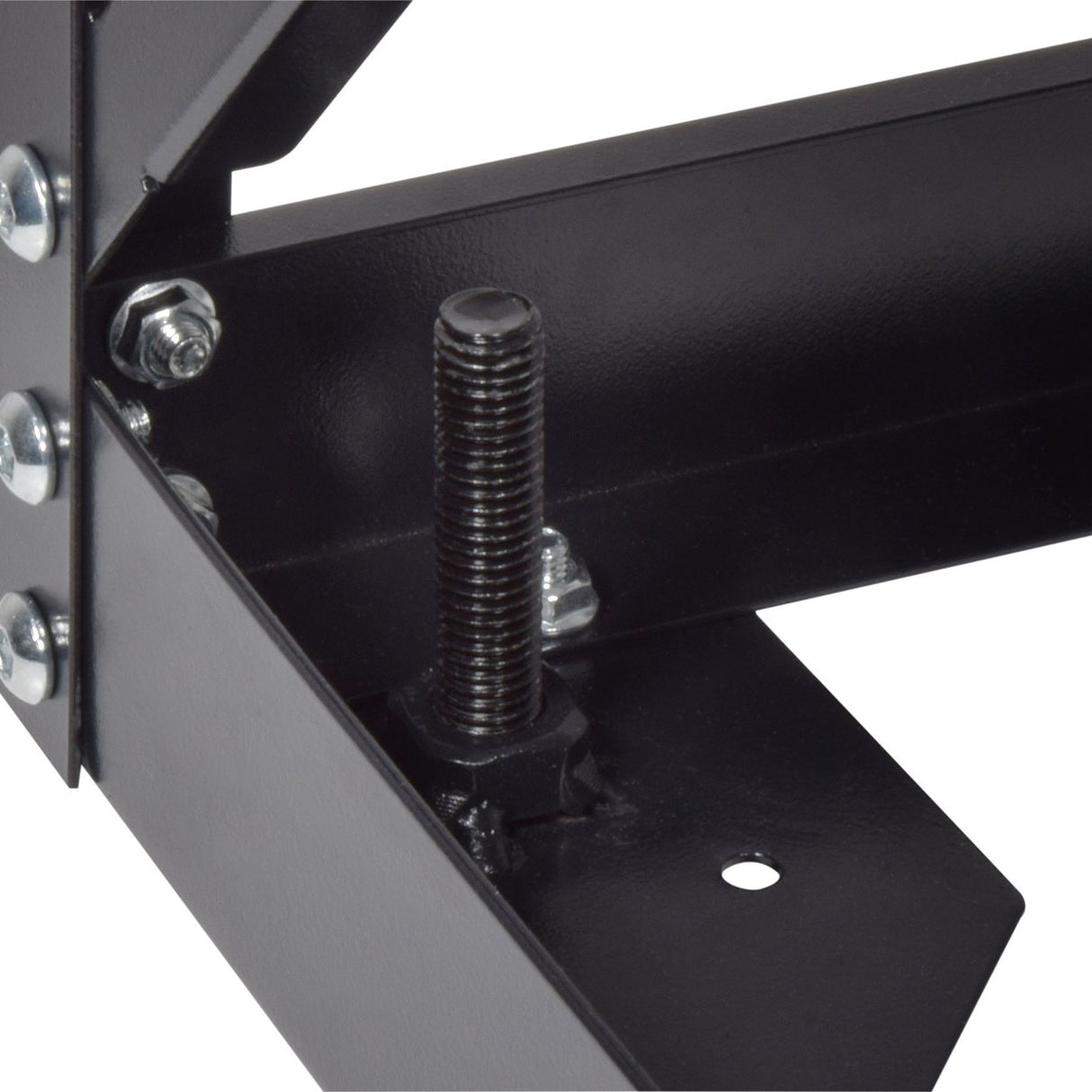

Construction is powder coated 1.2mm cold rolled steel, with two diagonal side braces and a mid bottom brace for stability. It takes a static load of up to 100kg and accommodates equipment up to 500mm deep. Four heavy duty threaded feet are supplied for free standing use, and they adjust so you can level the frame on uneven surfaces or add clearance underneath. For wall mounting, the rear sections have keyhole and round punchings so you can fix it securely to a solid wall.

The frame measures 510mm wide by 510mm deep, and comes with 10 cage nuts, screws and cup washers to get you started. It is a practical, low cost way to house 19" rackmount equipment where a full enclosed cabinet is not needed. The open format keeps every panel and connection within reach, which makes it handy for installations where you are patching, servicing or changing kit regularly.

Specification
Construction Powder coated 1.2mm cold rolled steel
Max. load 100kg (static load)
Width 510mm
Depth 510mm
Downloads

Product Manual

Frequently Asked

How much equipment does a 12U frame hold?

It provides 12U of vertical rack space for standard 19" equipment. Add up the U height of your gear to check it fits within that space.

Can I use it on the floor and on a wall?

Yes. Four adjustable threaded feet are supplied for free standing use, and the rear sections have keyhole and round punchings for wall mounting.

What is the maximum load?

The frame is rated for a static load of up to 100kg. Keep heavier items lower down for stability.

How deep can my equipment be?

It accommodates 19" rack equipment up to 500mm in depth.

Does it come with fixings?

It is supplied with 10 cage nuts, screws and cup washers for mounting your equipment. Wall fixings for the frame itself are not included and depend on your wall type.

Is assembly difficult?

No. It is a self-assembly kit that goes together with basic tools, including two diagonal side braces and a mid bottom brace for rigidity.
