Adastra RC9U600 9U 600mm Deep 19" Rack Cabinet

£22099
RRP £22900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

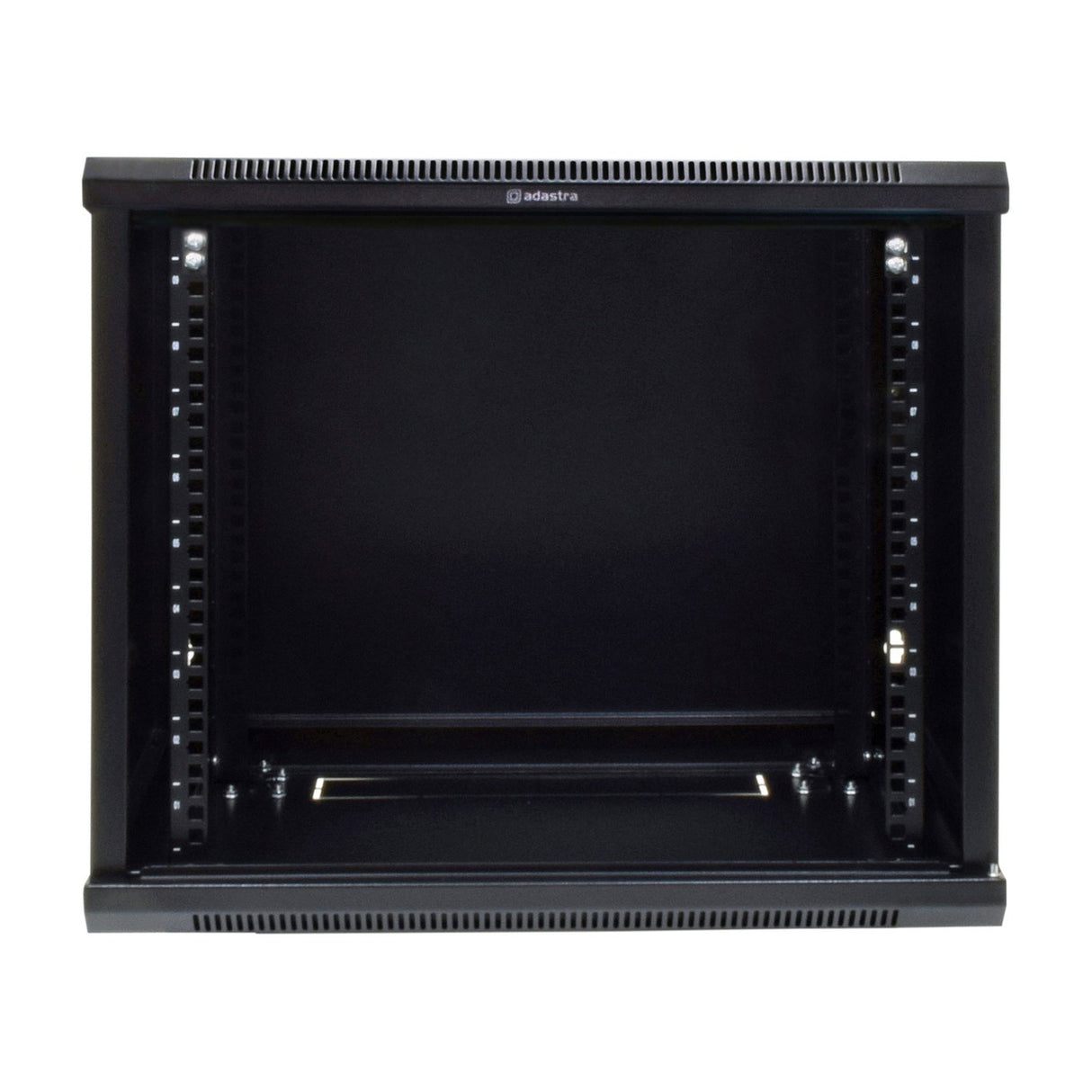

The Adastra RC9U600 is a 9U 19" rack cabinet built for professional rack-mount equipment. It is made from 1.2mm cold-rolled steel with folded edges for strength and stability, finished in epoxy powder coat to RAL9004. Front and rear rack strips are supplied and mounted to internal rails, so you can adjust the mounting depth to suit equipment with overhanging fittings or to support the rear of heavier units. The static load rating is 100kg total.

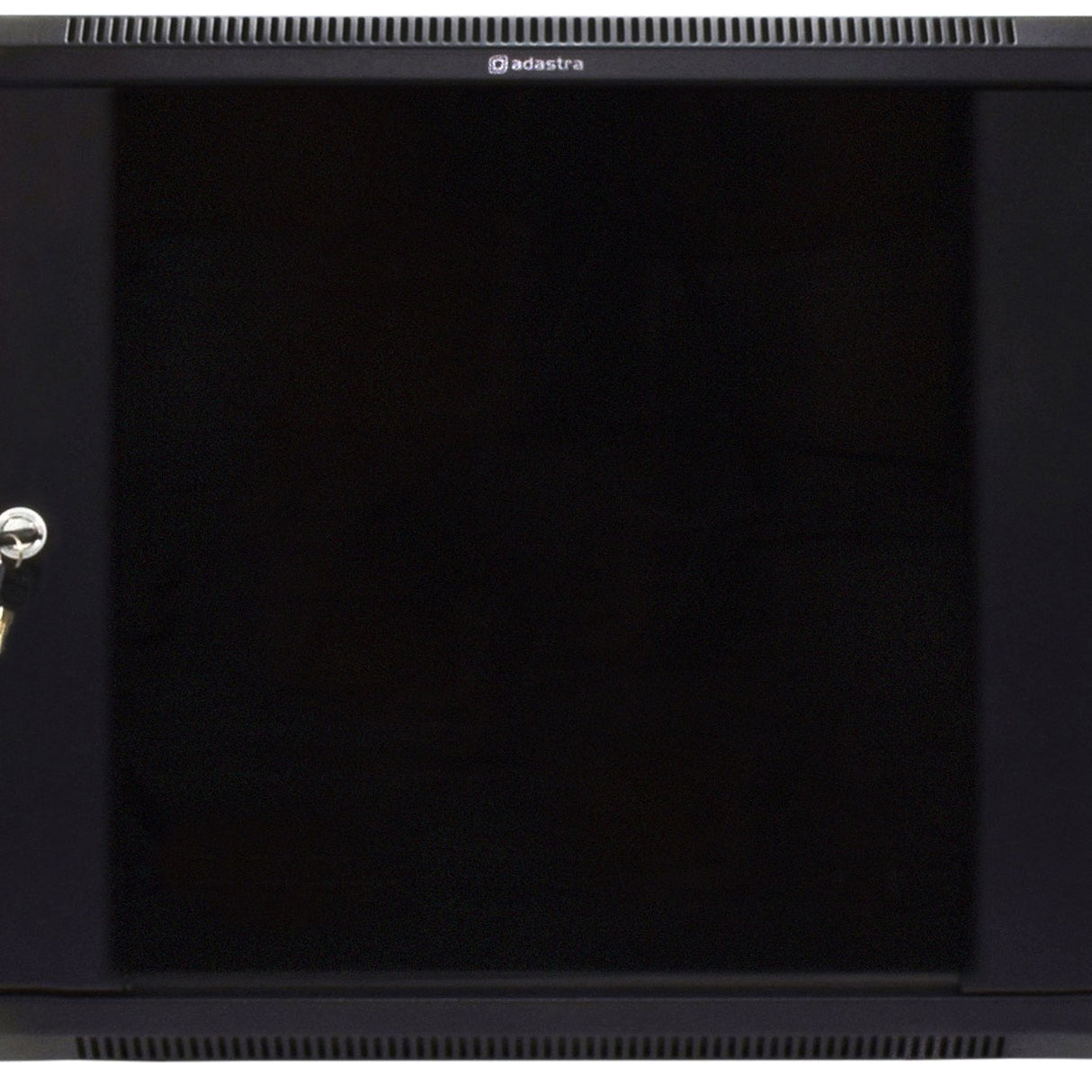

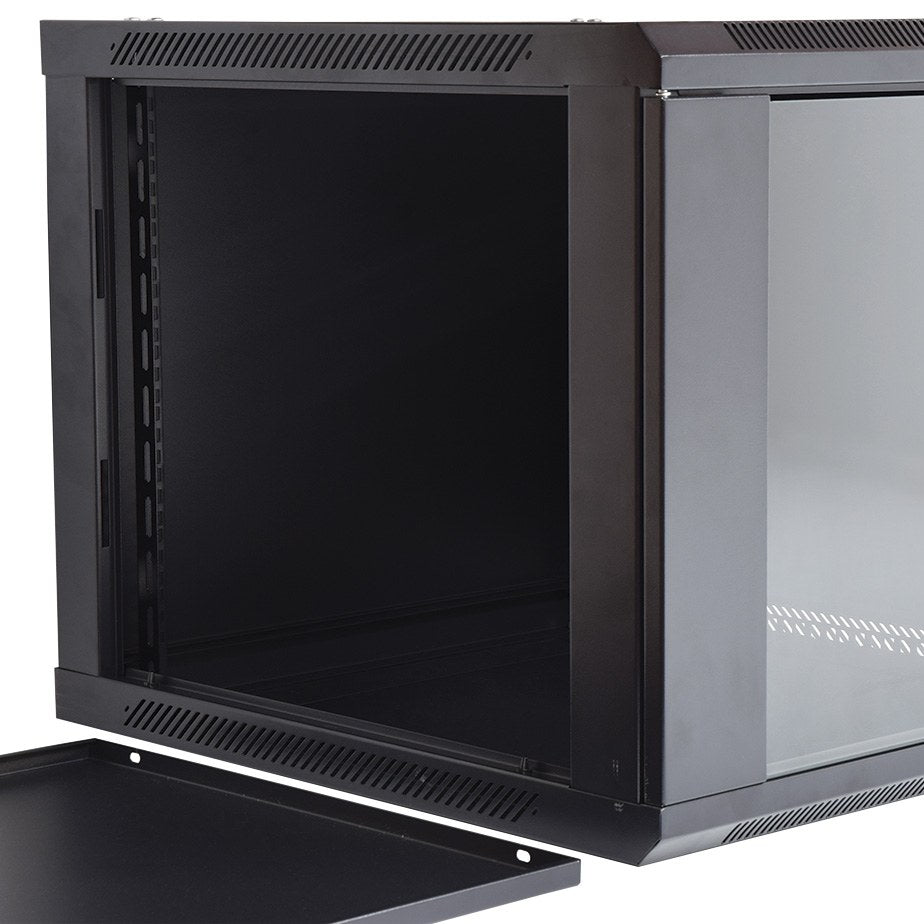

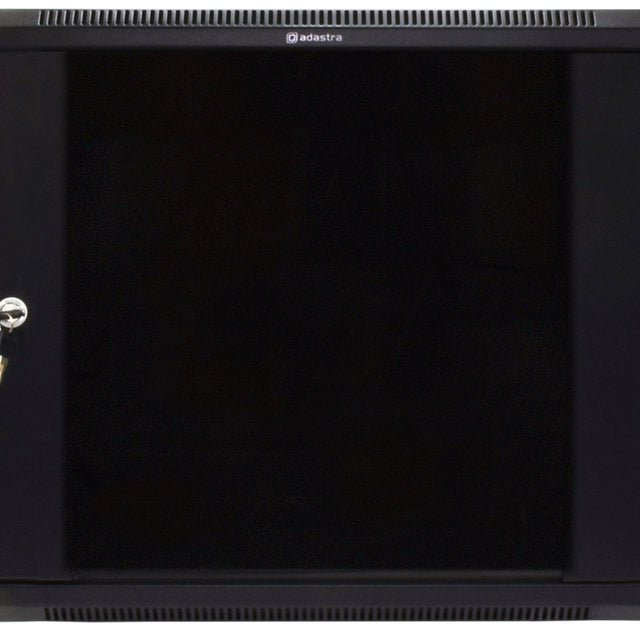

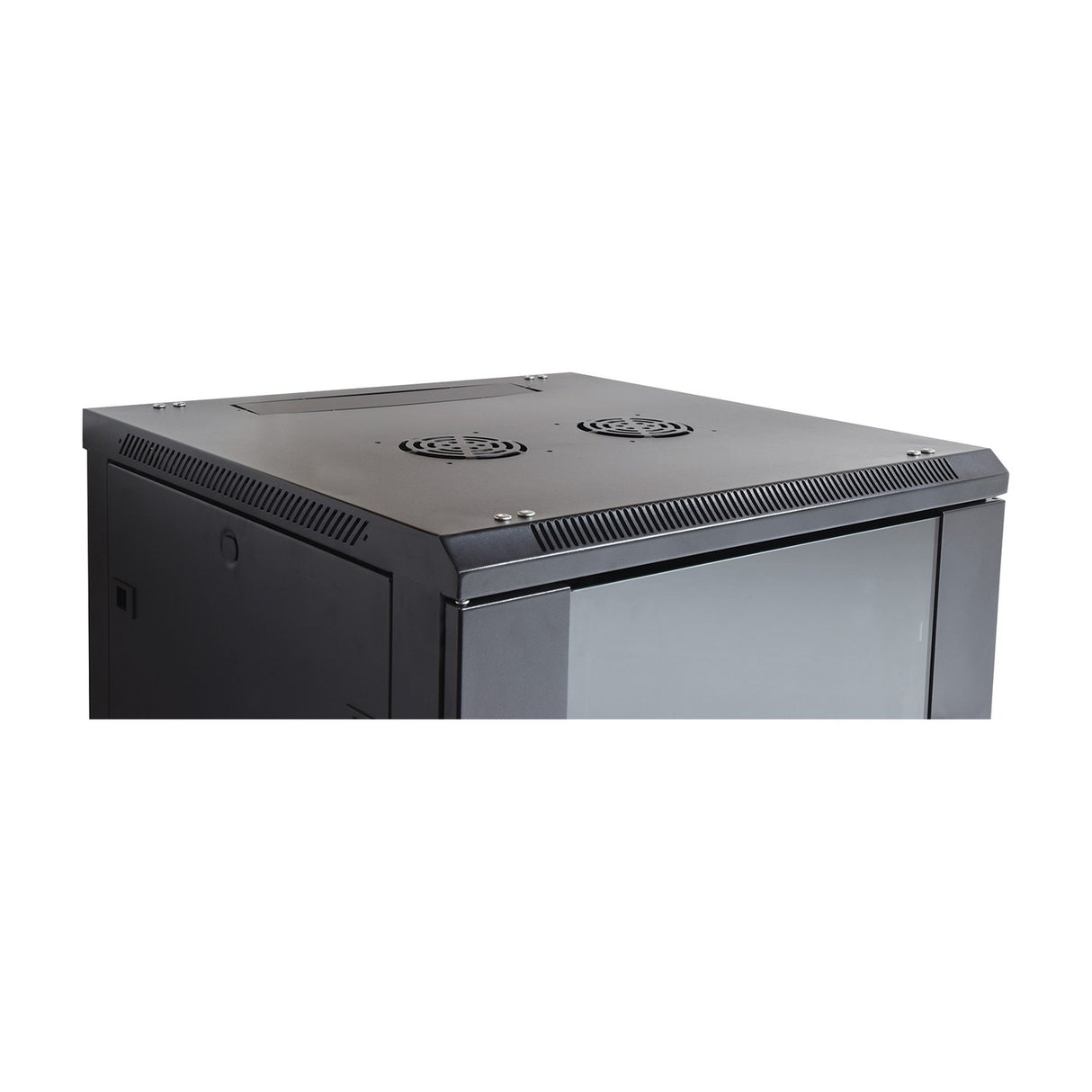

The front door is removable and holds a pane of 5mm tempered glass flanked by folded steel edge panels. You can set it to open from either the left or right, and it locks with the supplied lock and two keys. The side panels clip in for easy access when you need to reach cabling or components. The top panel is vented for cooling and has a cut-out ready to take a cooling fan if your setup needs one, while top and bottom knock-outs handle cable feeds (cabling routes).

You can wall-mount the cabinet using the fixing apertures on the rear panel, or use it free-standing. The RC9U600 meets ANSI/EIA RS-310-D, IEC297-2, DIN41491 Part 1 and Part 7, and ETSI standards. It comes in two depths and a range of rack heights, so you can match it to the gear you are housing. Assembly is straightforward, and the whole design is set up for secure, tidy rack installations.

Specification
Material 1.2mm cold rolled steel & 5mm tempered glass
Finish Epoxy powder coated RAL9004
Maximum load 100kg static (total)
Standard ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI compliant

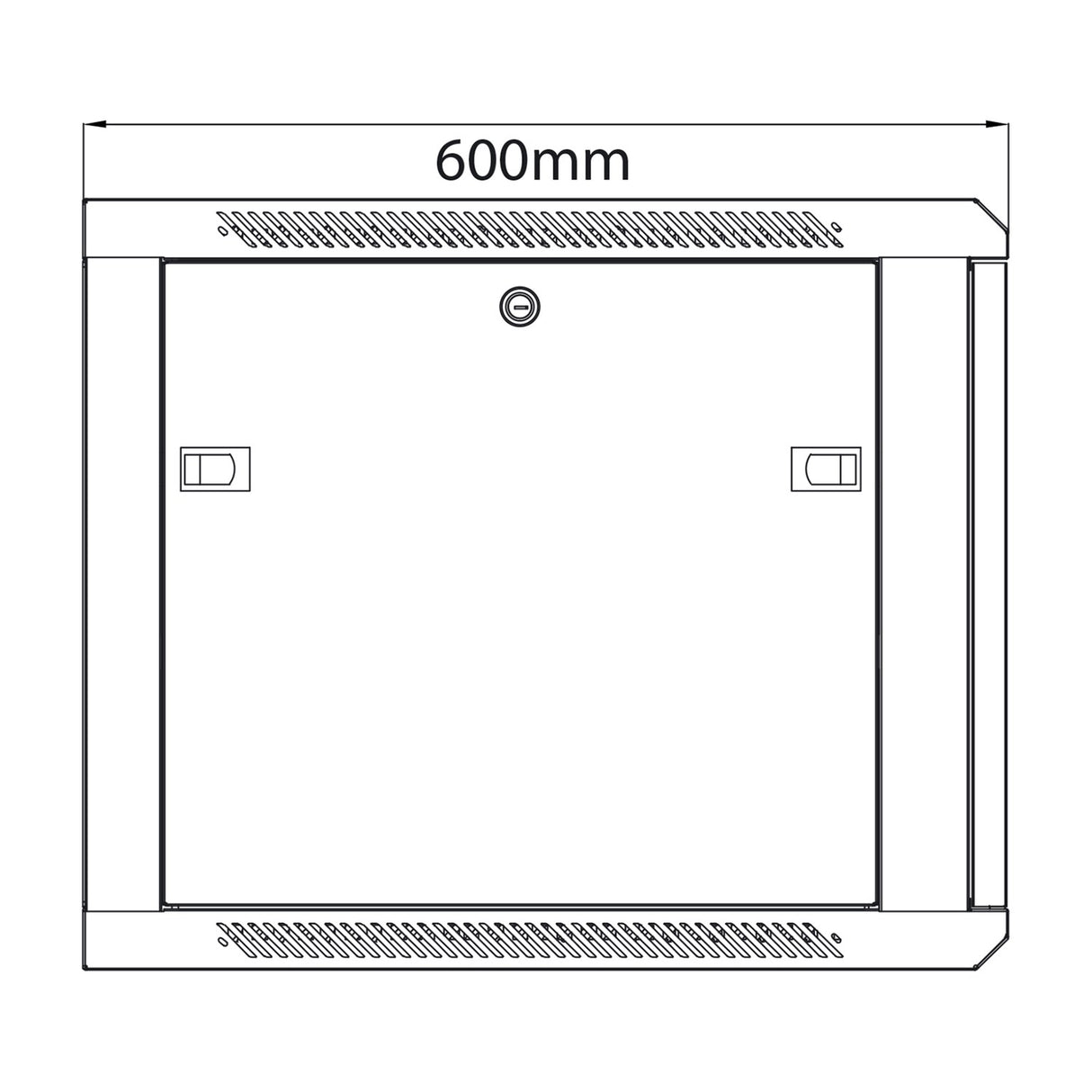

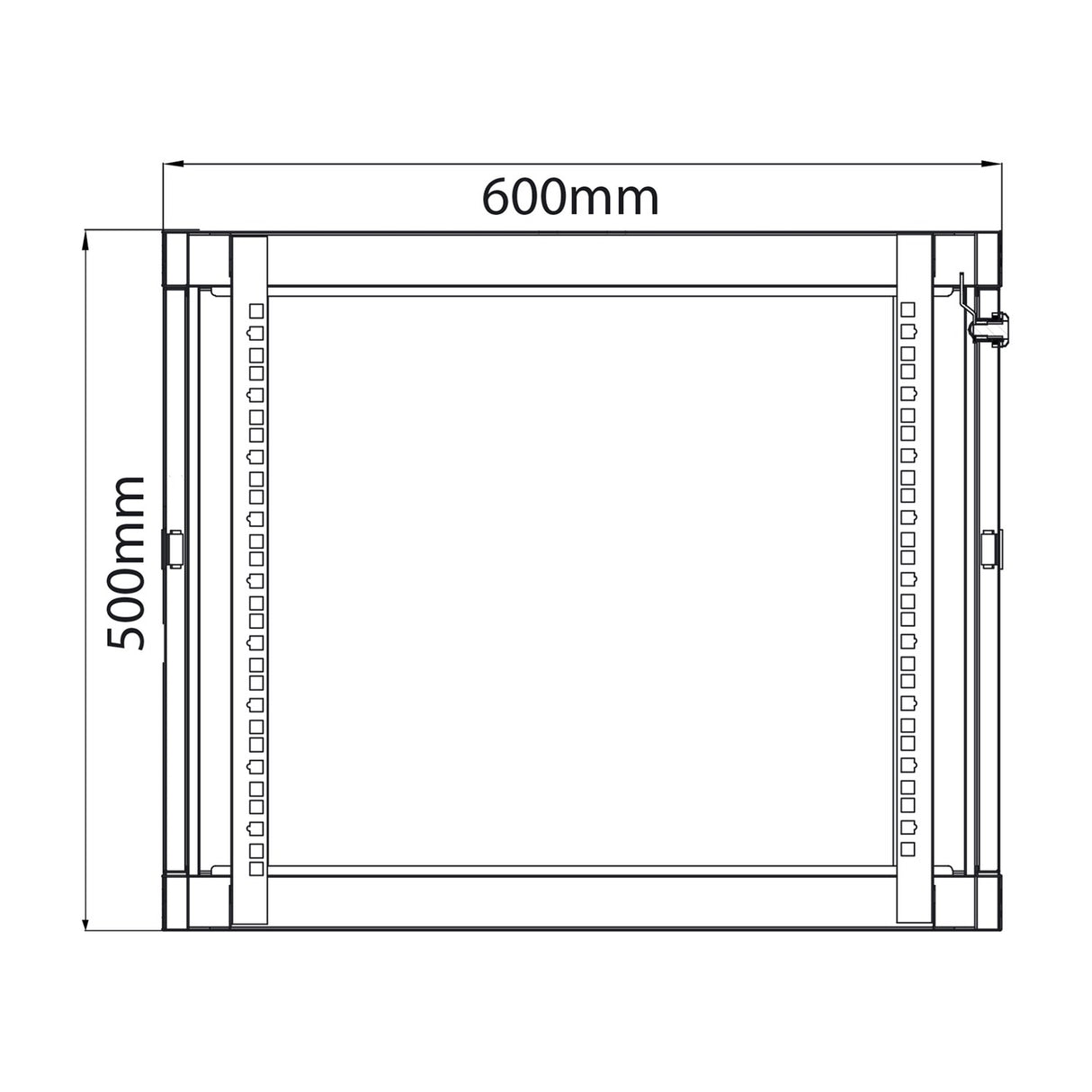

Width 600mm
Downloads

Product Manual

Frequently Asked

How many rack units does the RC9U600 hold?

It provides 9U of mounting space, with front and rear rack strips supplied for depth adjustment.

Is the mounting depth adjustable?

Yes. The front and rear rack strips mount to internal rails so you can adjust the depth to fit equipment with overhanging fittings or support the rear of heavy units.

Can I mount it on a wall?

Yes. The rear panel has fixing apertures for wall mounting, or you can use the cabinet free-standing.

Does the door lock?

Yes. The removable glass front door comes with a lock and two keys, and can be set to open from the left or right.

Can I fit a cooling fan?

Yes. The top panel is vented and has a cut-out ready to take a cooling fan if required.

What is the maximum load?

The cabinet is rated for 100kg static load in total.
