Adastra RC28U600 28U 600mm Deep 19" Rack Cabinet

£38999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

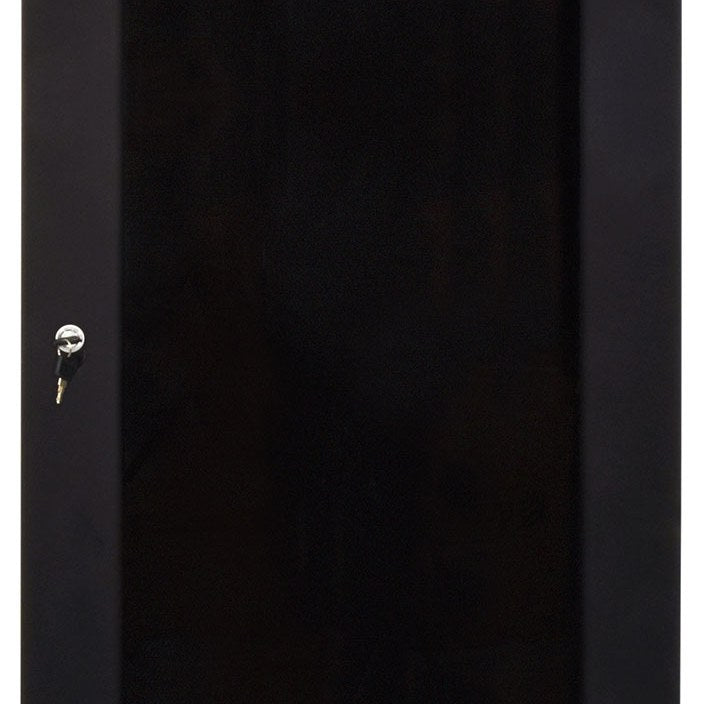

The Adastra RC28U600 is a 28U rack cabinet built for 19" rack-mount equipment, with a 600mm depth that suits shallower installs where space is tight. It's made from 1.2mm cold-rolled steel with folded edges for strength, finished in epoxy powder coated RAL9004. The front door holds a 5mm tempered glass pane flanked by folded steel edge panels, and it can be set to open from either the left or right. A lock and two keys are supplied, so kit stays secure.

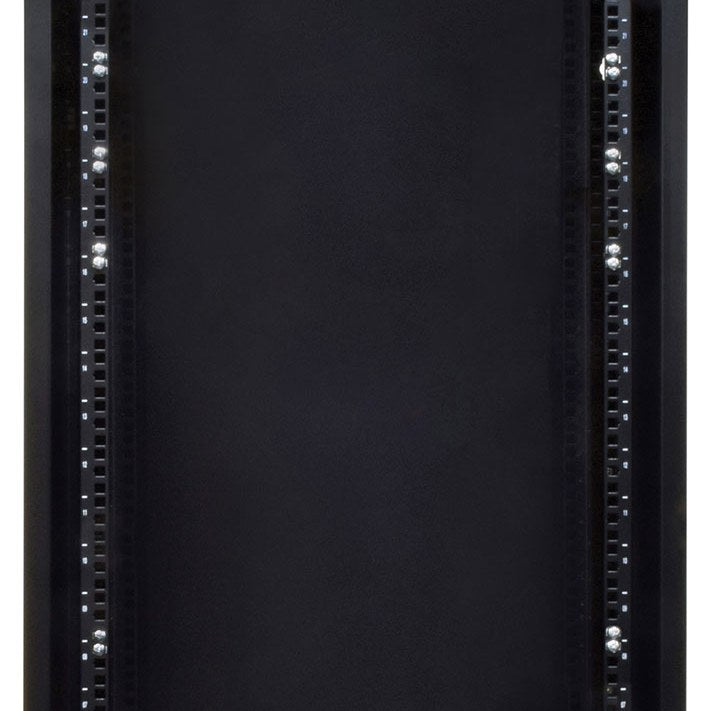

Front and rear rack strips are mounted to rails inside the cabinet, and you can adjust the mounting depth to take equipment with overhanging fittings or to support the rear of heavier units. The clip-in side panels are removable for easy access during cabling and maintenance. The top panel is vented for cooling and includes a cut-out so you can add a cooling fan if you need one, while top and bottom knock-outs give you routes for cable feeds.

The cabinet can be wall mounted using the fixing apertures in the rear panel, or left free-standing, so it works in a wall cabinet role or as a floor unit. Maximum static load is 100kg total across the cabinet. It complies with ANS/EIA RS-310-D, IEC297-2, DIN41491 Part 1 and Part 7, and ETSI standards, so it's a good fit for professional rack installations. The RC28U600 is one of a range available in two depths and various rack heights, giving you options to match the amount of gear you're housing.

Specification
Material 1.2mm cold rolled steel & 5mm tempered glass
Finish Epoxy powder coated RAL9004
Maximum load 100kg static (total)
Standard ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI compliant
Width 600mm
Downloads

Product Manual

Frequently Asked

How much equipment does 28U hold?

28U gives you 28 rack units of mounting height for standard 19" rack-mount equipment. Actual capacity depends on the U height of each item you install.

Can I wall mount this cabinet?

Yes. The rear panel has fixing apertures for wall mounting, or you can use it free-standing. It's suited to both.

Is the mounting depth adjustable?

Yes. The front and rear rack strips mount to internal rails, so you can adjust the depth to fit equipment with overhanging fittings or to support the rear of heavy units.

What is the maximum load?

The cabinet takes up to 100kg static load in total. Spread heavier items sensibly across the height.

Can I fit a cooling fan?

Yes. The top panel is vented and has a cut-out for mounting a cooling fan if you need extra airflow.

Which way does the door open?

The front door is removable and can be set to open from either the left or right, so you can suit it to your room layout.
