Adastra RC28U450 28U Steel 19" Rack Cabinet

£37999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

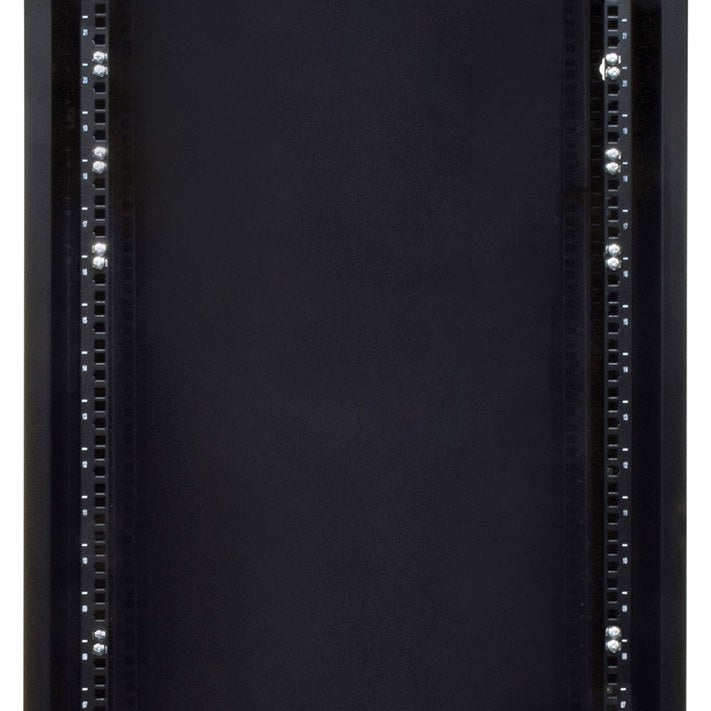

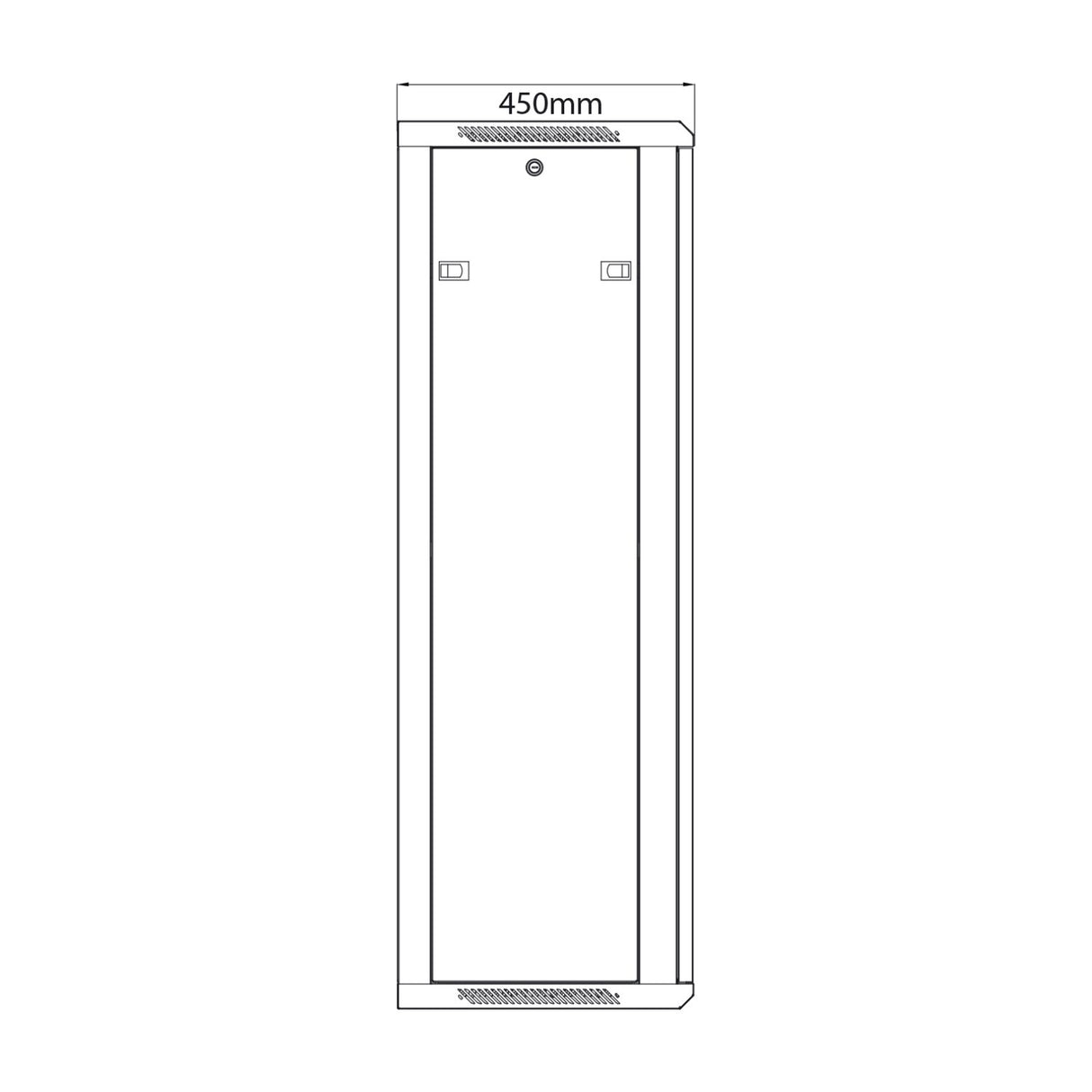

The Adastra RC28U450 is a 28U rack cabinet built for 19" rack-mount equipment, with a mounting depth of 450mm. It is made from 1.2mm cold-rolled steel with folded edges for strength and stability, finished in epoxy powder coated RAL9004. The front and rear rack strips are supplied and fitted to internal rails, so you can adjust the mounting depth to suit equipment with overhanging fittings or to support the rear of heavier units.

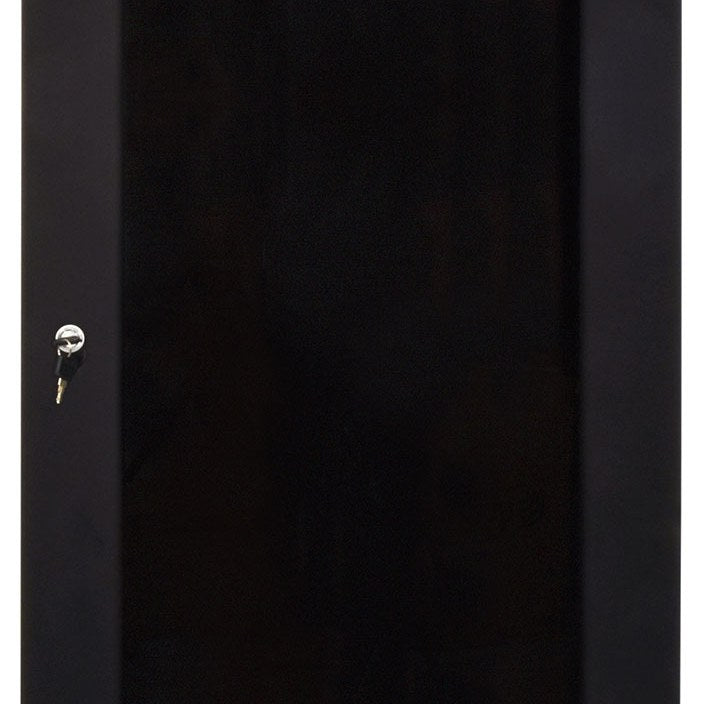

The front door is removable and has a 5mm tempered glass pane set within folded steel edge panels. You can set it to open to the left or right, and it locks shut with two keys included. The side panels clip in for easy access when you need to reach the internals, and the vented top panel helps with cooling. There is also a cut-out on the top for fitting a cooling fan if you need one. Top and bottom knock-outs let you feed cables in and out neatly.

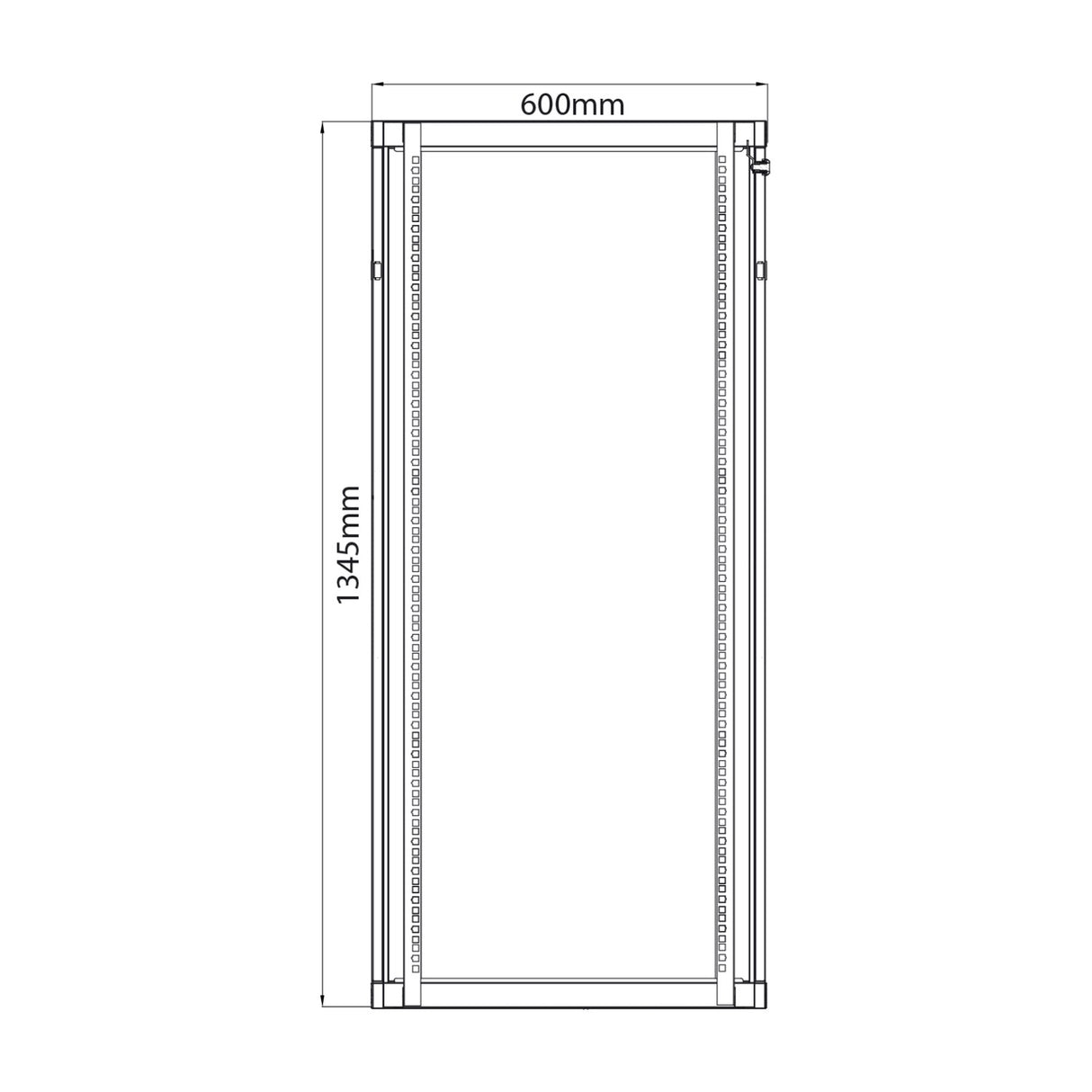

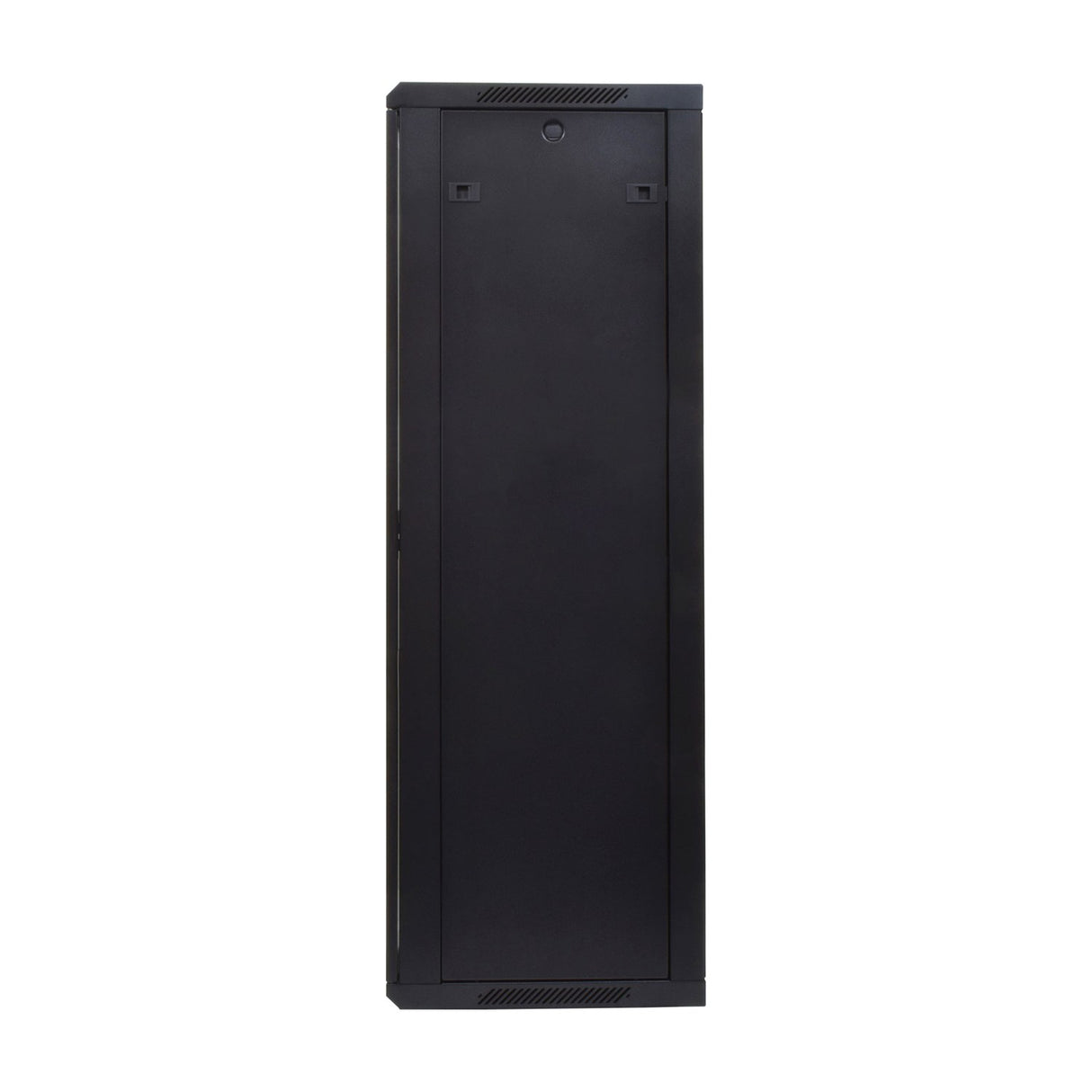

You can wall mount the cabinet using the fixing apertures on the rear panel, or stand it free on the floor. The static load rating is 100kg total, and the cabinet measures 600mm wide. It meets ANS/EIA RS-310-D, IEC297-2, DIN41491 Part 1 and Part 7, and ETSI standards. Assembly is straightforward, and the range is offered in two depths and several rack heights so you can pick the size that fits your install. This is secure, well-built containment for professional rack setups.

Specification
Material 1.2mm cold rolled steel & 5mm tempered glass
Finish Epoxy powder coated RAL9004
Maximum load 100kg static (total)
Standard ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI compliant
Width 600mm
Downloads

Product Manual

Frequently Asked

How much equipment does 28U hold?

The cabinet has 28 rack units of usable height for 19" rack-mount equipment, with front and rear strips you can adjust to suit different mounting depths.

Can I wall mount this cabinet?

Yes. The rear panel has fixing apertures for wall mounting, or you can use the cabinet free-standing on the floor.

Does the door lock?

Yes. The front door has a lock and comes with two keys. The glass pane is 5mm tempered glass within folded steel edge panels.

Which way does the door open?

The front door is removable and can be mounted to open to either the left or right, whichever suits your space.

What is the maximum load?

The cabinet is rated for 100kg static total across all mounted equipment.

Can I fit a cooling fan?

Yes. The top panel is vented and has a cut-out for mounting a cooling fan if you need extra airflow.
