Adastra RC18U600 18U 600mm Steel Rack Cabinet

£27999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

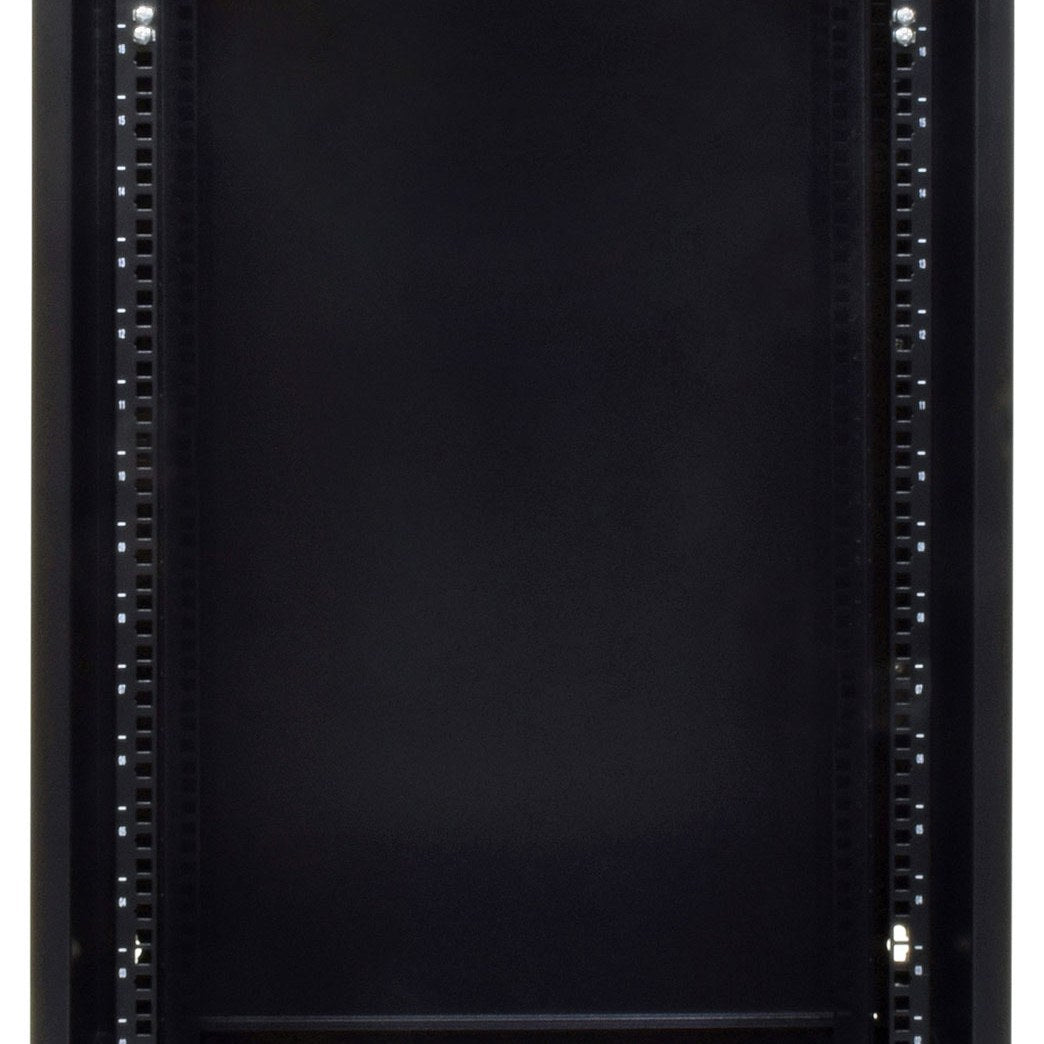

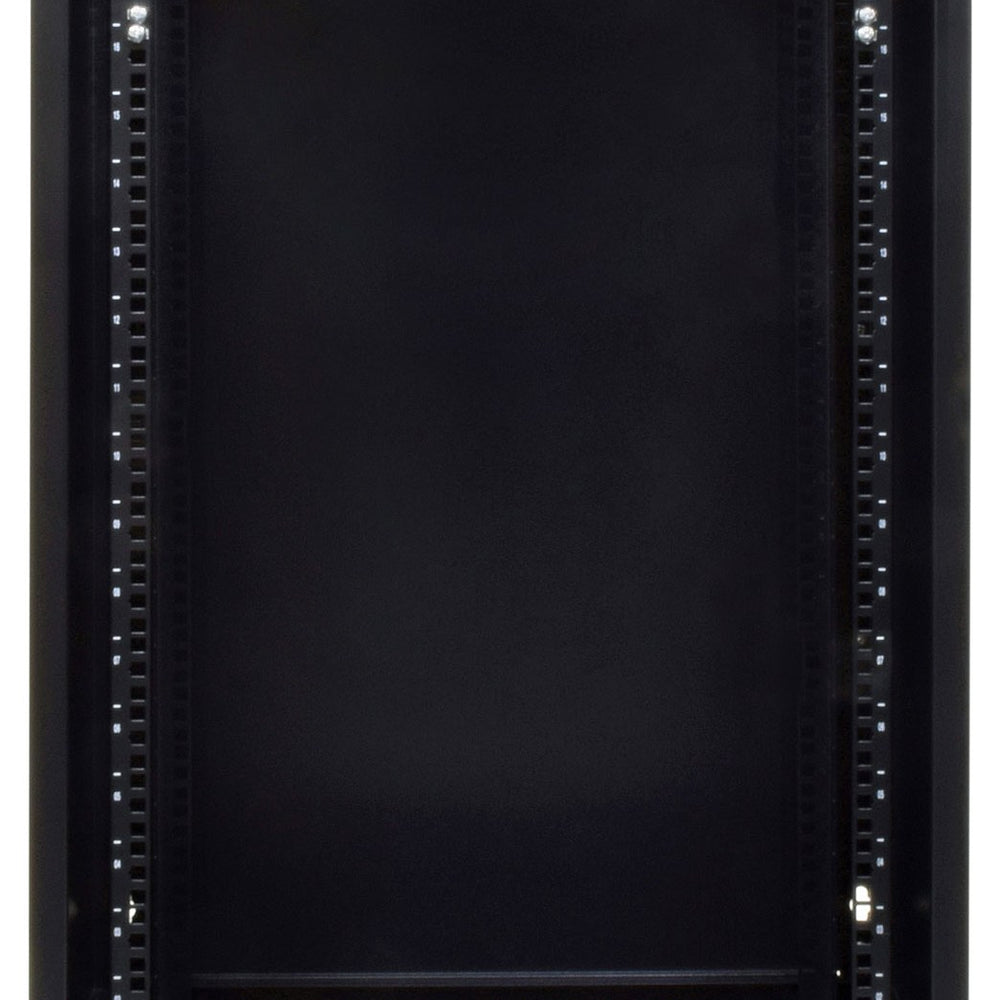

The Adastra RC18U600 is a 19" rack cabinet built for professional rack-mount equipment, offering 18U of mounting space at 600mm deep. It is made from 1.2mm cold-rolled steel with folded edges for strength and stability, finished in an epoxy powder coating in RAL9004. Front and rear rack strips are supplied and mounted to internal rails, so you can adjust the mounting depth to suit equipment with overhanging fittings or to support the rear of heavier units.

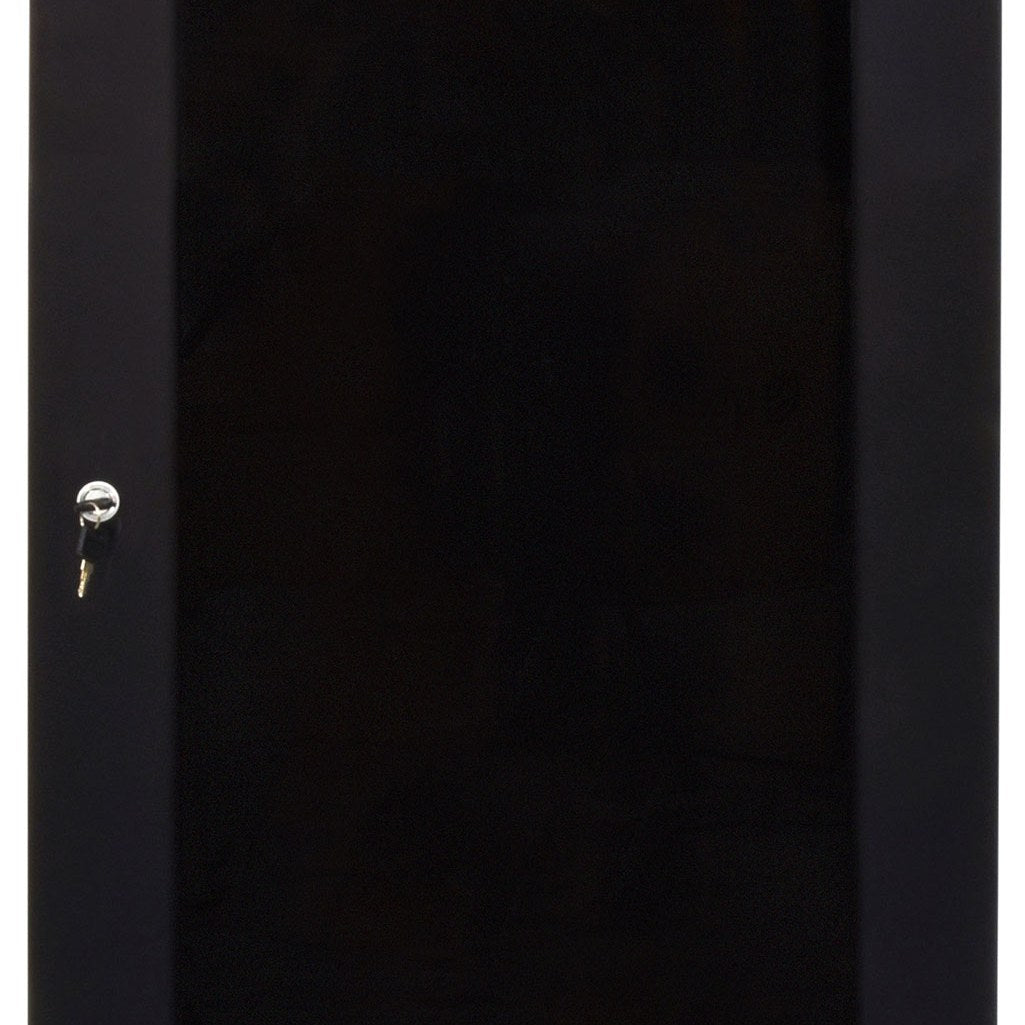

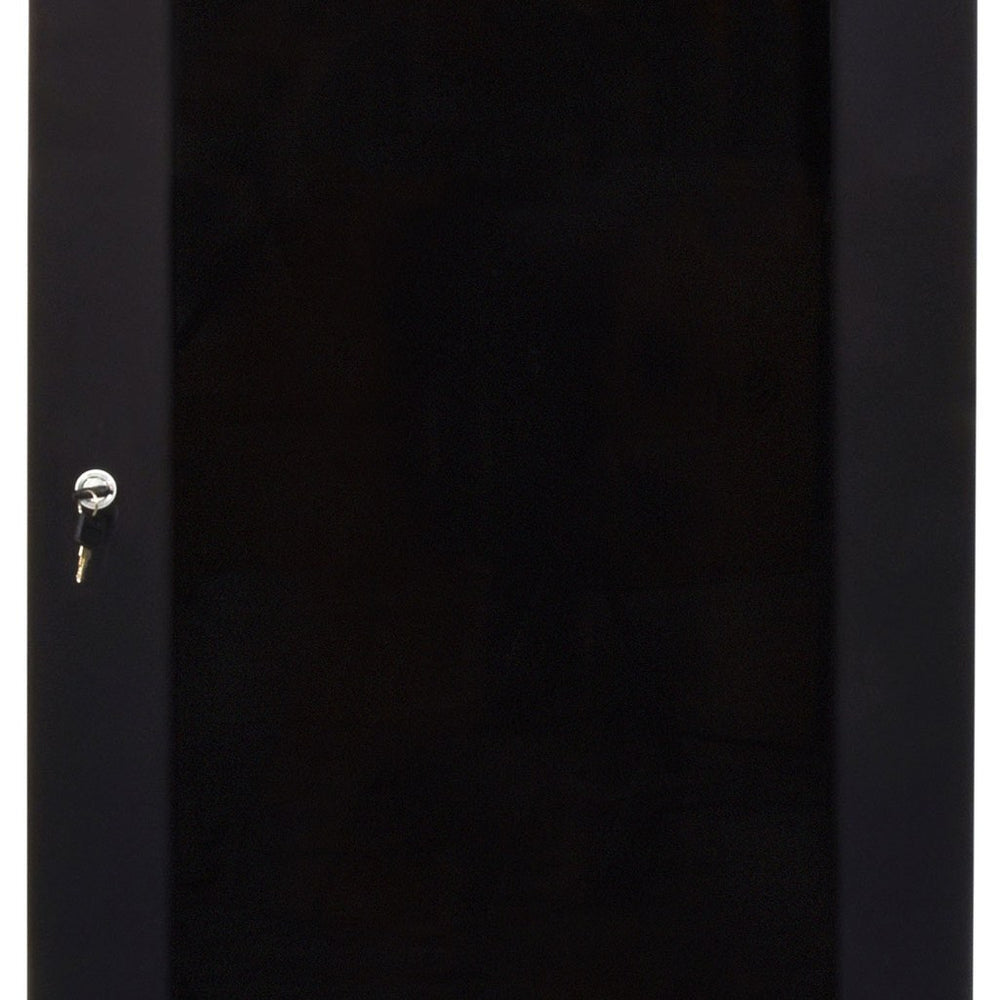

The front door is removable and fitted with a pane of 5mm tempered glass, flanked by folded steel edge panels, and it can be set to open from either the left or right. The door is lockable and comes with two keys. Clip-in side panels lift out for easy access during installation and cabling, and the top panel is vented for cooling with a cut-out ready for a fan if you need one. Top and bottom knock-outs give you tidy cable feeds in and out.

This cabinet can be wall mounted using the fixing apertures on the rear panel, or left free-standing where floor space allows. It carries a maximum static load of 100kg in total and meets ANS/EIA RS-310-D, IEC297-2, DIN41491 Part 1 and Part 7, and ETSI standards. The RC18U600 is easy to assemble and available in two depths and various rack heights, so you can match it to the kit you are housing. It gives you secure, well-vented containment for AV, network or studio installations.

Specification
Material 1.2mm cold rolled steel & 5mm tempered glass
Finish Epoxy powder coated RAL9004
Maximum load 100kg static (total)
Standard ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI compliant
Width 600mm
Downloads

Product Manual

Frequently Asked

How much equipment does the RC18U600 hold?

It offers 18U of rack space at 600mm deep, with a maximum static load of 100kg in total.

Can I adjust the mounting depth?

Yes. Front and rear rack strips mount to internal rails, so you can adjust the depth for overhanging fittings or to support the back of heavy units.

Is the cabinet lockable?

Yes. The front door has a lock and is supplied with two keys. The glass door can also be set to open from the left or right.

Can it be wall mounted?

Yes. The rear panel has fixing apertures for wall mounting, or you can use it free-standing.

Does it help with cooling?

The top panel is vented and has a cut-out so you can fit a cooling fan if required.

What is the door made from?

The front door uses a pane of 5mm tempered glass flanked by folded steel edge panels.
