Adastra RC12U600 12U 600mm Deep 19" Rack Cabinet

£24099
RRP £24900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

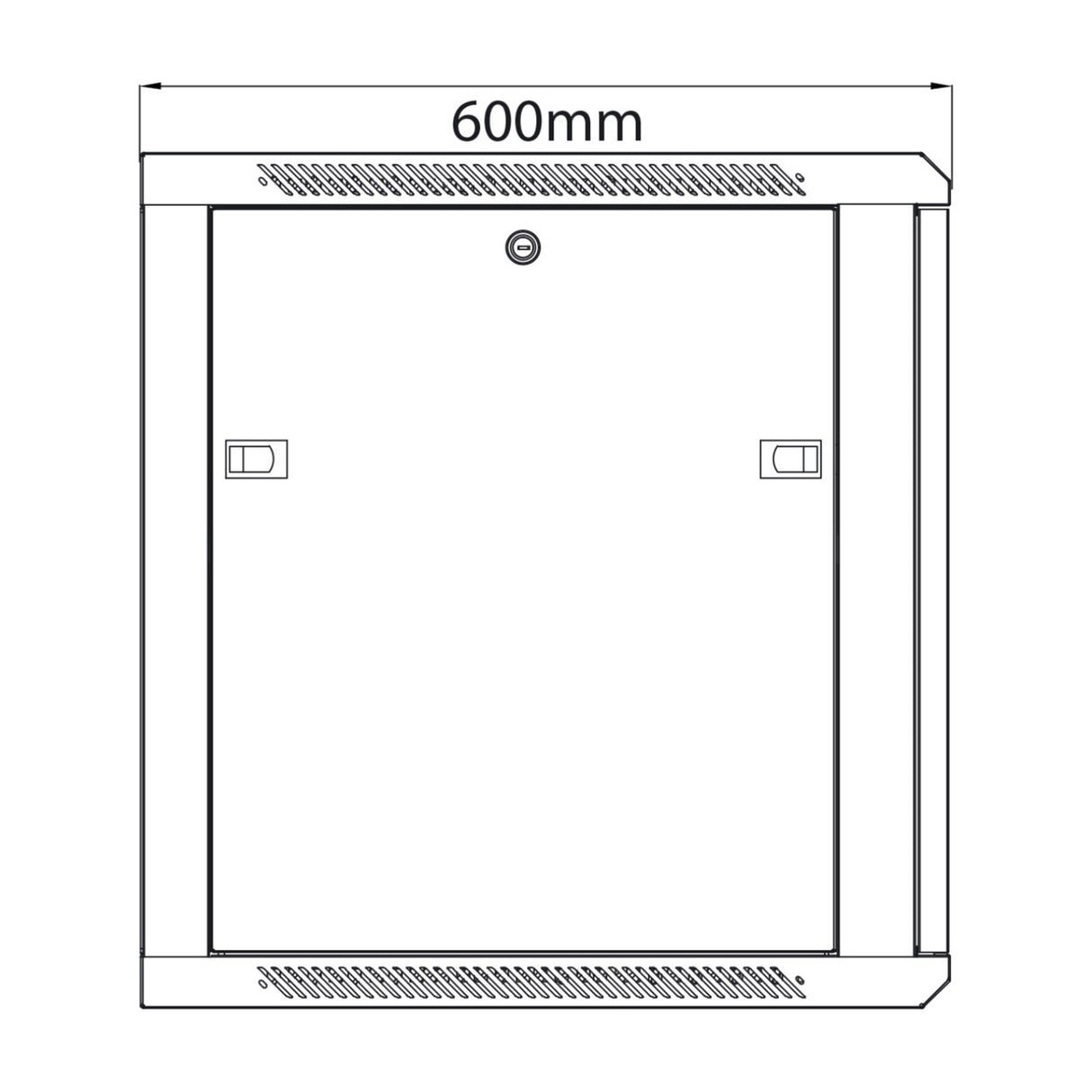

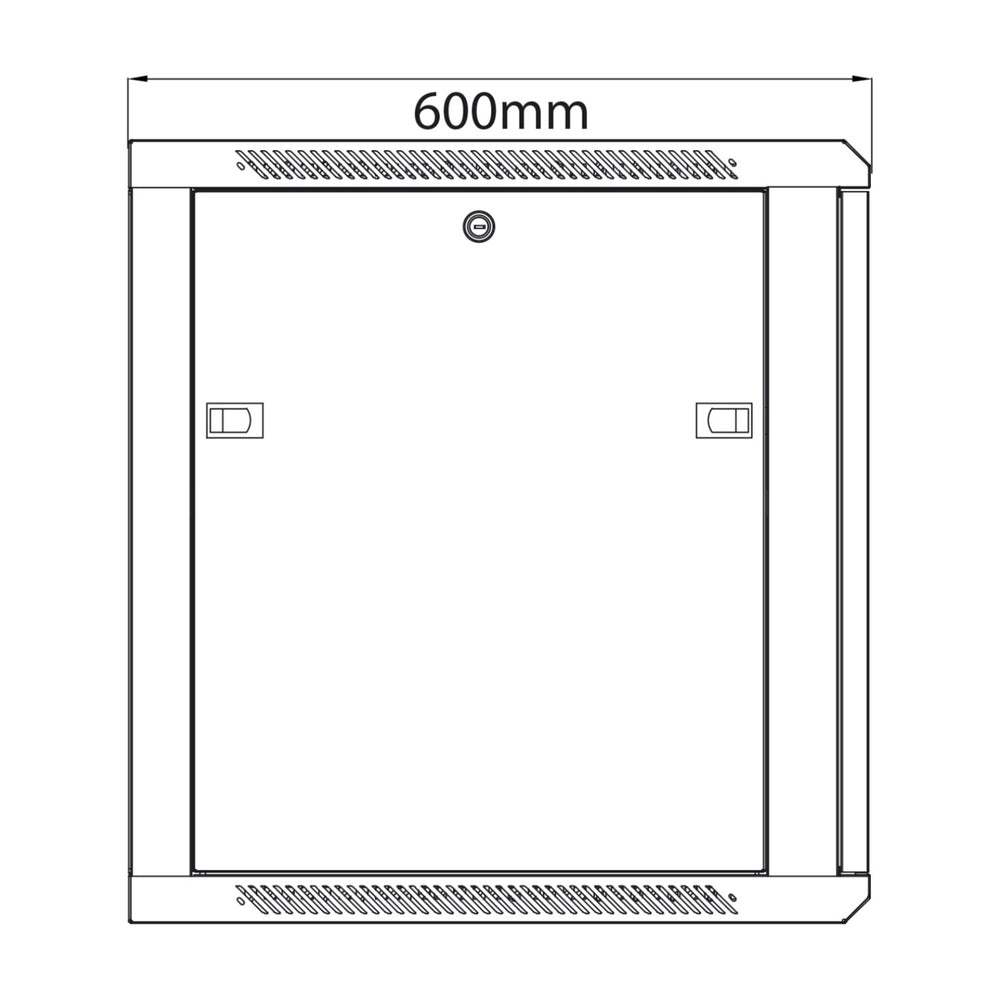

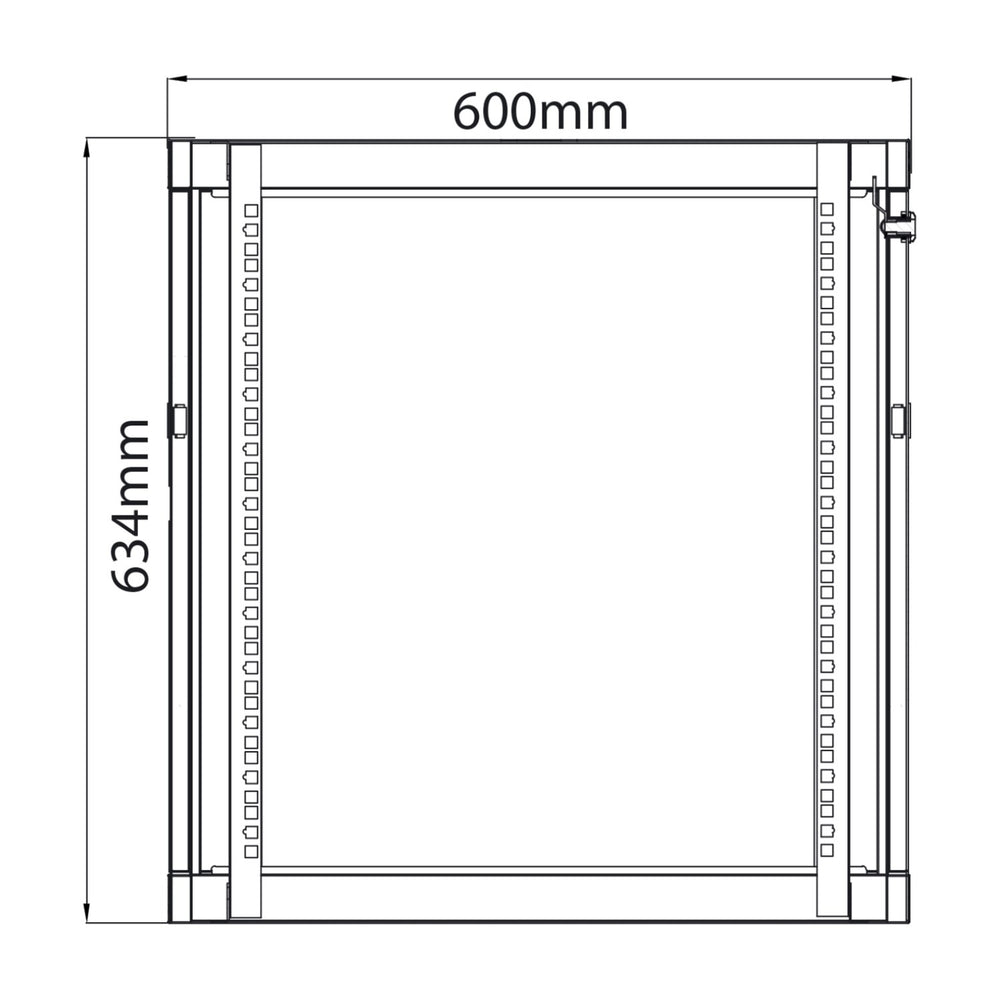

The Adastra RC12U600 is a 12U rack cabinet built for 19" rack-mount equipment, with a mounting width of 600mm and a depth of 600mm. It is made from 1.2mm cold-rolled steel with folded edges for strength and stability, so it holds its shape under load and stays square during installation. The finish is an epoxy powder coat in RAL9004, giving a hard-wearing matt black surface. Static load capacity is 100kg total, which covers most amplifiers, switches and patch panels you are likely to fit.

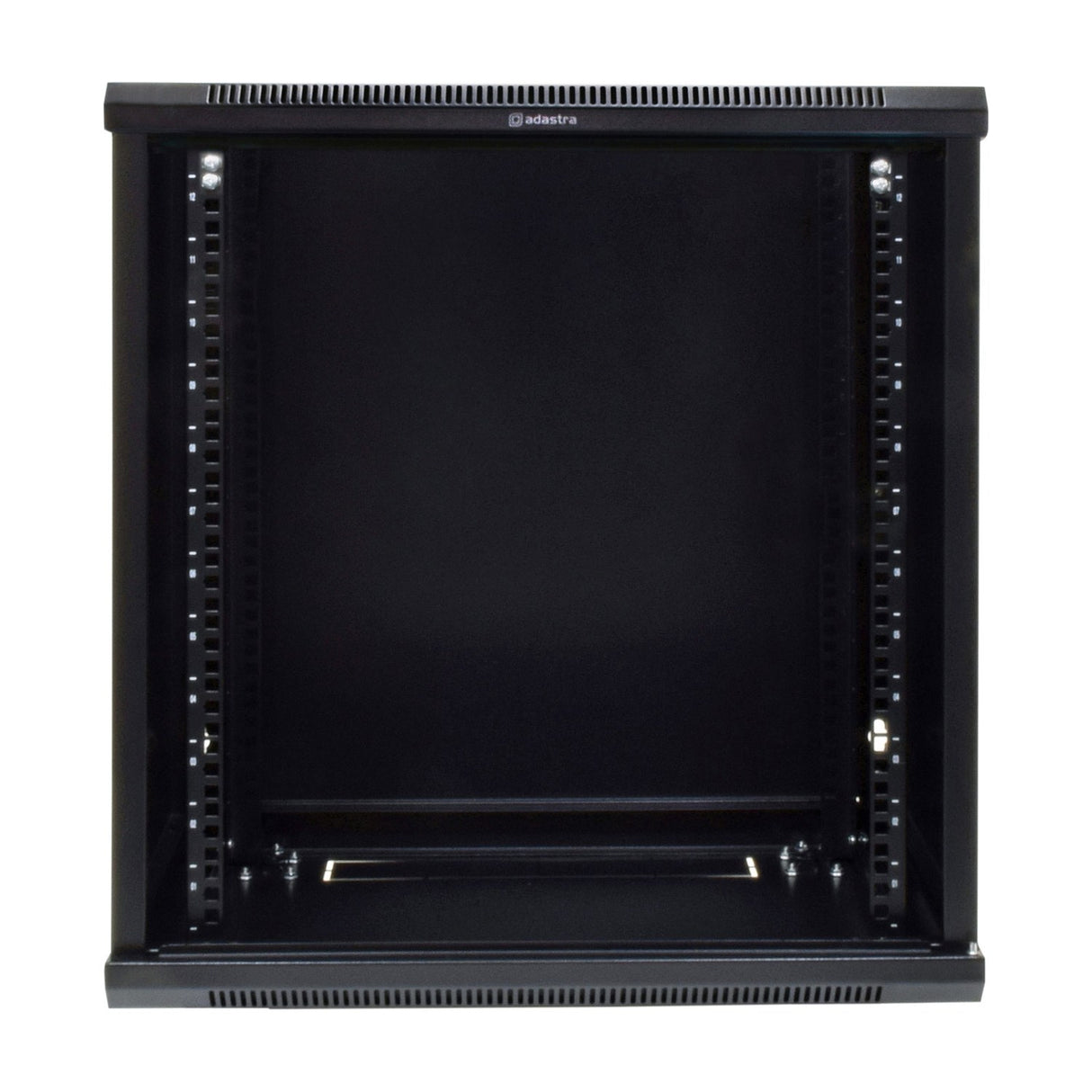

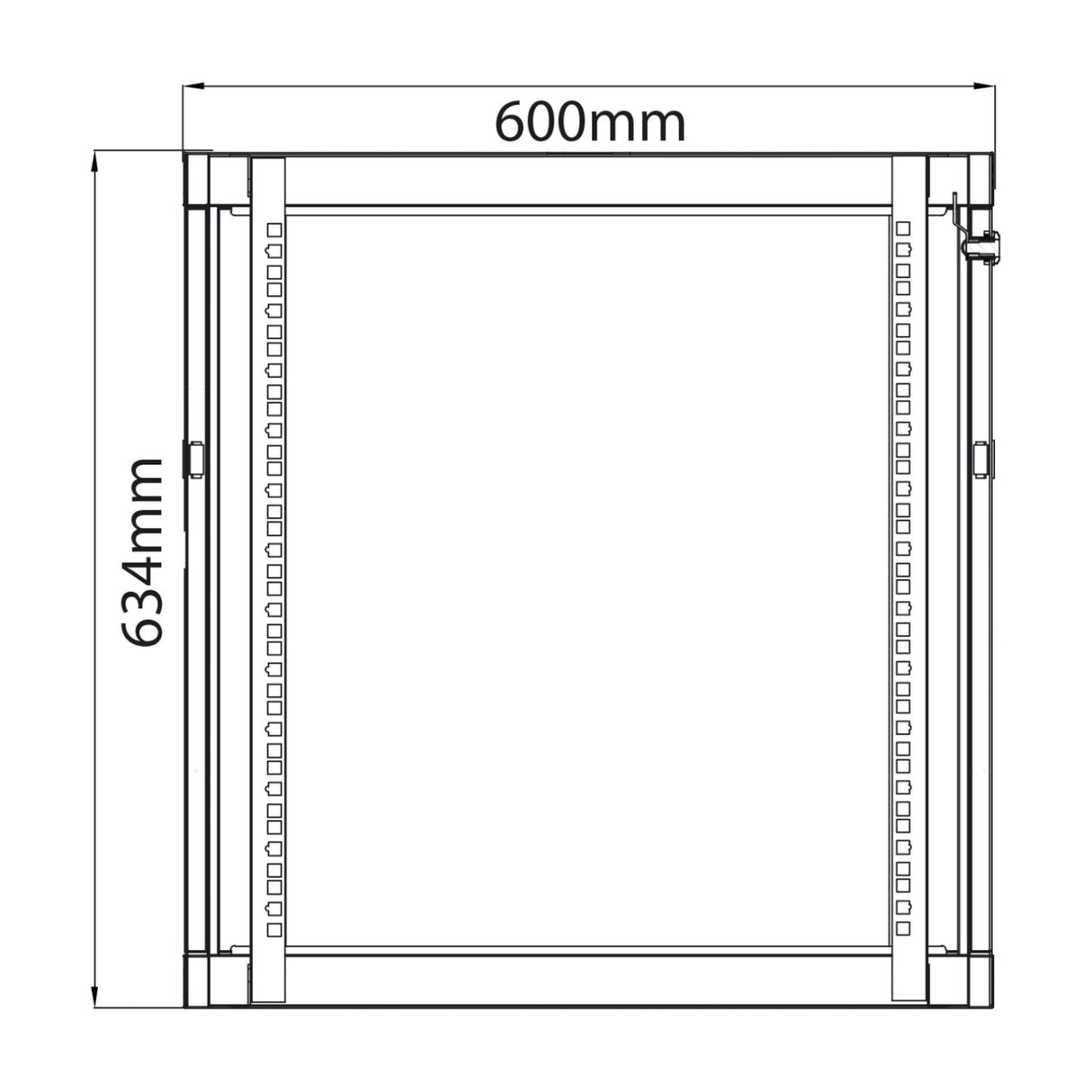

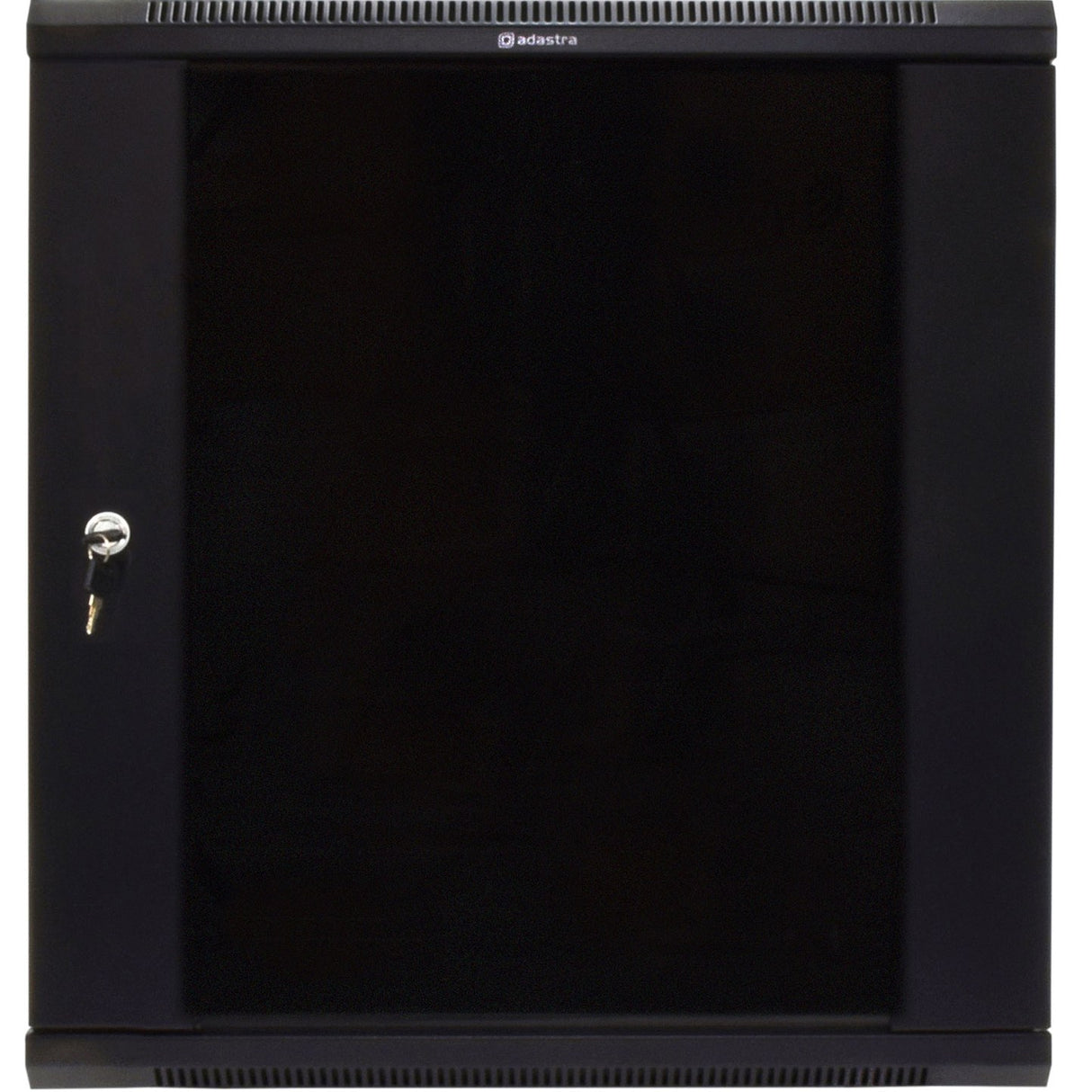

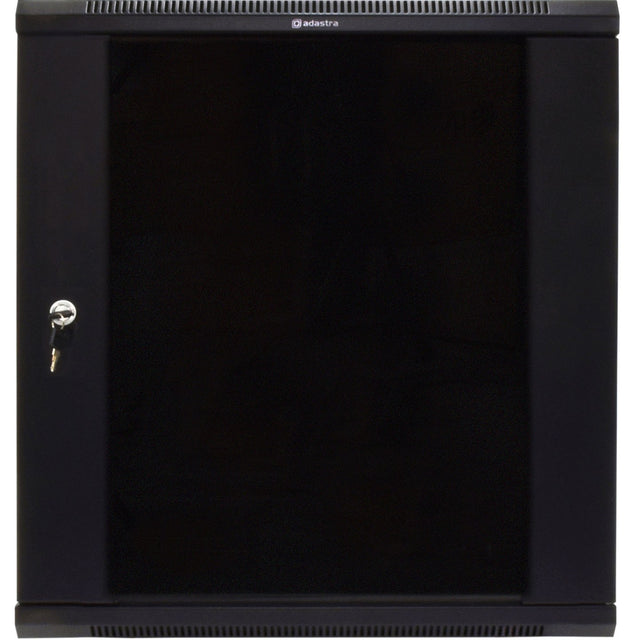

Front and rear rack strips are supplied and mounted to internal rails, so you can adjust the mounting depth to suit equipment with overhanging fittings or to support the rear of heavier units. The front door is removable and fitted with a pane of 5mm tempered glass flanked by folded steel edge panels. It can be set to open to the left or right, and comes with a lock and two keys. Clip-in side panels give quick access to the sides, and the top and bottom panels have knock-outs for cable feeds. The top panel is vented for cooling and has a cut-out for adding a cooling fan if you need one.

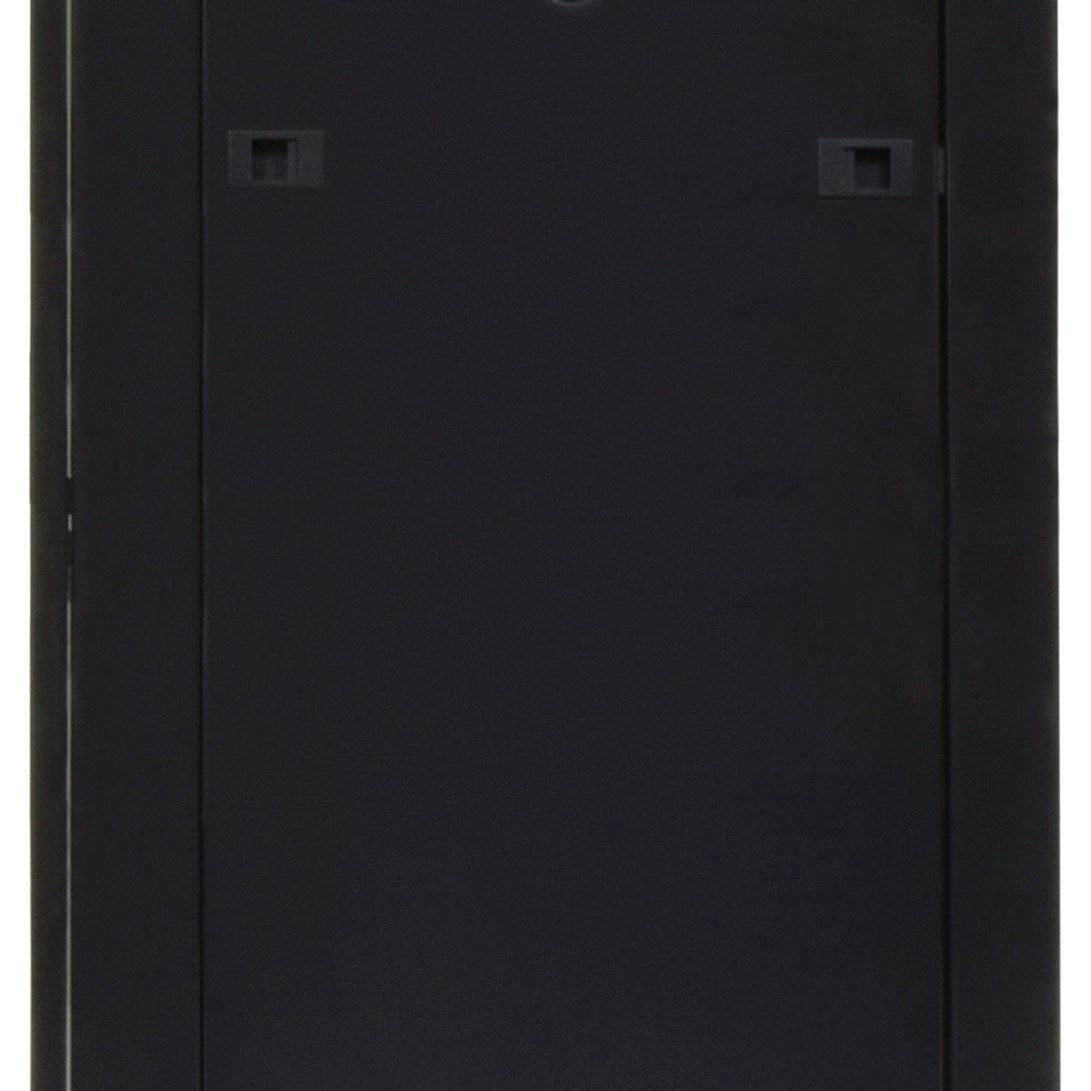

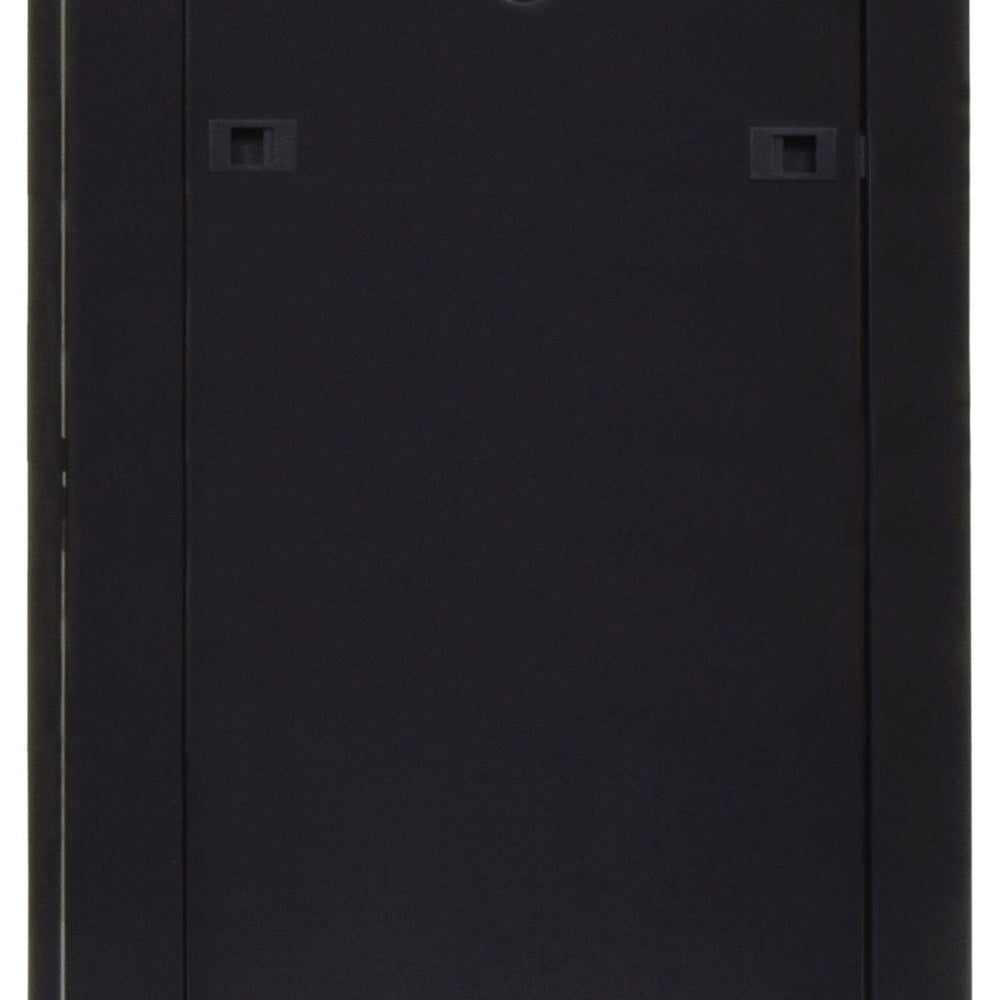

You can wall-mount the cabinet using the fixing apertures on the rear panel, or stand it free on the floor, so it works in both fixed installs and equipment rooms. The RC12U600 meets ANS/EIA RS-310-D, IEC297-2, DIN41491 Part 1, DIN41491 Part 7 and ETSI standards, so it takes standard 19" gear without fuss. It is available in two depths and several rack heights, letting you match the cabinet to the job rather than the other way round.

Specification
Material 1.2mm cold rolled steel & 5mm tempered glass
Finish Epoxy powder coated RAL9004
Maximum load 100kg static (total)
Standard ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI compliant
Width 600mm
Downloads

Product Manual

Frequently Asked

What size equipment does the RC12U600 hold?

It takes standard 19" rack-mount equipment up to 12U in height, with a 600mm mounting width and 600mm depth.

How much weight can it support?

The maximum static load is 100kg total. That covers most amplifiers, switches and patch panels used in professional installs.

Can I wall-mount it or does it stand on the floor?

Both. The rear panel has fixing apertures for wall mounting, or you can use it free-standing on the floor.

Is the mounting depth adjustable?

Yes. The front and rear rack strips are mounted to internal rails, so you can adjust the depth to suit overhanging fittings or support the rear of heavy units.

Does it come with a lock?

Yes. The front door is fitted with a lock and supplied with two keys. The door can be set to open to the left or right.

Can I fit a cooling fan?

The top panel is vented for cooling and has a cut-out for mounting a cooling fan if required.
