Adastra RC12U300 12U Shallow Wall Rack Cabinet

£11999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

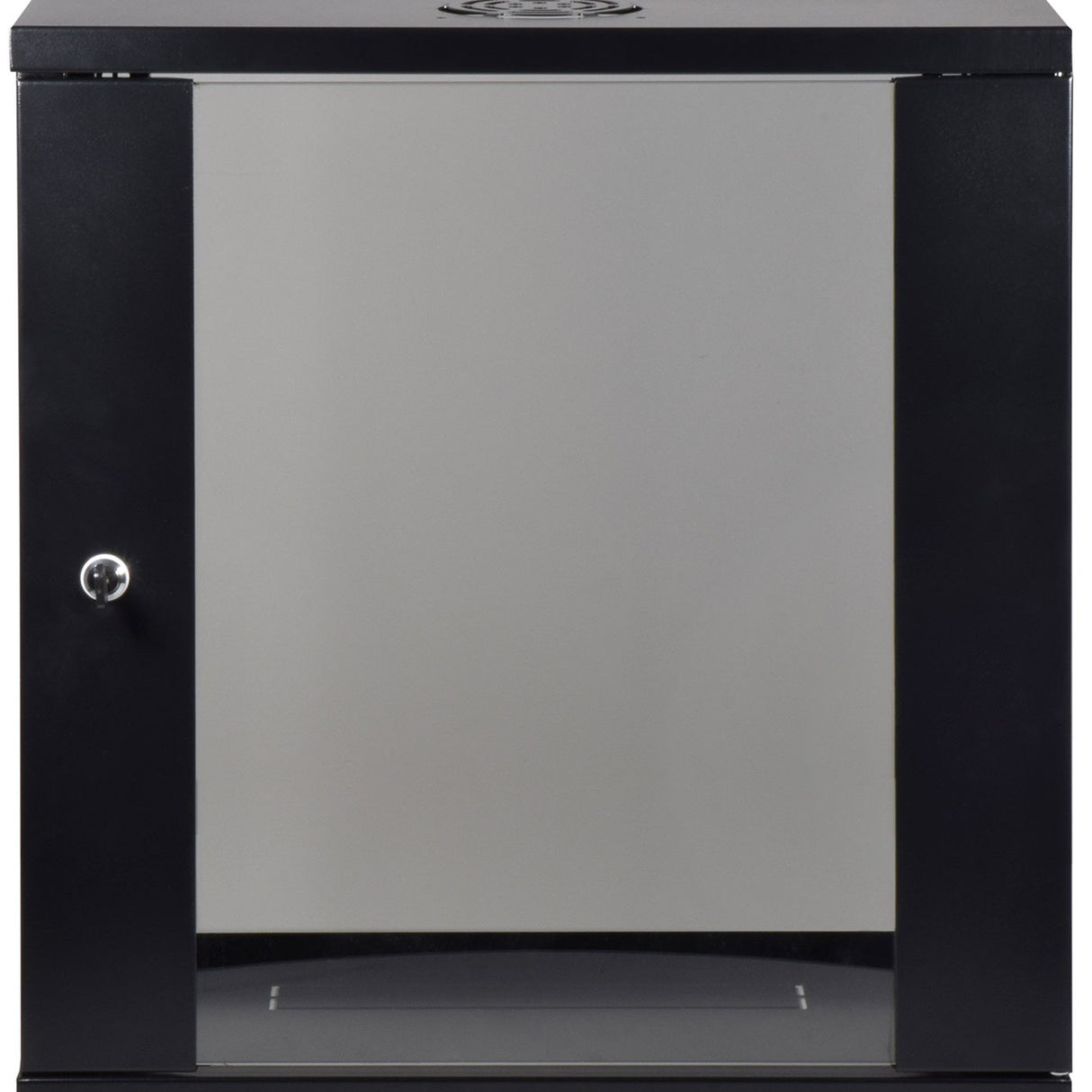

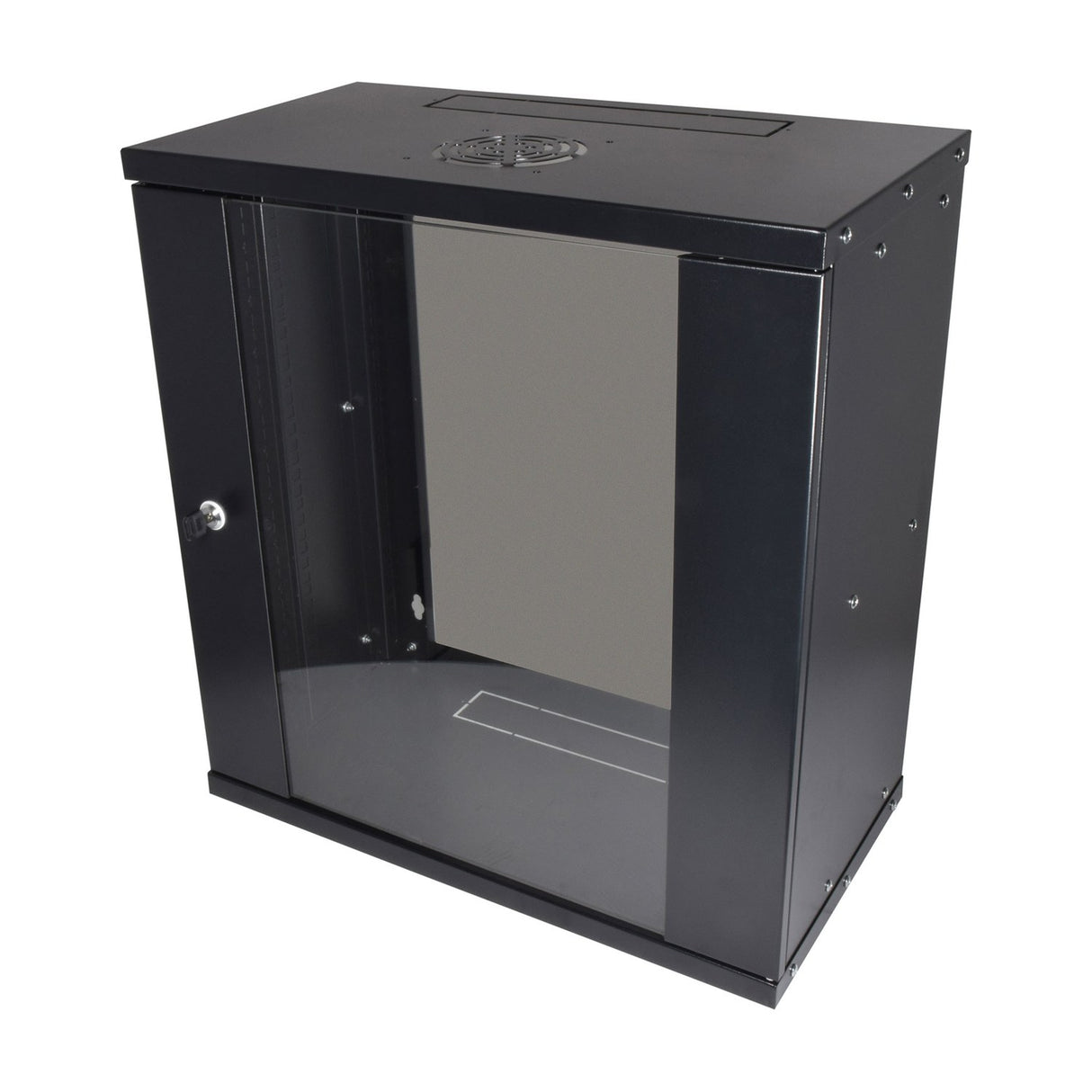

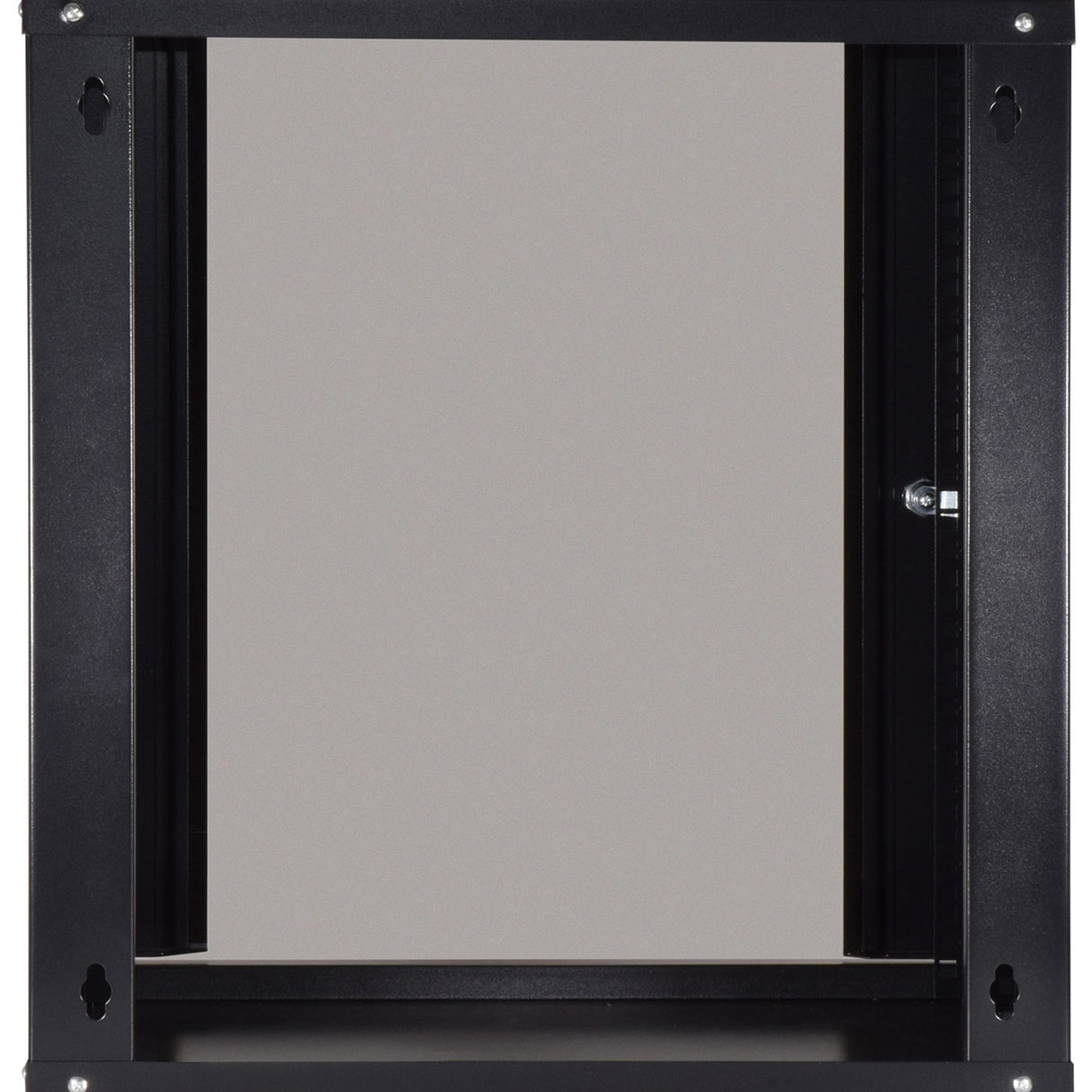

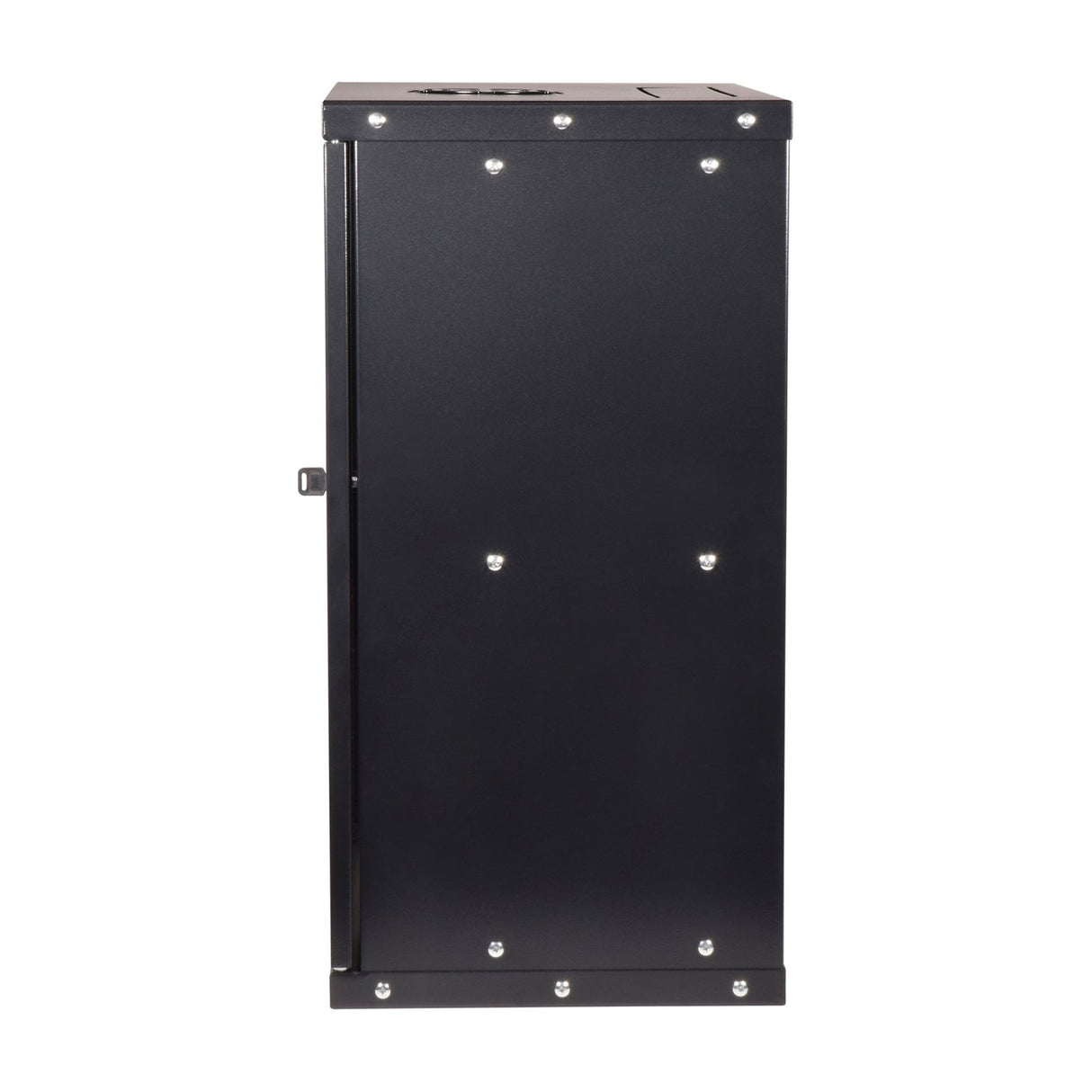

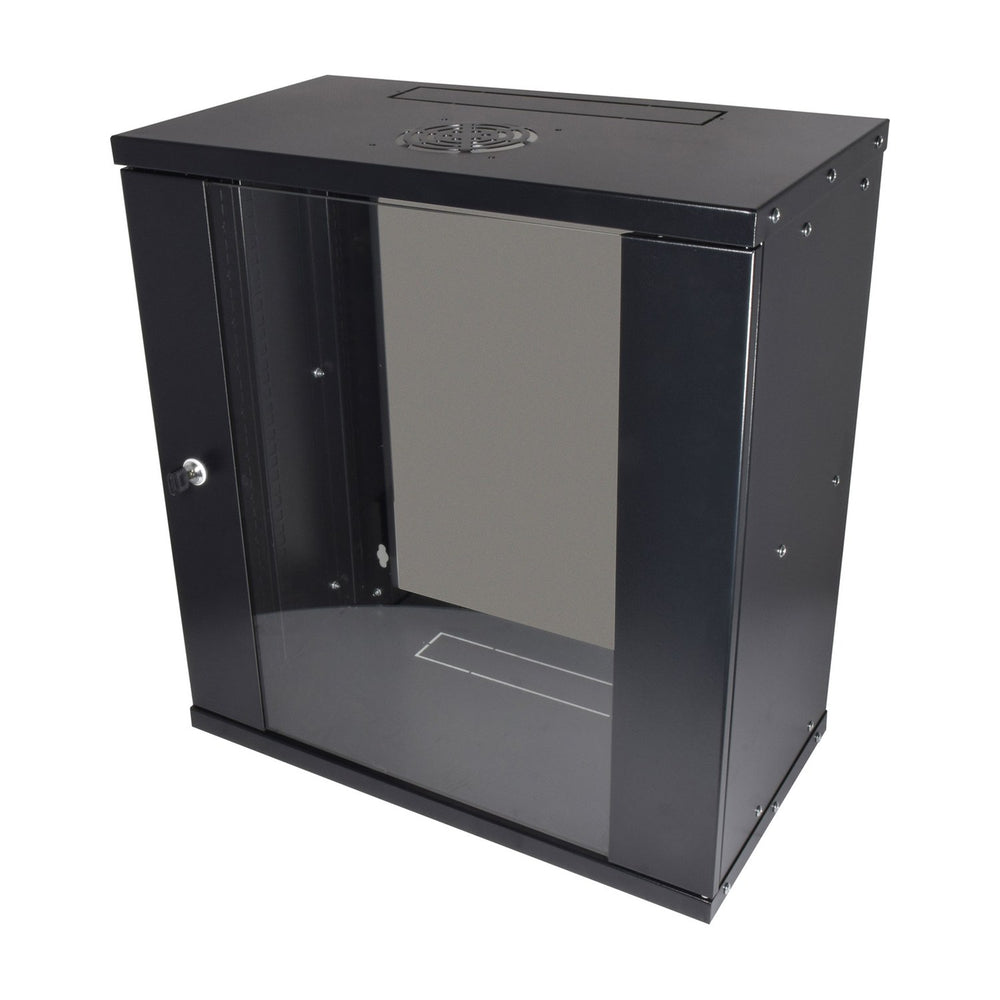

The Adastra RC12U300 is a wall-mounting rack cabinet built for 19" equipment in light duty applications. Made from 1.2mm cold-rolled powder-coated steel with a tempered glass front door, it gives you 12U of rack space in a shallow footprint. The rear panels have keyhole punch-outs for wall mounting, and there are knock-out apertures top and bottom for cable entry so you can route leads neatly whichever way suits your setup.

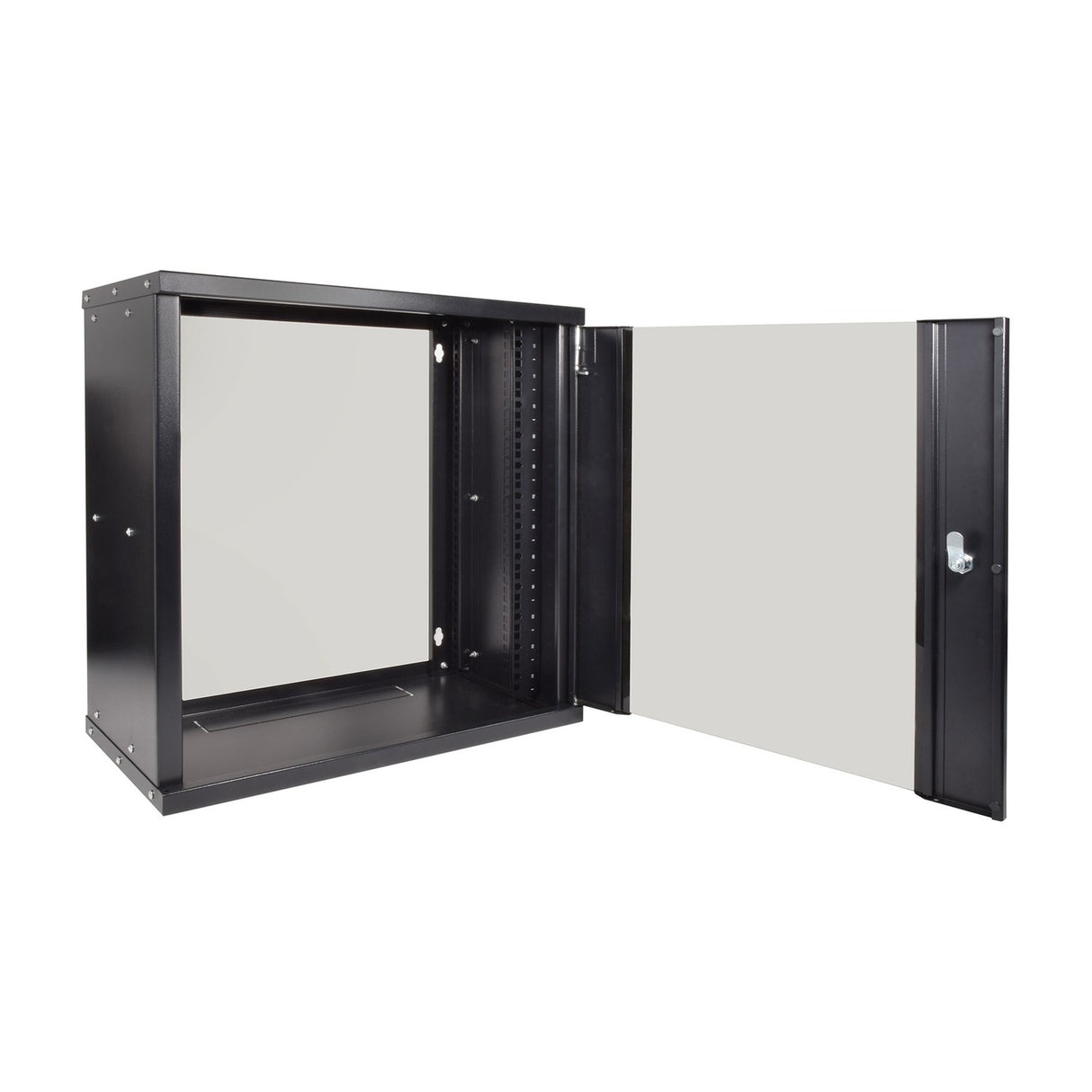

Front and rear rack rails let you secure equipment or shelves, and the rack-mounting hardware is supplied so you can fit gear straight away. You get a choice of two mounting positions for the front rails. The rear position takes a mounting depth of up to 280mm, while the forward position gives a shallower 220mm depth with room for protruding connectors in front. The lockable glass front door (US: glass front door) can be hinged on either side, which helps when wall space is tight.

This is a low profile answer for shallower rack equipment such as patch panels, wireless microphone receivers, mixers and smaller amplifiers. The cabinet measures 550mm wide by 300mm deep and handles a static load of up to 30kg. The mounting depth is 200mm, or 255mm from front rail to wall, so check your equipment against these figures before ordering. With the glass door fitted with a lock, your kit stays secure while remaining easy to see and access.

Specification
Width 550mm
Depth 300mm
Construction 1.2mm cold-rolled steel + tempered glass door
Max. load 30kg (static)
Mounting depth 200mm (255mm front rail to wall)
Downloads

Product Manual

Frequently Asked

How much equipment does the RC12U300 hold?

It offers 12U of 19" rack space, suitable for patch panels, wireless microphone receivers, mixers and smaller amplifiers in light duty use.

Can the door be hinged on either side?

Yes. The toughened glass front door can be hinged on the left or right, which is handy when wall space is limited on one side.

What mounting depth does it support?

The front rails have two positions. The rear position allows up to 280mm depth, and the forward position gives 220mm with room for protruding connectors in front.

Is mounting hardware included?

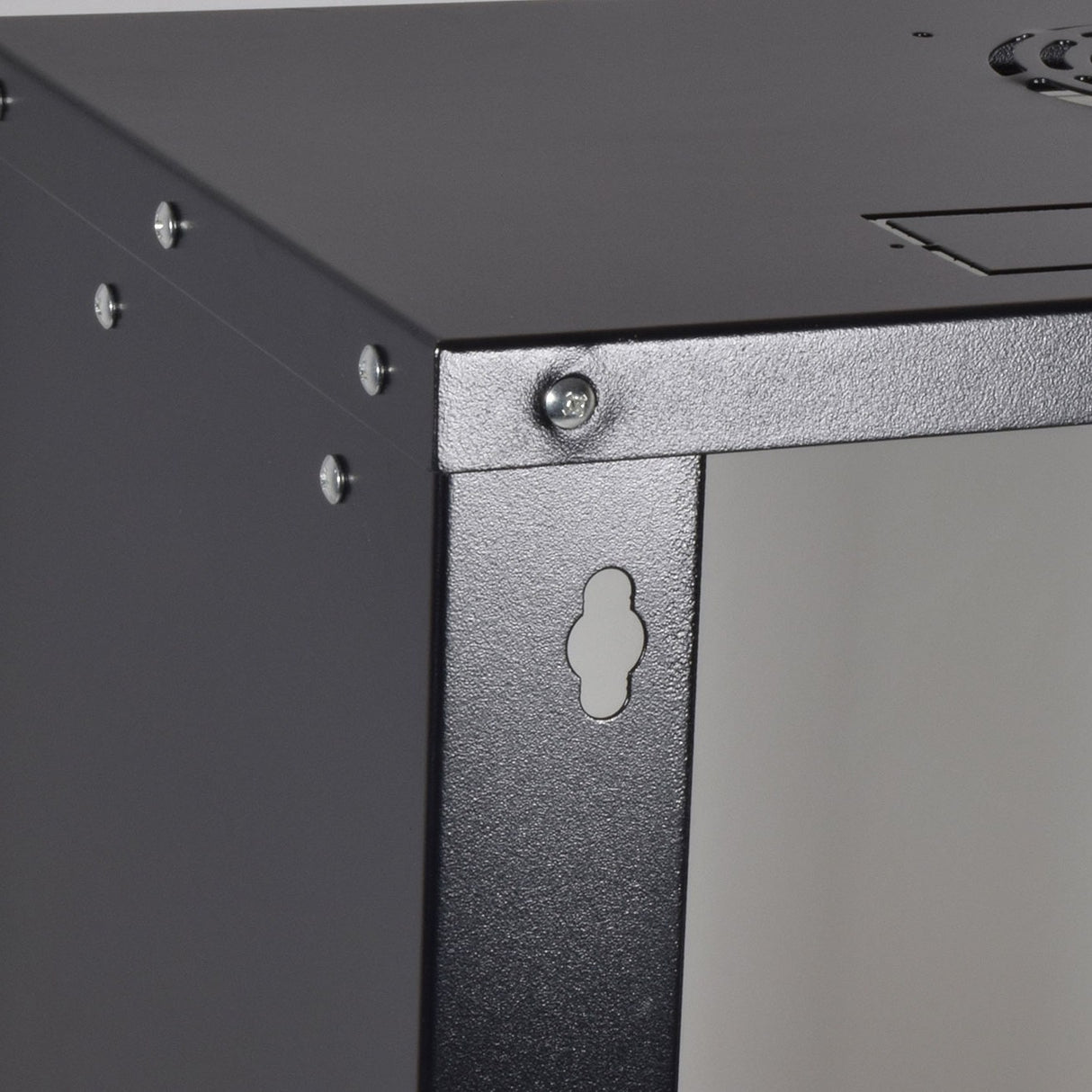

Yes, rack-mounting hardware is supplied. The rear panels also feature keyhole punch-outs for fixing the cabinet to a wall.

What is the maximum load?

The cabinet supports a static load of up to 30kg. It is designed for light duty applications rather than heavy equipment.

How do cables enter the cabinet?

There are knock-out apertures on the top and bottom of the cabinet for cable entry, so you can route leads from either direction.
