Description

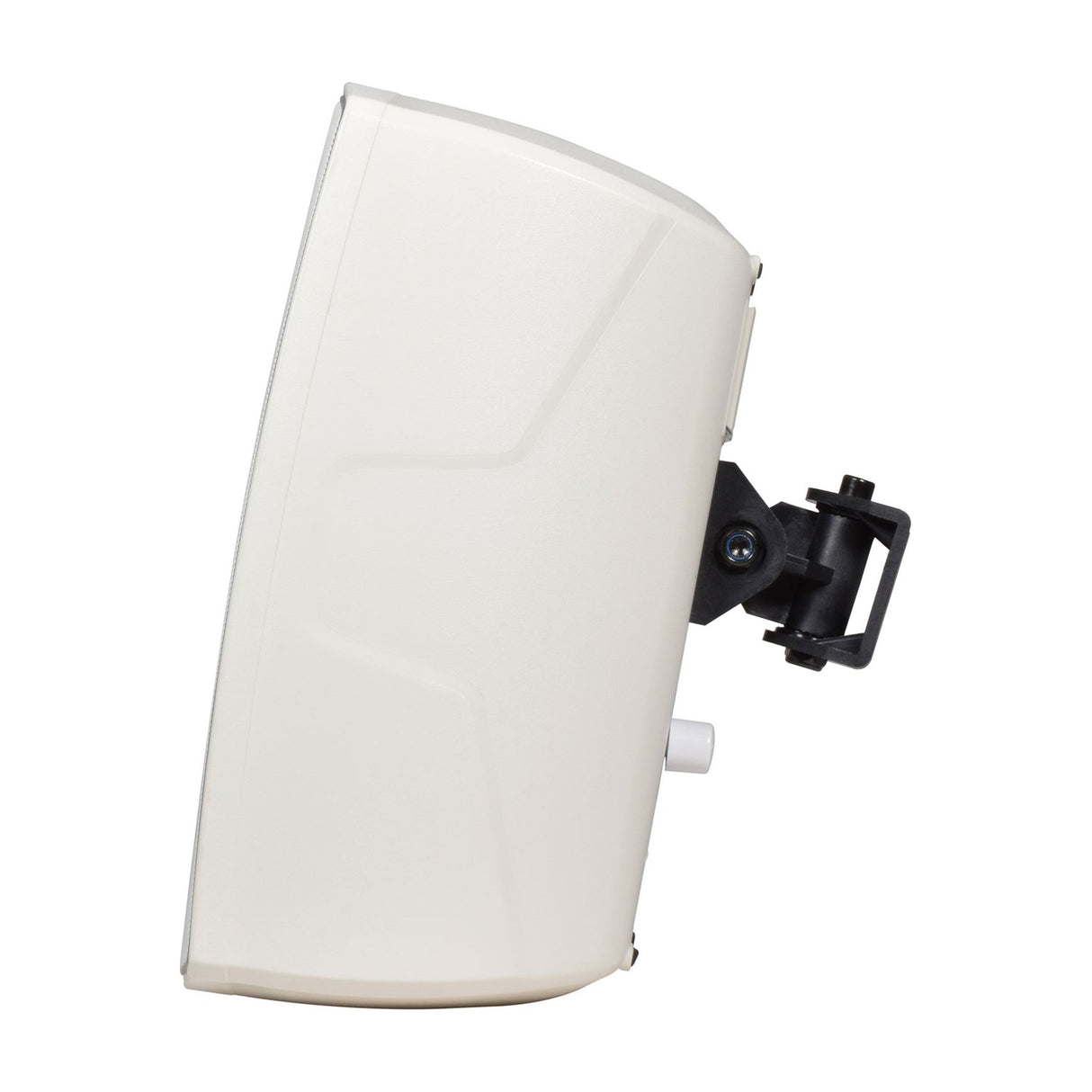

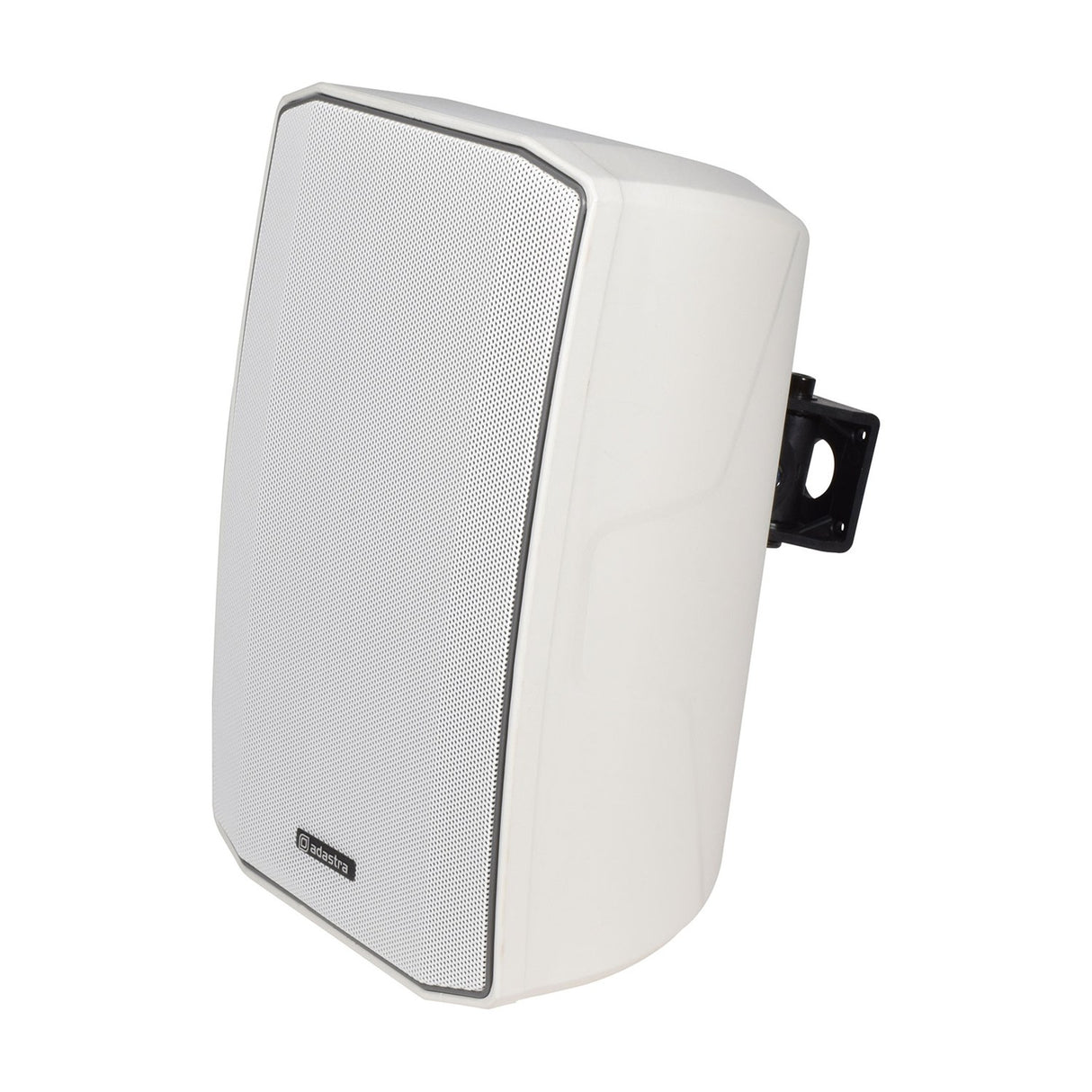

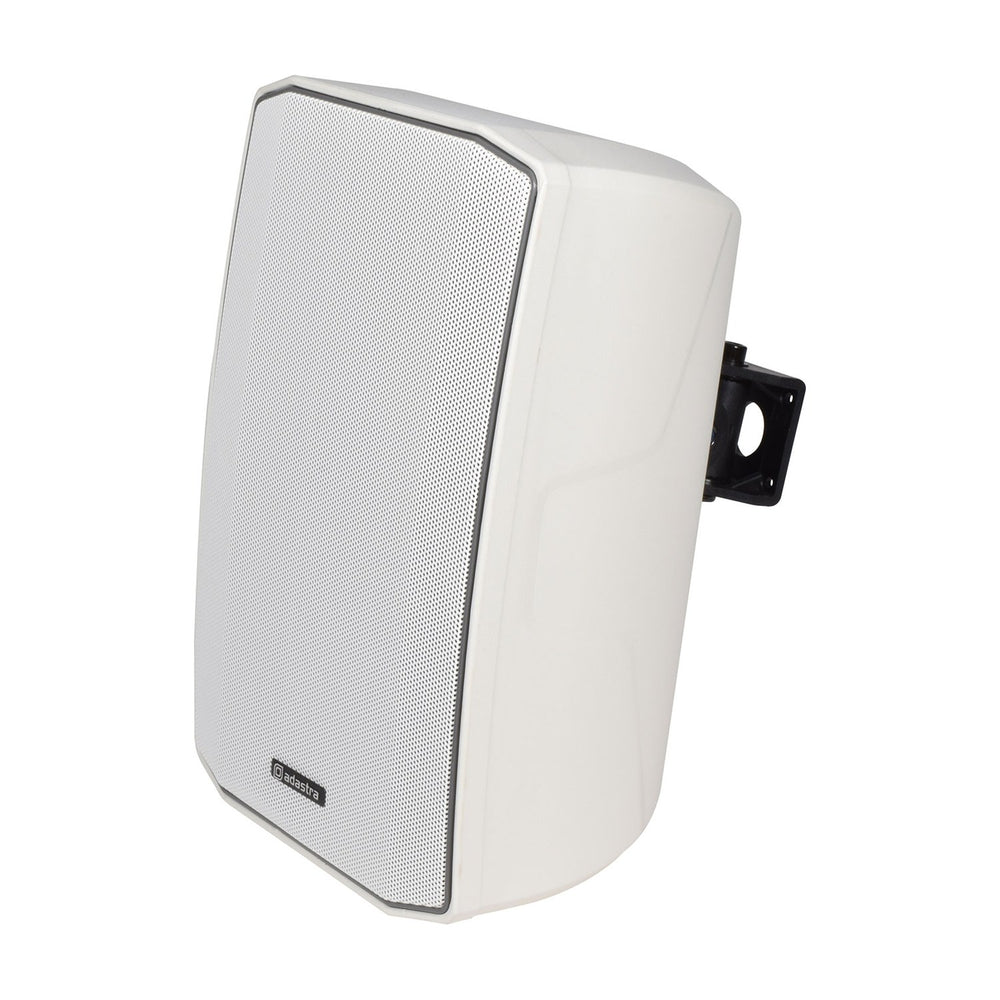

The Adastra LX6T-W is a wall-mounted PA speaker built for background music and voice announcements in indoor or sheltered outdoor spaces. The moulded ABS cabinet is light, so a single installer can put it up without much fuss, and the compact size means it fits onto most wall surfaces. An integral 2-axis mounting bracket comes fitted, giving you pan and tilt adjustment so you can point the speaker where the coverage is needed rather than settling for whatever angle the wall dictates.

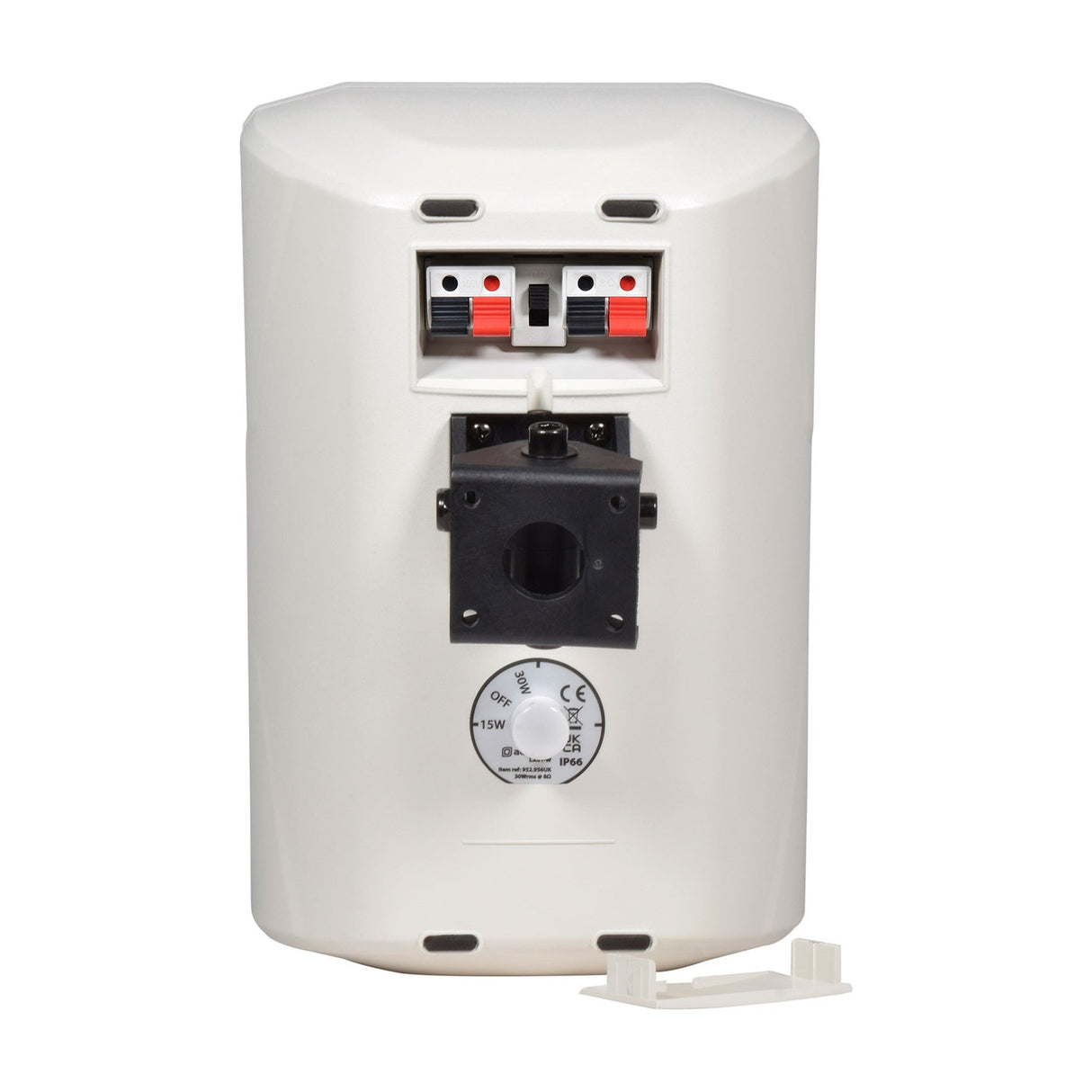

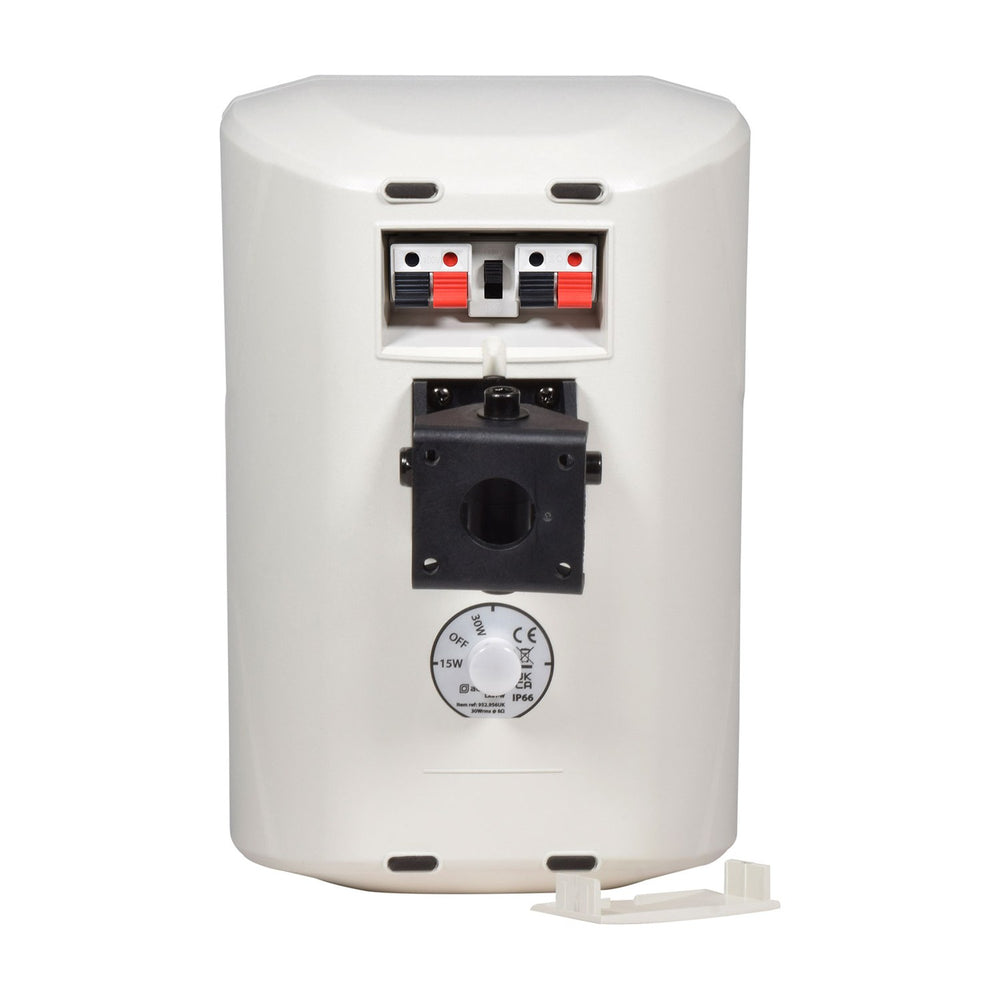

Wiring is flexible. The speaker takes standard 8 Ohm input or 100V line (also written 100 volt line, the constant-voltage system common in commercial installs), with two power tappings on the 100V side so you can balance levels across a run of speakers. Switching to 8 Ohm operation bypasses the transformer for true low impedance performance, which is handy if you are running a short cable to a single amplifier rather than a long distributed line. That switchable bypass keeps one speaker useful across quite different setups.
Weatherproofing is rated to IP66, and it covers the parts that matter: the cabinet, the speaker cones, the aluminium grille and the rear brackets are all treated to cope with damp and dust. That makes the LX6T-W a sensible choice for covered outdoor areas such as walkways, courtyards and terraces, as well as ordinary indoor rooms. It is a straightforward, cost-effective way to add clear sound to a space without a complicated fit. The white finish keeps it discreet against most walls, and a black option is available in the wider range if you need it to blend the other way.
Specification
| Dimensions |
280mm x 185mm x 136mm |
| Weight |
1.74KG |
| HF driver |
19mmØ (0.75") mylar dome |
| Main driver |
165mmØ (6.5") PP cone |
| Max. SPL |
105dB |
| SPL @ 1W/1m |
91dB |
| Frequency response |
70Hz - 20kHz |
| Tappings |
15W, 30W |
| Power rms : 8 Ohms |
30W |
| IP rating |
IP66 |
| Construction |
ABS cabinet, aluminium grille |
Frequently Asked
Can the LX6T-W run at both 8 Ohm and 100V?
Yes. It accepts standard 8 Ohm input or 100V line with two power tappings. Switching to 8 Ohm bypasses the internal transformer for true low impedance operation.
Is it suitable for outdoor use?
It is rated IP66 across the cabinet, cones, grille and brackets, so it suits sheltered or covered outdoor areas as well as indoor rooms.
How is the speaker mounted?
It comes with an integral 2-axis wall-mounting bracket that provides pan and tilt adjustment, letting you angle the speaker for the best coverage.
What is the cabinet made from?
The cabinet is moulded ABS and the grille is aluminium. Both are weatherproofed, and the light weight makes installation easier.
What is it best used for?
Background music and voice announcements in commercial spaces, indoors or in sheltered outdoor environments.
Do the two power tappings help with larger installs?
Yes. On 100V line the two tappings let you set different power levels across a run of speakers, balancing volume across a space.
