Adastra HC6U450 Hinged 6U 19" Rack Cabinet

£21999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

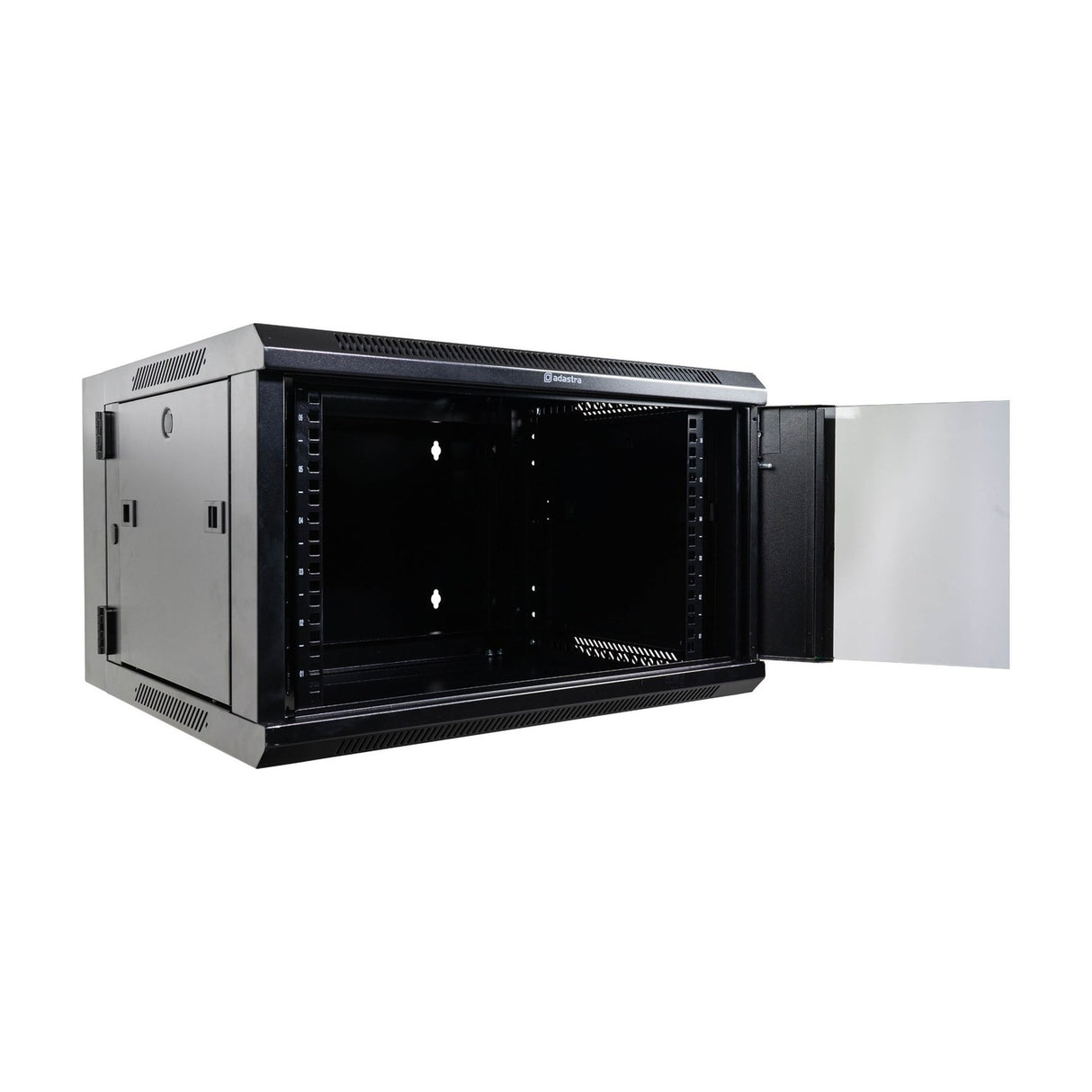

The Adastra HC6U450 is a wall-mounted 6U cabinet built for 19" rack-mount equipment. The whole cabinet is hinged at the rear and locks, so once it is fixed to the wall you can swing it out to reach the back panels of your gear. That gives you clear access to connections and wiring without having to unmount anything. Removable side panels and a lockable front door make day-to-day access straightforward while keeping the installation secure.

It is made from 1.2mm cold-rolled steel with folded edges for strength and stability, finished in RAL9004 epoxy powder coating. The front door carries a pane of 5mm tempered glass flanked by folded steel edge panels, and it can be set to open to the left or right. The door is also removable if you need it out of the way. Both the front door and the hinged rear section come with their own lock and two keys. Top and bottom knock-outs are provided for cable feeds, and the cabinet measures 600mm wide.

Front and rear rack strip is supplied for mounting to the rails inside, so you can adjust the mounting depth to suit equipment with overhanging fittings or to support the rear of heavier units. Total static load is rated at 60kg. The cabinet is easy to assemble and meets ANS/EIA RS-310-D, IEC297-2, DIN41491 Part 1 and Part 7, and ETSI standards. It suits professional AV, networking and audio racks where wall space is at a premium but rear access still matters.

Specification
Material 1.2mm cold rolled steel & 5mm tempered glass
Finish Epoxy powder coated RAL9004
Maximum load 60kg static (total)
Standard ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI compliant
Width 600mm
Frequently Asked

How much equipment does the HC6U450 hold?

It provides 6U of 19" rack space with a maximum static load of 60kg total across the cabinet.

Why is the cabinet hinged?

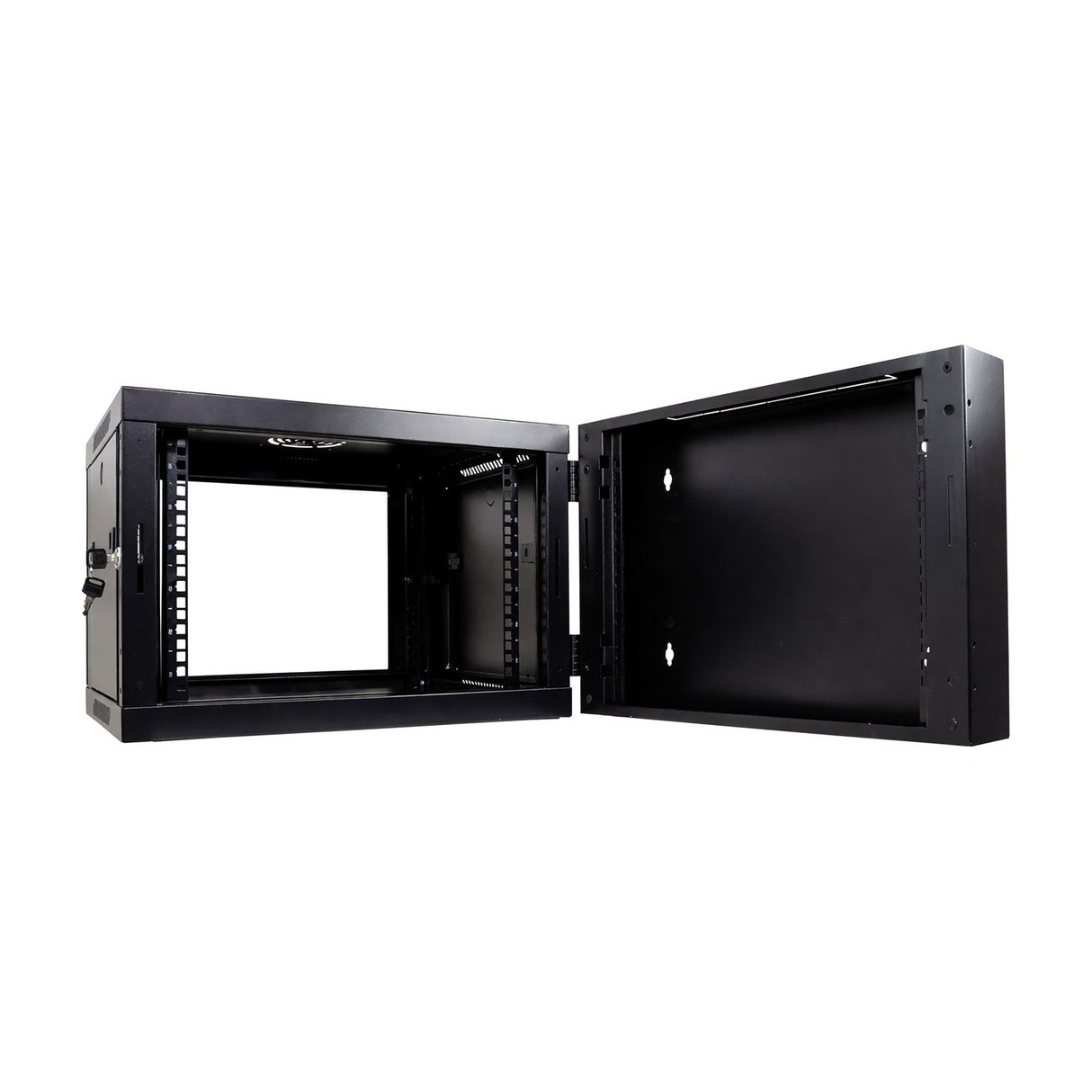

The whole cabinet is hinged at the rear so, once wall-mounted, it swings out to reveal the rear panels of your equipment for access to connections and wiring.

Can I adjust the mounting depth?

Yes. Front and rear rack strip is supplied, so you can move the rails to accommodate overhanging fittings or support the rear of heavy units.

Which way does the front door open?

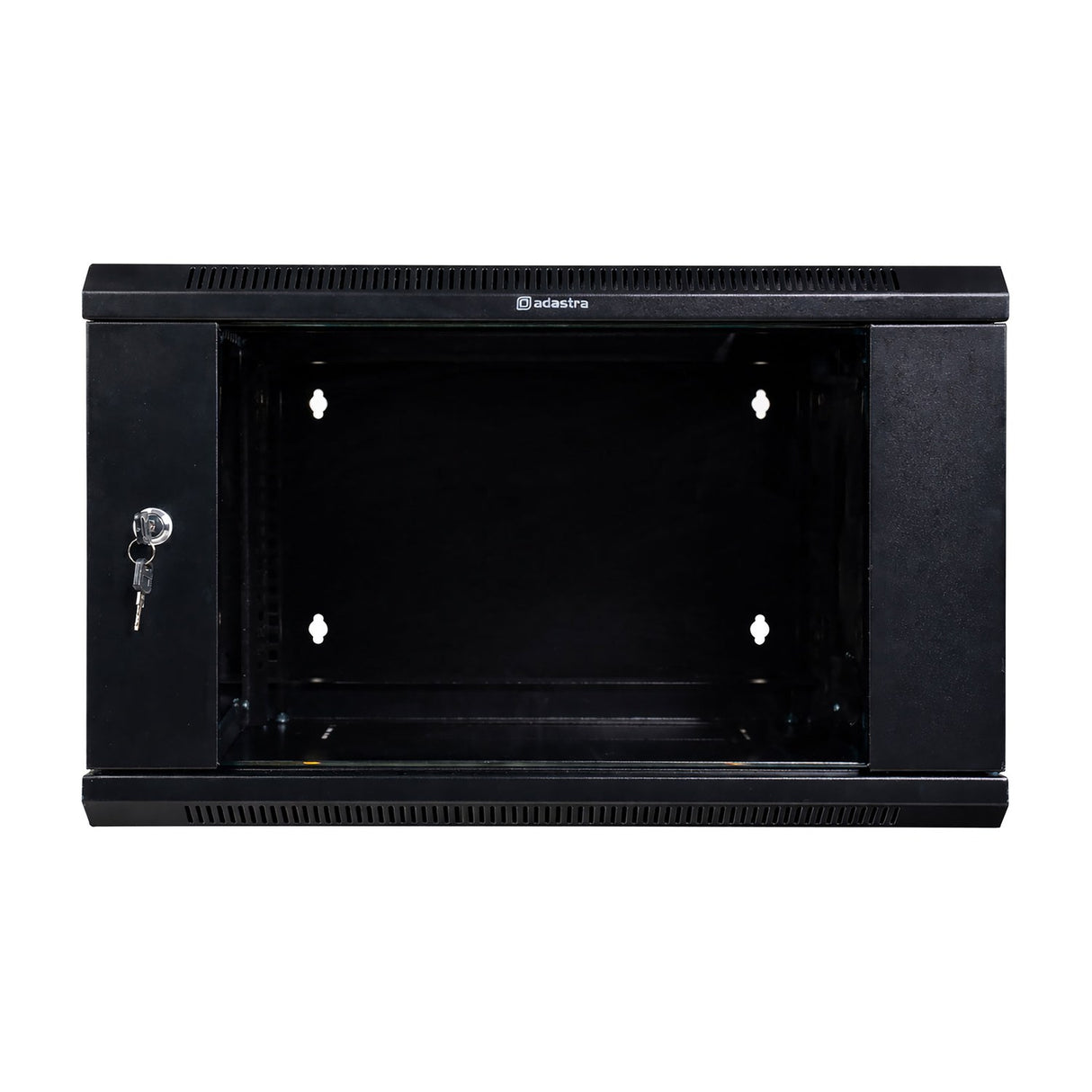

The tempered glass front door can be mounted to open to either the left or right, and it is fully removable.

Is the cabinet lockable?

Yes. Both the front door and the hinged rear section have their own lock, each supplied with two keys.

How do I run cables into the cabinet?

Knock-outs on the top and bottom panels provide cable feeds for your installation.
