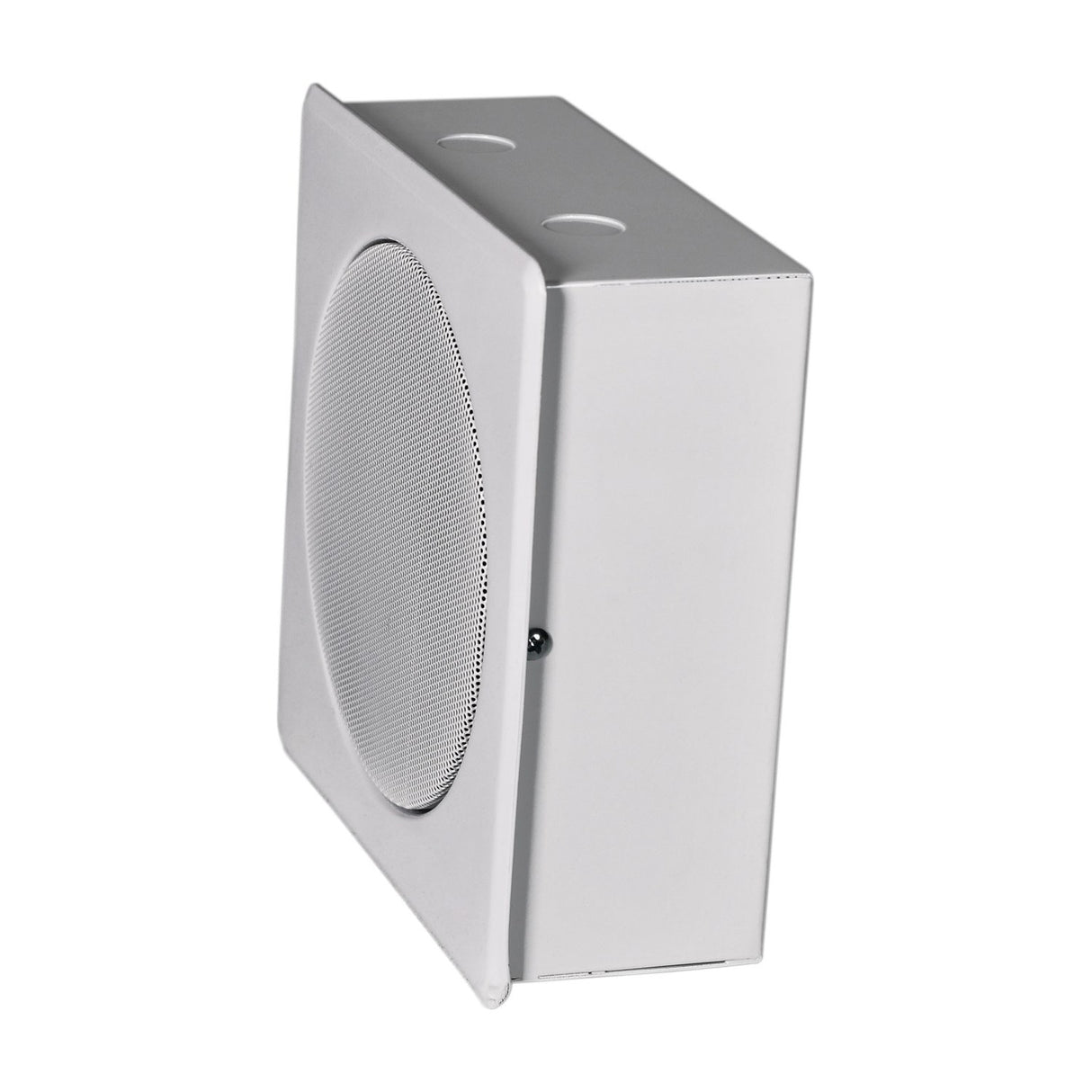

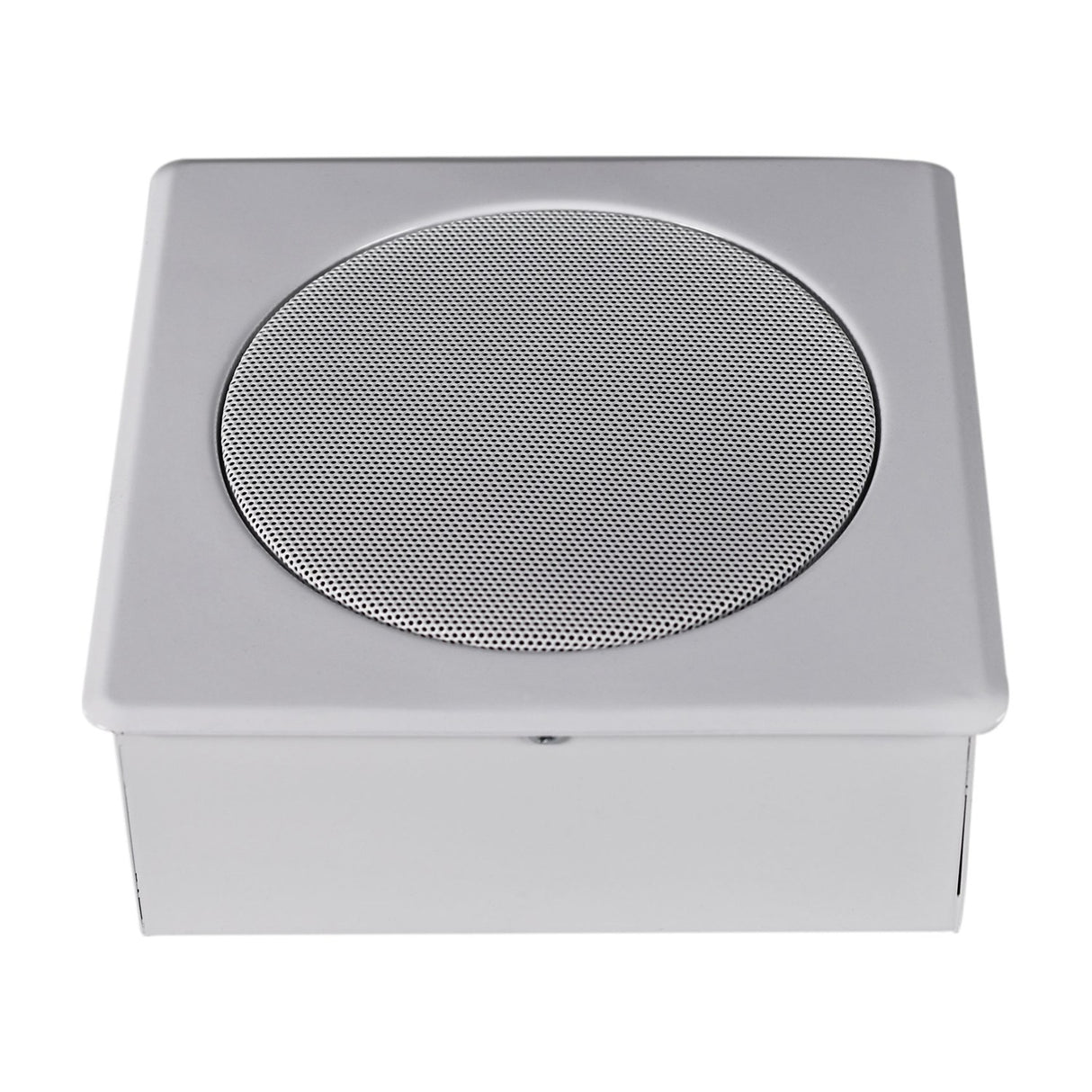

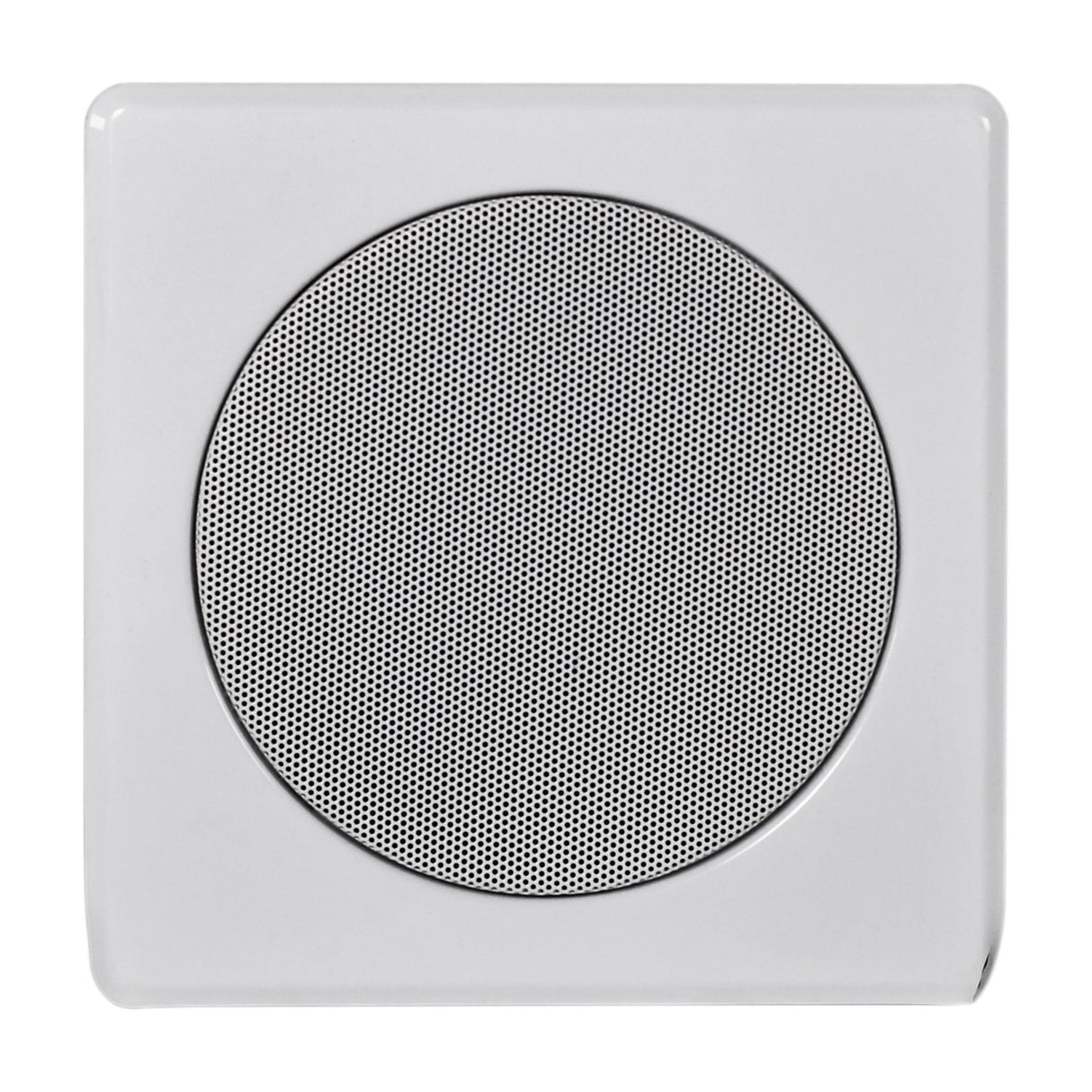

Adastra FW-5V EN54 100V Wall Speaker

£4499
RRP £4999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

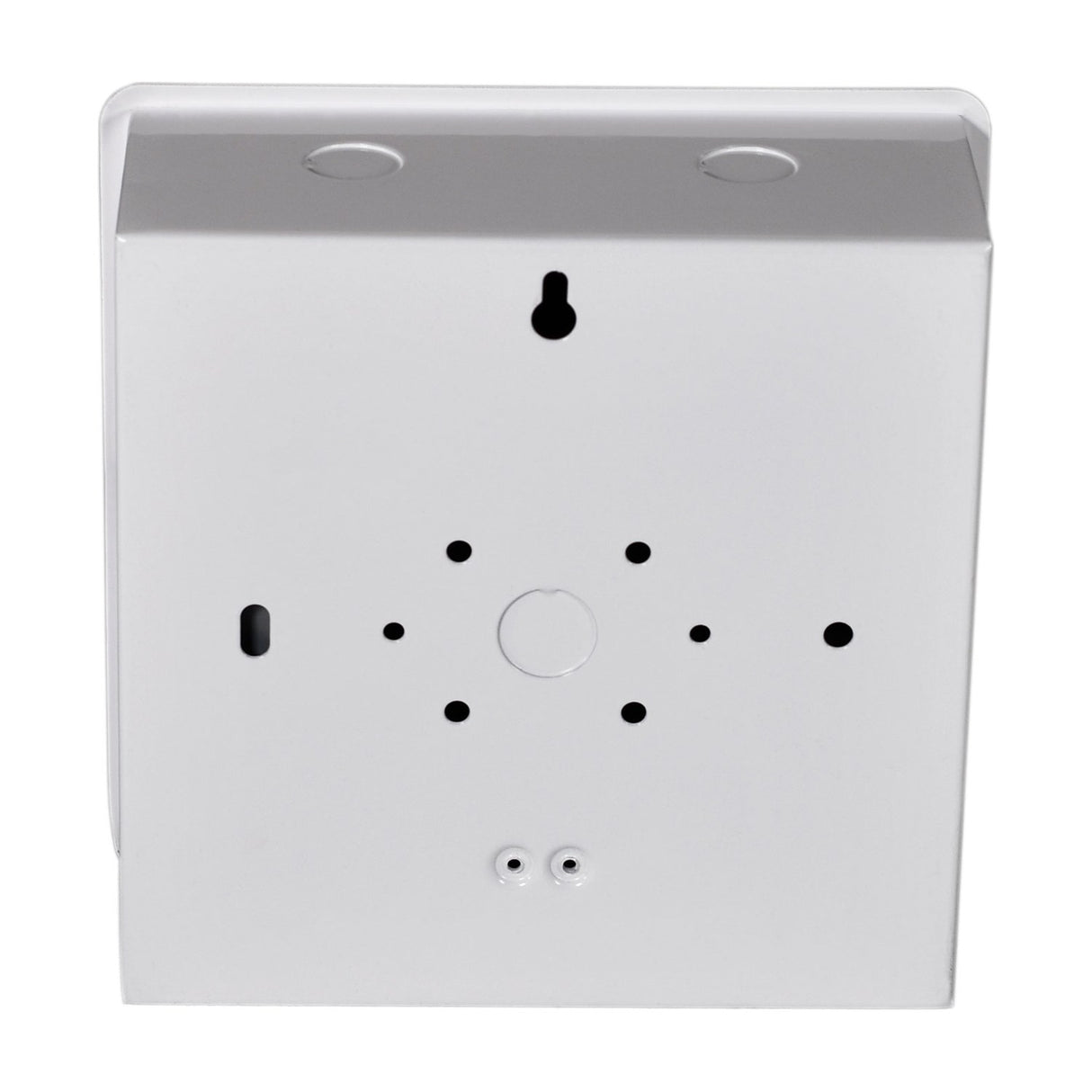

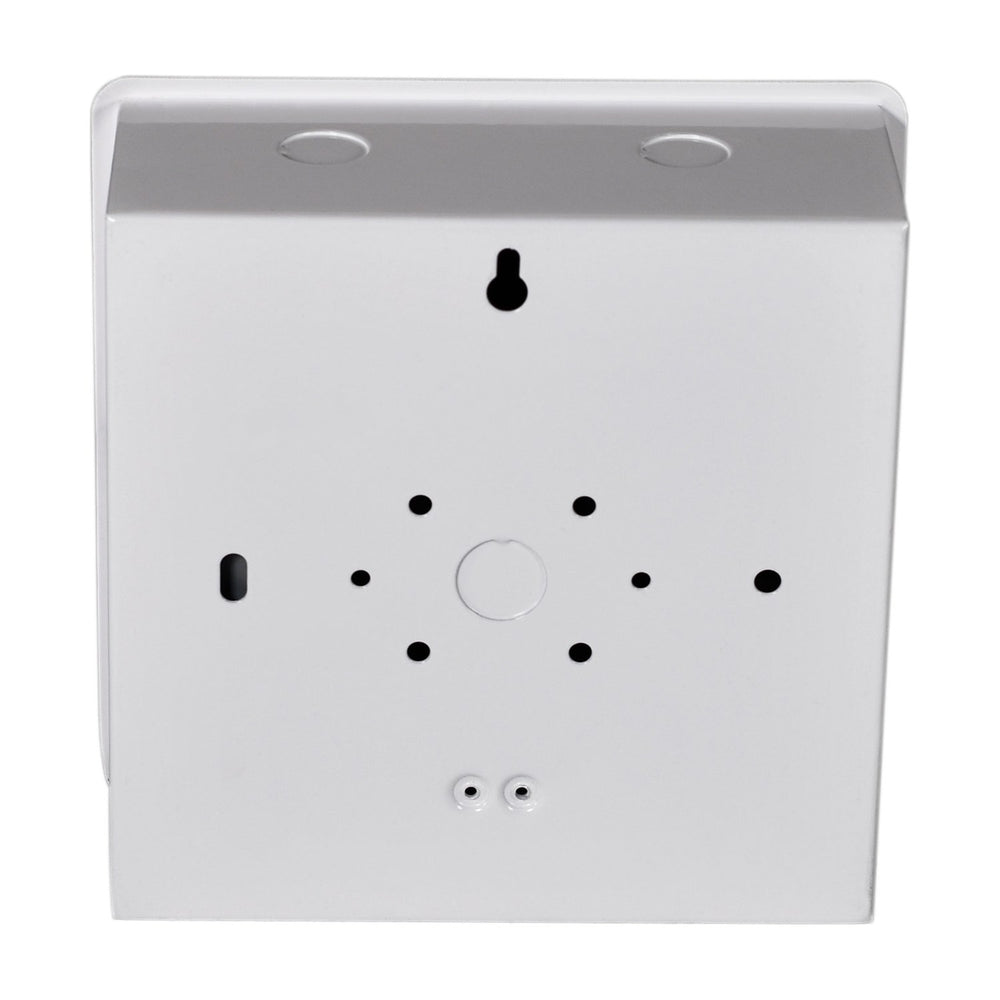

The Adastra FW-5V is a fire-rated wall speaker built for voice announcements and background sound in public address systems. It uses a 5.25" dual cone driver mounted into a powder-coated steel cabinet, with a detachable front baffle that extends to form part of the speaker basket. The rear of the cabinet has punched holes for hanging and 20mm knock-outs for cable glands, so it goes up quickly on site.

Internally the speaker holds a 100V line transformer and a ceramic terminal block fitted with a thermal fuse, which is what gives the FW-5V its EN54-24 compliance for fire evacuation systems. Four 100V volume tappings at 0.75, 1.5, 3 and 6W let you set the output to suit the room and balance the load across a wider install. The reinforced paper dual cone runs from 120Hz to 10kHz, giving clear speech and steady background music.

Sensitivity is rated at 92dB at 1W/1m, with a maximum SPL of 99dB. The full unit measures 185 x 185 x 70mm and weighs 1.334kg, so it sits neatly on most walls without heavy fixings. The heavy duty steel cabinet and grille make this a robust workhorse for voice alarm and general PA work where a fire-rated speaker is required. It pairs with any 100V line system and installs alongside other EN54 devices on the same run.

Specification
Construction Powder-coated steel cabinet & grille
Tappings 0.75, 1.5, 3, 6W
Driver 5.25" reinforced paper dual cone
Circuit protection Thermal fuse
Connection Ceramic screw terminal block
SPL @ 1W/1m 92dB
SPL max. 99dB
Frequency response 120Hz - 10kHz
Dimensions 185mm x 185mm x 70mm
Weight 1.33KG
Downloads

Product Manual

Frequently Asked

Is the FW-5V EN54 compliant?

Yes. It meets EN54-24 for use in fire evacuation and voice alarm systems, thanks to its ceramic terminal block and thermal fuse.

What volume tappings does it have?

There are four 100V tappings: 0.75W, 1.5W, 3W and 6W, letting you set the output per speaker and manage the total load on a line.

What size is the driver?

It uses a 5.25" reinforced paper dual cone driver, giving clear speech and background music from 120Hz to 10kHz.

How is it mounted?

The steel cabinet has punched holes at the rear for hanging and 20mm knock-outs for cable glands. The detachable front baffle makes wiring and fitting straightforward.

What are the dimensions and weight?

The speaker measures 185 x 185 x 70mm and weighs 1.334kg, so it suits most wall positions without heavy fixings.

What is the SPL output?

Sensitivity is 92dB at 1W/1m, with a maximum SPL of 99dB.
