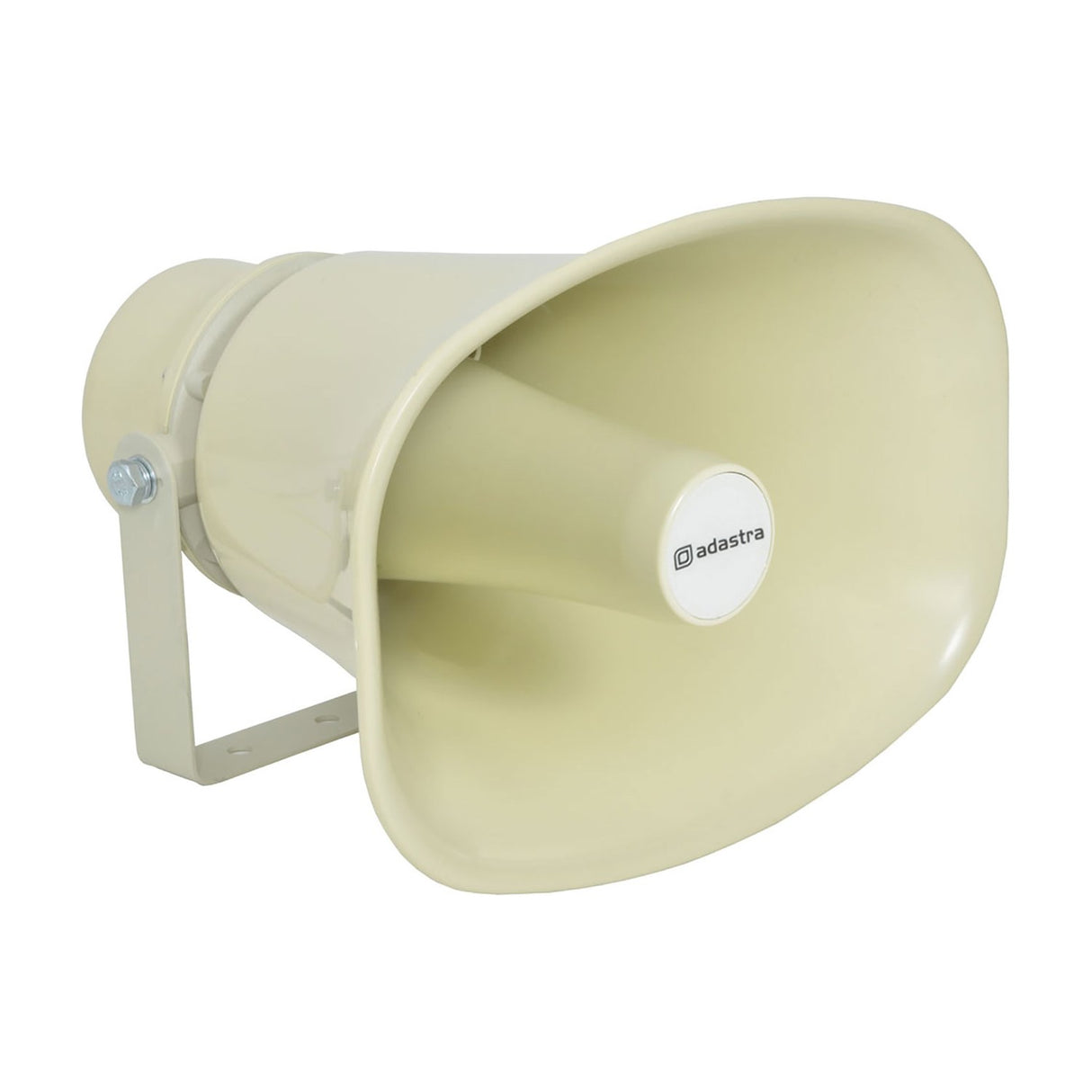

Adastra EH30V 100V 30W Rectangular Horn Speaker

£6999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Adastra EH30V is a rectangular horn speaker built for 100V line PA systems, suited to general purpose and standard industrial installations. It runs at 30W on a 100V line, so you can wire several units across a single amplifier and set the output to match the space. Each speaker is moulded from durable ABS in an ivory colour, which holds up well in busy working environments.

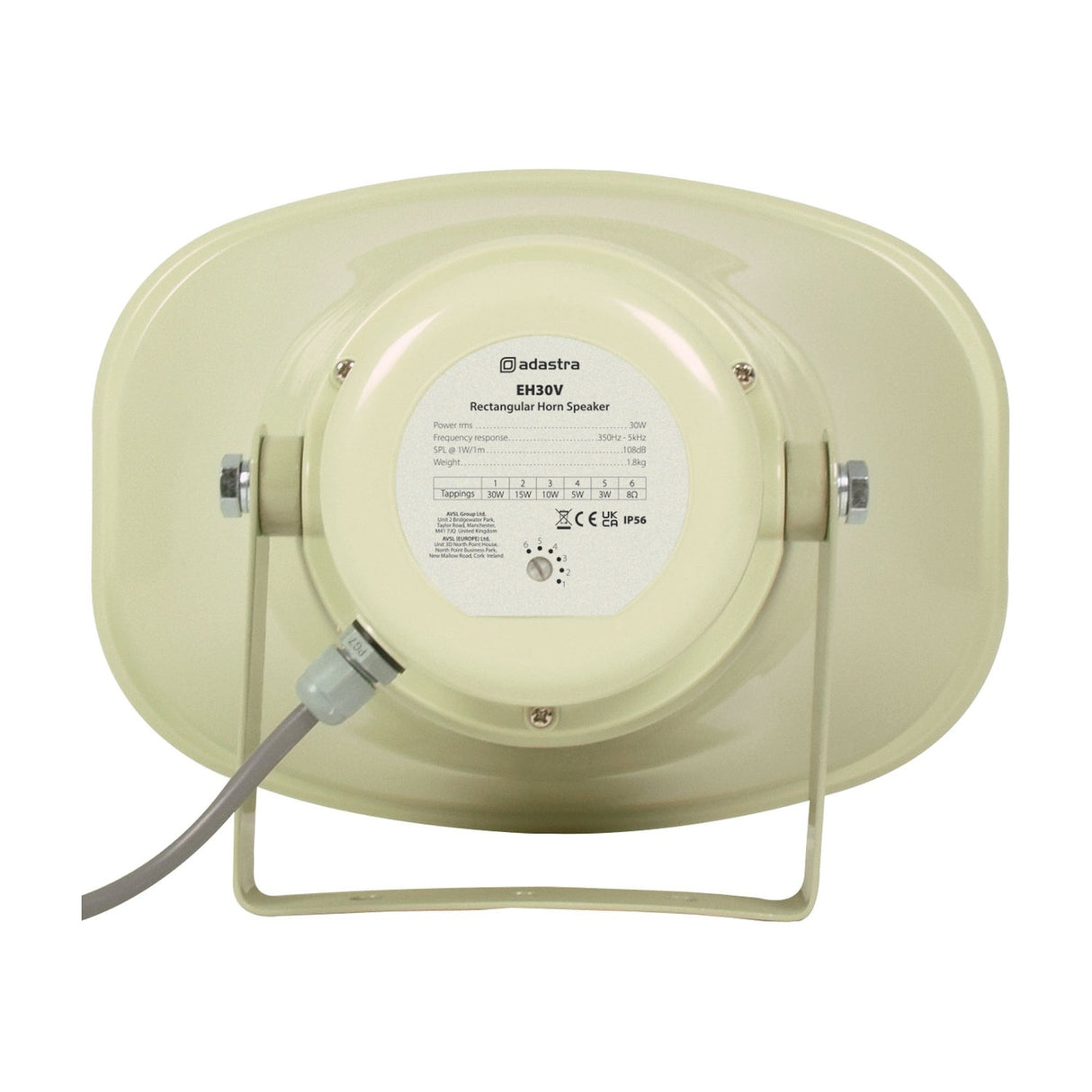

A rotary volume tapping switch lets you adjust the power level on each unit without changing anything at the amplifier, so you can balance sound across different areas. The speaker comes with a high performance 100V line matching transformer already fitted, along with 350mm of 2 core double insulated connecting cable ready for wiring in. An adjustable steel mounting bracket is included, letting you angle the horn towards the area you want to cover.

With an IP56 rating, the EH30V stands up to dust and water jets, making it a sensible choice for outdoor areas, warehouses, loading bays and covered walkways. The rectangular shape gives a wide, even spread of sound for speech announcements and background music. Because it uses a standard 100V line setup, it fits straight into most existing PA installations without extra matching parts. It works well as a stand-alone unit or as part of a larger multi-speaker run across a site.

Specification
Power rms 30W
Frequency response 350Hz - 5kHz
SPL @ 1W/1m 108dB
Impedance 330, 670, 1k, 2k, 3.3k and 10k Ohm
Tappings 30W, 15W, 10W, 5W, 3W, 1W
Dimensions 236mm x 205mm x 185mm
Weight 1.80KG
IP rating IP56
Cable : length 350mm
Frequently Asked

What power does the EH30V deliver?

It runs at 30W on a 100V line system, with a rotary tapping switch to set the level on each unit.

Is it suitable for outdoor use?

Yes. It carries an IP56 rating, so it resists dust and water jets, which makes it fine for outdoor and covered areas.

Does it include a mounting bracket?

Yes, an adjustable steel mounting bracket is supplied so you can angle the horn towards the coverage area.

What material is the housing made from?

The horn is moulded from durable ABS in an ivory colour.

Is a transformer fitted?

Yes. It comes with a high performance 100V line matching transformer already fitted, plus 350mm of 2 core double insulated cable.

Can I run several units together?

Yes. As a 100V line speaker, you can wire multiple units across one amplifier and set each level independently.
