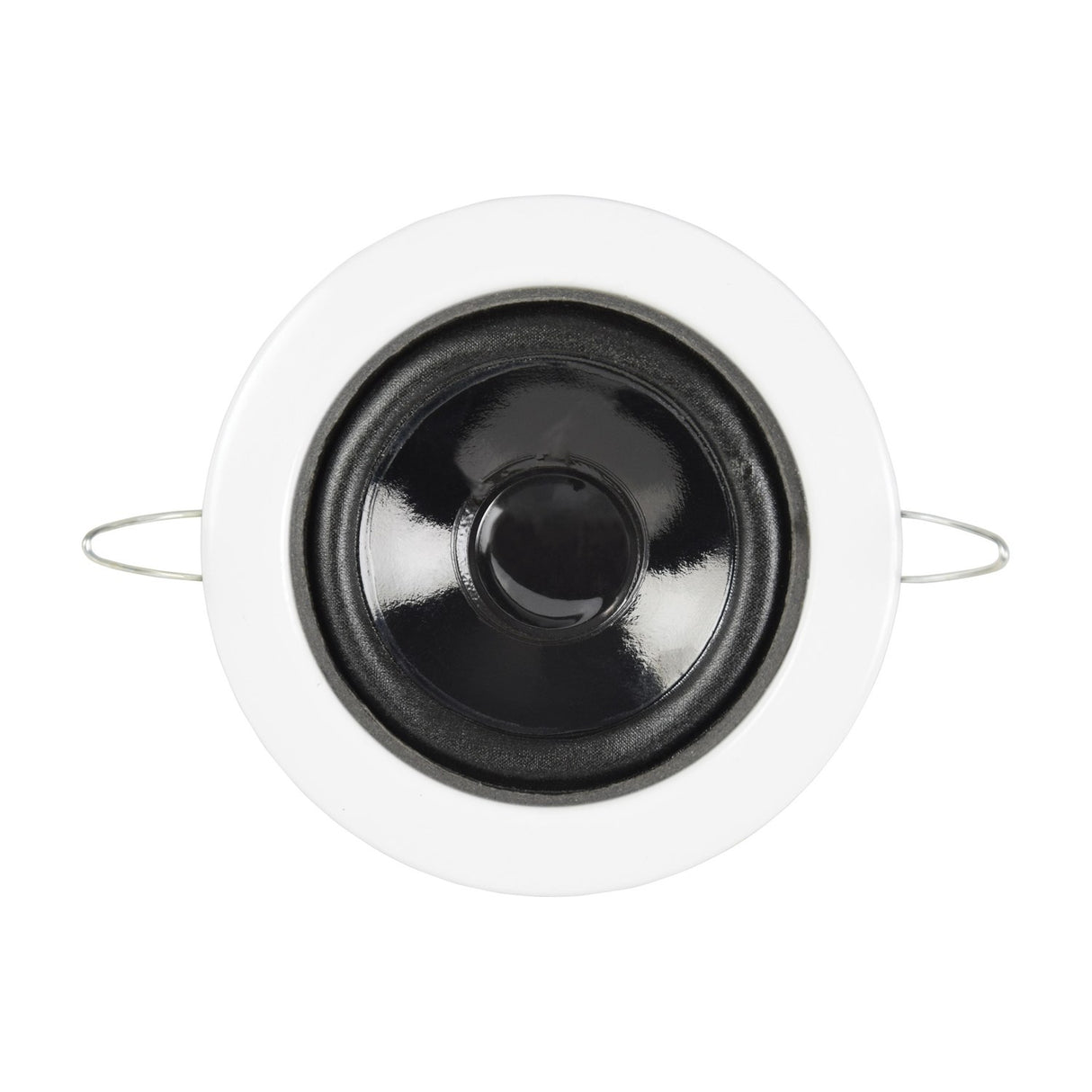

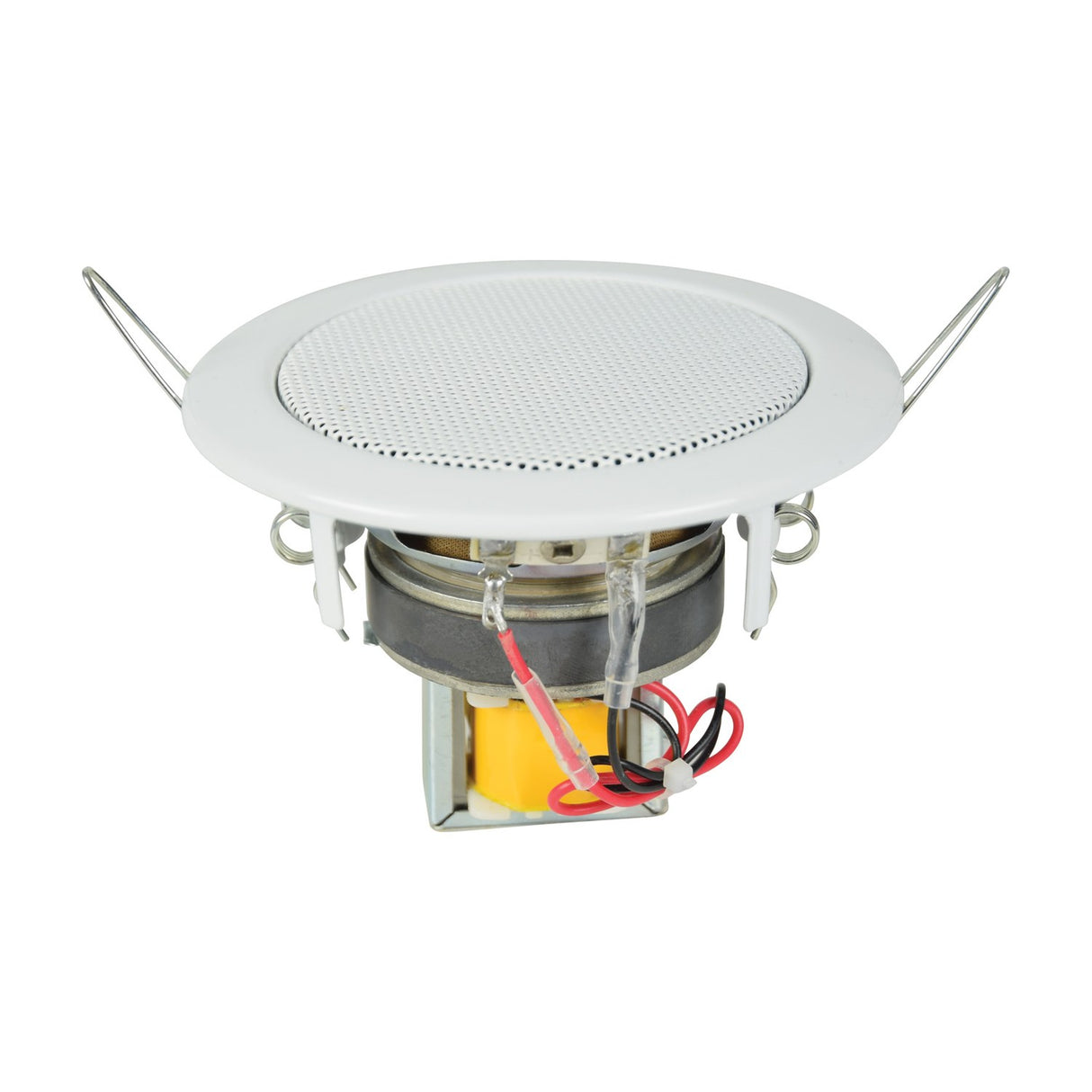

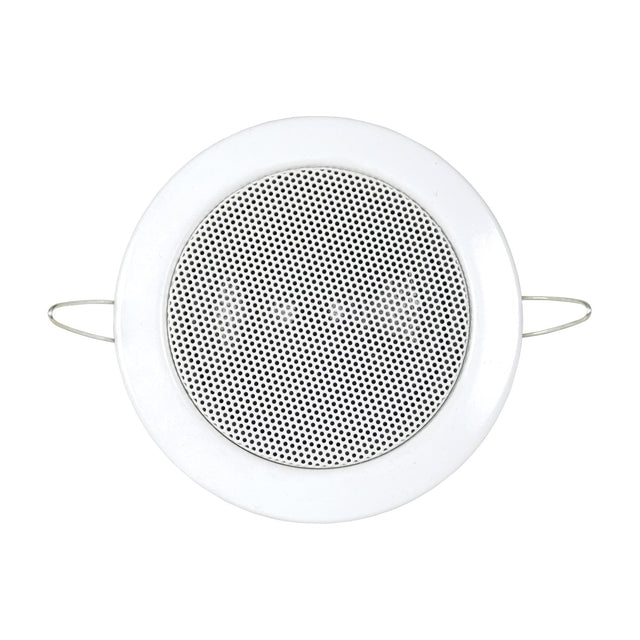

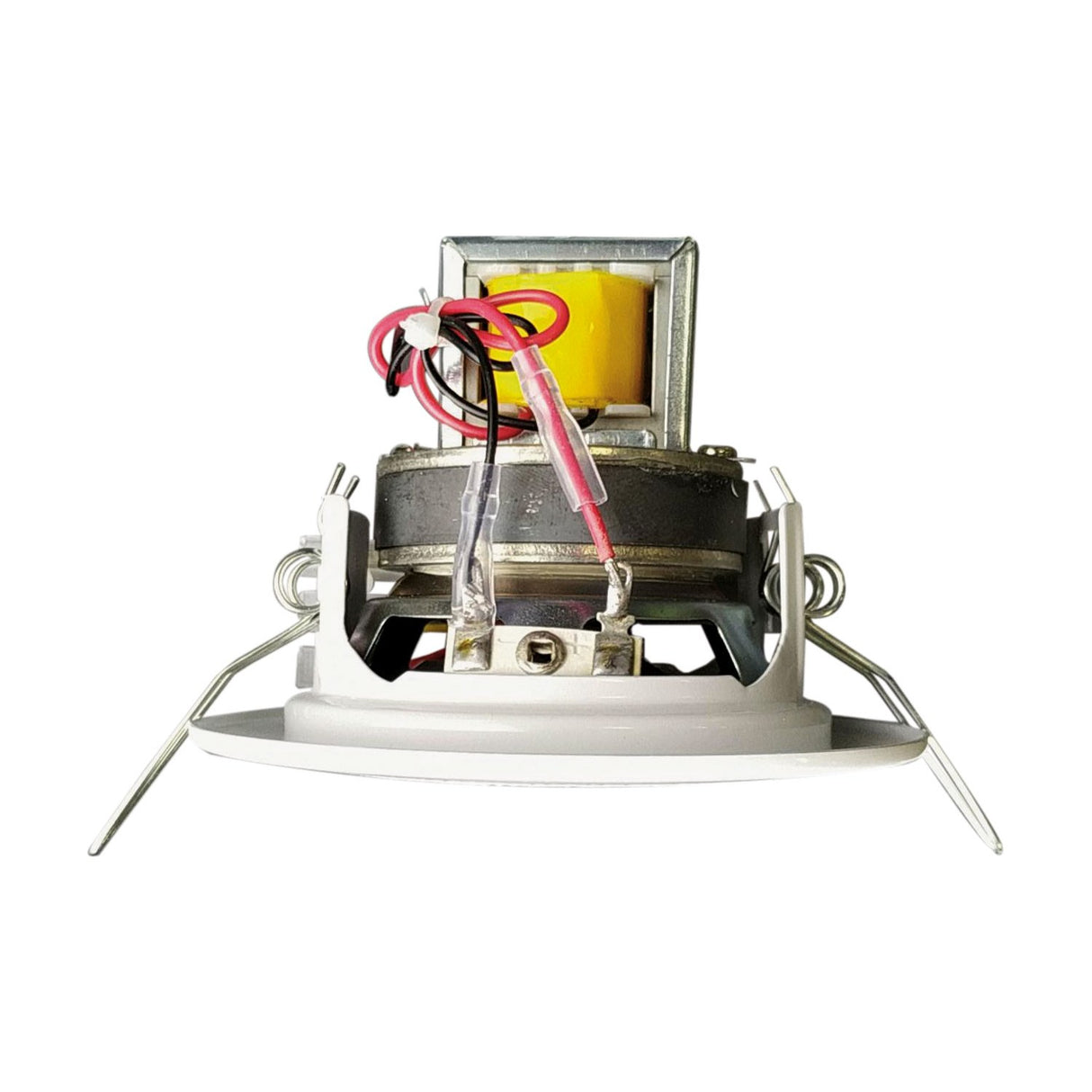

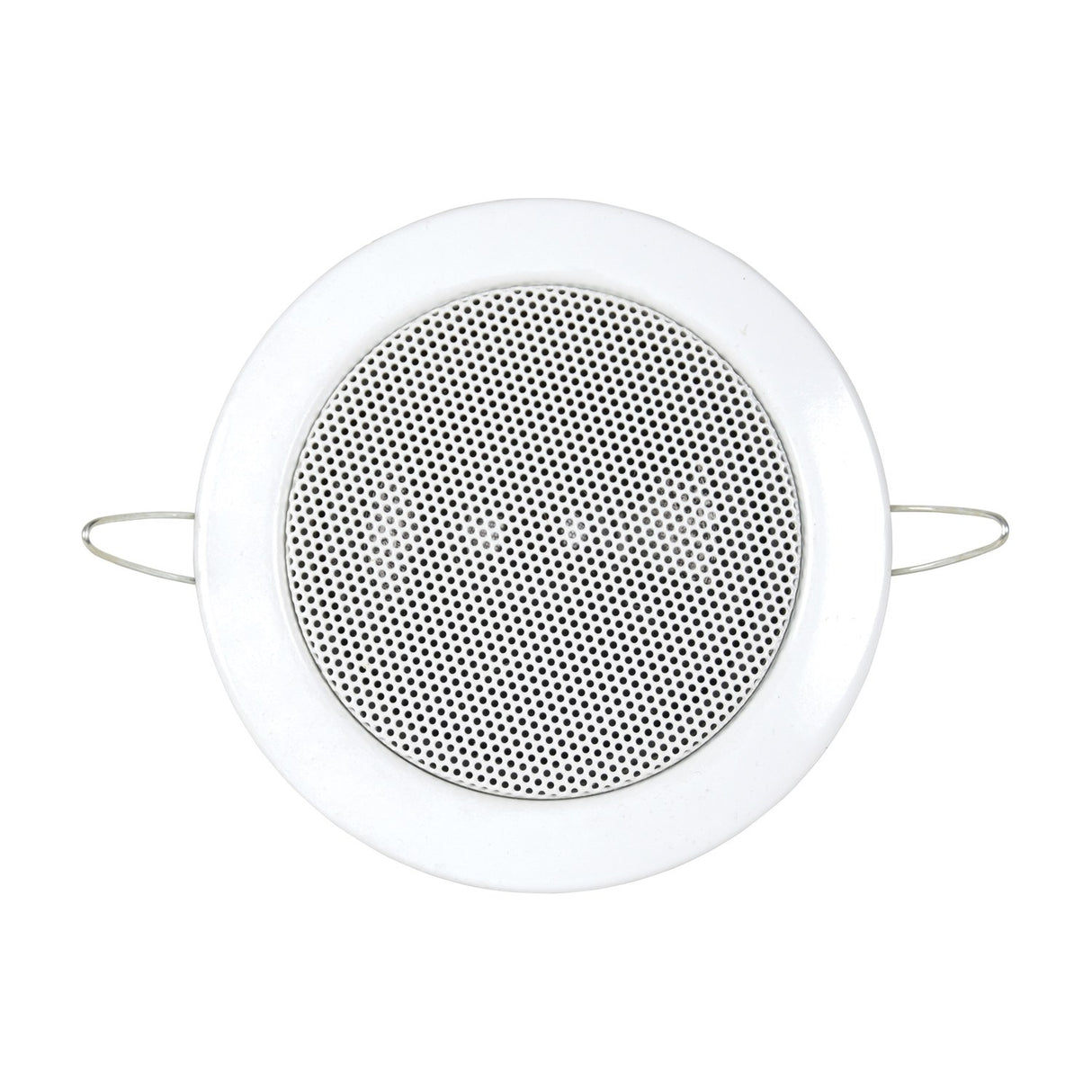

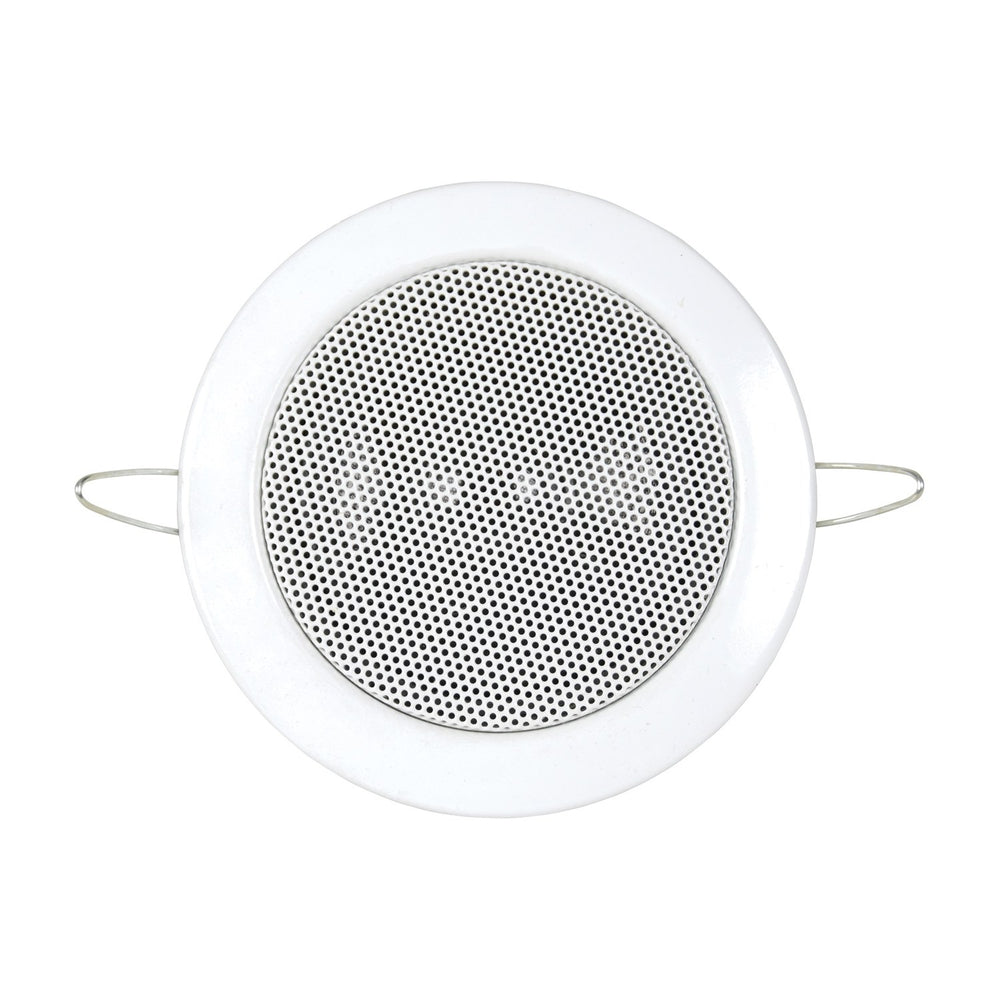

Adastra EC36V 3" 100V Metal Bathroom Ceiling Speaker

£1499
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Adastra EC36V is a miniature ceiling speaker built for damp spaces where a standard driver would struggle. It uses a 3" (75mm) paper cone treated with a water-resistant coating, so it can be fitted into washrooms, bathrooms and food preparation areas without trouble. The frame and basket are made from pressed steel with a powder coated finish, which keeps things sturdy and helps it stand up to moisture over time.

A built-in 100V line transformer makes this speaker suitable for larger installations where several speakers run from a single amplifier. You can choose between 3W and 6W tappings to balance volume across a room or building, which is useful for background music and paging. The compact 70 x 100mm body needs a 95mm cut-out and 70mm of mounting depth, and spring retainers hold it flush against the ceiling or wall once you push it into place.

Sensitivity is rated at 87dB with a frequency response of 120Hz to 20kHz and a wide 145° dispersion angle, so sound spreads evenly across the space below. At 384g the EC36V is light and easy to handle during fit-out, making it a practical choice for commercial and domestic wet areas alike. If you are wiring a 100V (also called constant-voltage) system, this speaker slots in as a small, tidy option that keeps performance steady in conditions that would see off less protected units.

Specification
Tappings 3W, 6W
Driver 75mmØ (3") coated paper cone
Sensitivity 87dB
Frequency response 120Hz - 20kHz
Dispersion angle 145°
Cut-out dimensions 95mmØ
Mounting depth 70mm
Construction Pressed steel frame & basket
Dimensions 70mm x 100mmØ
Weight 0.38KG
Downloads

Product Manual

Frequently Asked

Can the EC36V be used in a bathroom or shower room?

Yes. The paper cone has a water-resistant coating and the steel frame is powder coated, so it suits washrooms, bathrooms and food preparation areas. We would not recommend direct water contact, but damp and humid conditions are fine.

What cut-out size do I need?

The EC36V needs a 95mm diameter cut-out and 70mm of mounting depth. The visible face measures 100mm in diameter.

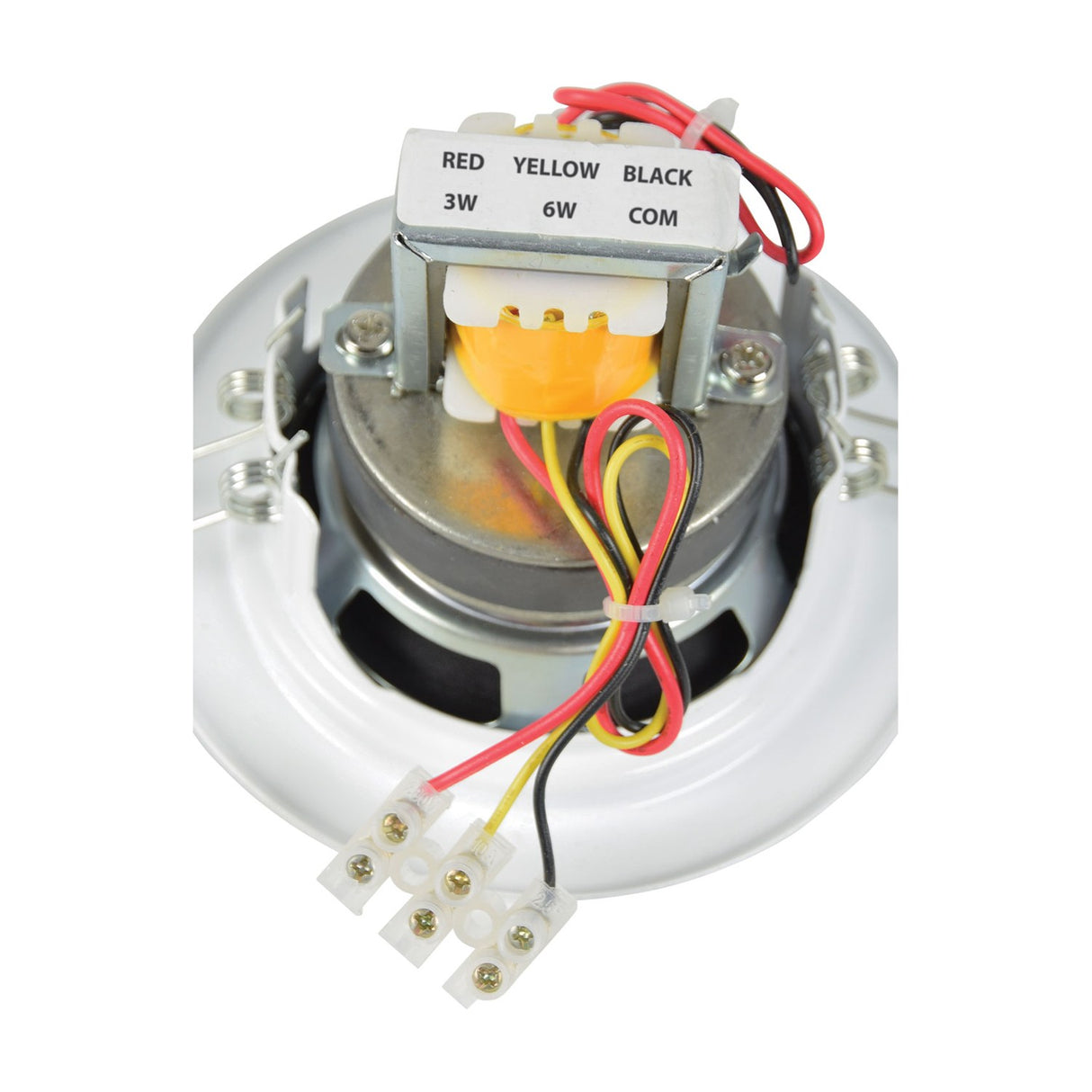

How do the 3W and 6W tappings work?

This is a 100V line speaker with two power tappings. Selecting 3W or 6W lets you set the volume for each speaker across a run, which is handy for balancing sound in different rooms.

How is the speaker held in place?

It uses spring retainers that grip the ceiling or wall once the unit is pushed into the cut-out, giving a flush fit without extra brackets.

Is this speaker suitable for a low-impedance (8 ohm) system?

No. The EC36V is fitted with a 100V transformer for constant-voltage systems. For an 8 ohm setup you would need a speaker without the line transformer.
