Adastra DM25 100V Mixer-Amp with USB/FM & Bluetooth

£7999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

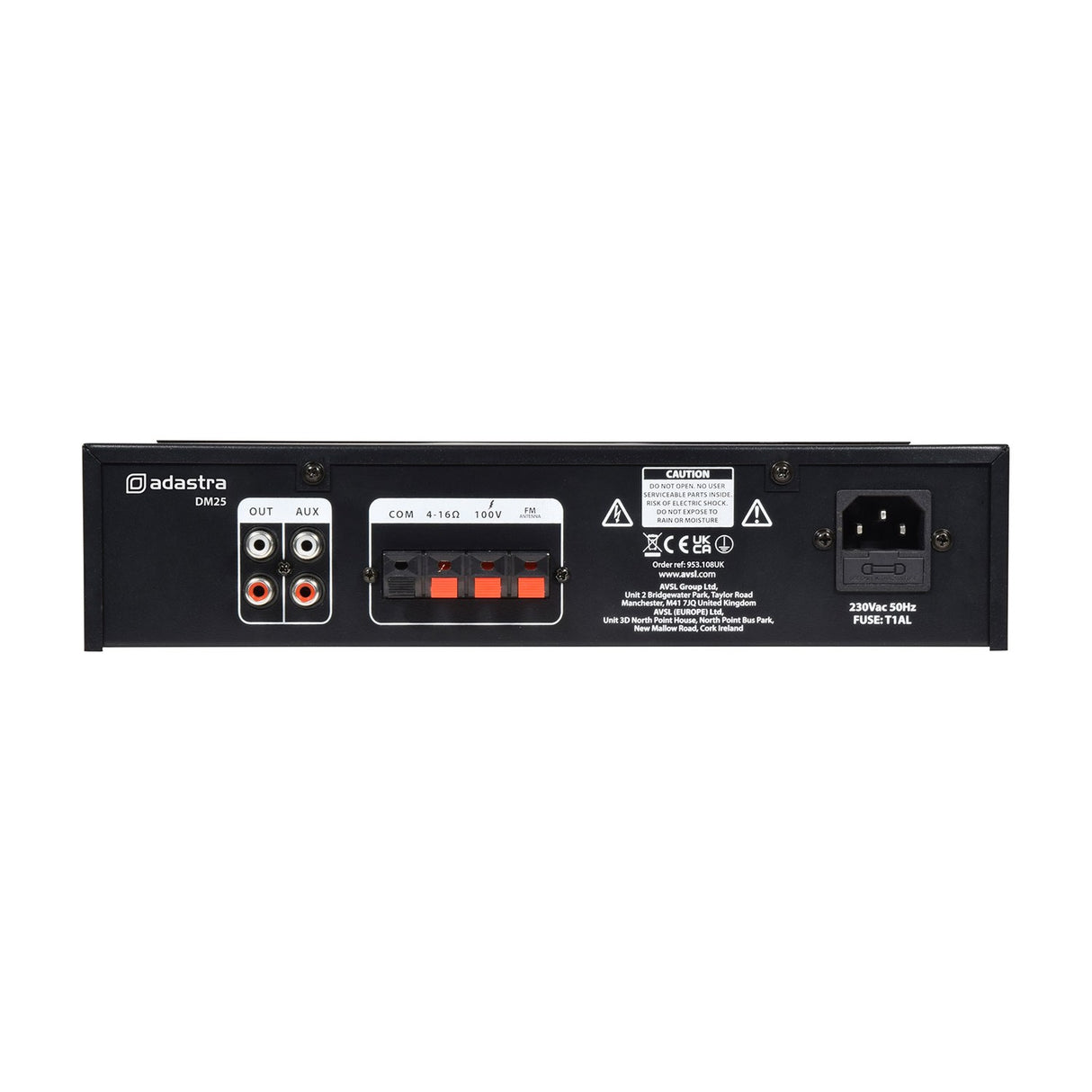

The Adastra DM25 is a 100V line mixer-amplifier built into a compact housing, giving you a single unit to run background music and announcements in a small installation. It puts out 25W in mono, connecting to either a 100V line system or a 4-16 Ohm speaker load through spring terminals on the rear panel. That flexibility means you can wire it into a distributed 100V setup across several ceiling speakers, or drive a couple of low-impedance cabinets directly, depending on what the room needs.

Three audio sources are built in. The onboard player reads USB media (USB 2.0, FAT32, up to 128GB) for digital audio, and the FM tuner (aerial/antenna via a spring terminal) picks up radio stations. In Bluetooth mode you can pair a phone or tablet for wireless playback using Bluetooth V2.1. Please note the USB port is for media playback only and will not charge a smart phone. For live input there is a 6.3mm jack microphone input (unbalanced) plus two RCA line inputs summed to mono, along with a pair of RCA line outputs.

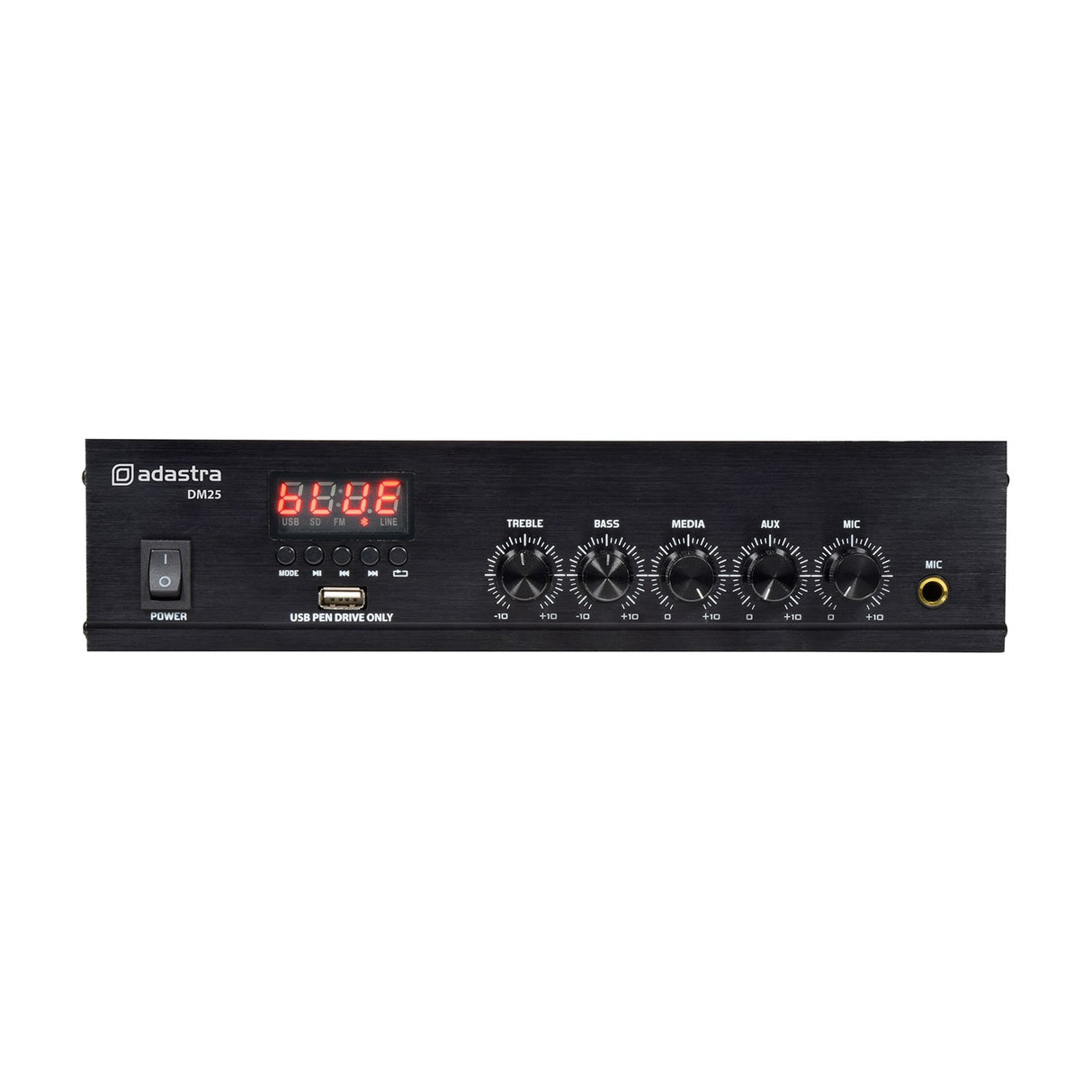

Front-panel controls cover Treble, Bass and source selection between MP3, Aux and Mic, so you can balance the tone and switch quickly during use. The amplifier runs from a 230Vac 50Hz IEC mains supply and is protected by a T1AL 230V fuse. Measuring 280 x 205 x 67mm, it sits neatly on a shelf or in a rack space. It works well as an all-in-one solution for shops, cafes, offices and similar small sound jobs where you want music, radio and mic paging from one box.

Specification
Power supply 230Vac, 50Hz (IEC)
Speaker : outputs COM, 100V and 4-16 Ohms (spring terminals)
Audio source USB player, FM tuner and Bluetooth receiver
Bluetooth version V2.1
Controls Treble, Bass, MP3, Aux, Mic
Microphone : inputs 6.3mm jack (unbalanced)
Line input 2 x RCA (summed to mono)
Line output 2 x RCA
Antenna connection Spring terminal
Dimensions 280mm x 205mm x 67mm (L x W x H)
Fuse T1AL 230V
USB version USB 2.0 (FAT32, 128GB max.)
Downloads

Product Manual

Frequently Asked

Can the DM25 drive both 100V and low-impedance speakers?

Yes. The mono output connects via spring terminals to either a 100V line system or a 4-16 Ohm speaker load, so you can pick whichever suits your install.

What audio sources does it support?

It has a built-in USB media player, an FM tuner and a Bluetooth V2.1 receiver, plus a microphone jack and RCA line inputs.

Will the USB port charge my phone?

No. The USB port is for media playback only and is not designed to charge smart phones.

What USB media does the player accept?

It uses USB 2.0 formatted as FAT32, supporting drives up to 128GB.

How do I connect a microphone?

There is a single 6.3mm jack microphone input on the unit, which is unbalanced, with its own level control in the source selection.

What are the dimensions and power requirements?

The unit measures 280 x 205 x 67mm and runs from a 230Vac 50Hz IEC mains supply, protected by a T1AL 230V fuse.
