Adastra CS4 4-Zone Paging Call Station for RM244V

£15999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Adastra CS4 is a paging microphone with a call station base, built to work with the RM244V or RM4460 mixer-amplifiers. It connects over a single RJ45 lead that carries both signal and power, so you only need one cable run between the station and the amp. A 1m RJ45 patch lead is supplied to get you started. Standard CAT5 wiring supports runs up to 100m, and with the optional 24Vdc adaptor you can extend that as far as 1km.

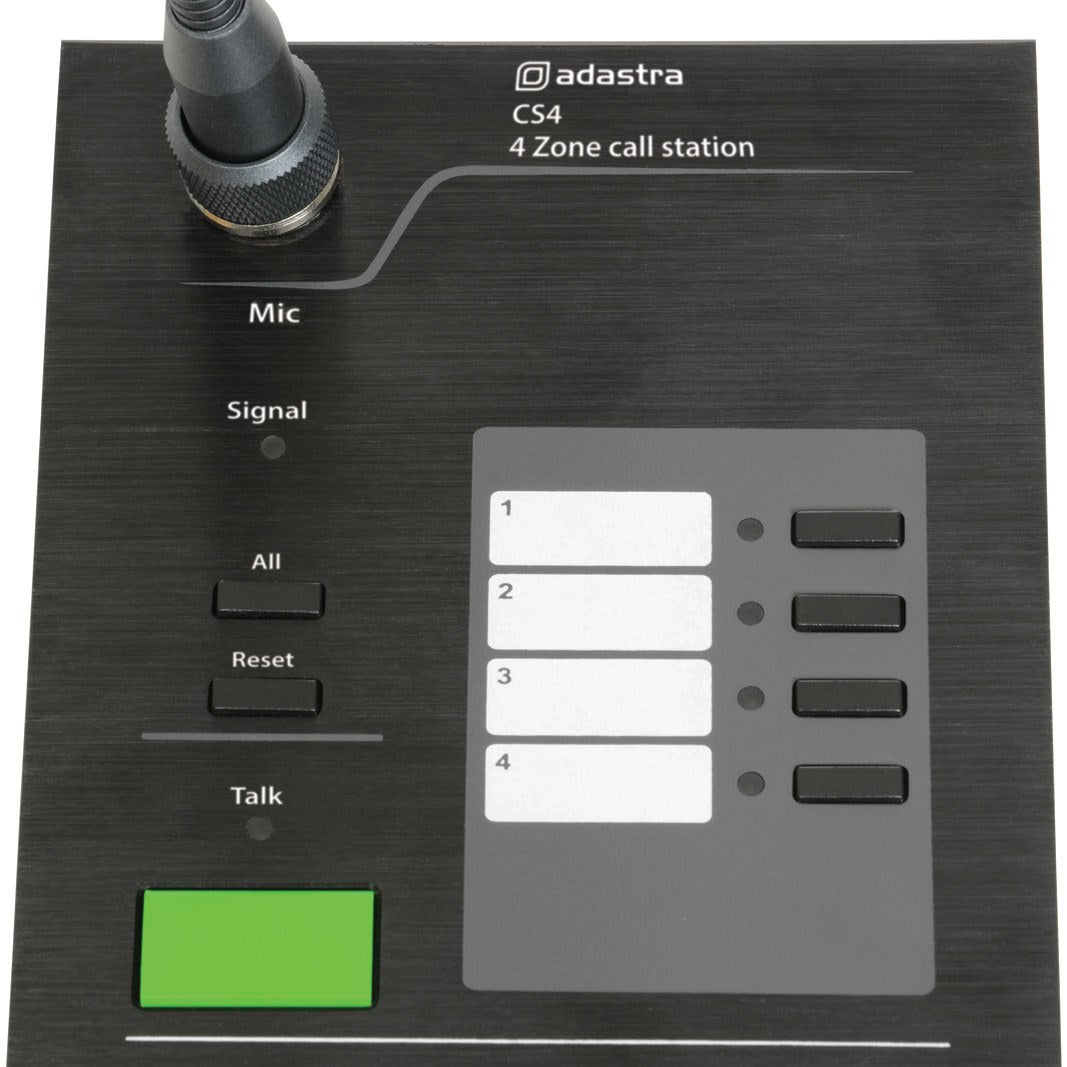

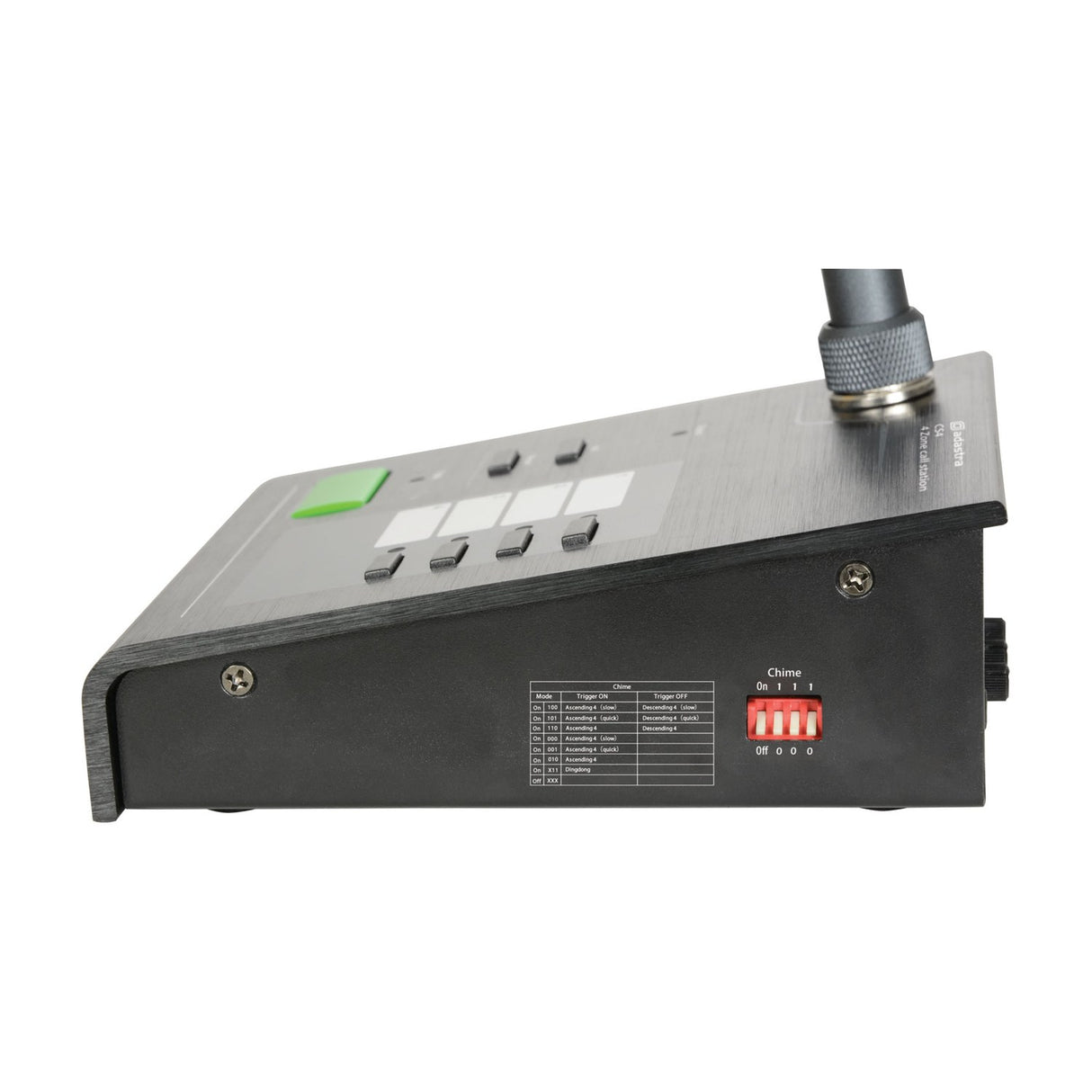

Zone assign buttons let you page a single zone or all four at once. When you press the page button, background music is muted across the selected zones and one of eight chimes plays before the microphone opens. Pressing reset mutes the mic and resumes music playback to all zones. The chime is set using DIP switches, and separate level controls cover aux, mic and chime volumes. The result is four-zone paging without the extra cost of running a quad amplifier.

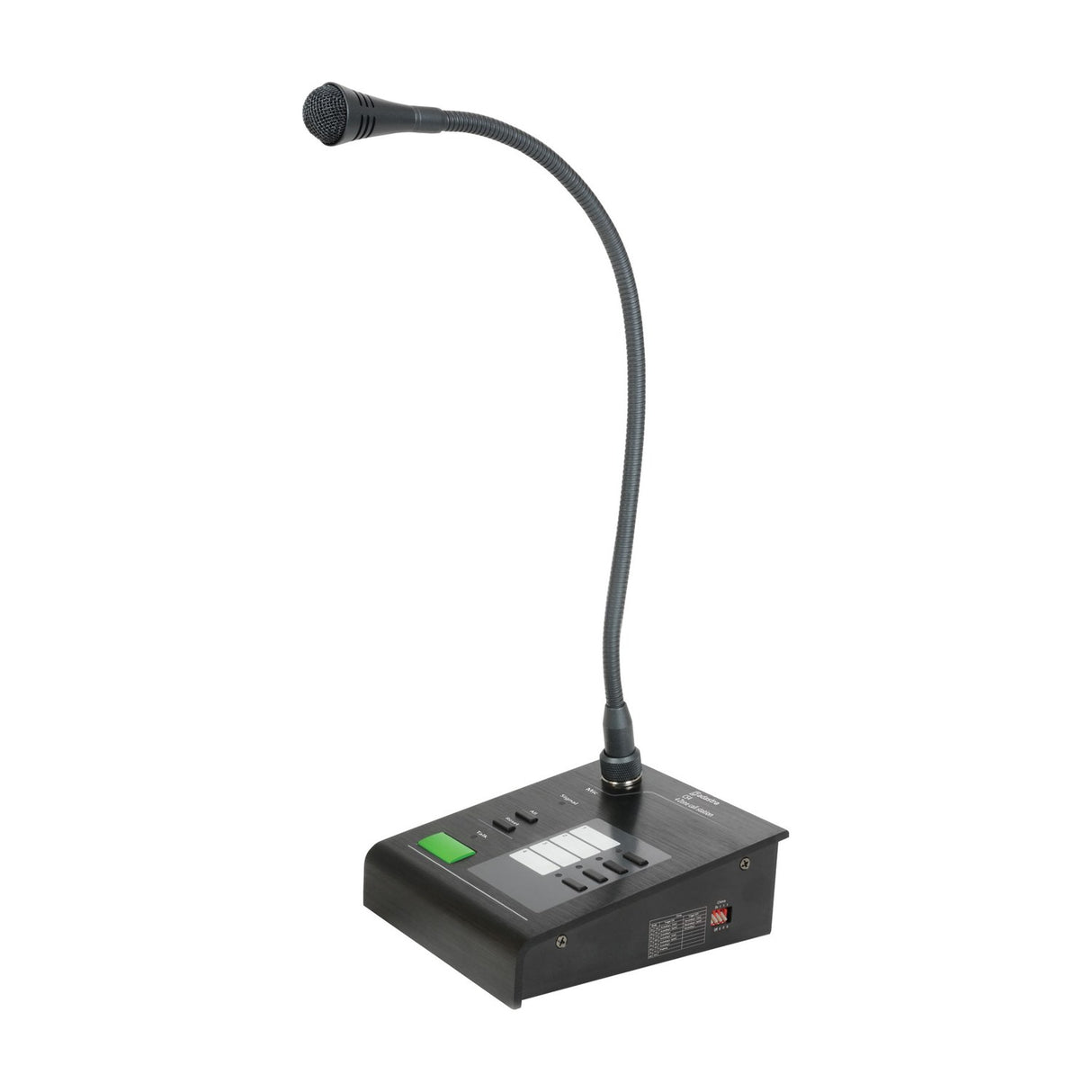

The gooseneck holds a back electret condenser capsule with a cardioid polar pattern, giving a frequency response of 150Hz to 22kHz at -3dB. A 3.5mm aux input lets you feed in an external source such as a music player or announcement device. Control uses the RS-485 interface. The unit measures 460 x 140 x 115mm and weighs 670g, with a footprint that sits neatly on a reception desk or counter.

Specification
Dimensions 460mm x 140mm x 115mm
Weight 0.67KG
Max. connection length 100m (CAT5 cable) or 1km with optional 24Vdc adaptor

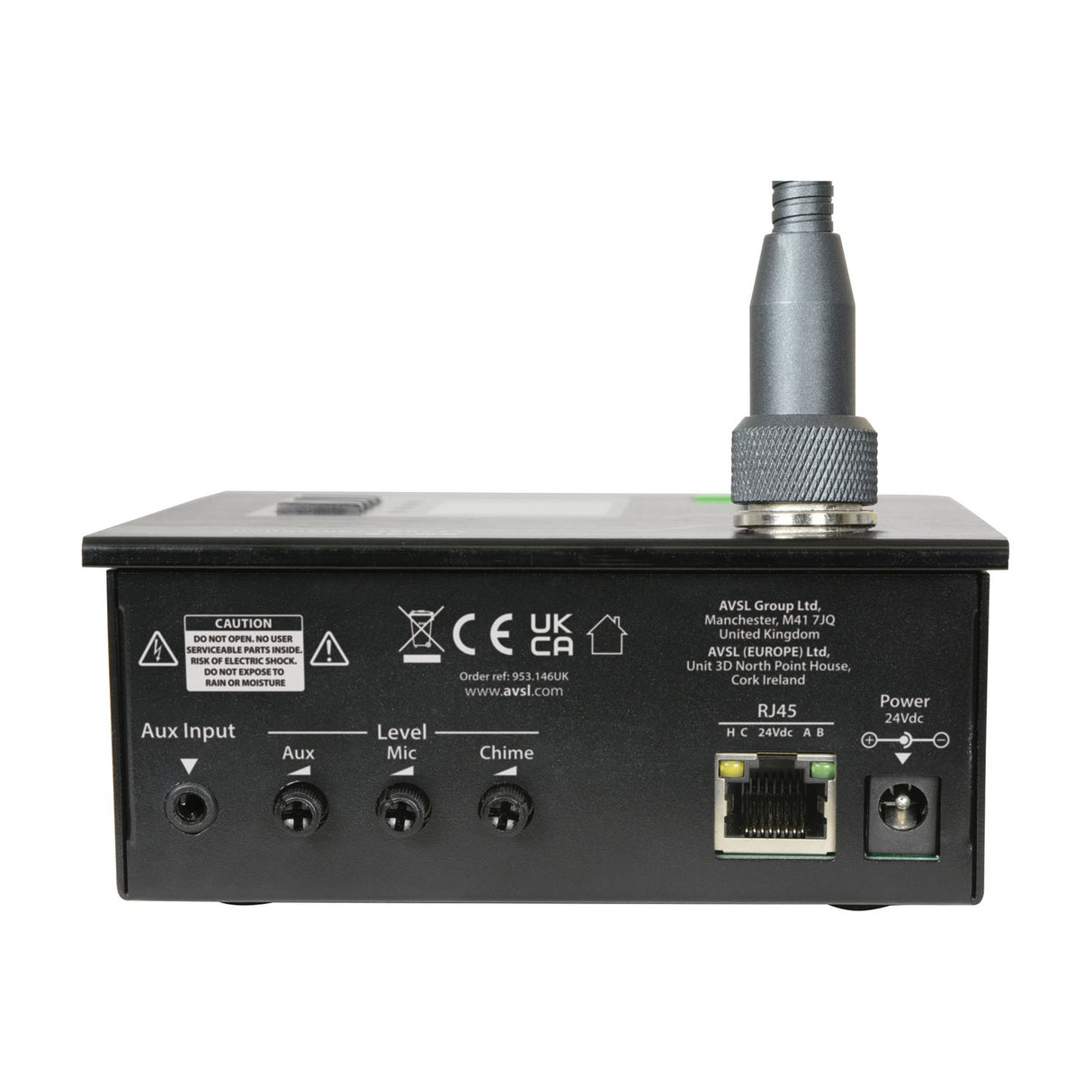

Connectors RJ45 to amplifier, 24Vdc power jack, 3.5mm aux in
Power supply 24Vdc, 500mA from RJ45 or optional adaptor
Output impedance : balanced 600 Ohms
Output level 10dBV
Input level Mic: -46dBV, Aux: -10dBV
Input impedance Mic: 600 Ohms, Aux: 50k Ohms
S/N ratio -60dB (all channels selected)
Interface RS-485 control
Zone assign 4 zones or all selectable
Frequency response : -3dB 150Hz - 22kHz
Capsule Back electret condenser
Polar pattern Cardioid
Controls Aux/Mic/Chime levels, chime DIP switches, zone/page buttons
Downloads

Product Manual

Frequently Asked

Which amplifiers does the CS4 work with?

It is designed for the Adastra RM244V and RM4460 mixer-amplifiers. It connects via RJ45 for both signal and power.

How far can I run the cable from the amplifier?

Up to 100m using standard CAT5 cable. With the optional 24Vdc adaptor you can extend the run to 1km.

Can I page individual zones?

Yes. Zone assign buttons let you call a single zone or all four zones at the same time.

What happens to the music when I page?

Pressing the page button mutes audio playback across the selected zones and plays a chime. Pressing reset resumes the background music.

How many chimes can I choose from?

There are eight selectable chime settings, configured using the DIP switches on the unit.

Is a cable included?

Yes, a 1m RJ45 patch lead is supplied with the call station.
