Adastra CC6V 100V 6.5" 2-Way Ceiling Speaker

£4499
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Adastra CC6V is a 6.5 inch two-way ceiling speaker built for 100V line systems, with an 8 Ohm option should you need it. A rotary selector switch on the front lets you set the power tapping, so you can balance the volume across a run of speakers without touching the amplifier. That makes it a practical choice for shops, offices, cafes and other spaces where you want even background sound or clear paging.

The speaker uses a PP mica bass driver paired with a directional dome tweeter, giving a wide frequency response and a dispersion angle of 160 degrees. The result is speech and music that carries clearly across a room. Everything sits in a white polymer frame with a metal grille, so it blends into most ceilings and holds up well over time.

Fitting is straightforward. The CC6V comes with spring-loaded 'dog-ear' mounts that clamp onto ceiling tiles between 1mm and 20mm thick, so you can drop it into place without extra brackets. Connection is just as simple thanks to the spring-loaded terminals, which take bare cable quickly and hold it securely. If you are wiring up a 100V line (also called a constant-voltage system in the US), you can loop several units together and set each one to the tapping that suits the room.

Specification
Weight 1.25KG

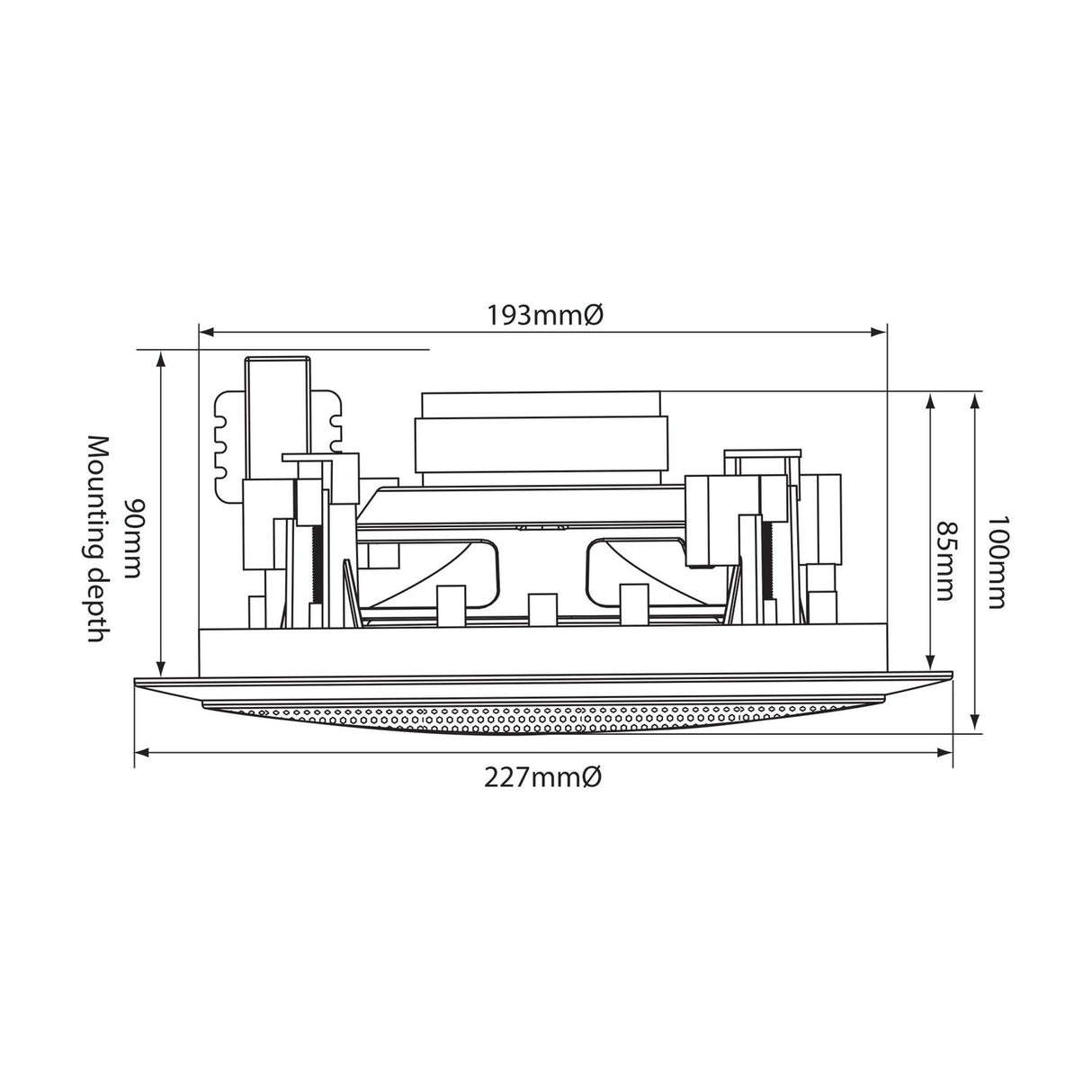

Dimensions 100mm x 227mmØ
Tappings 2.5, 5, 10, 15, 20W & 8 Ohm
SPL @ 1W/1m 87dB (±2dB)
Mounting depth 90mm
Cutout 193mmØ
Power rms : 100V line 20W
Power rms : 8 Ohms 50W
Power max. : 8 Ohms 100W
Frequency response 70Hz - 20kHz
Tweeter 38mmØ (1.5")
Woofer 165mmØ (6.5")
Dispersion angle 160°
Downloads

Product Manual

Frequently Asked

Does the CC6V work on 8 Ohm systems?

Yes. The rotary selector switch lets you choose between 100V line tappings or an 8 Ohm setting, so it suits both distributed and standard amplifier setups.

What size ceiling tiles will it fit?

The dog-ear mounts clamp onto ceiling tiles from 1mm to 20mm thick, covering most common suspended and plasterboard ceilings.

How do I connect the cables?

The speaker uses spring-loaded terminals. You simply push down the tab, insert the bare wire and release. No screwdriver is needed for the terminals themselves.

What is the speaker driver size?

It has a 6.5 inch PP mica bass driver, paired with a directional dome tweeter for the higher frequencies.

How wide is the sound coverage?

The dispersion angle is 160 degrees, which spreads sound evenly across a room and helps keep volume consistent as you move around.

Is it suitable for background music and paging?

Yes. The two-way design gives a good frequency response for music, while the clear tweeter keeps speech and paging announcements easy to follow.
