Adastra CC5V 5.25" 100V 2-Way Ceiling Speaker

£3999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

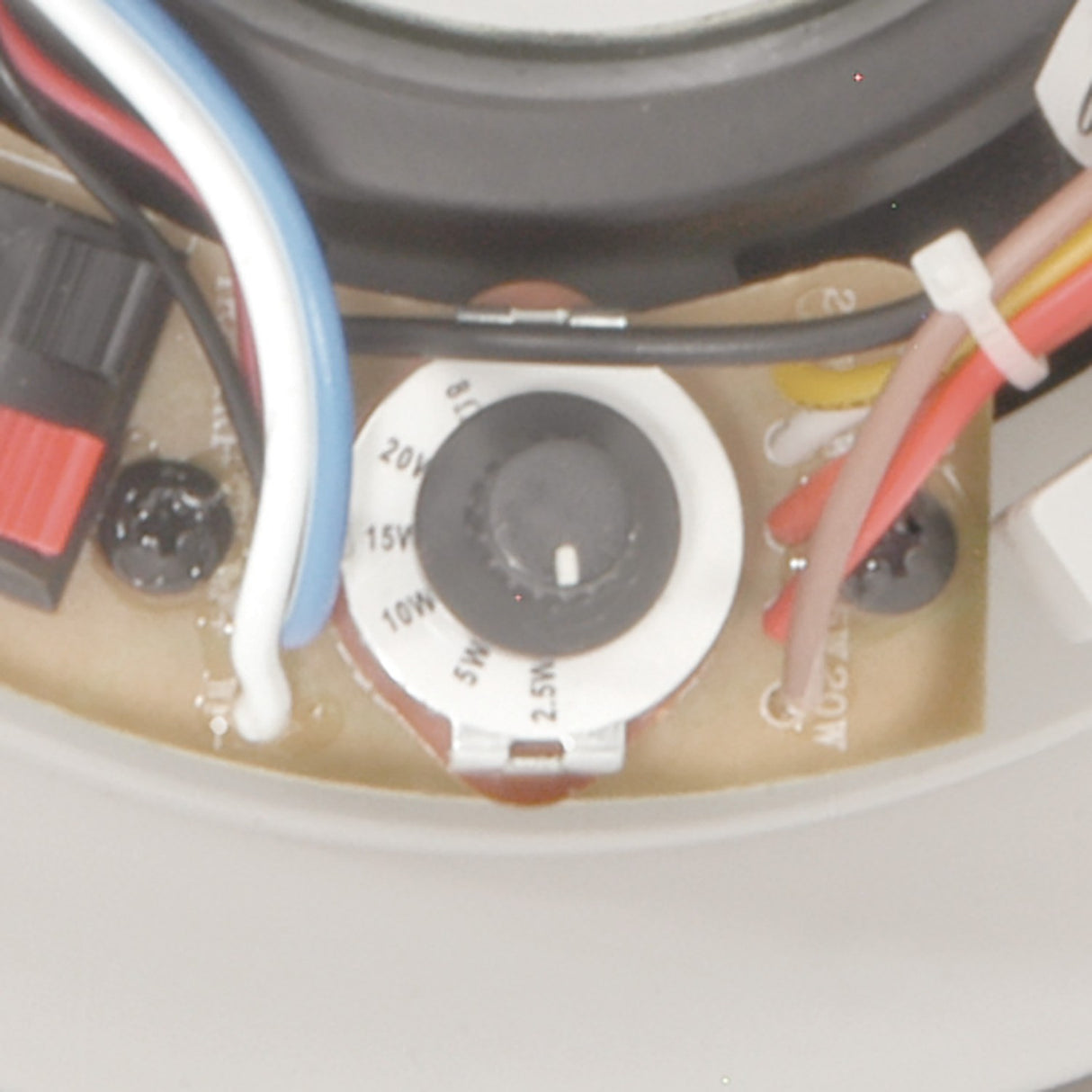

The Adastra CC5V is a 5.25 inch two-way ceiling speaker built for 100V line systems, though it also runs at 8 Ohms if you prefer a low impedance setup. A rotary selector switch on the front lets you choose the power tapping or switch to 8 Ohm mode, so you can balance the output across a run of speakers or match a standard amplifier without extra hardware.

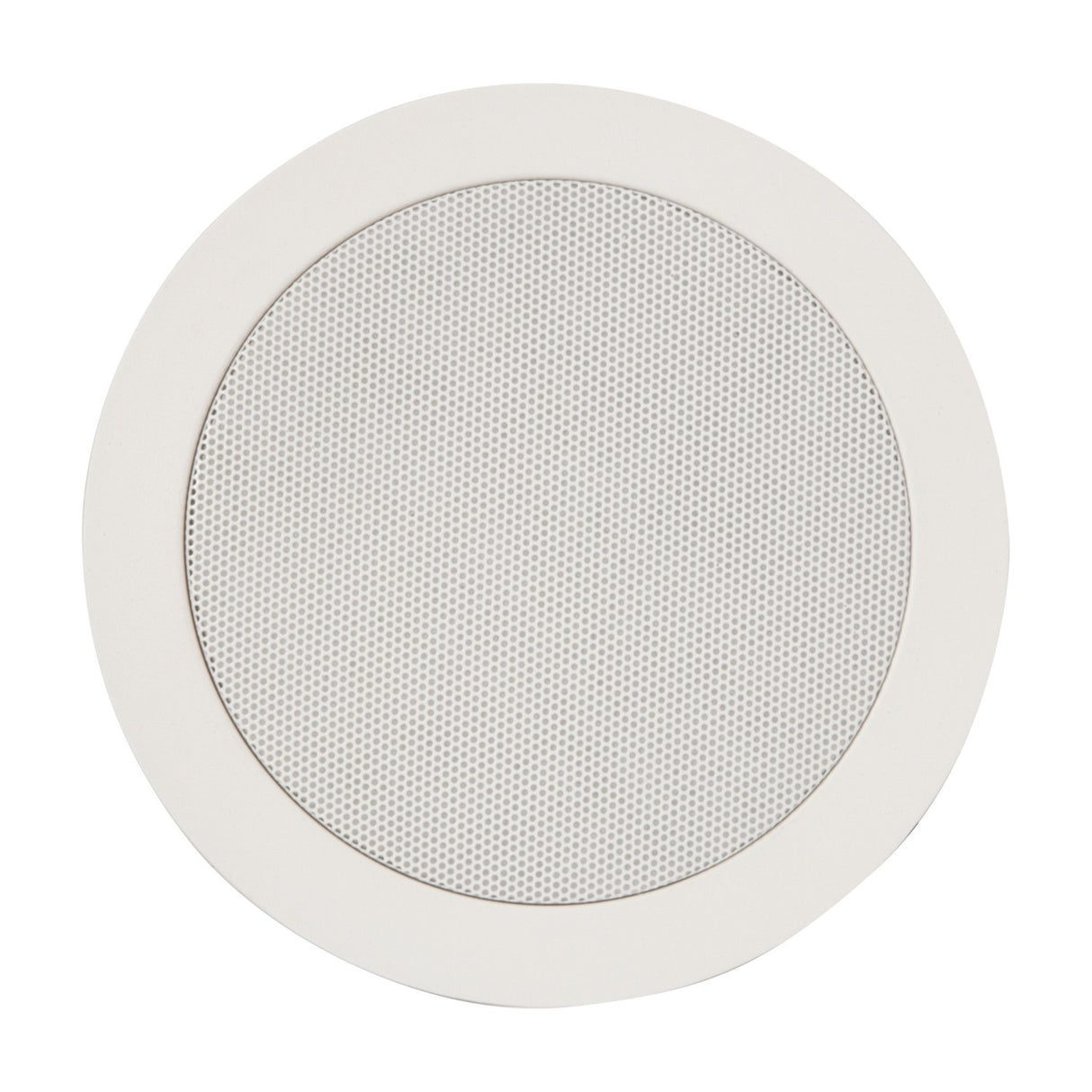

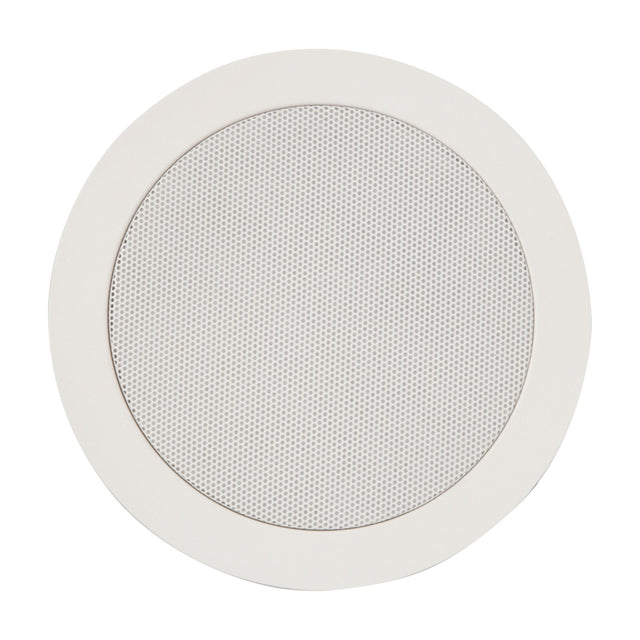

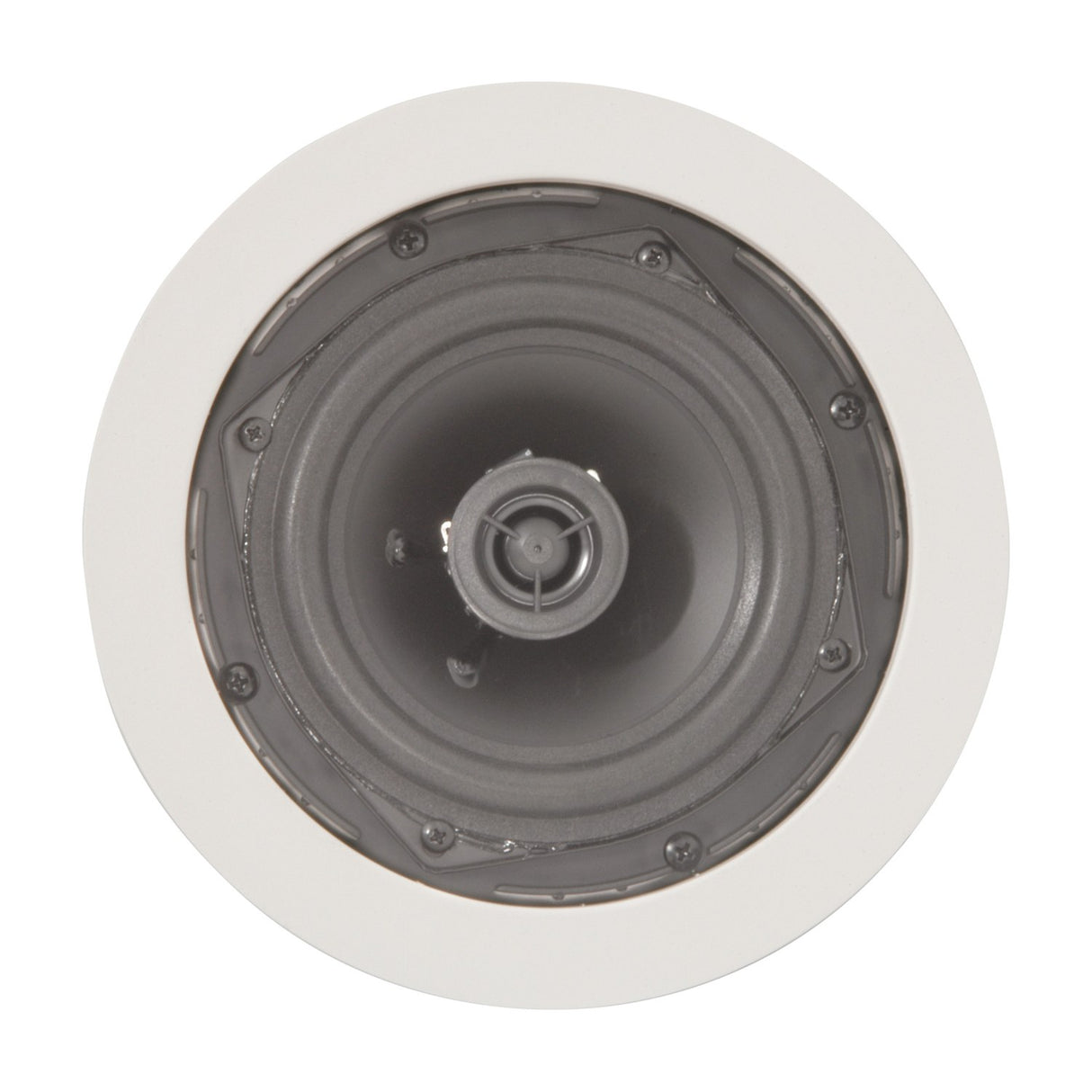

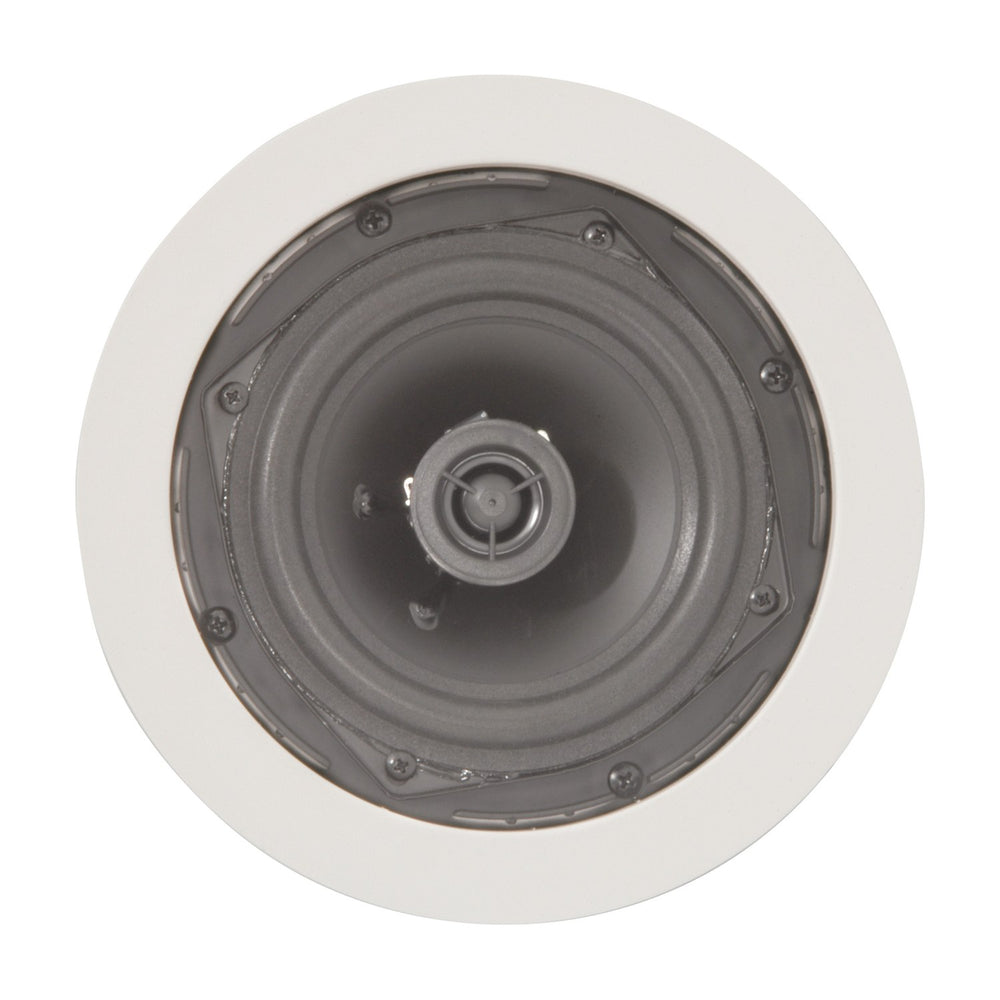

Sound comes from a PP mica bass driver paired with a directional dome tweeter, which gives a wide frequency response suited to background music and speech in shops, offices and communal areas. The 160 degree dispersion angle spreads sound evenly across a room, so you need fewer units to cover a given space. The white polymer frame and metal grille sit flush against the ceiling and keep a clean, plain look.

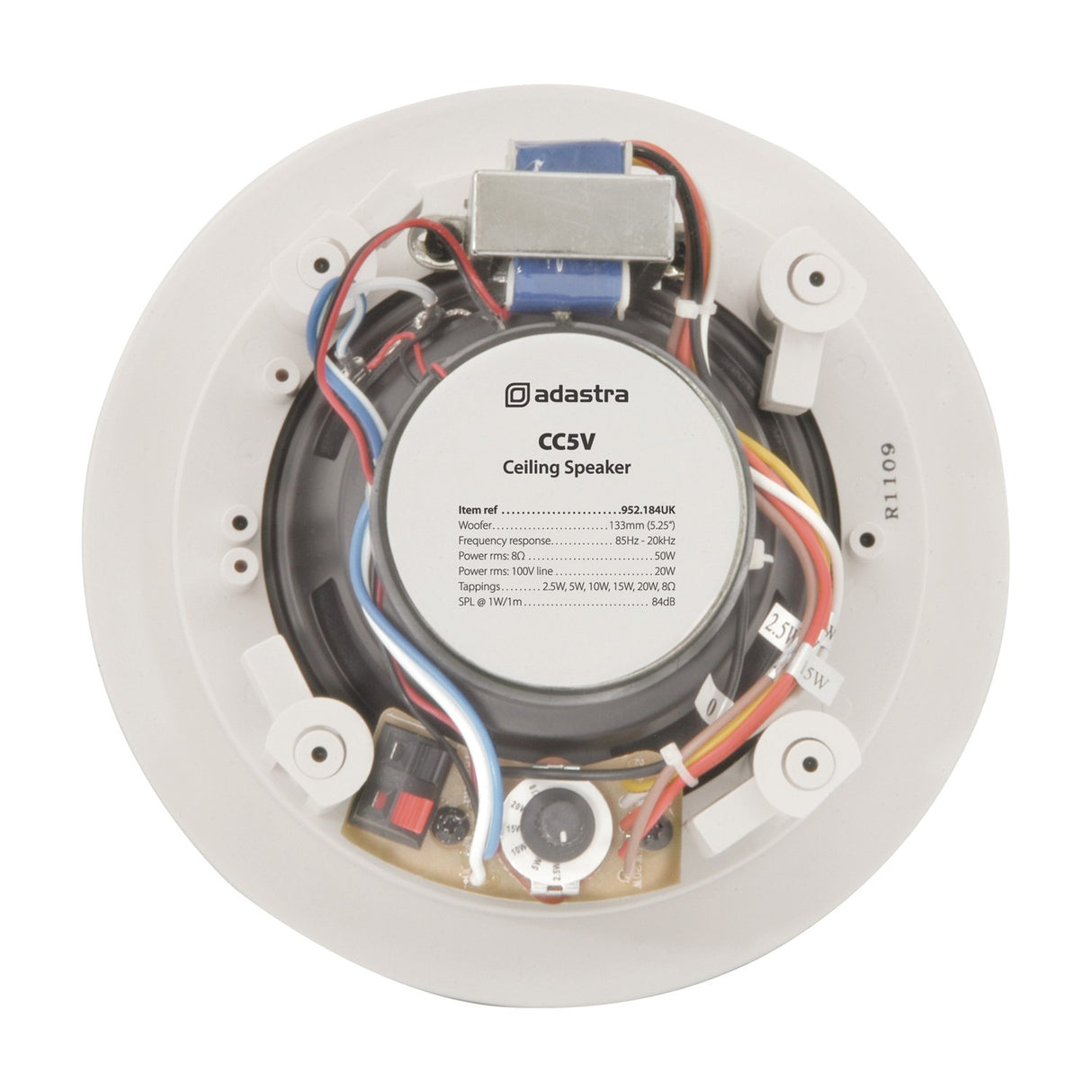

Fitting is quick thanks to the spring-loaded 'dog-ear' mounts, which clamp onto ceiling tiles between 1mm and 20mm thick. There is no need for a separate back box or a lot of tools; the arms swing out and grip the tile as you tighten. Spring-loaded terminals handle the wiring, so you push the cable in and go. If you are wiring a 100V line (sometimes called a constant-voltage line in the US), the tapping selector makes it easy to set the load on each speaker as you install it along the run.

Specification
Weight 1.15KG

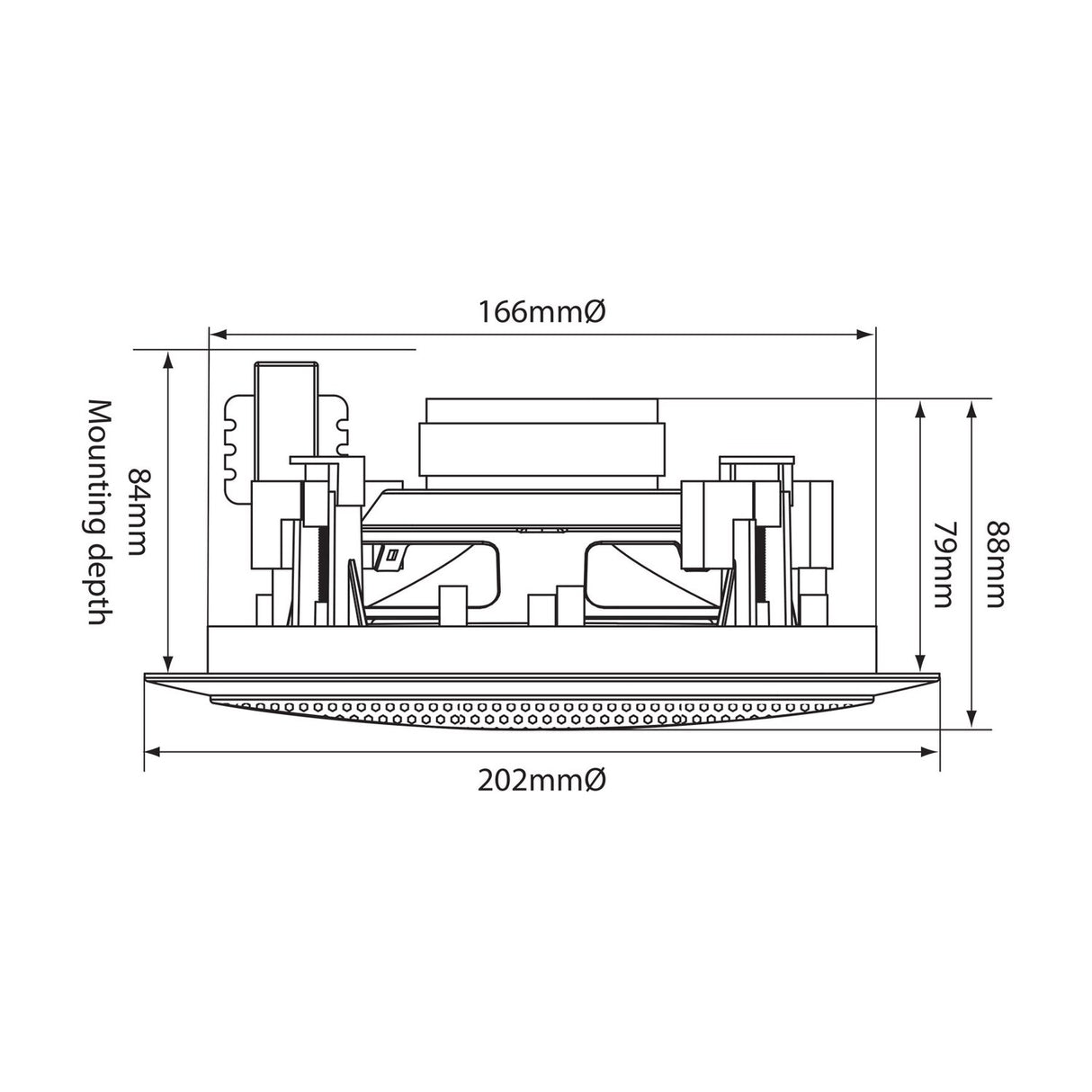

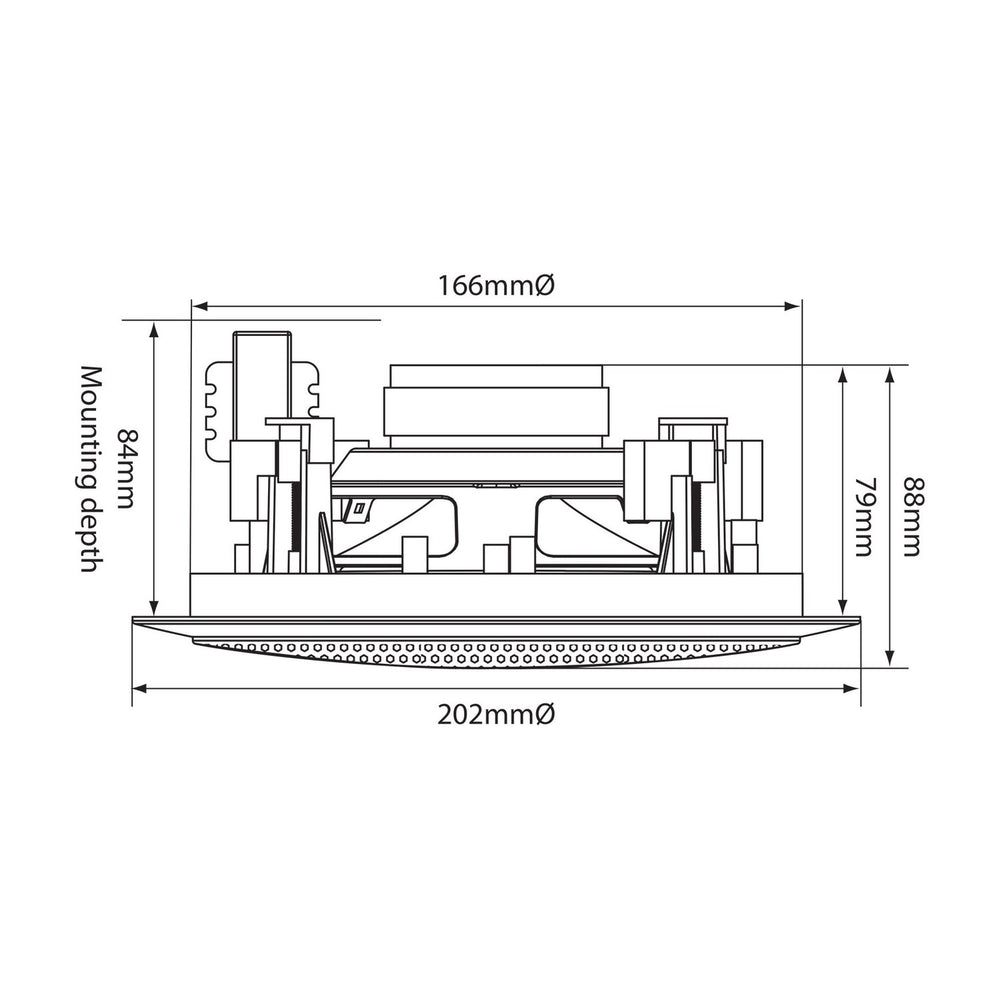

Dimensions 88mm x 202mmØ
Tappings 2.5, 5, 10, 15, 20W & 8 Ohm
SPL @ 1W/1m 84dB (±2dB)
Mounting depth 84mm
Cutout 166mmØ
Power rms : 100V line 20W
Power rms : 8 Ohms 40W
Power max. : 8 Ohms 80W
Frequency response 85Hz - 20kHz
Tweeter 38mmØ (1.5")
Woofer 133mmØ (5.25")
Dispersion angle 160°
Downloads

Product Manual

Frequently Asked

Can the CC5V run at 8 Ohms as well as 100V?

Yes. The rotary selector switches between 100V line tappings and 8 Ohm mode, so it works on both constant-voltage and standard low impedance systems.

What ceiling thickness does it fit?

The dog-ear mounts clamp onto ceiling tiles from 1mm up to 20mm thick, gripping as you tighten the arms.

Do I need a back box to install it?

No. It is a quick-fit design that mounts straight into the ceiling tile using the spring-loaded arms, so no separate back box is required.

What size is the driver?

It uses a 5.25 inch PP mica bass driver alongside a directional dome tweeter.

How wide is the sound coverage?

The dispersion angle is 160 degrees, which spreads sound evenly and lets you space units further apart.

How are the speaker cables connected?

Spring-loaded terminals hold the cable in place; you just push the wire in without needing screw terminals.
