Description

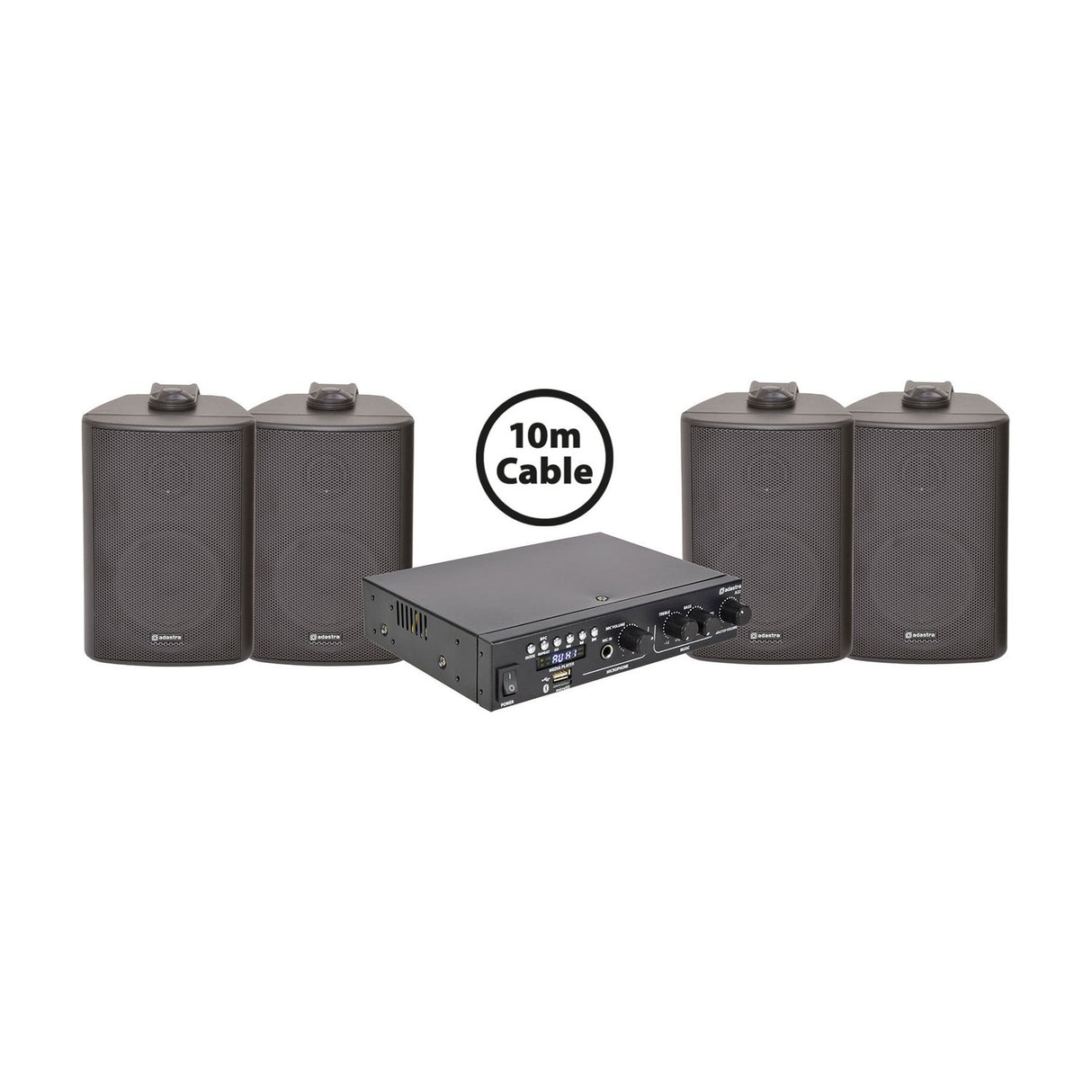

This background music package brings together a compact A22 amplifier and four BC3-B wall speakers, giving you everything needed to run audio across a shop, cafe, office or similar space. The A22 amplifier can be fixed under a counter top or mounted vertically against a wall using the brackets supplied, so you can tuck it out of the way. Inside it you get a Bluetooth receiver, a USB and microSD media player and an FM tuner, which means you can play music from a phone, a memory stick or the radio without extra kit.
The A22 has a 6.3mm microphone input with its own level control, useful for announcements or paging alongside the music. There are three Aux inputs on 3.5mm and RCA (phono) sockets for connecting mp3 players, computers or other playback sources. Each of the four BC3-B wall speakers comes with an adjustable wall-mount bracket and spring terminal connections, so you can angle the sound where you need it once fitted.
The package includes 10m of 2-core speaker cable to get you started, and this can be extended to longer runs using a terminal block if your layout calls for it. When extending, keep the positive and negative wires separate and do not short the + and - together. The amplifier, cable and speakers are packed separately in the box. Longer cable runs are also available on their own if you need them for a bigger area.
Specification
| Length |
10m |
| Diameter |
6.3 |
| Type |
Background Music |
| Model |
4*BC3B+A22 |
Downloads
Product Manual
Frequently Asked
How many speakers are included?
The package includes four BC3-B wall speakers, each supplied with an adjustable wall-mount bracket.
Can I play music from my phone?
Yes. The A22 amplifier has a built-in Bluetooth receiver, so you can stream from a phone. It also has a USB and microSD player and an FM tuner.
What inputs does the A22 amplifier have?
It has a 6.3mm microphone input with its own level control and three Aux inputs on 3.5mm and RCA sockets for mp3 players, computers and other sources.
How is the amplifier mounted?
The A22 is supplied with brackets to fix it under a counter top or vertically against a wall.
How much speaker cable is supplied?
You get 10m of 2-core speaker cable. It can be extended to longer runs using a terminal block, and longer cable is available separately.
How is everything packed?
The amplifier, cable and speakers are packed separately within the box.
