Adastra A8300 8-Zone Commercial Mixer-Amplifier

£49999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Adastra A8300 is a commercial mixer-amplifier built to drive eight stereo output zones at 300W each. Every zone has switchable stereo or dual mono speaker outputs, so you can run a true stereo pair or split the zone into two mono lines depending on the room. Each output carries its own 2-band EQ with Bass, Treble and Master Volume, giving you independent control over the sound in each area from background music up to higher sound pressure levels.

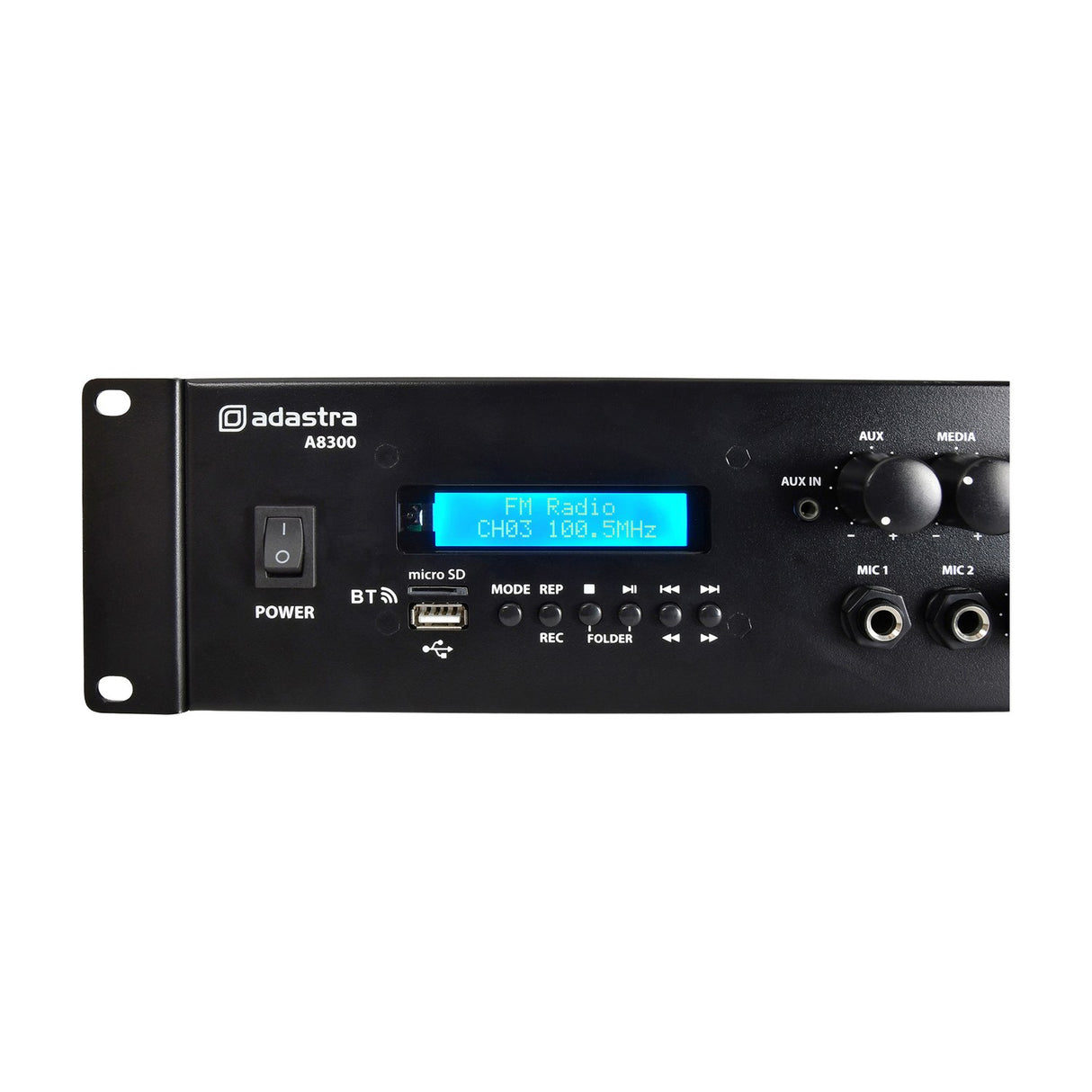

Source options are broad. Each speaker output can take its audio from the internal media player or from three external stereo line inputs, plus a digital optical input (TOSLink S/PDIF) for AV applications. The built-in player handles mp3 playback from USB drive or microSD card, and includes a Bluetooth wireless receiver and an FM radio tuner with an external aerial (US: antenna) connection via an F-type socket. Two microphone inputs each have their own level control and can be set to override the line input for voice announcements across the system.

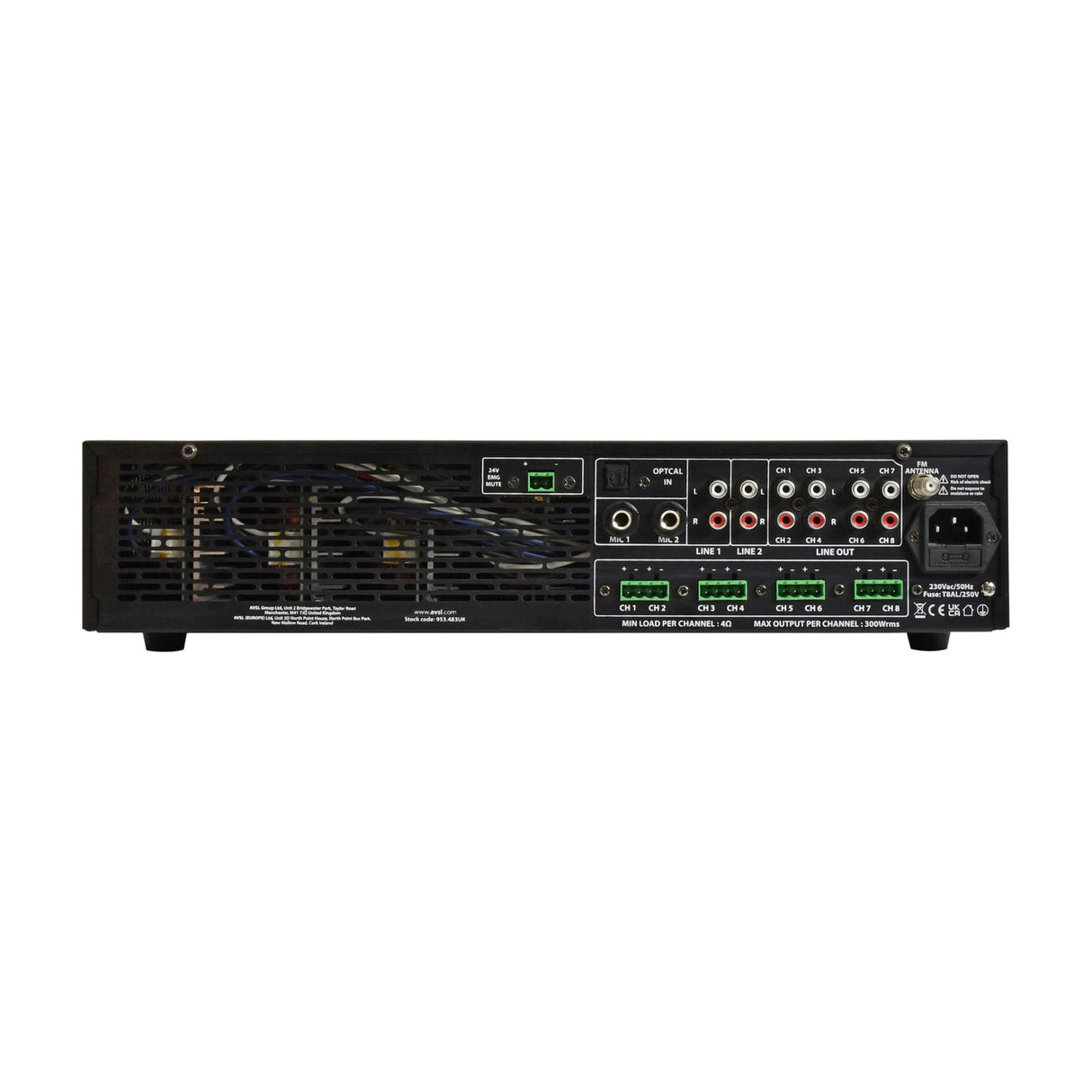

For installed and commercial use, the A8300 fits a 2U rack and puts its controls on an accessible front panel. Amplification is Class D with a frequency response of 20Hz to 20kHz (±0.5dB), dynamic range of 92dB and THD+N below 0.1%. Emergency muting can be triggered from an alarm panel through the 24V EMG MUTE contacts on the rear. Protection covers thermal, over-current, over-voltage and short-circuit conditions. It runs from a 230Vac mains supply and suits a range of system layouts across different sized installations.

Specification
Power supply 230Vac, 50Hz (IEC)
Amplifier : construction Class D
Frequency response 20Hz - 20kHz ±0.5dB
Microphone inputs 2 x 6.3mm jack (mono) front or rear panel
Line inputs Line 1 (L+R RCA), Line 2 (L+R RCA)
Digital audio input TOSLink optical (S/PDIF)
Input sensitivity : line 0.775Vrms
Input sensitivity : aux 0.480Vrms
Auxiliary input 3.5mm stereo jack
Input impedance 10k Ohms
Audio source USB/microSD mp3 playback, FM tuner, B/T receiver
B/T wireless version 2.3
Input controls Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
Output controls Mode, Stereo/Mono, Treble, Bass, Channel Volumes
Antenna connection F type (FM tuner)
Dynamic range 92dB
THD +N <0.1%
Protection Thermal, over-current, over-voltage, short-circuit
Emergency control 24V mute terminals
Downloads

Product Manual

Frequently Asked

Can each zone run stereo or mono?

Yes. Every output zone is switchable between stereo and dual mono, so you can drive a stereo pair or split the zone into two independent mono speaker lines.

What audio sources does the A8300 support?

It has an internal media player for mp3 playback from USB or microSD, plus Bluetooth, an FM tuner, three stereo line inputs, an aux input and a digital optical (TOSLink S/PDIF) input.

How does the emergency muting work?

The rear panel has 24V EMG MUTE contacts that can be actuated from an alarm panel, allowing the amplifier to mute for emergency announcements.

Can I make live voice announcements?

Yes. There are two microphone inputs, each with its own level control, and they can be set to override the stereo line input for voice announcements.

How much rack space does it need?

The A8300 fits a standard 2U rack space and runs from a 230Vac, 50Hz IEC mains supply.

What connection does the FM tuner need?

The FM tuner uses an external aerial (US: antenna) connected via an F-type socket on the rear panel.
