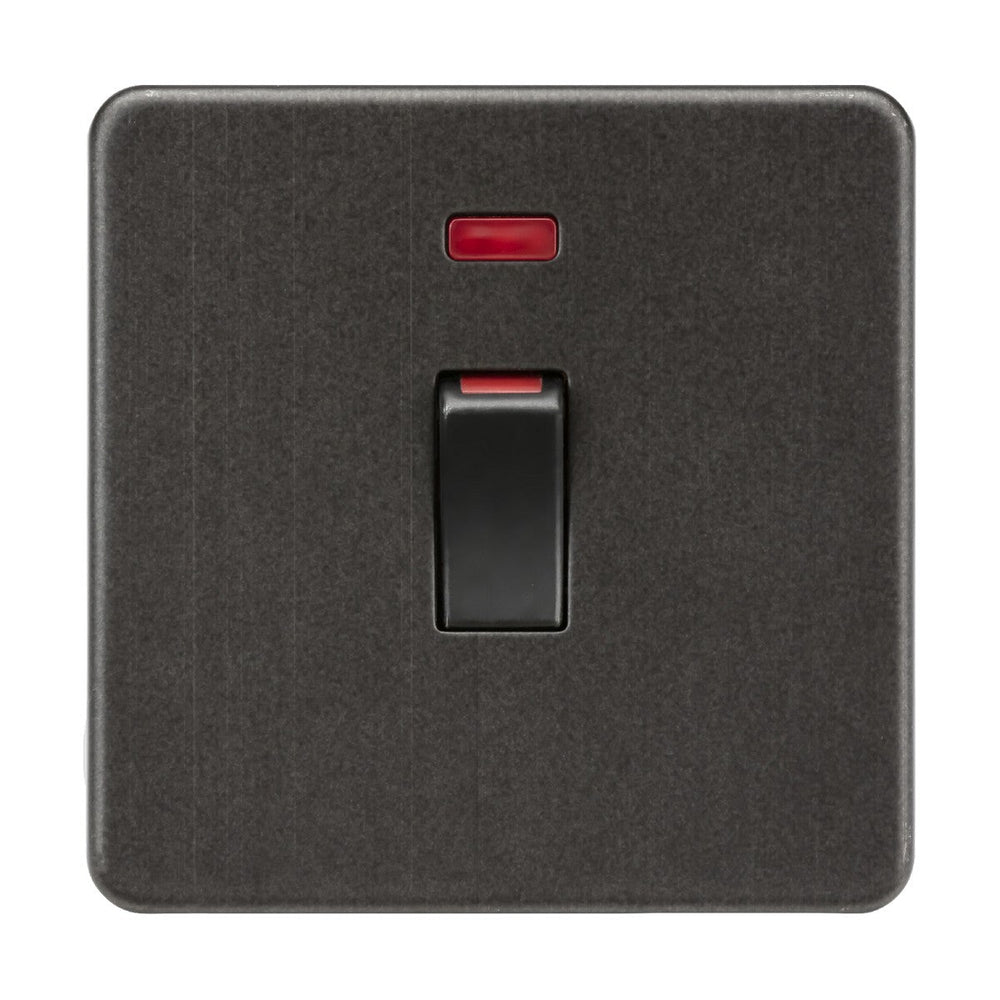

45A DP Switch with Neon - Smoked Bronze Screwless (1 Gang Size)

The Knightsbridge 45A DP switch is a double pole cooker control unit with a built-in neon indicator, housed in a smoked bronze screwless faceplate. The switch isolates both live and neutral lines when turned off, providing full circuit isolation for maintenance, repairs or safe cleaning of cooking appliances. The red neon indicator lights when the switch is in the on position, giving visual confirmation of circuit status.

Designed for controlling electric cookers, ovens, hobs and ranges rated up to 45A (10,350W at 230V), the switch can handle multiple cooking appliances on the same circuit provided the combined load stays within the 45A rating. The double pole switching cuts both conductors when off, preventing the appliance from being accidentally turned on during cleaning or servicing. The 47mm minimum back box depth accommodates the heavier gauge wiring typically used for cooker circuits.

The smoked bronze finish is a warm, semi-translucent metallic coating over premium grade steel, offering a softer alternative to chrome or brass in kitchens with darker cabinetry, exposed brick or industrial styling. The screwless cover plate clips onto a separate metal sub-frame, leaving no visible fixings on the wall once installed. The 1-gang size (87.5mm square) fits standard UK switch apertures and pairs with other Knightsbridge Screwless Smoked Bronze accessories for a coordinated installation.

Product Specification Sheet

What appliances can this switch control?

The 45A rating suits electric cookers, ovens, hobs and ranges with a combined load up to 10,350W at 230V. Multiple appliances can share the same switch provided the total circuit load stays within the 45A limit. For higher-rated installations, use a 50A switch instead.

What does the neon indicator show?

The red neon lights when the switch is in the on position, providing visual confirmation that power is being supplied to the cooking appliance. When the switch is off, the neon is dark and both live and neutral lines are isolated.

What back box depth is required?

A minimum 47mm back box depth is needed to accommodate the heavier gauge wiring typically used for 45A cooker circuits. The screwless cover plate adds 4.3mm of projection from the wall once fitted.

Is the screwless plate removable for redecorating?

Yes. The smoked bronze cover plate clips onto a separate metal sub-frame fixed to the back box. The cover can be removed for painting around the switch and re-clipped without disturbing the wiring.
