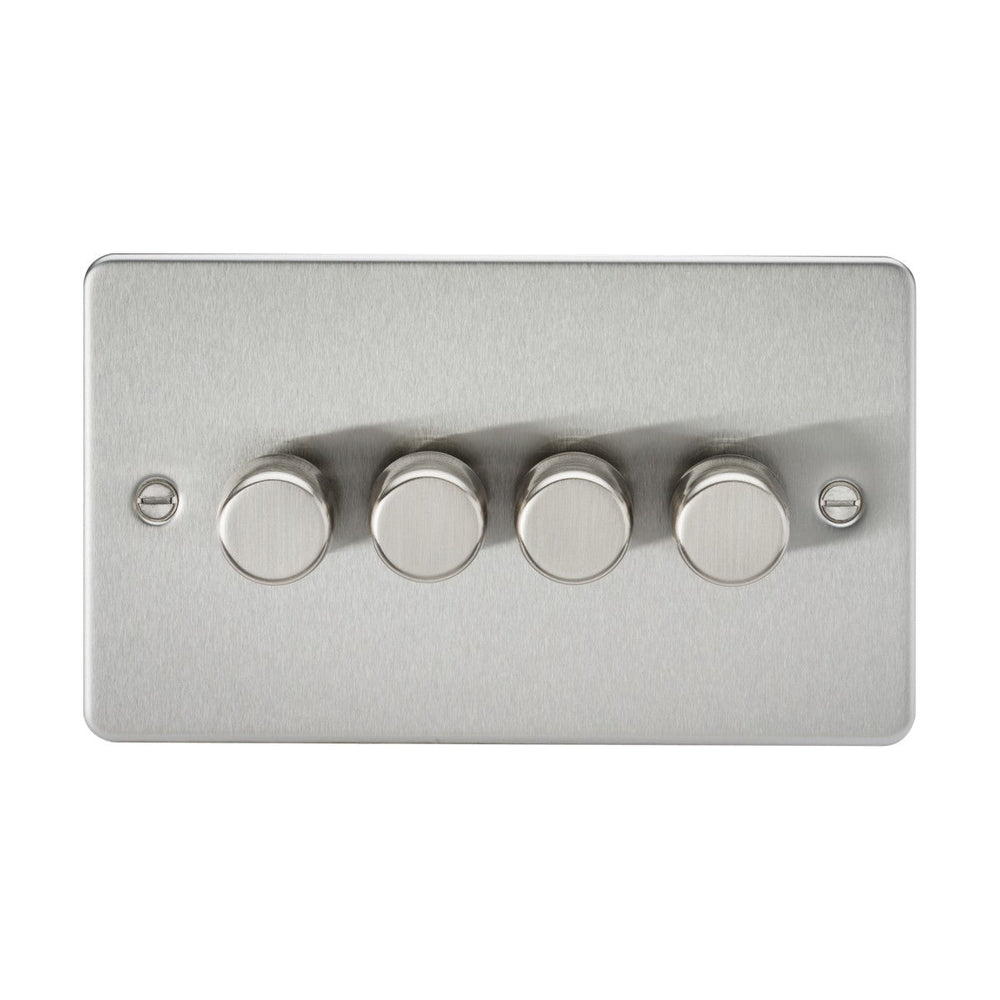

4 Gang 2-Way Intelligent Dimmer 10-200W (5-150W LED) - Brushed Chrome Flat Plate

The Knightsbridge FP2194BC is a 4-gang 2-way intelligent dimmer that switches between trailing-edge and leading-edge modes to suit different lamp types, supporting 10-200W per gang for incandescent and halogen loads, or 5-150W per gang for dimmable LED. Each gang operates independently via a push on/off rotary control, allowing four separate lighting zones to be controlled from a single faceplate with a brushed chrome finish and 2.5mm low-profile projection.

Designed for living rooms, open-plan kitchen-dining areas, and home cinema installations where multiple lighting zones need independent dimming control, the 2-way configuration allows the same lighting circuit to be controlled from two locations. The trailing-edge mode is preset at installation for compatibility with most LED and low-voltage halogen loads, while the leading-edge mode can be selected via the front control knob if fitting older incandescent or high-voltage halogen lamps. Trim adjustment and mode switching are accessible from the front of the plate without removing the faceplate, making it straightforward to recalibrate if lamps are changed in future.

The flat plate design uses premium-grade steel with a directional brushed chrome finish that provides a low-sheen metallic surface, softening reflections compared to polished chrome. The 2.5mm projection sits nearly flush with the wall once fitted to a 25mm minimum back box. Each gang includes overload protection, overheat protection, and an inrush current limiter to prevent tripping when switching on high-capacity lighting circuits. The dimmer caps match the brushed chrome faceplate finish, maintaining a consistent metallic appearance across all four controls.

This dimmer requires all lamps on each controlled circuit to be of the same brand, type and wattage — mixing different lamp brands or wattages on the same fitting will cause flickering or inconsistent dimming performance. The IP20 rating limits use to dry interior locations.

Product Specification Sheet

What's the difference between trailing-edge and leading-edge modes?

Trailing-edge mode is designed for dimmable LED and electronic low-voltage halogen transformers, and is the preset default. Leading-edge mode suits older incandescent and magnetic low-voltage halogen loads. The dimmer can be switched between modes via the front control knob without removing the faceplate.

Can I mix different lamp brands on the same circuit?

No. All lamps controlled by each gang must be the same brand, type and wattage. Mixing different lamp specifications on the same circuit causes flickering and inconsistent dimming performance.

What does 2-way mean?

2-way allows the same lighting circuit to be controlled from two separate switch locations — for example, one dimmer at the room entrance and another at the far end of a hallway. This requires appropriate wiring between the two switch positions.

What back box depth is needed?

A 25mm minimum back box depth is required. The faceplate adds 2.5mm of projection from the wall once fitted, giving a nearly flush finish.
