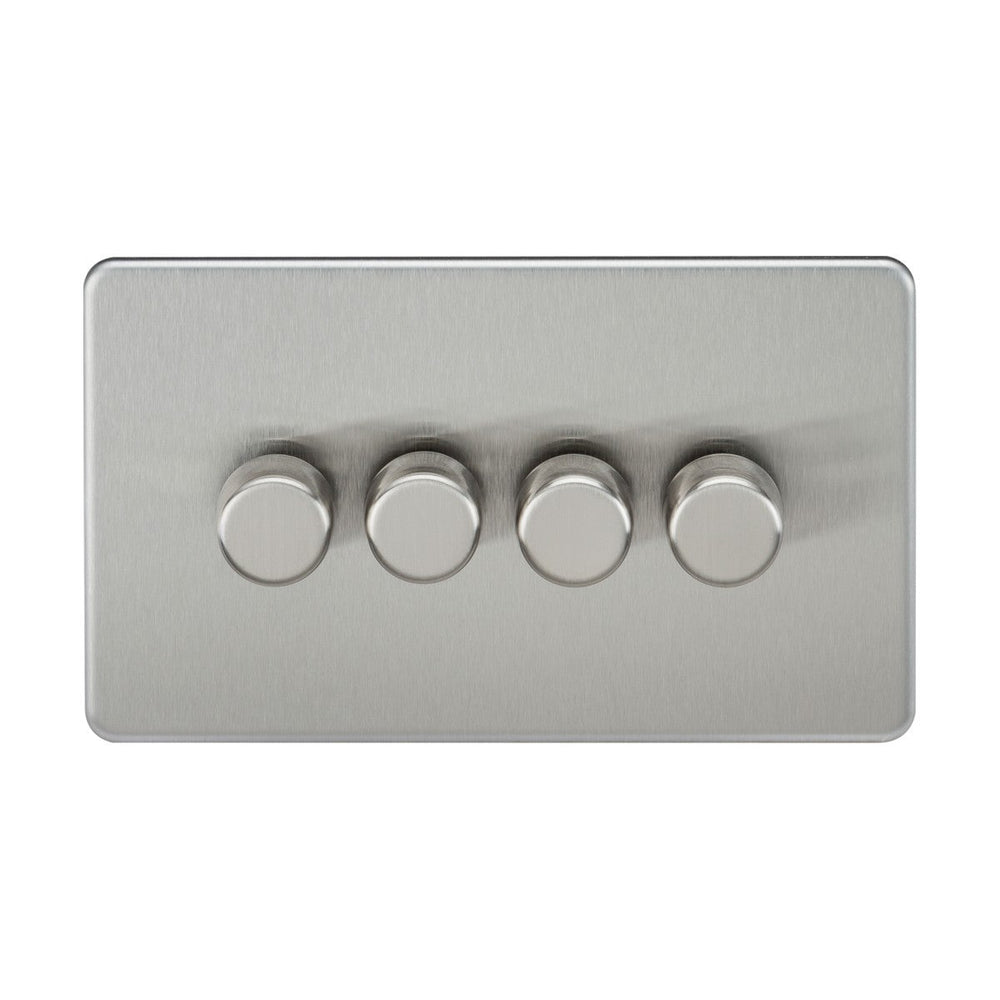

4 Gang 2-Way 10-200W Intelligent Dimmer - Brushed Chrome Screwless

The Knightsbridge SF2194BC is a 4-gang 2-way intelligent dimmer that handles 10-200W incandescent loads or 5-150W LED loads per gang, behind a brushed chrome screwless faceplate with matching metal dimmer caps. Each gang switches between trailing-edge and leading-edge dimming modes via a control knob on the front of the plate, providing compatibility with most dimmable LED, halogen, and incandescent bulbs without needing to access the back box.

Designed for living rooms, dining rooms, and hospitality environments where multiple lighting circuits need independent dimming control from a single plate, the 4-gang configuration allows separate control of ceiling lights, wall lights, floor lamps, and table lamps on different circuits. The 2-way wiring supports control from two locations, such as opposite ends of a hallway or at top and bottom of stairs. Each gang operates via a push on/off action with rotary dimming, and the dimmer trims, mode switches, and resets are all accessed from the front control knob.

The dimmer ships preset in trailing-edge mode, which suits most modern LED fittings. If flicker or buzz occurs with specific LED bulbs, the front control knob allows a switch to leading-edge mode without removing the plate or re-wiring. Overload and overheat protection are built in, plus an inrush current limiter to handle the surge when dimmable LED or halogen bulbs are switched on. The screwless cover plate clips onto a separate metal sub-frame, leaving no visible fixings on the wall once installed. The brushed chrome finish provides a satin metallic surface that resists fingerprints and pairs with both contemporary and traditional interiors.

Each dimmer gang must be used with dimmable lamps only, and Knightsbridge specifies that all lamps on a single gang must be the same brand, wattage, and type to avoid compatibility issues. Mixing different lamp brands or wattages on the same circuit can cause flicker, hum, or premature failure. The 25mm minimum back box depth and Class I earthed construction make this suitable for standard UK residential and commercial installation.

Product Specification Sheet

What's the difference between trailing-edge and leading-edge dimming?

Trailing-edge dimming suits most modern LED and low-voltage halogen fittings by cutting the trailing edge of the AC waveform. Leading-edge dimming cuts the leading edge and works better with older incandescent and some high-wattage halogen loads. This dimmer ships preset in trailing-edge mode and can be switched to leading-edge mode via the front control knob if flicker or buzz occurs with specific bulbs.

Can I mix different LED bulb brands on one gang?

No. Knightsbridge specifies that all lamps controlled by a single gang must be the same brand, wattage, and type. Mixing different lamp brands or wattages on the same circuit can cause flicker, hum, or premature dimmer failure due to incompatible driver electronics.

What back box depth is required?

A 25mm minimum back box depth is needed. The dimmer module adds 21.3mm recessed depth, and the screwless cover plate projects 4.3mm from the wall once fitted.

Is the screwless plate removable for redecorating?

Yes. The brushed chrome cover plate clips onto a separate metal sub-frame fixed to the back box. The cover can be removed for painting around the dimmer and re-clipped without re-wiring or disturbing the dimmer module.
