320W LED Driver for Magnetic Track Lighting - 48V DC Power Supply

£13199
The RRP is the manufacturer's recommended retail price of the item.
83 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

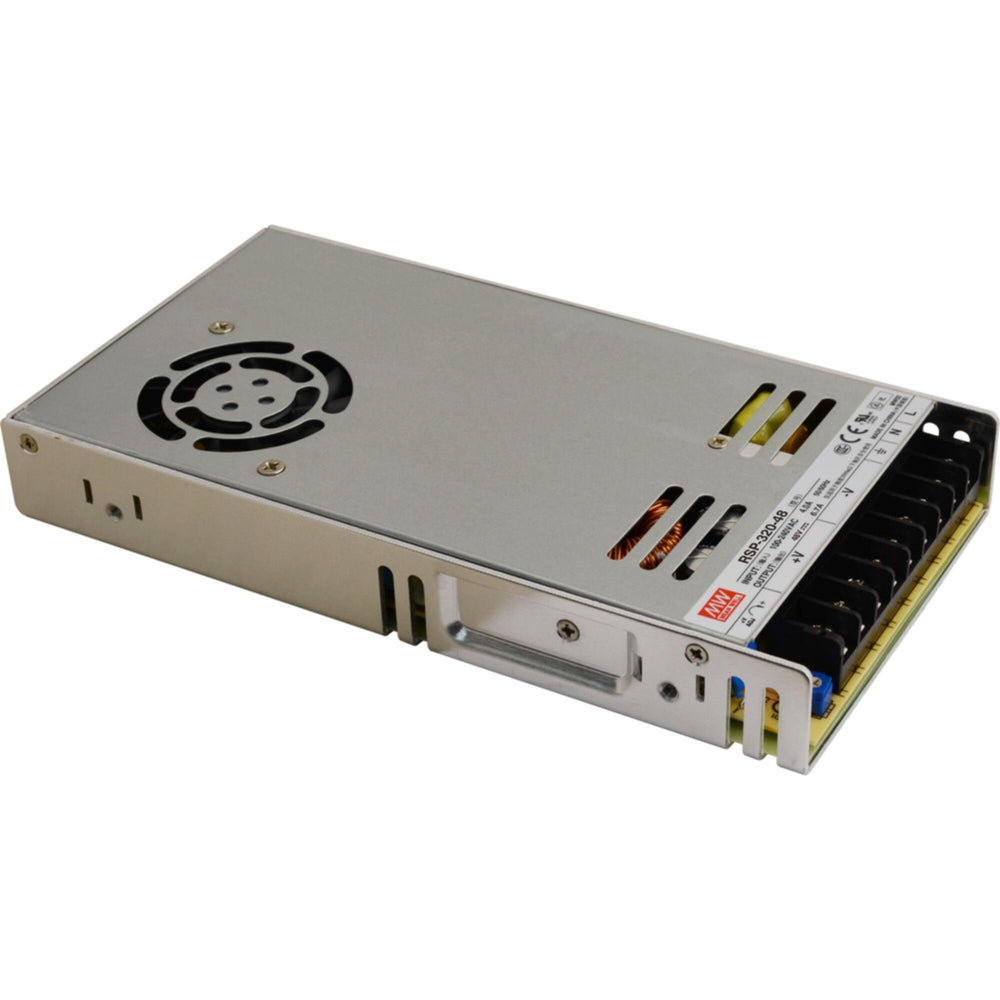

This 320W LED driver converts 100-240V AC mains power to a stable 48V DC output for magnetic track lighting systems. The driver sits within a compact 215mm x 115mm x 30mm metal enclosure with ventilation slots and screw terminals on the output side, designed for installation in ceiling voids, service cupboards or directly within track-mounting frameworks.

Designed for commercial retail environments, gallery installations and larger residential projects where multiple track-mounted spotlights or linear magnetic track sections need a centralised power source. The 320W capacity typically supports 25-30 track-mounted LED spotlights at 10-12W each, or 4-6 metres of continuous magnetic LED track depending on the wattage per metre of the specific track product. The driver includes overcurrent, overvoltage and short-circuit protection, shutting down output if a fault is detected on the track circuit.

The unit accepts universal 100-240V AC input, making it compatible with both UK 230V mains and international voltages where Niori ships. The compact footprint allows it to be mounted horizontally or vertically using the four corner screw points on the base plate. A cooling fan on the top face keeps internal temperatures within the safe operating range under continuous load, producing low-level fan noise during operation that is typically inaudible once installed in a ceiling void.

The output terminals accept wire gauges up to 2.5mm² for the positive and negative DC connections, and the input side provides earth, live and neutral screw terminals. Installation must be carried out by a qualified electrician in accordance with BS 7671 wiring regulations. The driver is not dimmable unless paired with a separate 0-10V or DALI dimming module between the driver and the track circuit.

Specification
Height 3cm
Length 21.5cm
Width 11.5cm
Max Height 3cm
Min Height 3cm
Voltage AC 100-240
Warranty 2 Year Guarantee
Downloads

Product Manual

Frequently Asked

How many track lights can this driver power?

The 320W capacity typically supports 25-30 track-mounted LED spotlights at 10-12W each, or 4-6 metres of continuous magnetic LED track depending on the wattage per metre rating of the specific track product. Check the combined wattage of your planned installation to ensure it stays within the 320W limit.

Is this driver dimmable?

The driver itself does not include dimming capability. To dim magnetic track lighting powered by this unit, you would need to install a separate 0-10V or DALI dimming module between the driver output and the track circuit, or use a driver model that includes integrated dimming.

Does it need ventilation when installed?

Yes. The cooling fan on the top face requires air circulation to keep the driver within its safe operating temperature range. Do not enclose the driver in a sealed box or bury it under insulation. Leave at least 50mm clearance above the fan grille.

Can it be installed outdoors?

No. This driver is rated for indoor use only and carries no IP rating for moisture or dust ingress. Install it in a dry location protected from water, condensation and outdoor temperature extremes.
