Description

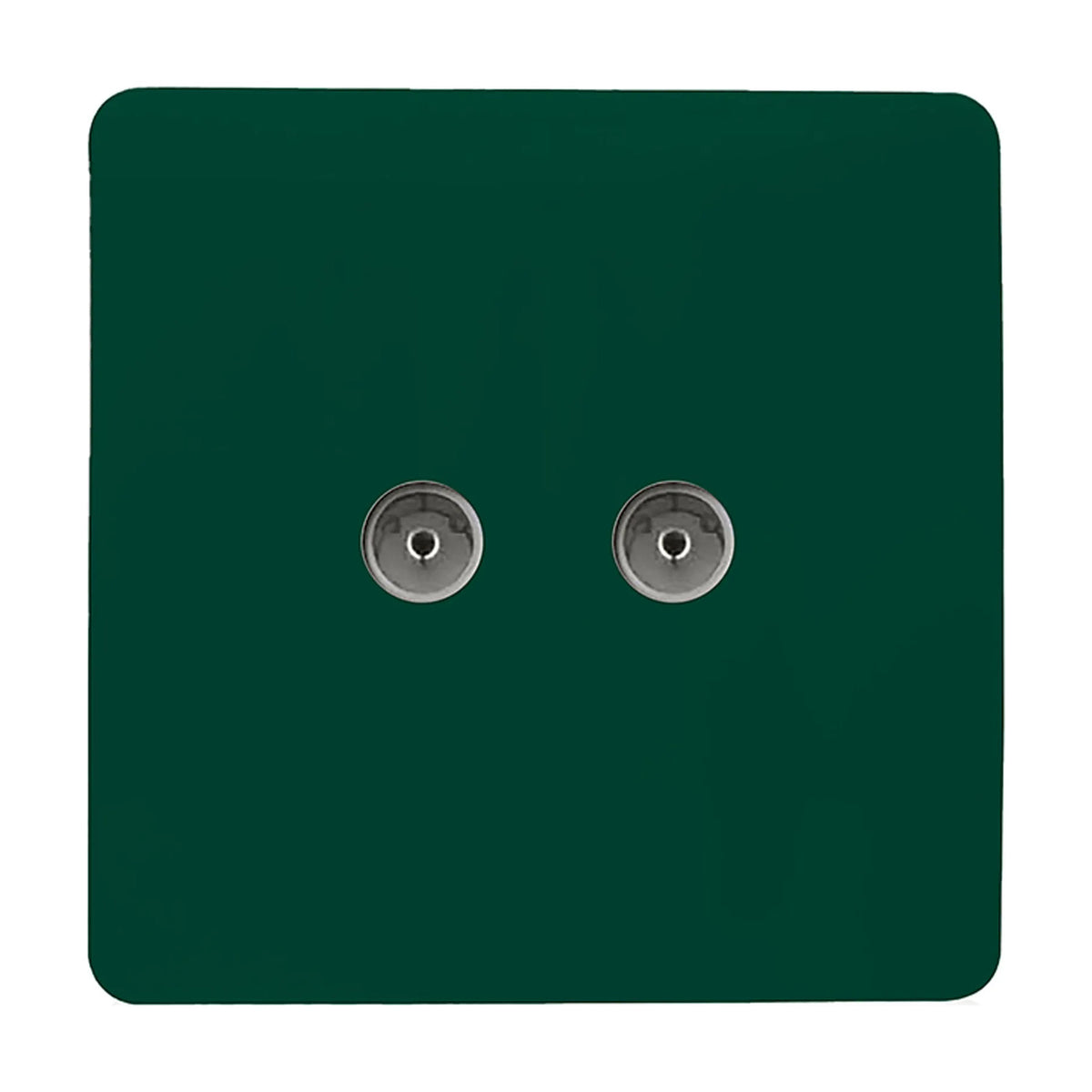

Two coaxial connections sit on a single flat plate, finished in a deep dark green with no screw heads showing on the face. The plate is 88mm square, the same footprint as the switches and power points around it, and the moulding is shallow enough that the leads are the only thing you notice. Having both positions on a single plate means a television and a recorder can land in the same spot behind the set.
It is the plate we suggest for a sitting room or bedroom where the aerial lead is not the whole story: a set and a recorder, or signal cabling gathered at a tidy single point. Dark green earns its place against deep painted walls, panelling and darker joinery, where a white plate tends to jump out at you. We would choose it where the television point is on show rather than hidden away behind furniture. It suits homes where the small fittings have been picked to match the paint rather than left as an afterthought.
The body is moulded polycarbonate, light and hard-wearing, with the screwless plate style giving a clean unbroken front. Keeping it looking right is simple: a dry cloth over the face for dust, then a cloth wrung out almost dry for finger marks near the apertures, and nothing abrasive or solvent based anywhere near the finish. This is low voltage signal work for indoor rooms, so keep it to dry spaces well away from splashes. It carries a ten year warranty. We would run it alongside matching screwless power points and data sockets so a media wall reads as a matched set of plates rather than a mix of colours.
Specification
| Colour |
Dark Green |
| Type of Finish |
Colour |
| Weight |
0.07KG |
| Length |
88mm |
| Width |
25mm |
| Height |
88mm |
| Back Box Depth |
25mm |
| Materials Used |
Polycarbonate, Metal |
| Protection Class |
Class 3 - Low Voltage |
| IP Rating |
IP20 |
| Warranty |
10yrs |
| UKCA/CE |
Yes |
| Additional Certification |
BS EN 60669 |
| Number of Gangs |
2 |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician. 25mm Box Depth Is Recommended. |
| Suitable For |
Indoor Use Only. Data circuits. |
| Country of Origin |
China |
Frequently Asked
How big is the plate?
It measures 88mm square, with a back box depth of 25mm.
What is it made from?
The plate and body are moulded polycarbonate in a dark green finish, weighing around 0.075kg.
Can I use it in a bathroom?
No. It is rated IP20 and intended for dry indoor rooms only.
What sort of circuits is it for?
Coaxial television and data circuits. It is a Class 3 low voltage fitting rather than a mains one.
How do I clean it without marking the green?
Wipe the face with a soft dry cloth, and for finger marks use a cloth wrung out almost dry. Avoid abrasive creams and solvent cleaners.
Is there a warranty?
Yes, it carries a ten year warranty.
