10AX 2 Gang 2-Way Switch - Smoked Bronze Screwless

£1399
The RRP is the manufacturer's recommended retail price of the item.
150 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

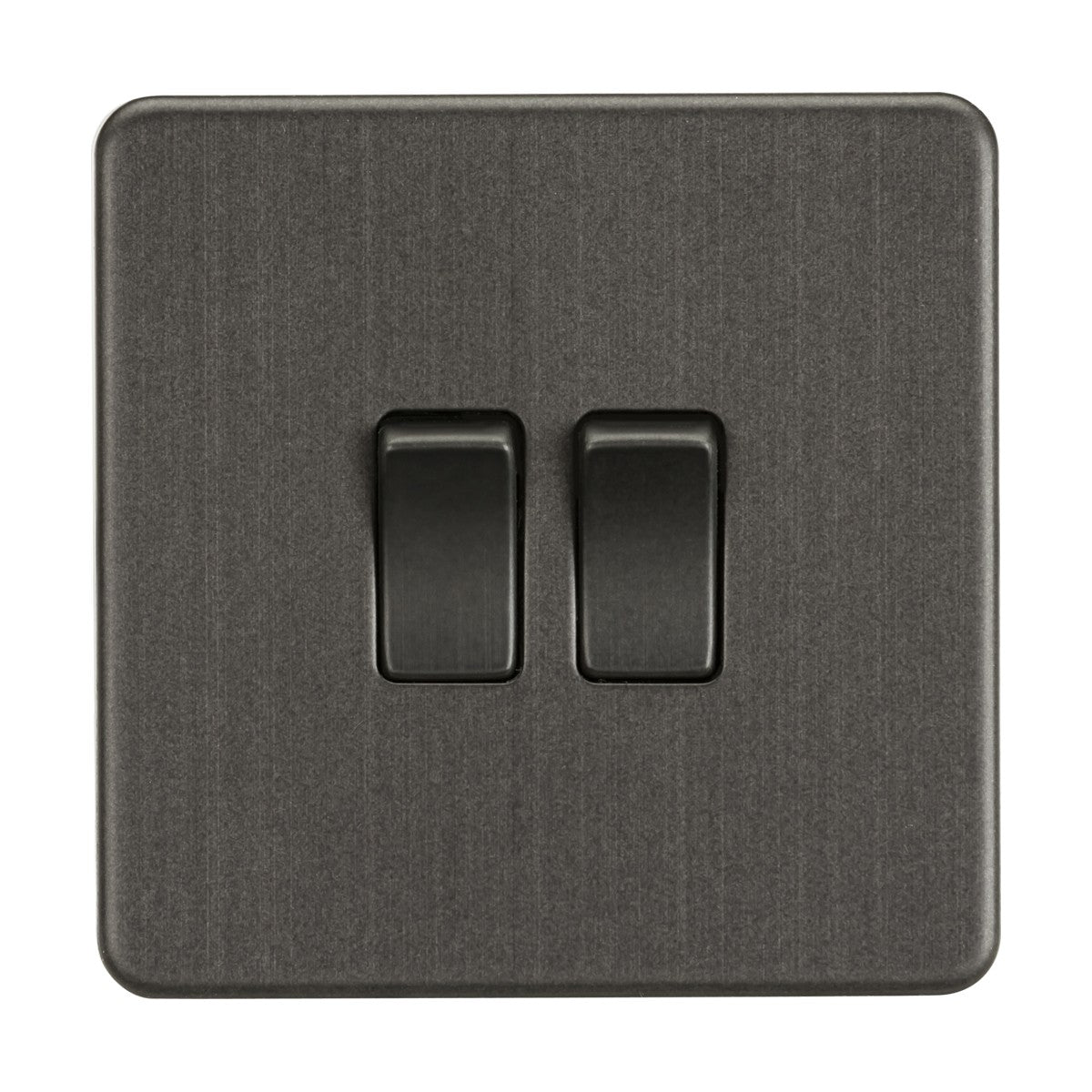

The Knightsbridge 10AX 2-gang 2-way switch provides control of two separate lighting circuits from two locations, housed behind a smoked bronze screwless faceplate with matching metal rockers. Each gang is rated at 10AX (10 amps) on 230V mains, suitable for controlling LED, CFL and incandescent lighting loads up to 2,300W per circuit.

Designed for rooms with dual entry points such as hallways, staircases, open-plan living spaces and through-lounges, the 2-way configuration allows the same lights to be switched on or off from either end of the room. The screwless cover plate clips onto a separate metal sub-frame fixed to the back box, eliminating visible fixings on the wall and giving a cleaner finish than traditional screw-fixed plates. The built-in gasket between the cover and sub-frame provides IP20-rated protection against dust ingress.

The smoked bronze finish is a dark, warm metallic tone with a low-sheen surface that sits between matt black and brushed bronze. The matching metal rockers are formed from the same premium-grade steel as the faceplate, giving a uniform appearance across the switch. The 87.5mm square plate sits nearly flush to the wall with a 4.3mm projection, and requires a minimum 16mm back box depth for installation. Certified to EN 60669-1 and backed by a 25-year warranty.

Specification
Height 87.5 mm
Width 87.5 mm
Projection 4.3 mm
Recessed Depth 13.2 mm
Min. Mounting Box Depth 16mm
Construction Premium grade steel
Finish Smoked Bronze
Class I
IP Rating IP20
Primary Voltage 230V 50Hz
Earth Terminal Yes
Warranty 25
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

What does 2-way switching mean?

2-way switching allows the same lighting circuit to be controlled from two different switch locations. This is useful in hallways, staircases and rooms with multiple entry points where you want to turn lights on or off from either end of the space.

What back box depth is required?

A minimum 16mm back box depth is needed. The switch has a recessed depth of 13.2mm and a 4.3mm projection from the wall once the screwless cover plate is fitted.

Is the screwless plate removable?

Yes. The cover plate clips onto a separate metal sub-frame that is fixed to the back box. The cover can be removed for redecorating and re-clipped without needing to disconnect wiring.

What is the maximum load per gang?

Each gang is rated at 10AX, which is 10 amps at 230V. This supports lighting loads up to 2,300W per circuit, sufficient for most residential LED, CFL and incandescent lighting installations.
