Description

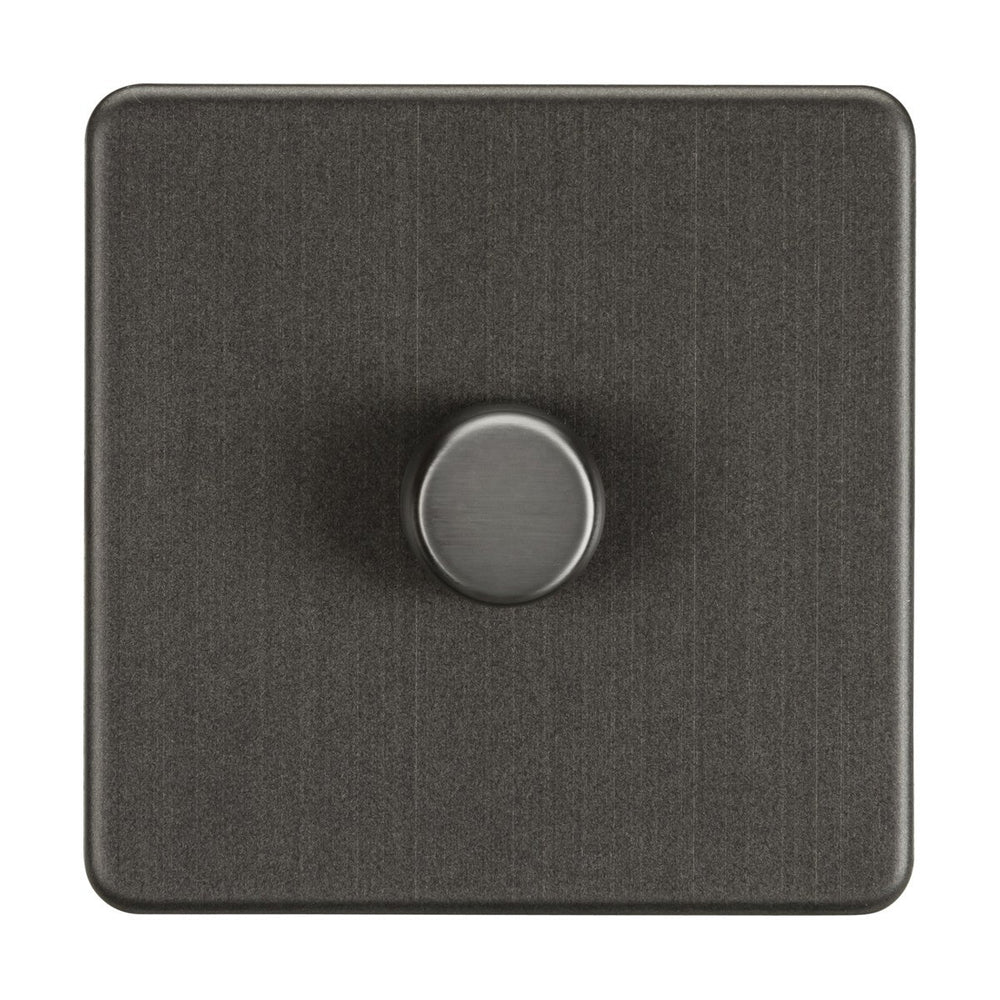

The Knightsbridge SF2191SB is a 1-gang 2-way intelligent dimmer rated for 10-200W loads (5-150W for LED) behind a smoked bronze screwless faceplate with a matching rotary dimmer cap. The dimmer supports both trailing-edge and leading-edge dimming modes, selectable via a front-mounted switch, making it compatible with most dimmable LED, halogen, and incandescent bulbs.
Designed for residential lighting control, the dimmer suits living rooms, bedrooms, and dining areas where variable light levels are needed from a single wall switch position. The push-on/push-off rotary action turns the light on or off at the last-set brightness level, while rotating the cap adjusts brightness smoothly across the full range. Pre-set in trailing-edge mode for LED compatibility, the dimmer can be switched to leading-edge mode for older halogen or incandescent loads using the front knob.
The smoked bronze finish is a dark metallic pewter tone that sits between brushed steel and aged bronze, pairing well with industrial, contemporary, and transitional interiors. The screwless cover plate clips onto a separate metal sub-frame, leaving no visible fixings on the wall once installed. Built-in overload protection, overheat protection, and an inrush current limiter prevent damage from transient current spikes when bulbs are switched on.
For consistent performance, avoid mixing different lamp brands, wattages, or technologies on the same dimmer circuit. The dimmer requires a 25mm minimum back box depth and fits standard UK wiring layouts with screw terminals for live, switched live, and earth connections.
Specification
| Height |
87.5 mm |
| Width |
87.5 mm |
| Projection |
4.3 mm |
| Recessed Depth |
21.3 mm |
| Min. Mounting Box Depth |
25mm |
| Construction |
Premium grade steel |
| Finish |
Smoked Bronze |
| Class |
I |
| IP Rating |
IP20 |
| Primary Voltage |
230V 50Hz |
| Earth Terminal |
Yes |
| Terminal |
Screw |
| Warranty |
2 |
Downloads
Product Specification Sheet
Frequently Asked
What's the difference between trailing-edge and leading-edge modes?
Trailing-edge mode is optimised for LED and low-voltage halogen loads, reducing flicker and hum. Leading-edge mode suits older incandescent and high-wattage halogen bulbs. The dimmer ships pre-set in trailing-edge mode; the front knob switches between modes if needed.
Can this dimmer control multiple LED bulbs on one circuit?
Yes, provided the total load stays within 5-150W for LED and all bulbs are the same brand, model, and wattage. Mixing different LED types or wattages on the same circuit can cause flicker or uneven dimming.
What back box depth is required?
A 25mm minimum back box depth is needed. The dimmer adds 4.3mm projection from the wall and recesses 21.3mm into the box once the screwless cover plate is fitted.
Is the screwless plate removable for redecorating?
Yes. The cover plate clips onto a separate metal sub-frame fixed to the back box. The plate can be removed for painting and re-clipped without disconnecting wiring.
