Zon Mounting Ring for Round Recessed Downlight 22.6cm - White

£3399
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

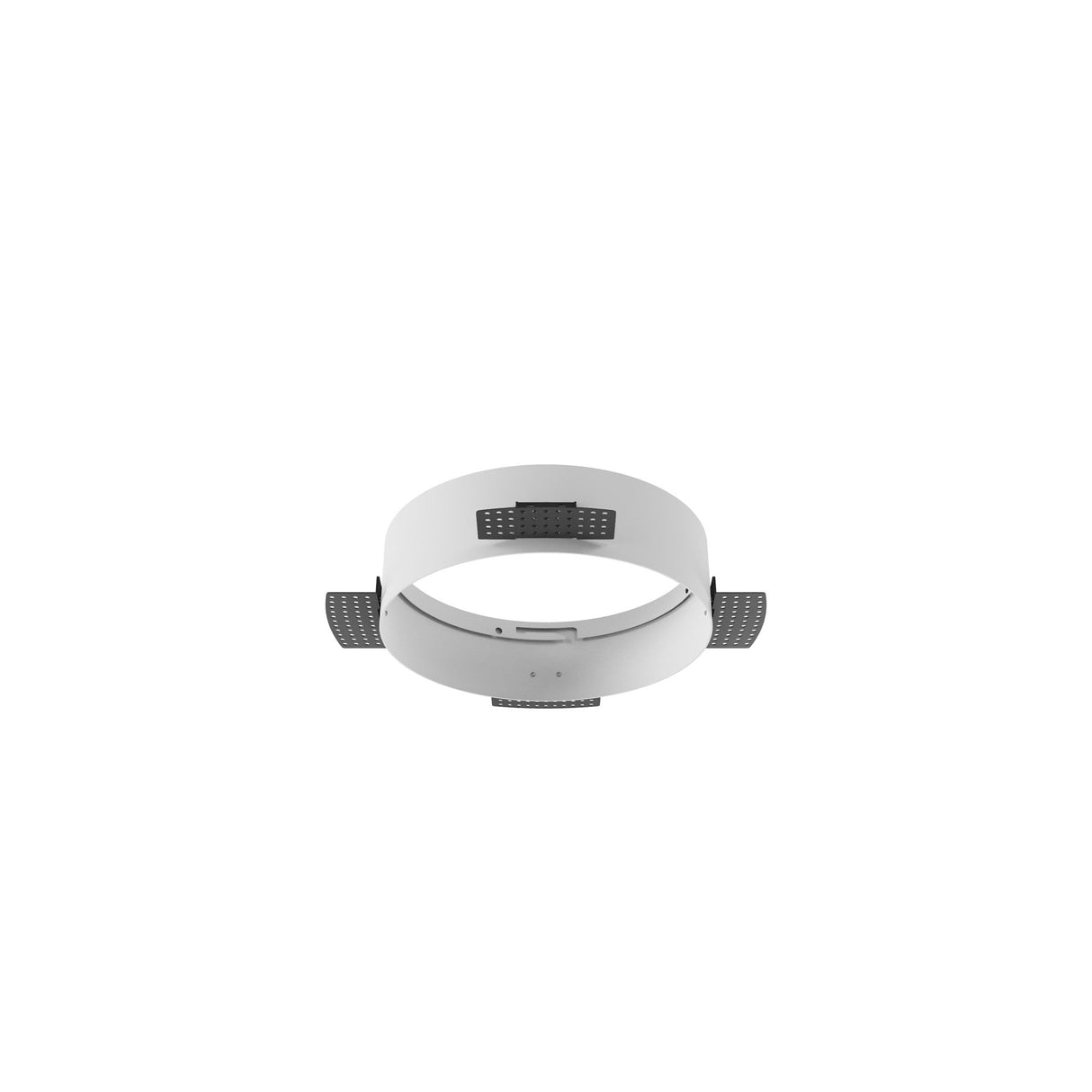

The Zon is a white metal mounting ring designed to house round recessed downlights with a 22.6cm aperture. The ring measures 29.2cm outer diameter and 6.4cm height, providing the structural frame that sits within the ceiling cut-out and holds the downlight fitting flush to the ceiling surface. The white powder-coated metal finish matches standard white ceiling paint and conceals the rough edges of the ceiling aperture.

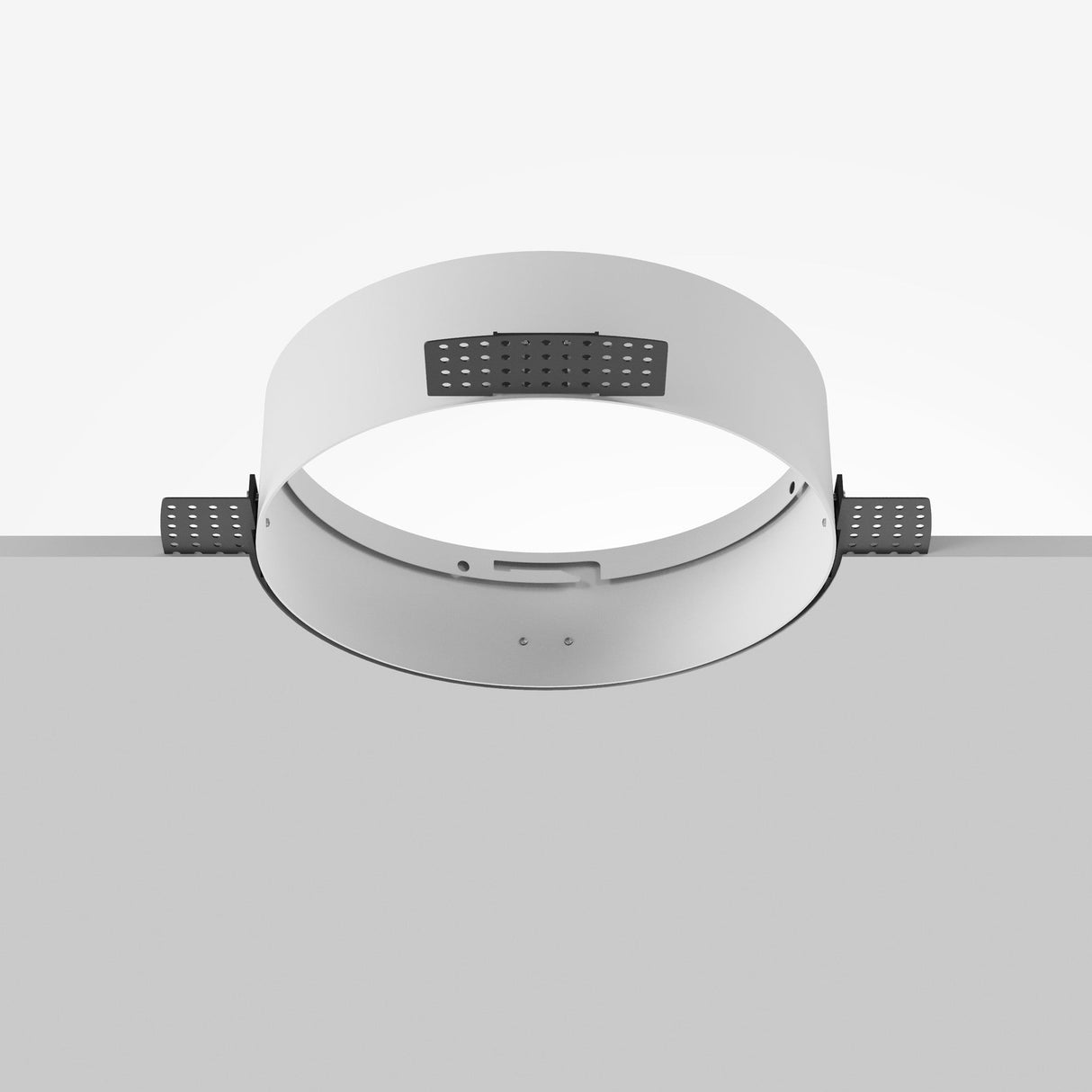

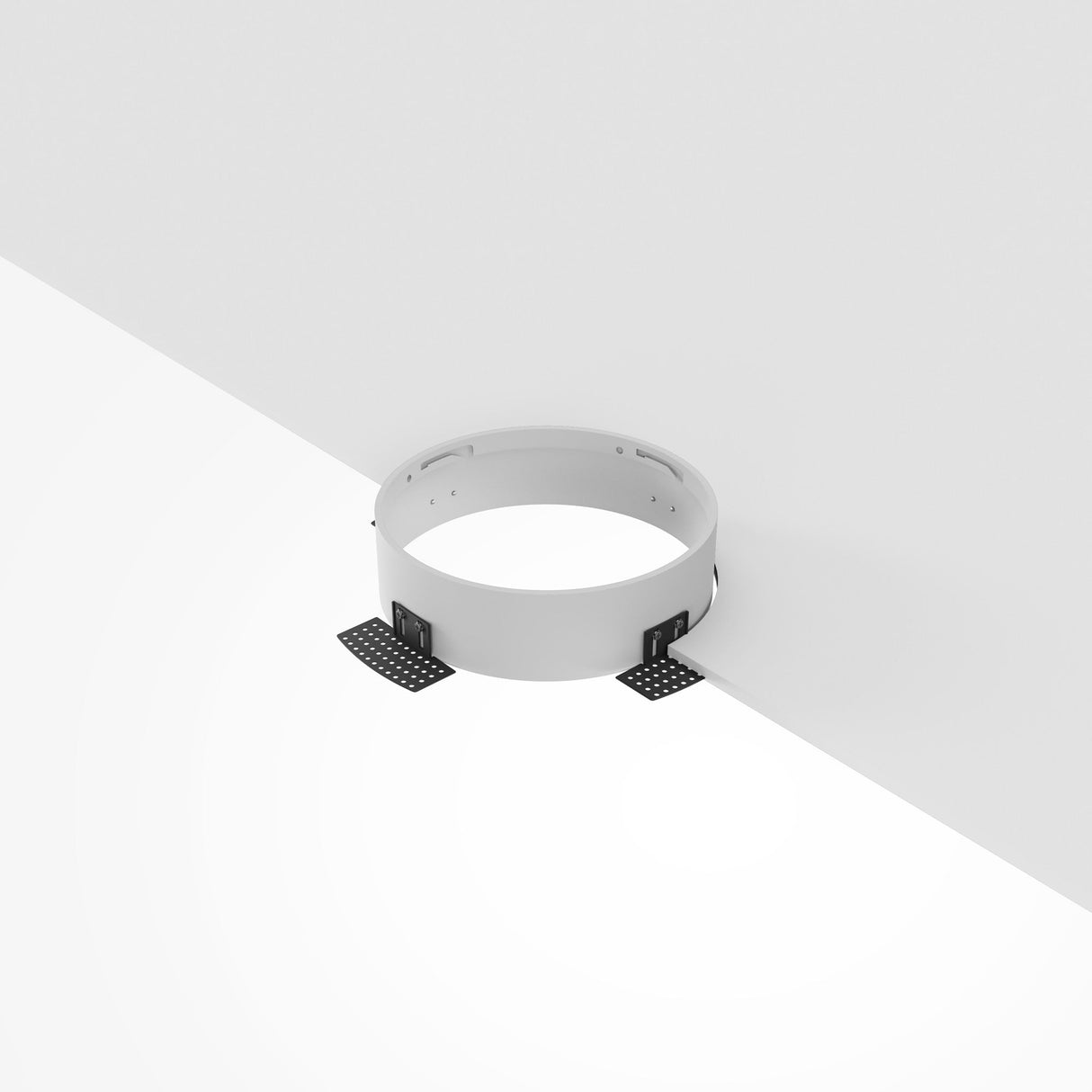

Used in new-build and retrofit recessed lighting installations, the Zon mounting ring fits between the ceiling joists and plasterboard, with the perforated metal flanges visible in the image providing fixing points for screws into the ceiling structure. Once secured, the ring creates a stable platform for the downlight to clip or screw into, preventing movement and ensuring the light sits level with the ceiling plane. The IP20 rating limits use to dry interior areas — living rooms, bedrooms, hallways and kitchens outside splashback zones.

The metal construction provides rigidity where plasterboard alone would sag or crack under the weight of a downlight fitting over time. The 29.2cm outer diameter spreads the load across a wider ceiling area than the 22.6cm aperture itself, reducing stress on the plasterboard edge. The white finish visible from below integrates with white ceilings without requiring additional trim rings or bezels in most residential installations.

Specification
Height 6.4cm
Length 29.2cm
Diameter 22.6cm
Finish White
Construction Metal
IP Rating IP20
Dimmable No
Warranty 2
Frequently Asked

What downlight sizes does this ring fit?

The Zon is designed for round recessed downlights with a 22.6cm fitting diameter. Check the downlight manufacturer's specifications for the required mounting ring aperture before ordering.

What ceiling cut-out size is needed?

The 22.6cm aperture refers to the internal diameter where the downlight sits. The outer diameter of 29.2cm requires ceiling joists spaced to allow the ring to sit across the structure, typically 400mm or 600mm joist centres depending on the building.

Can it be used in bathrooms?

No. The IP20 rating means the ring is not protected against moisture ingress and must be used only in dry interior areas. Bathrooms and wet rooms require IP44 or IP65 rated mounting hardware.

Is the ring compatible with LED downlights?

Yes, the ring is a passive mounting component and works with any downlight technology — LED, halogen, or older lamp types — provided the downlight's physical dimensions match the 22.6cm aperture.
