Vuoro S 3-Circuit Trinity Track LED Spotlight 20W 4000K - White

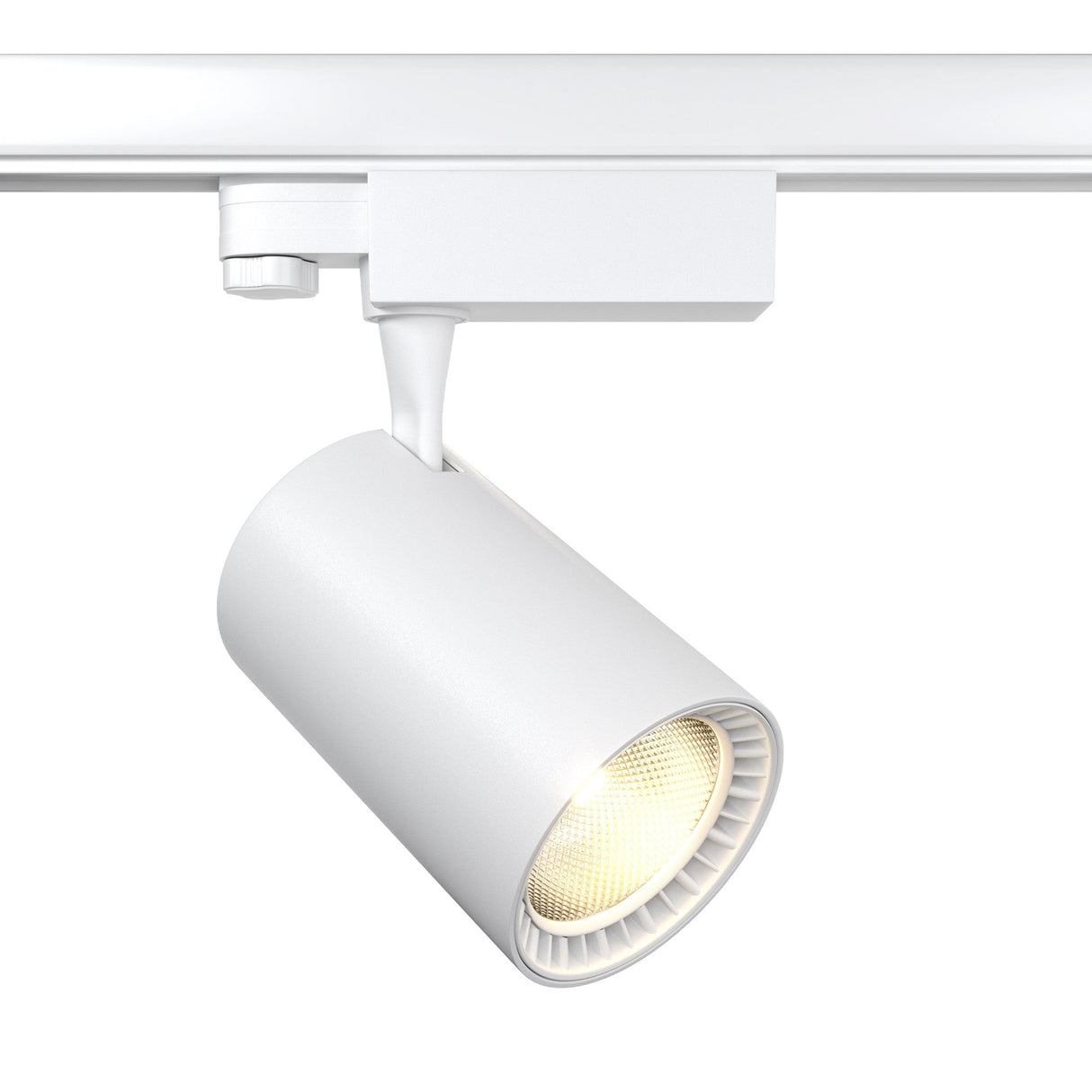

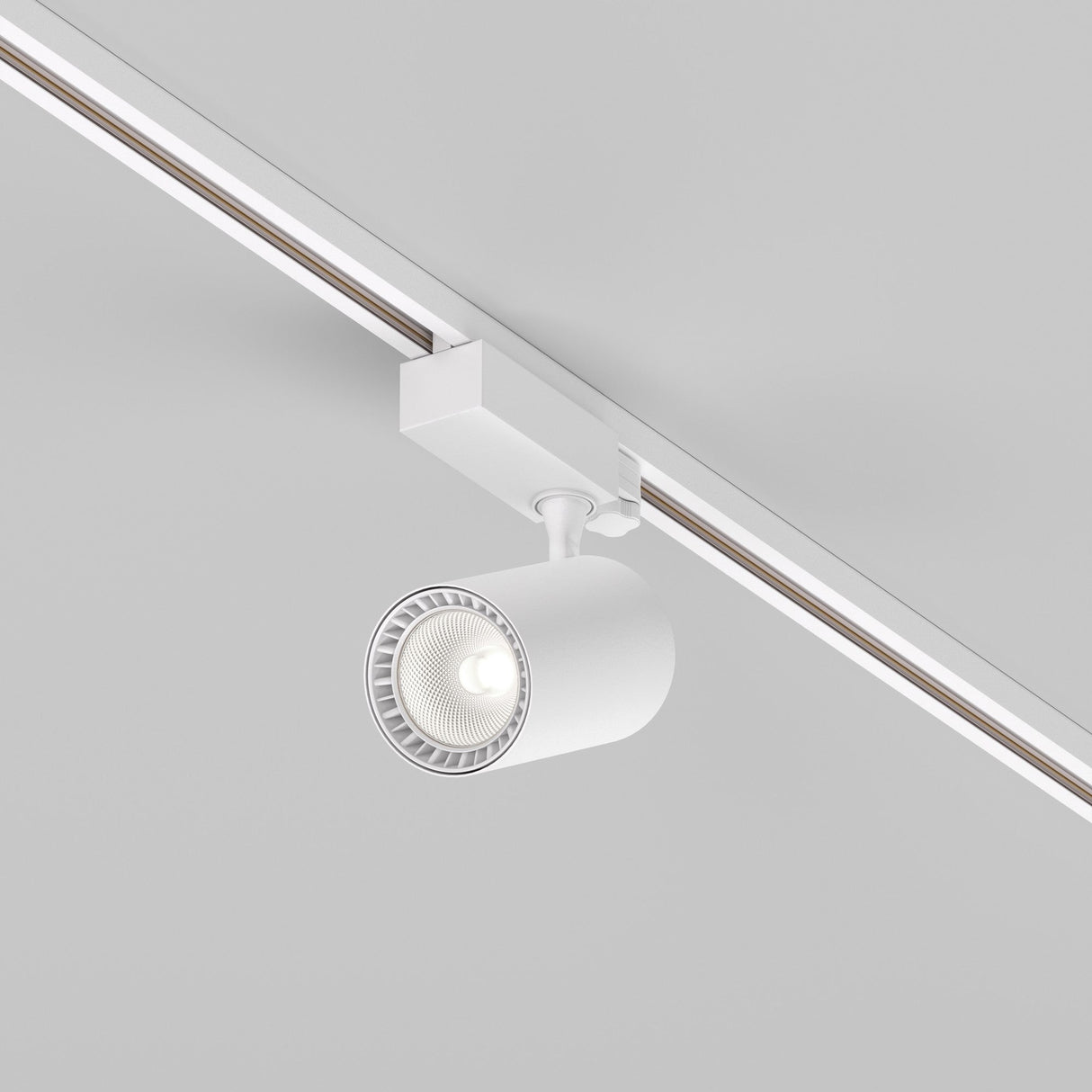

The Vuoro S is a 20W LED track spotlight designed for 3-circuit trinity track systems, housed in a white aluminium body measuring 138mm in length by 89mm in diameter. The integrated LED produces 4000K neutral white light through a 24° beam angle, concentrating output into a defined pool suitable for accent lighting. The spotlight head rotates and tilts on a swivel joint, allowing the beam to be directed towards display surfaces, architectural features or merchandise.

Designed for retail environments, commercial galleries, showrooms and hospitality interiors where directed accent lighting is needed alongside general illumination, the 3-circuit compatibility allows the spotlight to be controlled independently from other fixtures on the same track run. This makes it possible to create different lighting scenes by switching circuit groups on and off without re-wiring. The 24° beam angle sits between narrow spot (under 20°) and medium flood (30-40°), providing enough spread to cover a feature wall panel or artwork without spilling significantly beyond the target area.

The white aluminium construction keeps the fitting lightweight at approximately 0.8kg while providing sufficient heat dissipation for the 20W LED. The 4000K colour temperature falls in the neutral white range, producing a crisper appearance than warm white (2700-3000K) without the clinical coldness of daylight white (5000K+). This makes it well-suited to commercial and retail settings where colour rendering accuracy matters but the atmosphere should remain inviting. The IP20 rating limits the Vuoro S to dry indoor locations protected from moisture and dust ingress.

Product Manual

What is a 3-circuit trinity track system?

A 3-circuit trinity track contains three independent electrical circuits running along the same track rail. Each circuit can be switched separately, allowing different groups of spotlights to be controlled independently. This is particularly useful in retail and gallery settings where different lighting scenes are needed throughout the day.

Is the Vuoro S dimmable?

Dimmer compatibility depends on the track system's power supply and control setup. The integrated LED itself is typically dimmable when paired with a compatible mains dimmer or DALI control system, but this should be confirmed with the track manufacturer before installation.

What's the difference between 4000K and 3000K?

4000K produces neutral white light with a crisper, slightly cooler appearance than 3000K warm white. In retail and commercial environments 4000K often provides better colour rendering for products and displays, while 3000K suits hospitality and residential settings where a warmer atmosphere is preferred.

Can the spotlight head be adjusted after installation?

Yes. The head rotates and tilts on a swivel joint, allowing the beam direction to be adjusted manually without removing the spotlight from the track. This flexibility allows lighting layouts to be updated as displays or room layouts change.
