Description

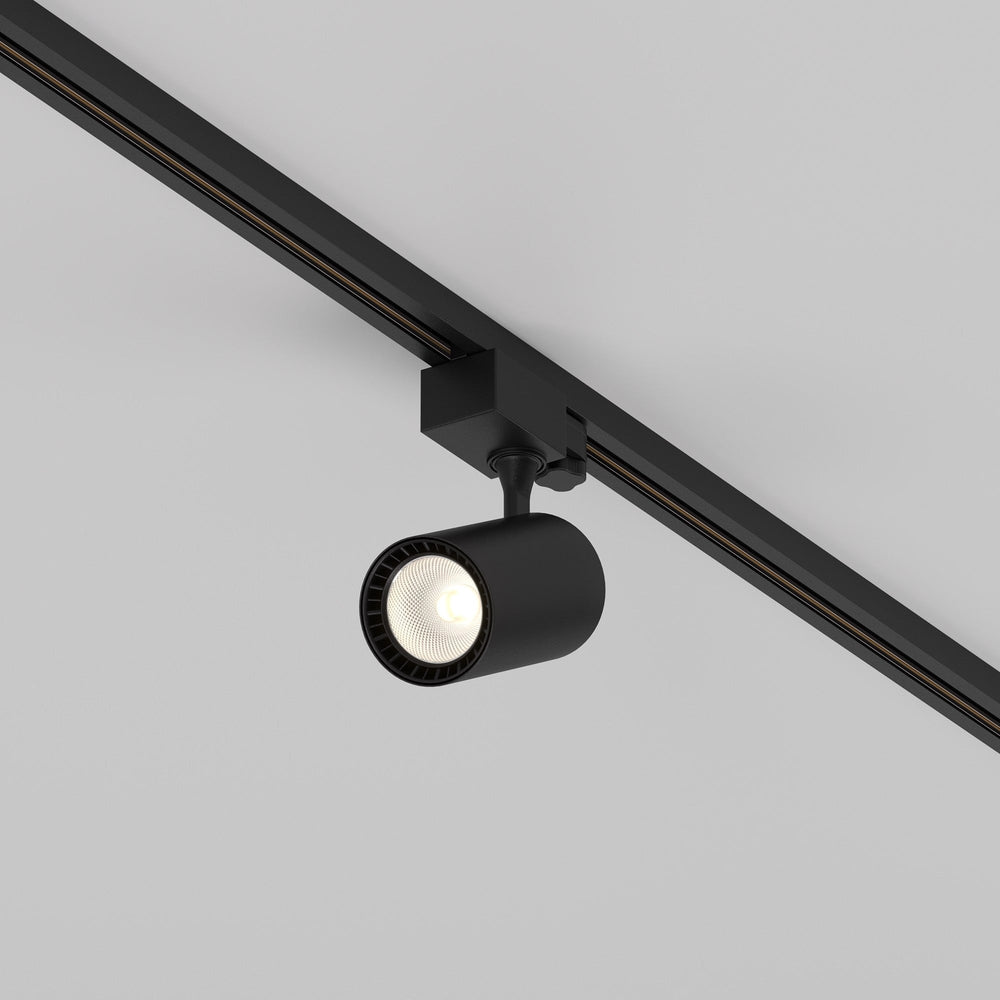

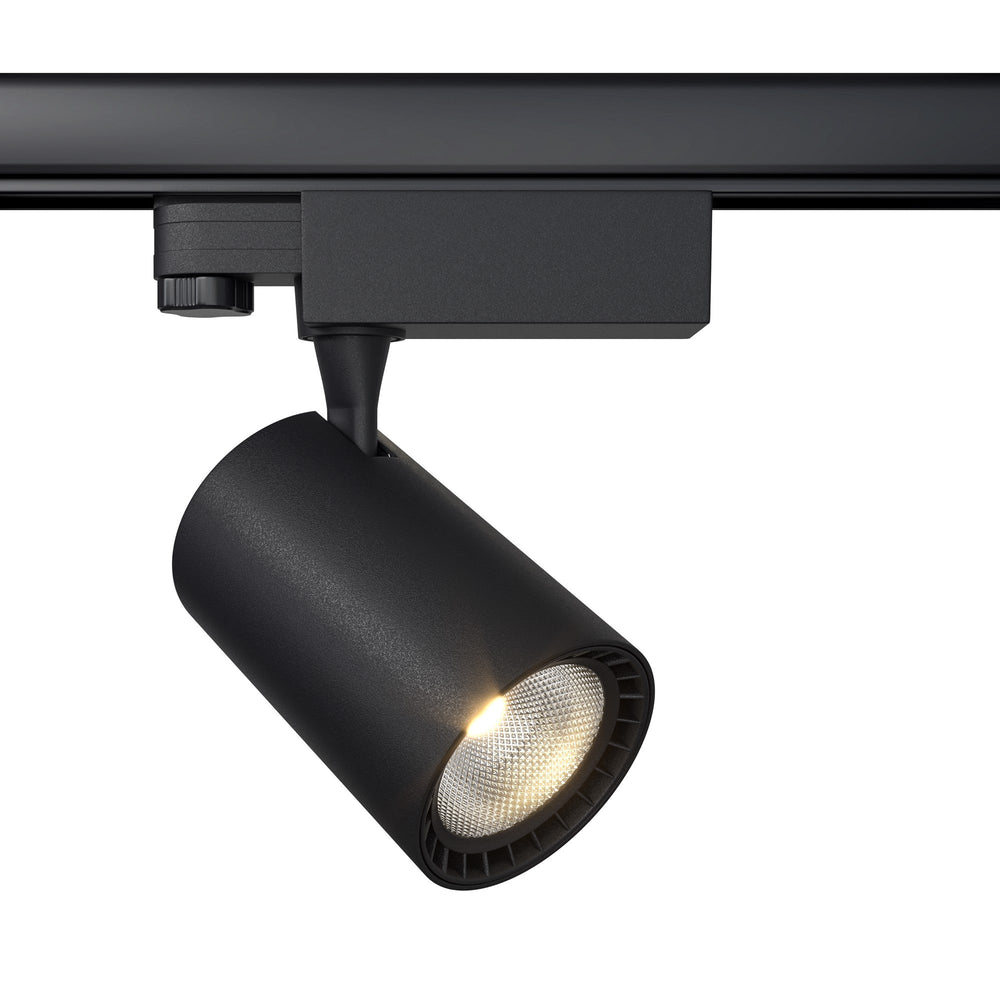

The Vuoro S is a 10W LED track spotlight designed for 3-circuit track systems, delivering 3000K warm white light through a focused 24° beam angle. The cylindrical aluminium body measures 78mm in diameter and 118mm in length, finished in a textured matt black powder coat. The spotlight head rotates on a ball joint that locks into position once aimed, allowing precise directional control once mounted on the track adapter.
Designed for retail displays, gallery installations, home offices and residential accent lighting, the Vuoro S pairs task and directional function on a flexible track infrastructure. The 3-circuit compatibility means multiple spotlights can be grouped and switched independently across three control zones on the same track run. The 10W LED and 24° beam provide focused illumination onto artwork, shelving, worktops or feature walls without spilling light into adjacent zones.
The aluminium construction keeps the spotlight weight low at approximately 280g per fitting, reducing load on ceiling tracks when multiple units are installed. The matt black finish minimises reflections and glare from the body itself, concentrating attention on what's being lit rather than the fitting. The integrated LED runs cool enough for IP20 rating, making it suitable for standard indoor environments but not bathrooms or outdoor use.
The Vuoro S comes with a track adapter pre-fitted to the mounting yoke. The adapter clips into Maytoni's 3-circuit track profiles (sold separately) and can be repositioned along the track without tools. Once clipped in, the spotlight receives power and can be switched via the circuit the adapter is connected to. The 5-year warranty covers the LED driver and housing but does not cover damage from incorrect installation or use outside IP20 environments.
Specification
| Height |
18cm |
| Length |
11.8cm |
| Diameter |
7.8cm |
| Finish |
Black |
| Construction |
Aluminium |
| IP Rating |
IP20 |
| Voltage |
AC 220-240 |
| Wattage |
10 |
| Colour Temperature |
3000K |
| Warranty |
5 Year Guarantee |
Downloads
Product Manual
Frequently Asked
What track system does this fit?
The Vuoro S is designed for Maytoni's 3-circuit track profiles. The track adapter is included with the spotlight and clips into the track channel without tools. The spotlight can be repositioned along the track as needed.
Can the spotlight head be angled once mounted?
Yes. The spotlight head rotates on a ball joint, allowing it to be aimed in any direction within approximately 350° horizontal rotation and 90° tilt. Once positioned, the joint locks to hold the aim steady.
Is it dimmable?
Dimming capability depends on the track system's power supply and whether a compatible dimmer is installed upstream of the track. The Vuoro S LED itself supports dimming when paired with a suitable trailing-edge or DALI dimmer. Check the track system specifications or contact us for compatibility confirmation.
What's the beam angle and coverage?
The 24° beam angle provides focused directional light rather than wide area coverage. At 2m distance from the wall or object, the beam covers approximately 850mm diameter. This makes it suitable for highlighting specific features rather than general room lighting.
