Description

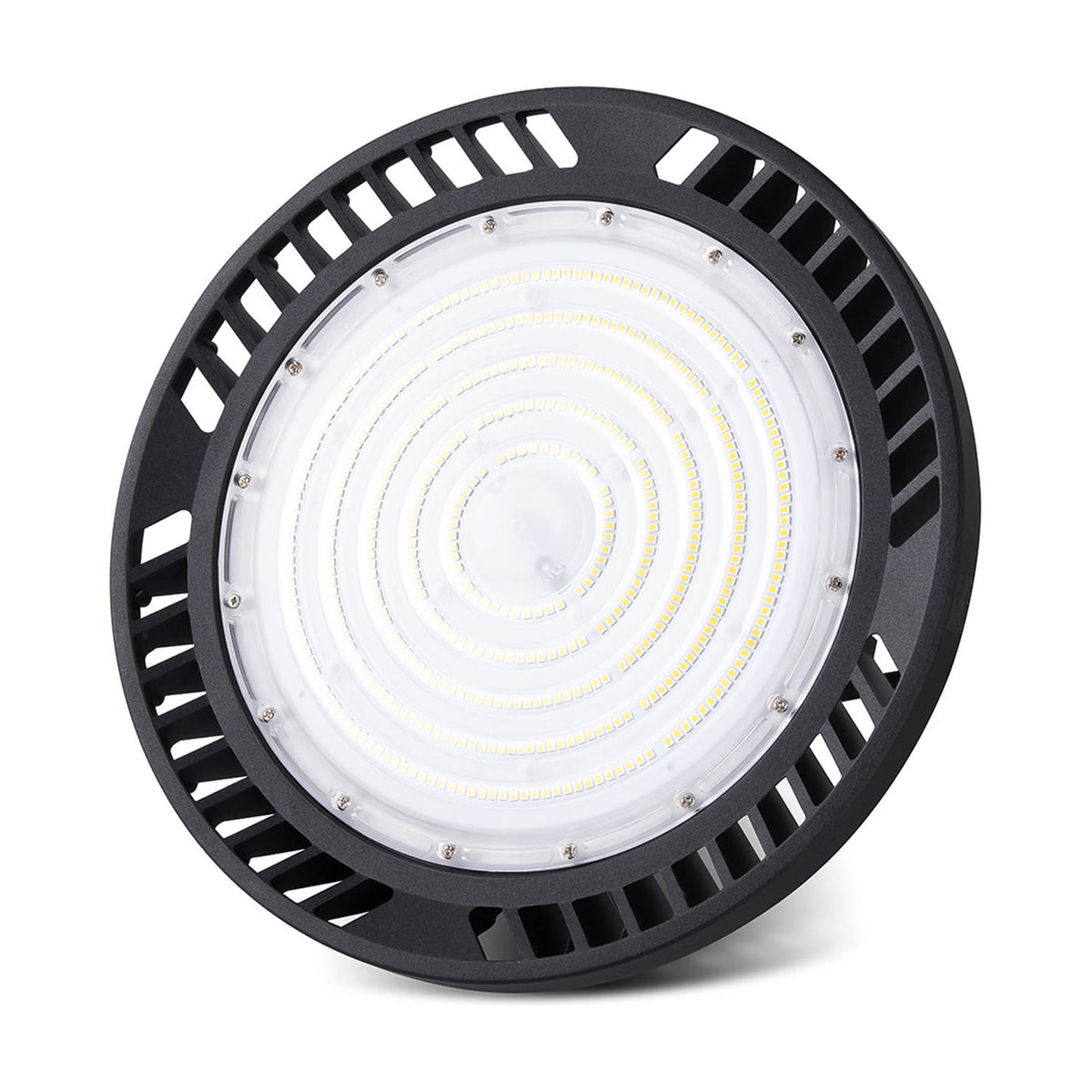

This is high bay lighting in a compact round form: a broad black body throwing a wide flood of 4000K cool white light from an integrated LED drawing 200W. Output is serious, at 28,000 lumens, which is enough to cover a tall space from a single position rather than a long run of smaller fittings. The spread is generous rather than tight, so light lands across a floor evenly instead of pooling in bright circles. There is no dimming, so it runs at full output whenever the circuit is live.
We reach for this where ceilings are high and the work underneath has to be seen properly: workshops and garages, storage buildings, plant rooms, packing areas, gyms and sports halls, agricultural barns and trade counters. The cool white tone keeps colours and markings crisp and stops a big space feeling yellow, which is why it suits practical rooms far better than a sitting room. It is also a sensible choice if you are taking out older discharge fittings and want fewer units doing more work, since one unit covers ground that used to need several.

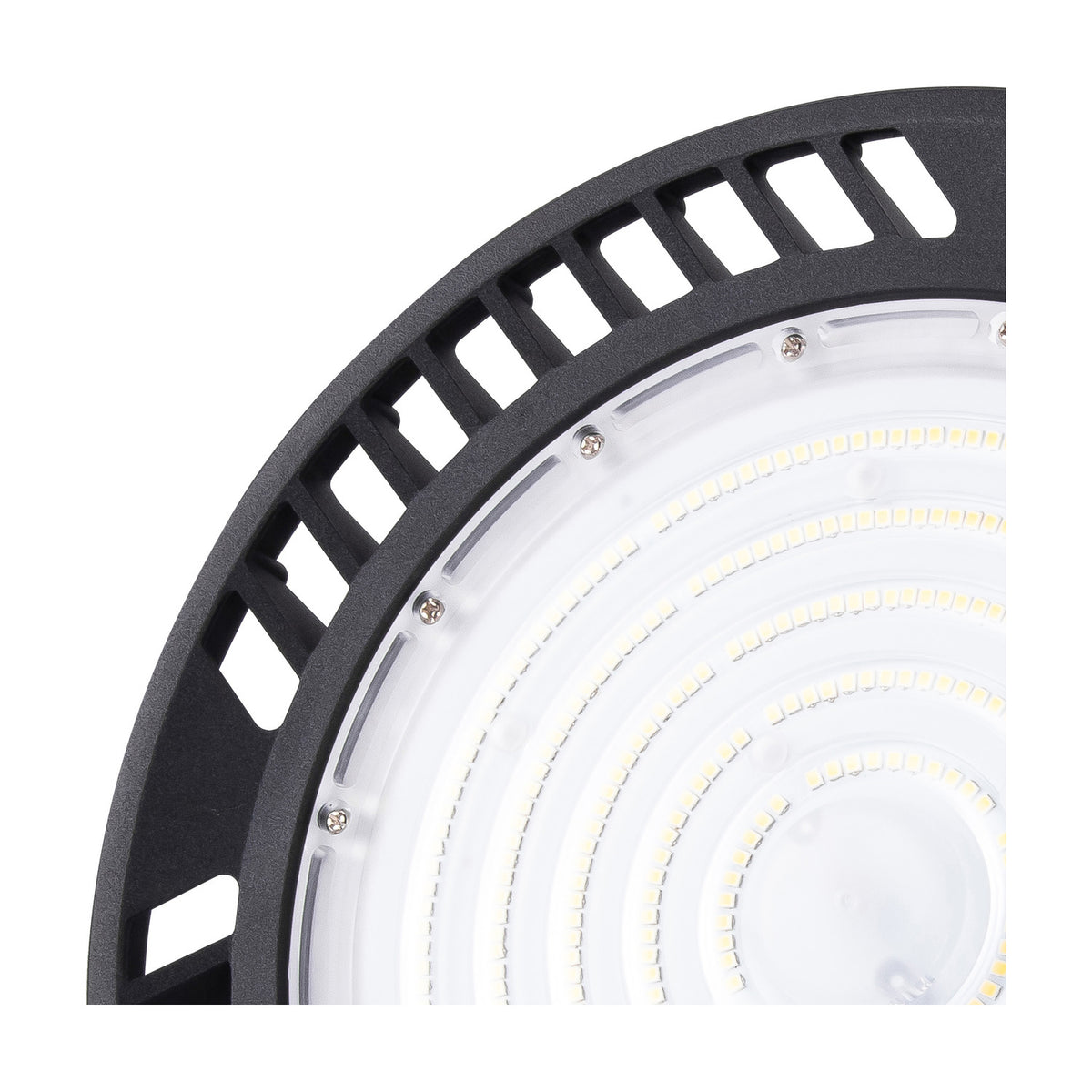

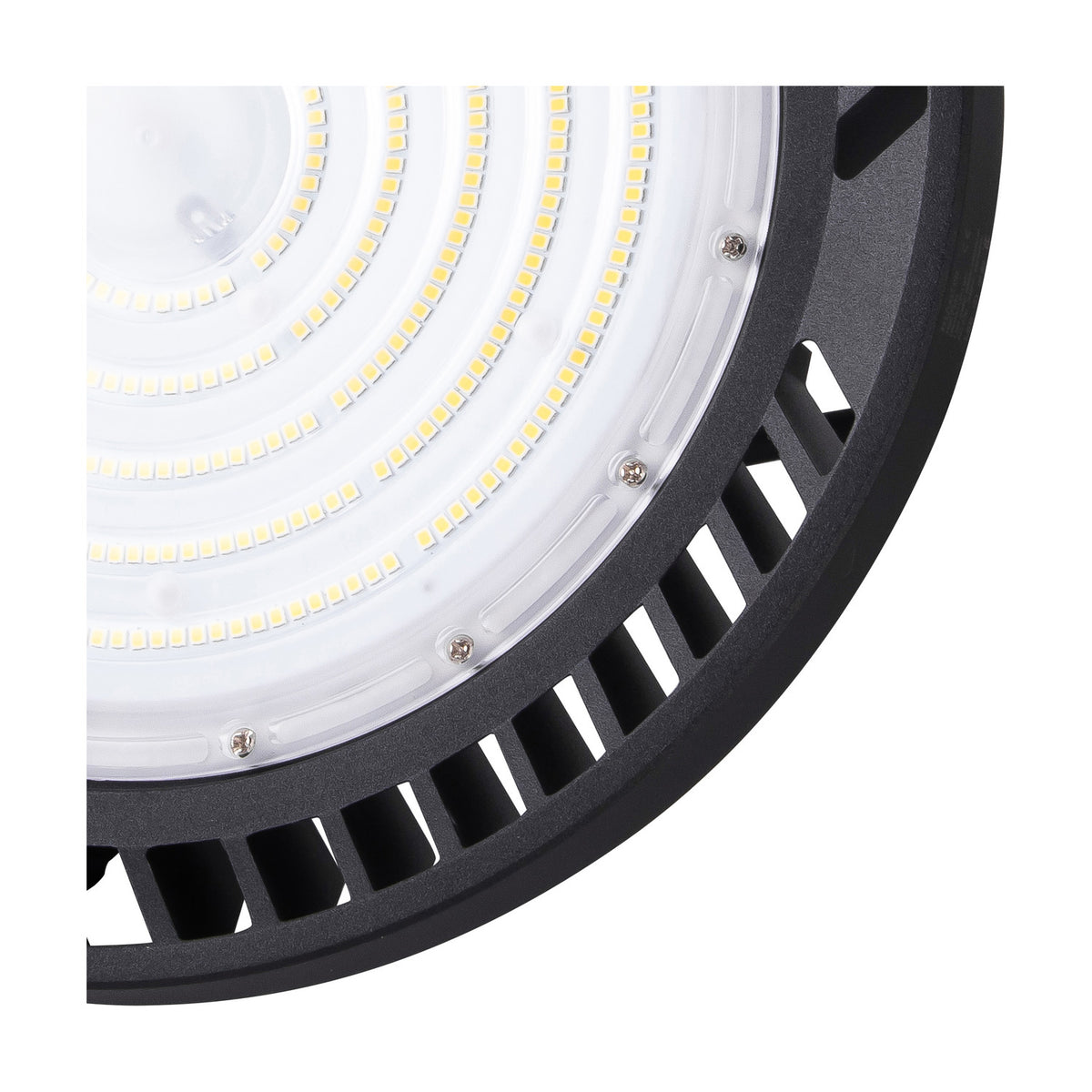

The housing and heat sink are finished in black, with the driver supplied as part of the unit, and the whole thing is sealed well enough for damp and dusty rooms. Cleaning matters more here than on a domestic fitting, because grime on the lens costs you light: with the supply isolated and the body cold, take dust off the face with a dry cloth and lift workshop grease with a barely damp one, then let it dry fully before the power goes back on. It carries a three year warranty. We stock this same size with tighter beams and in a cooler white, plus a smaller, lower output version of each if the ceiling is not so high. The LED is built in, so there is nothing to change over its life.
Specification
| Colour |
Black |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
3.00KG |
| Diameter |
301mm |
| Height |
178mm |
| Materials Used |
Aluminium |
| Energy Class |
D |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
D |
| Min Energy Class |
D |
| Lamp |
1 x 200W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
4000K Cool White (±5%) |
| Number of Switching Cycles |
30000 |
| LED Power |
1W (±5%) |
| Type of LED |
2835 6V |
| Lumens per Watt (lm/W) |
140lm/W (±5%) |
| Beam Angle |
120° |
| System Flux |
28000lm (±5%) |
| CRI |
=80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Protection Class |
Class 1 - Earth Connection Required |
| Total Power Consumption |
200W (±5%) |
| Dimmable |
No |
| IP Rating |
IP65 |
| Average Life |
50000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
Yes |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How big is this fitting?
The body measures 301mm across and 178mm deep, and it weighs 3kg.
Can I put it on a dimmer?
No. This version is non-dimmable and should be run from a plain switched circuit.
Is it suitable for a damp or dusty building?
Yes. It is rated IP65, so it copes with dust and with water jets, making it fine for workshops, wash-down areas and unheated stores.
How long should the LED last?
It is rated at 50,000 hours of average life, with a colour rendering index of 80 or above.
What is the difference between the beam options in this range?
This one spreads at 120 degrees for broad, even floor coverage. The 90 and 60 degree versions concentrate the same 28,000 lumens into a smaller footprint, which suits very high ceilings or aisle lighting.
Does it need an earth?
Yes, it is a Class 1 fitting and requires an earth connection.
