Description

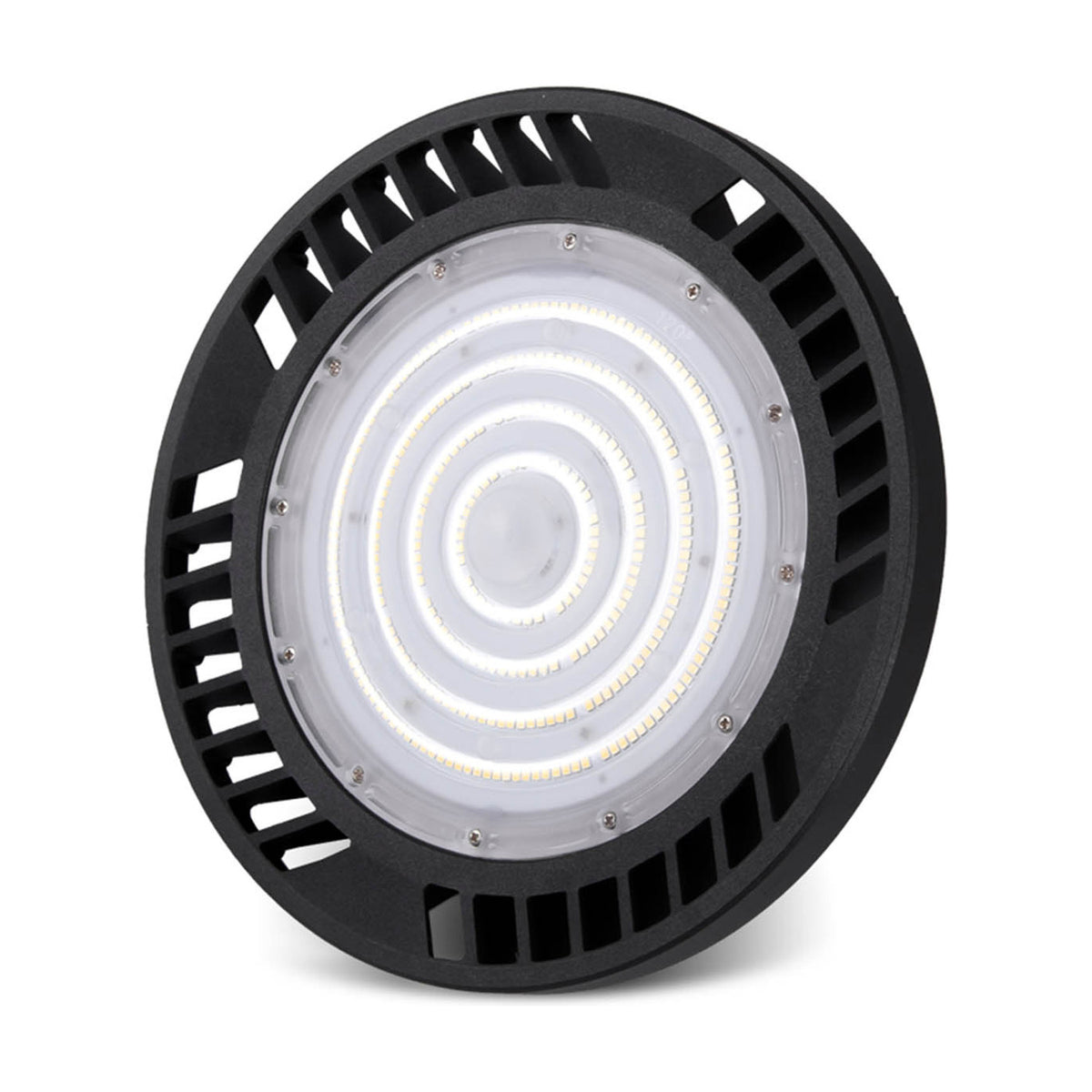

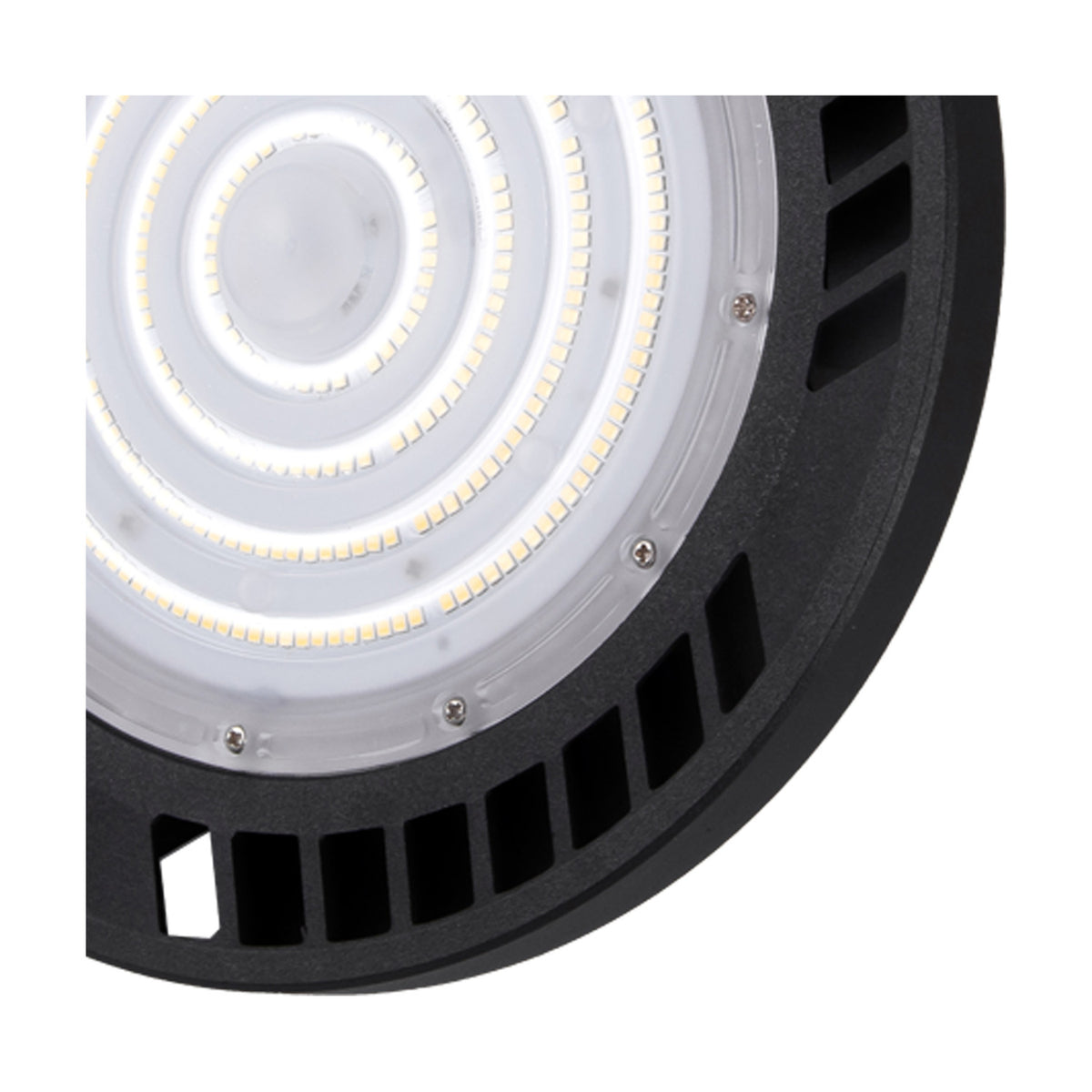

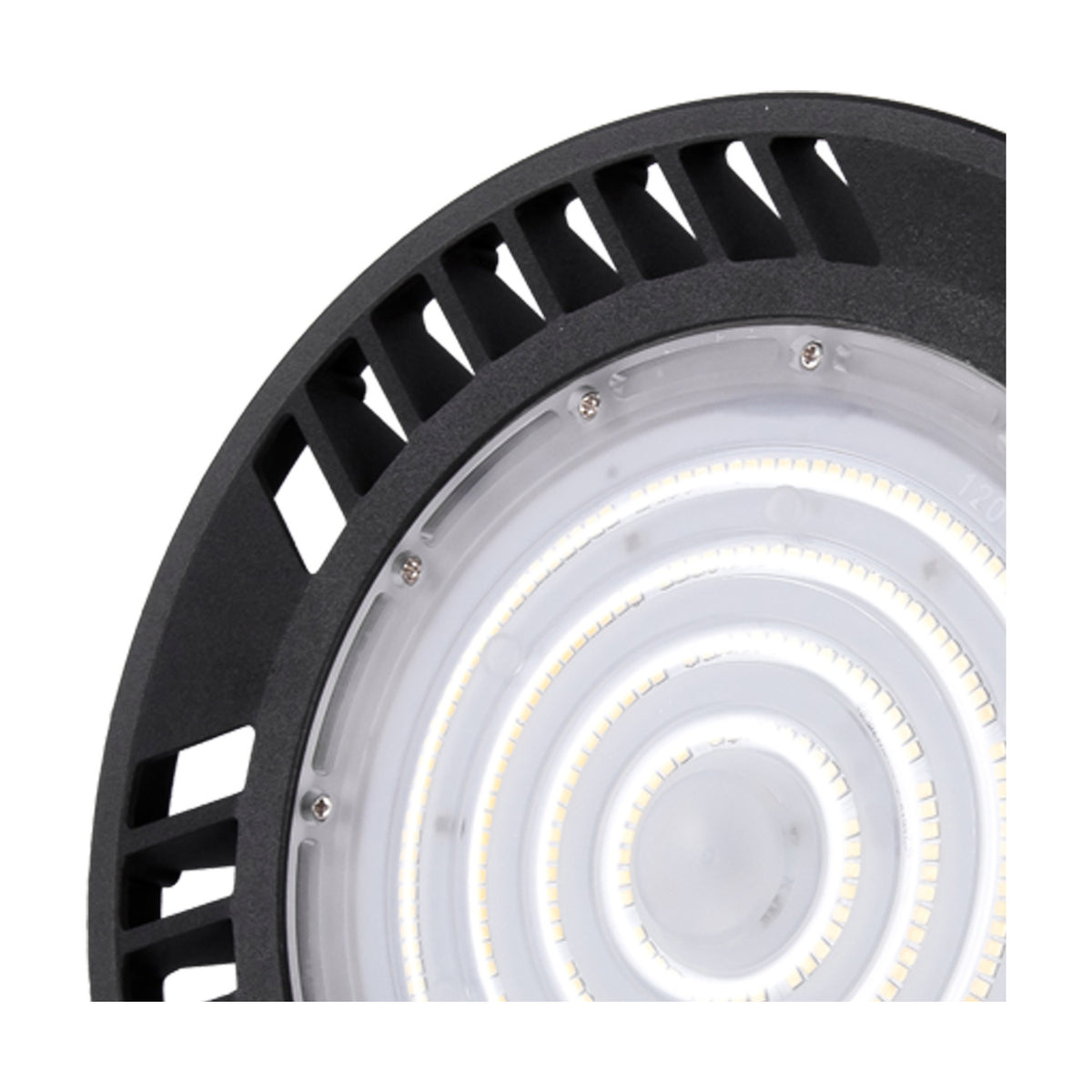

This is a high bay light in the UFO style: a broad circular black body, 26cm across, with a shallow domed housing above and a ring of LEDs behind a flat lens below. The LED array and its driver are built in, so there is nothing to fit or replace inside. It runs at 150W and gives a cool white 4000K light with a wide spread, throwing an even pool downwards rather than a tight spot. Output is fixed, with no dimming.
This is the sort of light we specify for tall spaces where a domestic fitting would simply vanish: workshops, garages, stores, unit ceilings, agricultural buildings and covered yards. The wide beam suits a lower mounting height and closer spacing, where you want overlapping cover and few dark patches across a floor. Because it is sealed against dust and water jets, it also stands up to washdown areas, damp stores and places where the air carries sawdust or grain. We would choose the wide version where people are working across a whole floor, and the narrower beams in the range where the ceiling is higher and light needs driving down.
The housing is finished in matt black, with a heatsink form that keeps the fitting compact for its output. Keep it working well by cutting the power, letting it cool, then wiping dust from the lens and the upper fins with a dry brush or cloth; a build-up of grime on the fins is the main thing that shortens the life of any high bay light. Avoid solvents on the lens. It carries a three year warranty. This range gives you a choice of beam widths, plus a cooler white for spaces where a crisper light is wanted and a larger, higher-output body for taller buildings. All are black. The LED is integral, so no lamp is needed.
Specification
| Colour |
Black |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
2.50KG |
| Diameter |
260mm |
| Height |
178mm |
| Materials Used |
Aluminium |
| Energy Class |
D |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
D |
| Min Energy Class |
D |
| Lamp |
1 x 150W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
4000K Cool White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
50000hrs |
| LED Power |
1W (±5%) |
| Type of LED |
2835 6V |
| Lumens per Watt (lm/W) |
140lm/W (±5%) |
| Beam Angle |
120° |
| System Flux |
21000lm (±5%) |
| CRI |
=80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Protection Class |
Class 1 - Earth Connection Required |
| Total Power Consumption |
150W (±5%) |
| Input Voltage |
180-260V~ 50/60Hz |
| Dimmable |
No |
| IP Rating |
IP65 |
| Average Life |
50000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
Yes |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How much light does it give?
Around 21,000 lumens at 4000K cool white, with a tolerance of plus or minus 5 per cent on both figures.
Can it be dimmed?
No. It is a non-dimmable fitting, so it should be run on a plain switched circuit.
What size is it?
260mm in diameter and 178mm tall, weighing 2.5kg.
How wide is the beam?
120 degrees, which is the widest option in the range. Narrower 90 and 60 degree versions are also made.
Is it suitable for damp or dusty buildings?
Yes. It is rated IP65, so it is protected against dust ingress and low-pressure water jets.
Does it need a separate driver?
No. The driver is supplied within the fitting, and the LED itself is integral with a rated life of 50,000 hours.
