Description

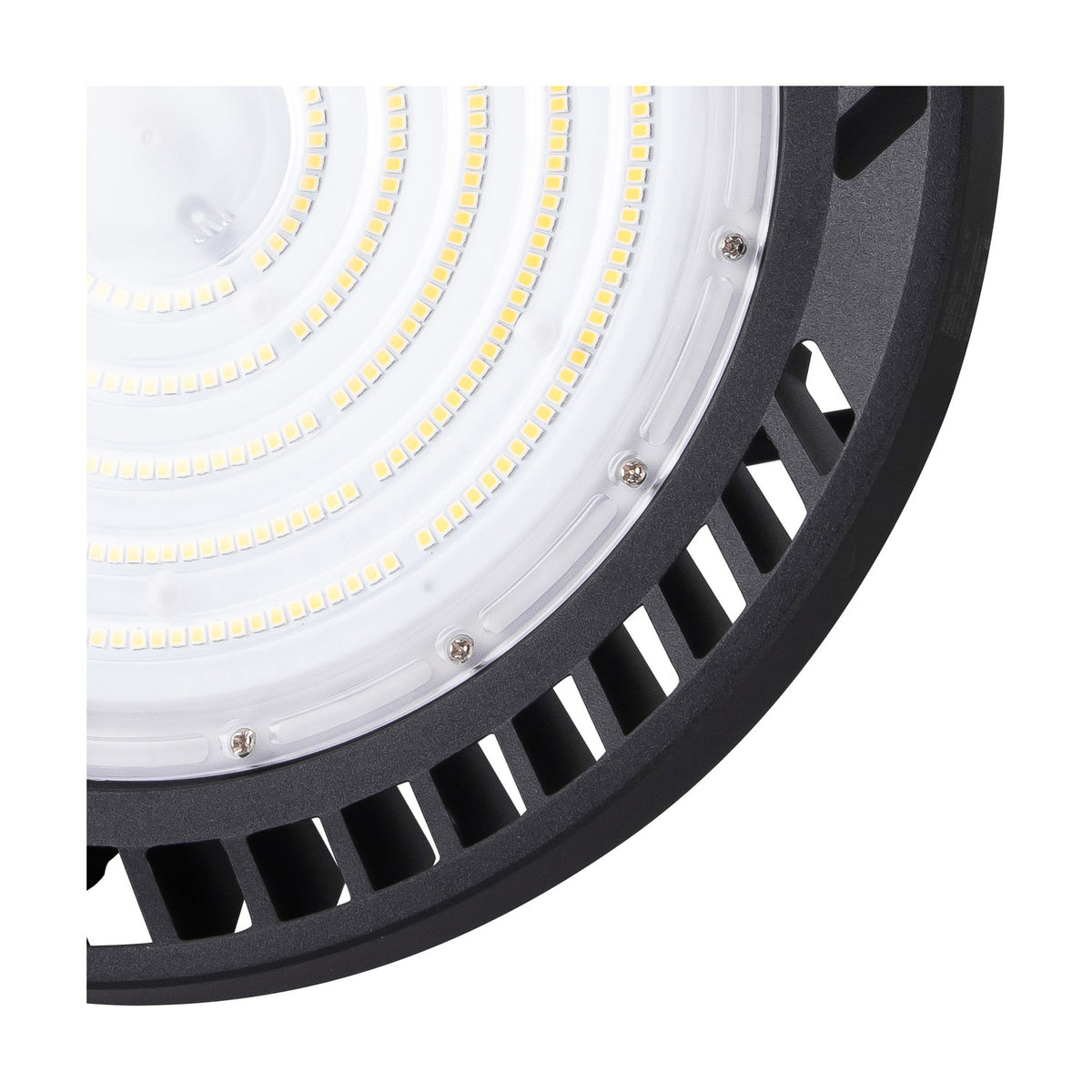

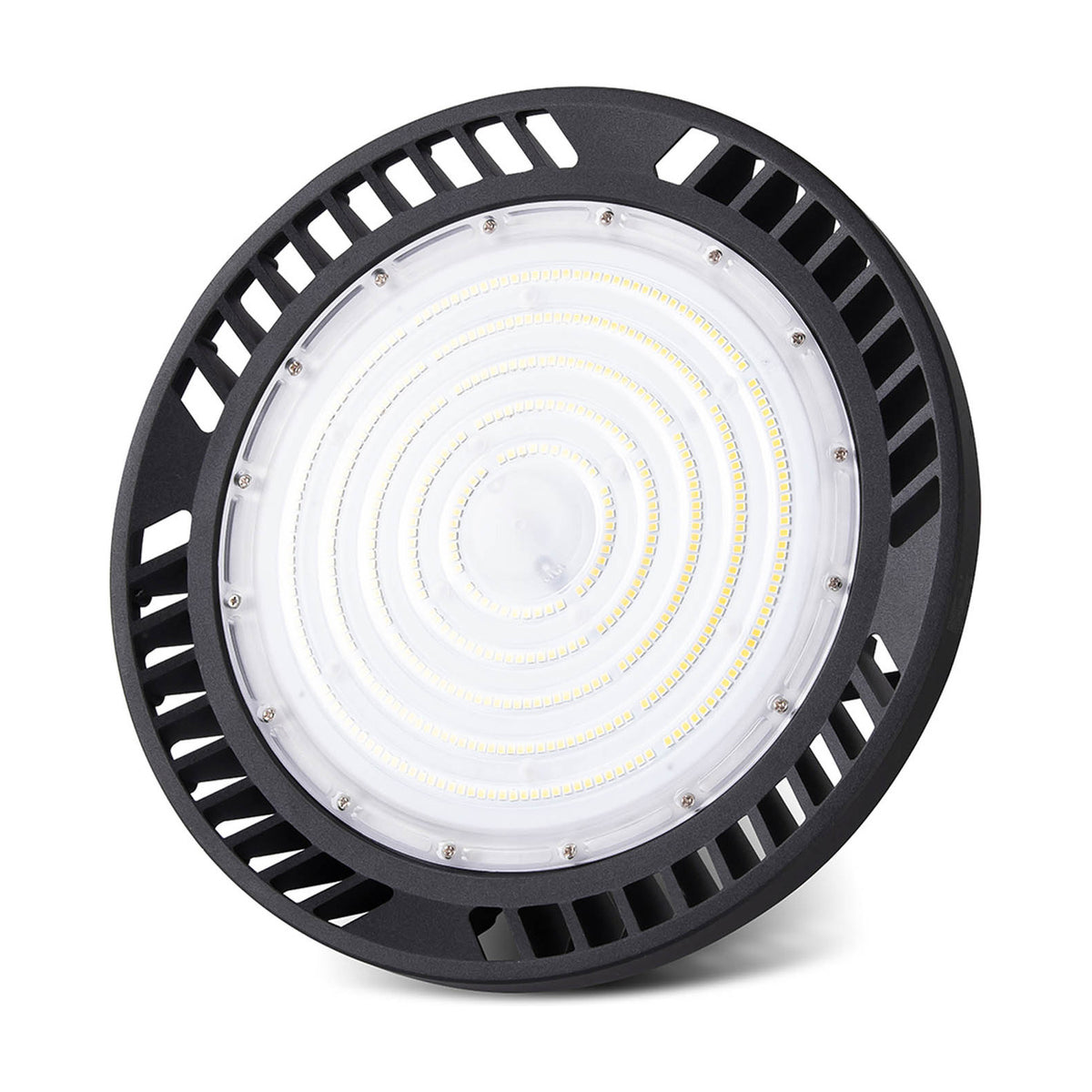

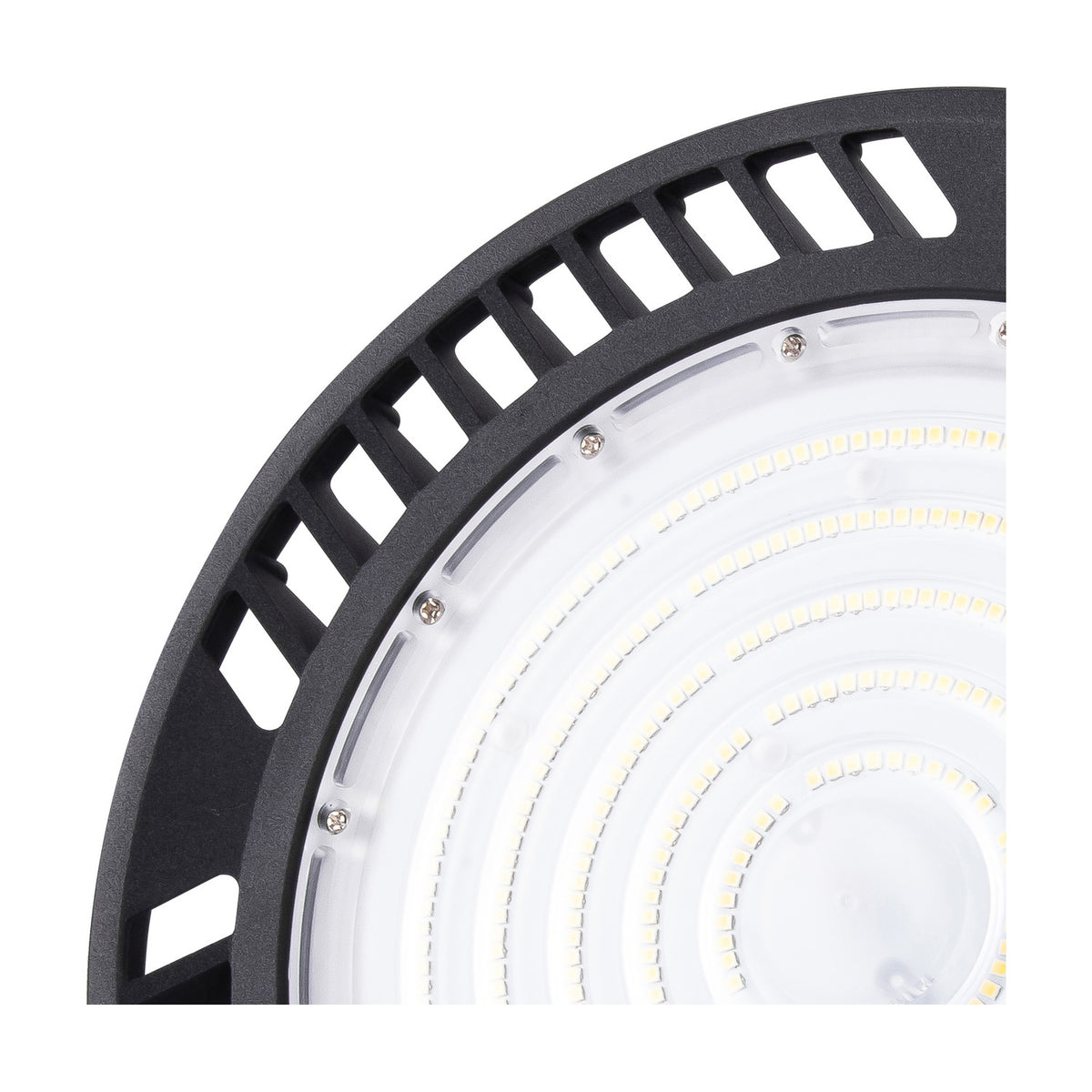

This is a big, flat disc of a fitting in black, built to throw a great deal of light a long way down. The LED sits behind a lens that gathers the output into a fairly tight cone, so most of it lands where you aim it rather than washing the walls. It draws 200W and runs at 4000K, a cool white that keeps colours honest and edges crisp. There is no dimming; it is a straight on and off fitting, and the driver is built in.
We stock it for spaces where the ceiling is high and the floor is busy: workshops, unit and garage bays, storage buildings, packing areas and sports halls. At around 30cm across it covers a wide patch of floor from height, and the narrower beam means fewer units along a run than a wide spread would need. Because it is sealed against dust and water, it holds up in wash bays and other places where the air is never quite clean. It suits anyone swapping out older discharge lamps and wanting the same brightness for far less power.
The finish is black across the body and the front rim, which keeps it quiet against a dark ceiling and hides dust between cleans. Cut the power, let it cool, then brush the dust off the body and wipe the lens with a barely damp cloth; grime on the lens costs more light than anything else. It carries a three year warranty. Nothing needs replacing lamp-side, as the LED and its driver are part of the unit. We also stock the same fitting with wider beam spreads, in a cooler white, and in a smaller diameter, so one building can be lit with a matched set.
Specification
| Colour |
Black |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
3.00KG |
| Diameter |
301mm |
| Height |
178mm |
| Materials Used |
Aluminium |
| Energy Class |
D |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
D |
| Min Energy Class |
D |
| Lamp |
1 x 200W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
4000K Cool White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
50000hrs |
| LED Power |
1W (±5%) |
| Type of LED |
2835 6V |
| Lumens per Watt (lm/W) |
140lm/W (±5%) |
| Beam Angle |
60° |
| System Flux |
28000lm (±5%) |
| CRI |
=80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Protection Class |
Class 1 - Earth Connection Required |
| Total Power Consumption |
200W (±5%) |
| Dimmable |
No |
| IP Rating |
IP65 |
| Average Life |
50000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
Yes |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How much light does it give out?
It produces around 28,000 lumens from a 200W integrated LED, with a tolerance of about 5 per cent either way.
Can it be dimmed?
No. It is a non-dimmable unit, so it should be run from a plain switched circuit.
What size is it?
The body is 301mm in diameter and 178mm tall, and it weighs 3kg.
Is the 4000K version warmer or cooler than the 5000K?
4000K is the warmer of the two, a neutral cool white. The 5000K version reads noticeably crisper and bluer, which some prefer for inspection and packing work.
How long should the LED last?
It is rated at around 50,000 hours of average life, which is many years of daily use in a workshop or store.
Will it cope with dust and water?
Yes. It is sealed to a high standard against dust ingress and water jets, so damp, dusty and cold spaces are all within its range.
