Description

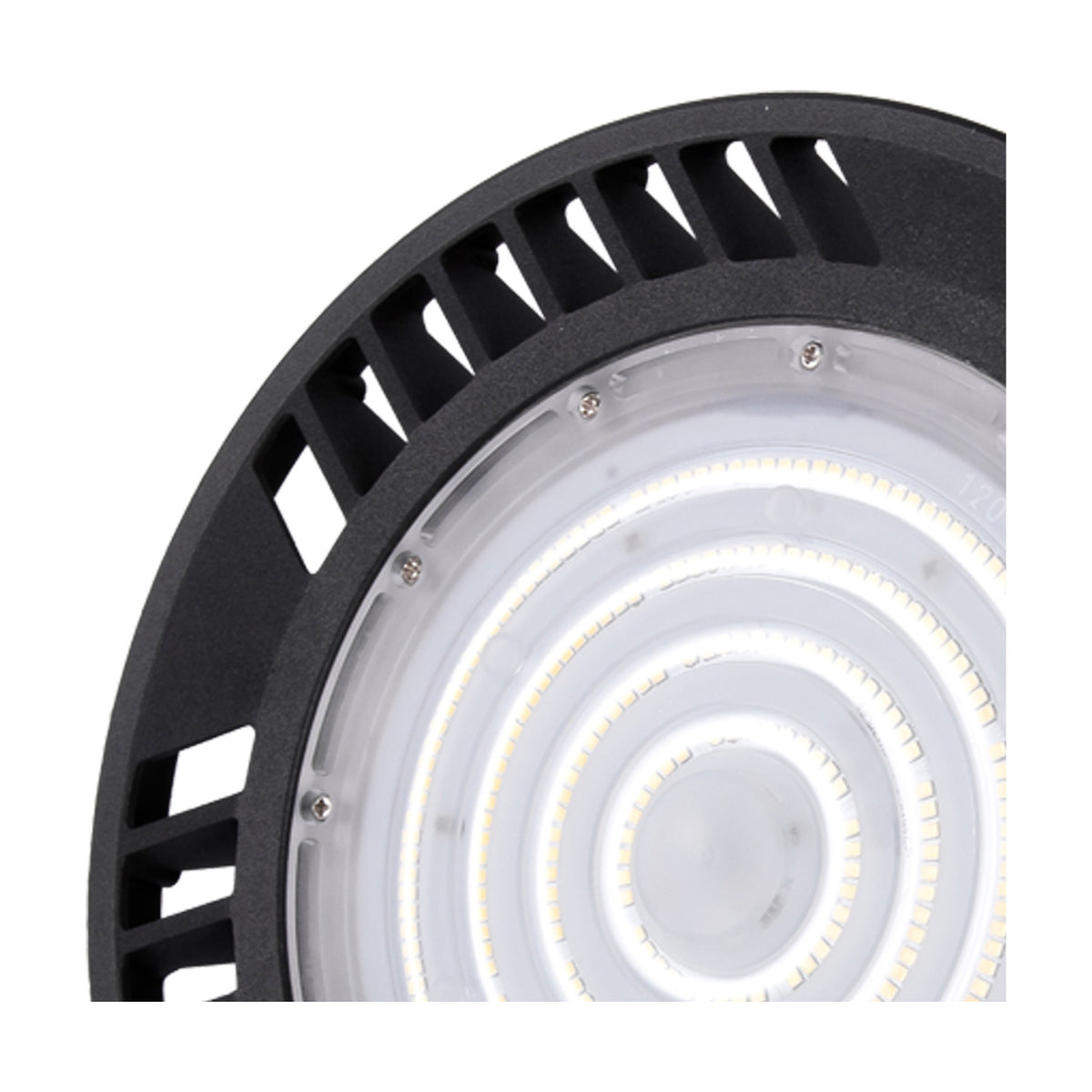

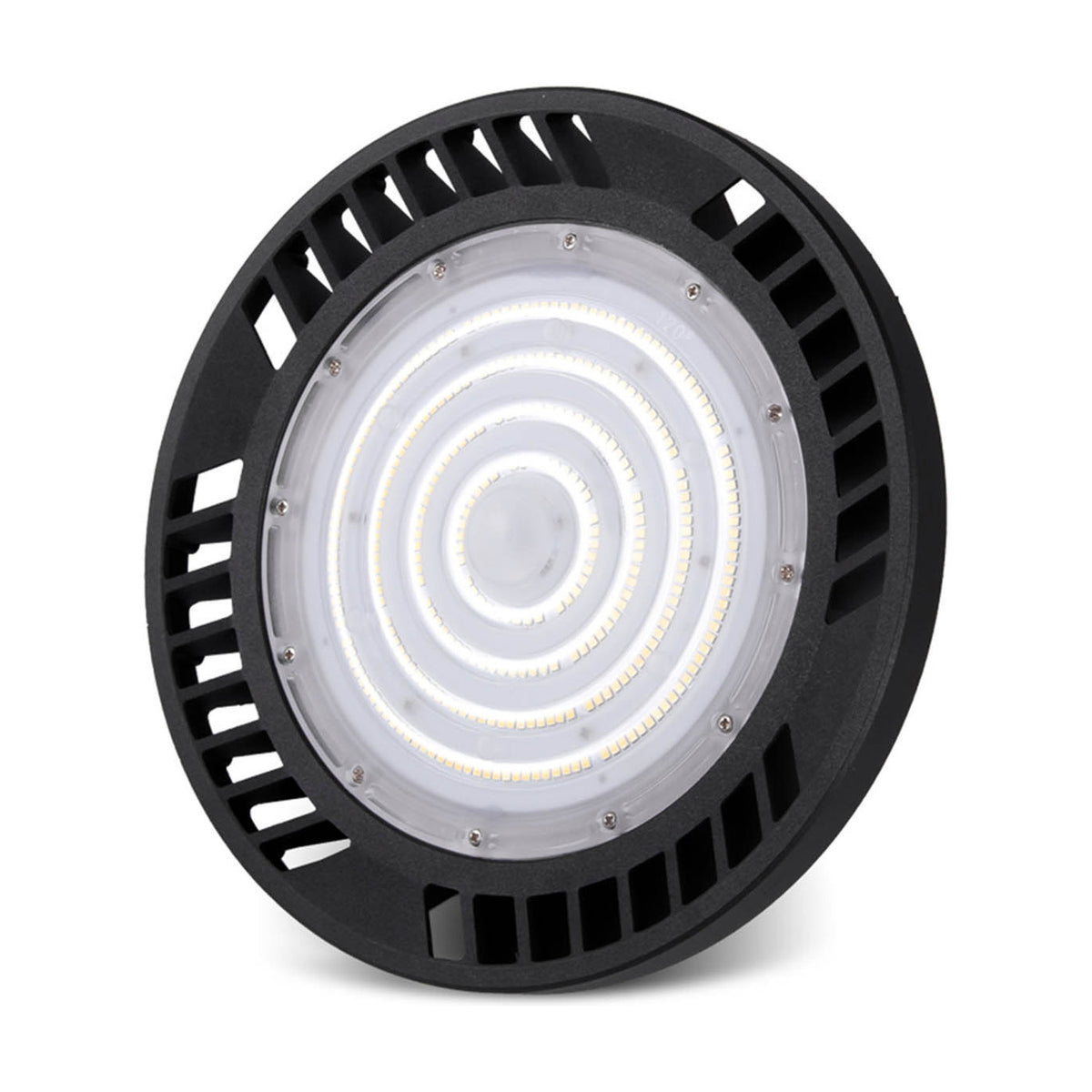

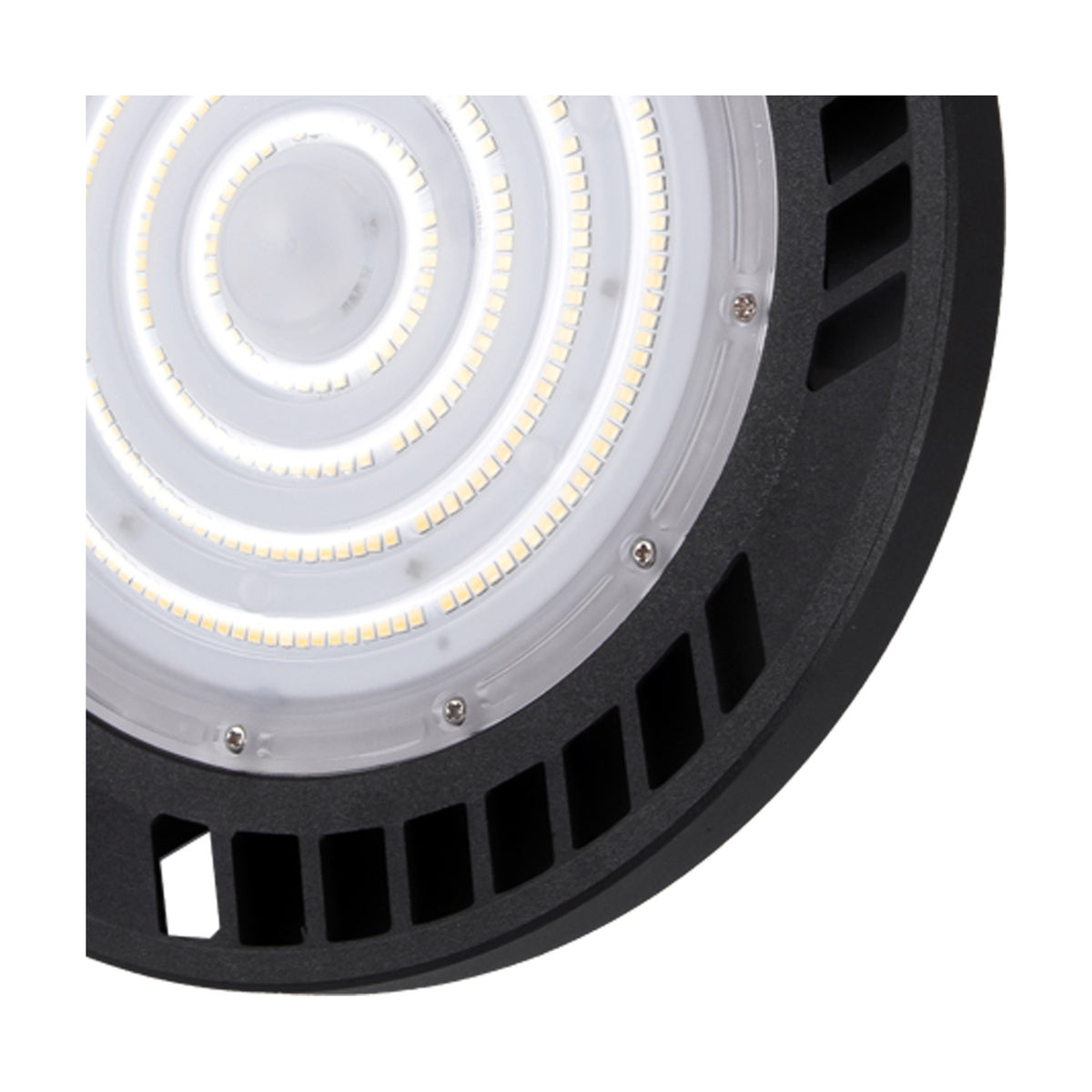

This is a compact bay light in the UFO style: a round black body 26cm across that pushes a broad, even wash of light straight down. The integrated LED draws 150W and gives a crisp white at 5000K, the sort of clean light that keeps colours, labels and floor markings easy to read. Output is fixed rather than dimmed, so it is simply on or off. We reach for the wider beam, as here, when the ceiling is high but the job is covering ground side to side rather than dropping a tight pool onto one spot.
It belongs in the tall, working rooms of a building: warehouse aisles, workshops, agricultural buildings, double-height garages, gyms and stockrooms, along with commercial kitchens and wash-down areas where the air carries dust or moisture. The housing is sealed to a level that shrugs off dust and jets of water, which is why it copes where an open fitting would clog or corrode. If you are replacing older metal halide or sodium bay lights, this is the sort of light we point people towards, since one unit covers a generous span of floor and comes to full brightness the moment it is switched.
The body is finished in black throughout, and the driver sits inside the unit rather than hanging separately as a box. Keep it working by isolating the supply and wiping the face over with a dry cloth now and then; dust settling on the lens quietly steals output, and solvents should stay away from it. It carries a three year warranty. The same black body runs through the rest of the range in narrower and wider beams, in a warmer white, and in a larger size with more output.
Specification
| Colour |
Black |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
2.50KG |
| Diameter |
260mm |
| Height |
178mm |
| Materials Used |
Aluminium |
| Energy Class |
D |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
D |
| Min Energy Class |
D |
| Lamp |
1 x 150W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
5000K Natural White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
50000hrs |
| LED Power |
1W (±5%) |
| Type of LED |
2835 6V |
| Lumens per Watt (lm/W) |
150lm/W (±5%) |
| Beam Angle |
90° |
| System Flux |
22500lm (±5%) |
| CRI |
=80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Protection Class |
Class 1 - Earth Connection Required |
| Total Power Consumption |
150W (±5%) |
| Dimmable |
No |
| IP Rating |
IP65 |
| Average Life |
50000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
Yes |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How much light does it actually give out?
It produces around 22,500 lumens from a 150W integrated LED, spread through a 90 degree beam, with a tolerance of plus or minus 5 per cent on both the output and the colour temperature.
Can I put it on a dimmer?
No. This one is non-dimmable and should be run from a plain switched circuit. Fitting a dimmer would risk flicker or damage to the driver.
What sort of white light is 5000K?
A crisp, natural white with no warmth or yellowing, close to bright daylight. It is the usual choice for workshops, storage and inspection areas. A 4000K version sits in the same range if you want something slightly softer.
How big and heavy is it?
The body measures 260mm in diameter and 178mm in height, and it weighs 2.5kg.
How long should the LED last?
It is rated at an average life of 50,000 hours, and the driver is supplied as part of the unit.
Is it suitable for damp or dusty places?
Yes. It is rated IP65, so it is protected against dust ingress and low-pressure water jets, which covers wash-down areas, unheated stores and agricultural buildings. It is a Class 1 fitting and needs an earth connection.
