Unity Single Phase Track Straight Connector - White

£799
The RRP is the manufacturer's recommended retail price of the item.
1013 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

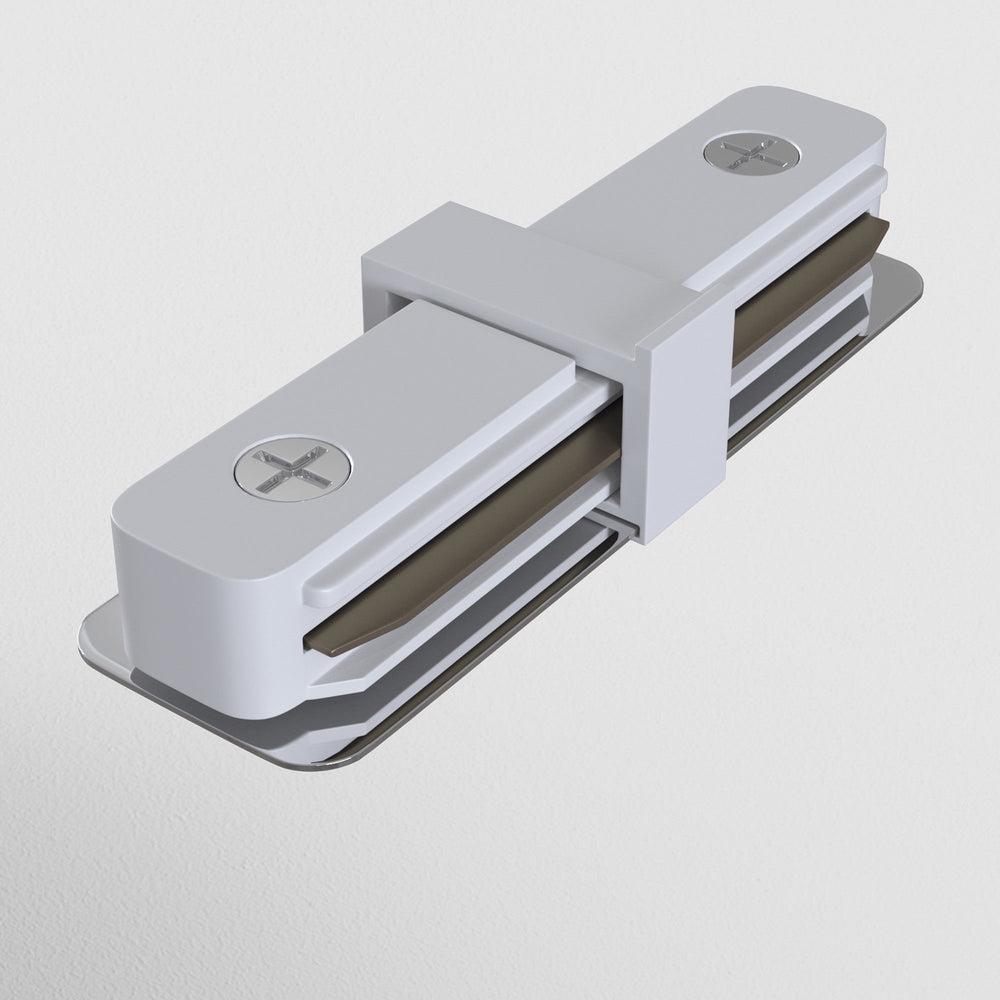

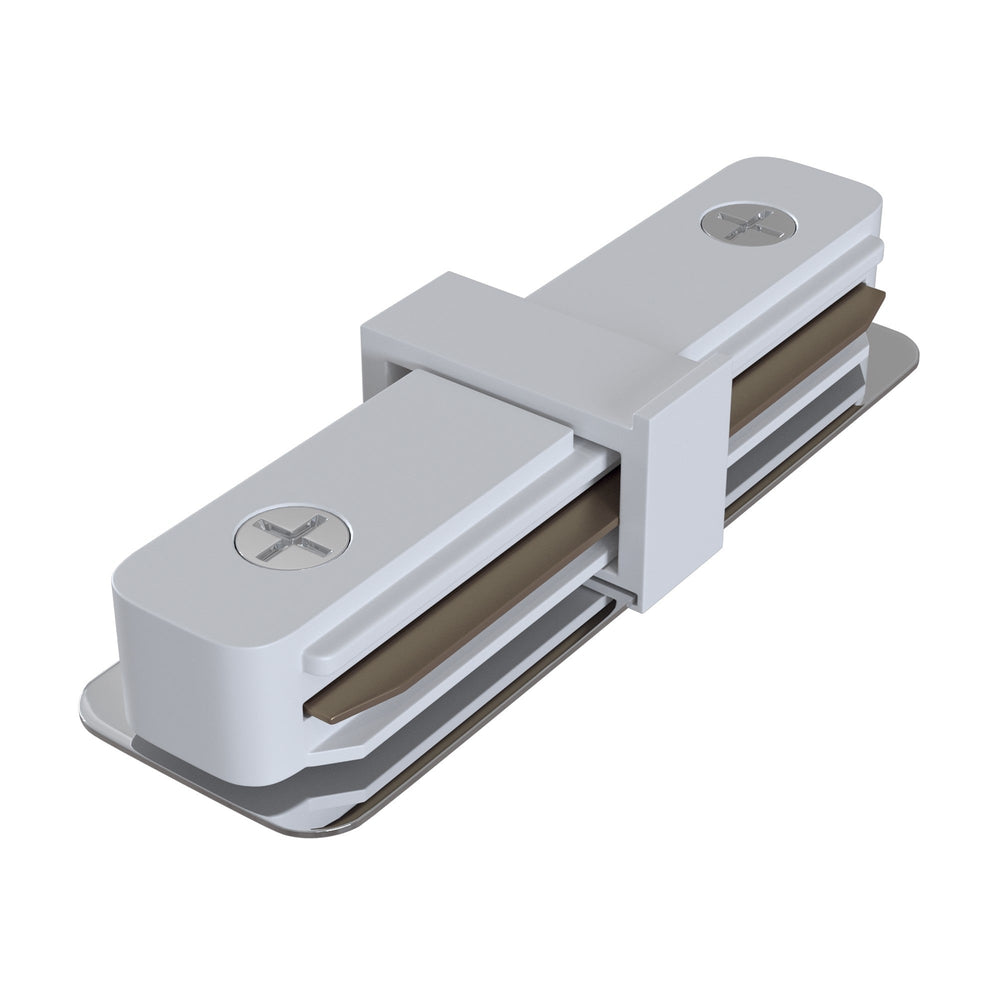

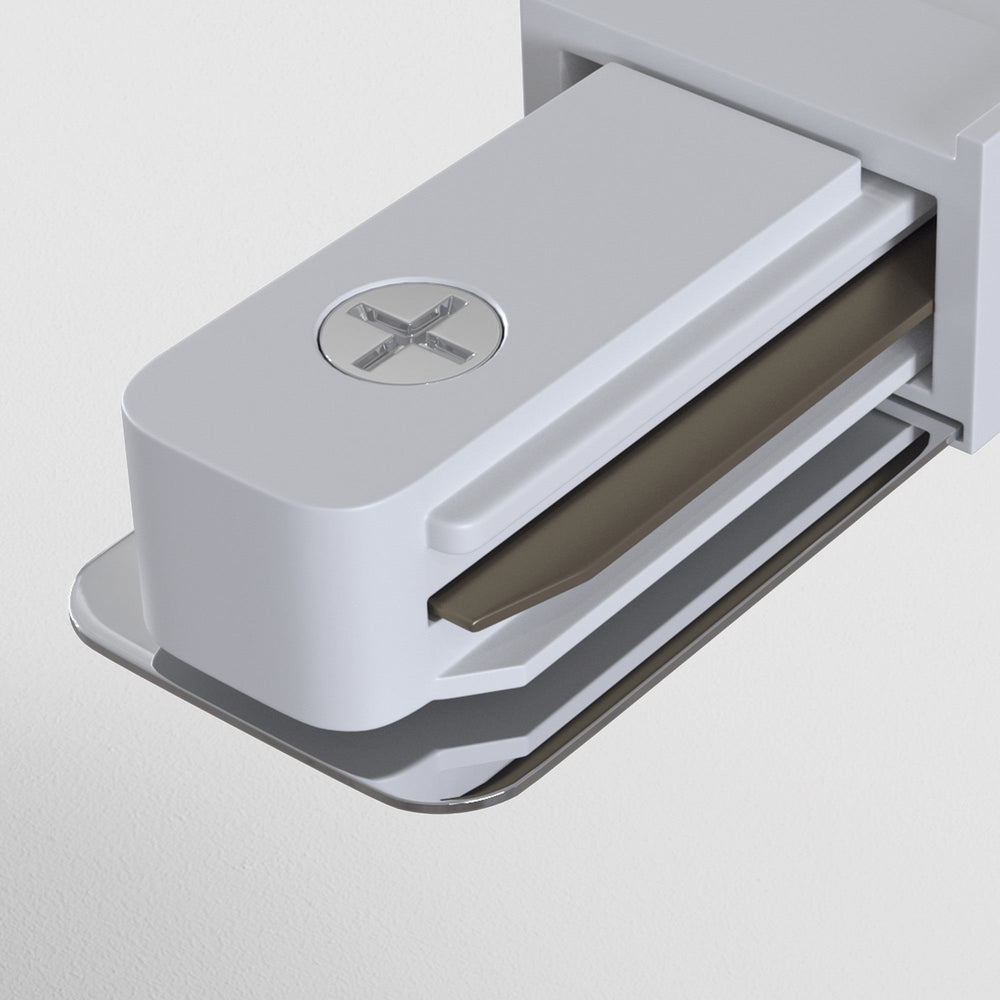

The Unity straight connector is a white plastic track lighting component that joins two single-phase track sections into a continuous run. The connector fits surface-mounted track systems rated for AC 220-240V and provides a mechanical and electrical link between track lengths, allowing track lighting to extend beyond the standard track length or turn corners as part of a multi-section layout.

Designed for retail, office, gallery and residential installations where track lighting needs to cover larger areas or navigate around architectural features, the connector sits between two track sections and locks them in alignment. The white finish matches Maytoni Unity white track components and sits flush against most white or light-painted ceilings. The 71mm length provides clearance for the internal electrical contacts and the mechanical locking mechanism that holds the two track sections together under the weight of attached track spotlights.

The plastic housing is dimensioned at 71mm long, 33mm wide and 20mm high, giving it a low profile against the ceiling once installed. The connector maintains continuity of the live track bus, so spotlights can be positioned anywhere along the connected track run. Installation requires no tools beyond those used to fit the track sections themselves — the connector clips into the track end profile and the second track section clips into the other end of the connector.

Specification
Height 2cm
Length 7.1cm
Width 3.3cm
Finish White
Construction Plastic
Voltage AC 220-240
Warranty 2 Year Guarantee
Downloads

Product Manual

Frequently Asked

What track system does this connector fit?

The Unity straight connector is designed for Maytoni Unity single-phase surface-mounted track systems. It will not fit three-circuit or recessed track profiles, nor is it compatible with other manufacturers' track systems without verification of profile compatibility.

Does the connector maintain electrical continuity for spotlights?

Yes. The connector maintains the live track bus across the join, so spotlights can be positioned anywhere along the connected track run, including immediately adjacent to the connector itself.

How many connectors can be used in one track run?

There is no specified limit on the number of connectors per run, but the total load of all spotlights on the connected track sections must remain within the circuit breaker rating and the track's maximum load capacity. Consult the Unity track installation manual for load ratings.

Can this connector be painted to match a ceiling colour?

Plastic track components can be painted with a suitable plastic primer and topcoat, though this may affect warranty coverage and may require light sanding for adhesion. For non-white installations, Maytoni also produces Unity components in black and other finishes.
