Description

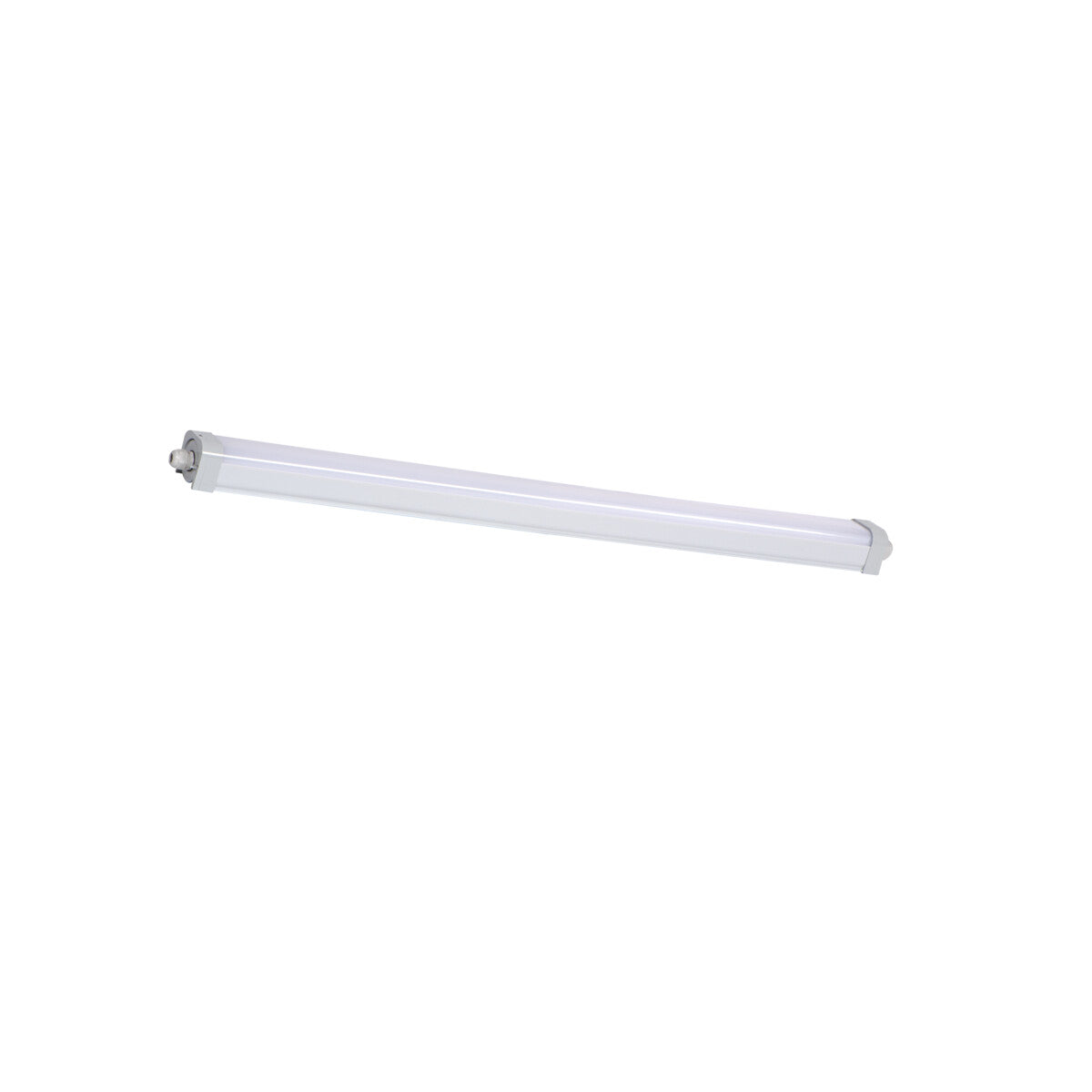

The TP Strong LED batten is a 1200x70 weatherproof linear fitting that puts out 6500 lumens from 48W, working out to an efficient 135 lm/W. Its 4000K cool white output gives a clean, neutral light that suits practical spaces where you want clear visibility rather than a warm domestic glow. The wide 125° × 110° asymmetric beam spreads light evenly along its length, so a single 1200mm unit covers a generous strip of floor below it. With an IP65 rating, this is a fitting built to handle dust and water in places a standard batten could not, and US buyers will recognise it as a sealed LED shop light for the garage or utility area.
Around 22 m² is covered at general lighting levels, which makes one batten a sensible choice for a single-car garage, a workshop bay, a store room or a section of a car park or loading area. For larger spaces, the fitting links into a continuous run so you can light a longer aisle or workshop without dark gaps between units. Its IP65 weatherproofing means it works equally well in damp utility rooms, sheds and covered outdoor areas exposed to splashing or wash-down, and it can be fixed to a ceiling or a wall depending on where you need the light directed.
The body is moulded plastic in a white finish, rated IP65 against dust and water and IK08 for resistance to knocks, which is useful in a busy workshop or store. It runs straight from 220-240V AC mains and mounts to a ceiling or wall surface using the supplied fixings, with no recessing required. The integrated LEDs are rated for 50,000 hours and are not dimmable, so this is a steady, full-output working light. This batten sits within the wider TP Strong range of linkable weatherproof LED fittings.
Specification
| Power |
48W |
| Voltage |
220-240 AC |
| Luminous flux |
6500 lm |
| Efficiency |
135 lm/W |
| Colour temperature |
4000K |
| Colour rendering (CRI) |
Ra 80 |
| Beam angle |
X125/Y110° |
| IP rating |
IP65 |
| IK rating |
IK08 |
| Dimmable |
No |
| Mounting |
Ceiling Mounted, Wall Mounted |
| Lifespan |
50,000 hours |
| Shape |
Rectangular |
| Dimensions |
1200 × 72 × 63 mm |
| Weight |
1.05 kg |
| Material |
Plastic |
| Finish |
White |
Downloads
Frequently Asked
Where is this batten best used?
Its IP65 weatherproof rating makes it suited to garages, workshops, store rooms, sheds and car parks, as well as damp utility areas. It also handles covered outdoor locations exposed to dust and splashing, where a standard indoor batten would not survive.
Can several be linked together in a run?
Yes, the TP Strong battens are designed to be connected end to end so you can light a longer aisle or workshop in a continuous line. This avoids dark gaps between fittings and keeps wiring tidy across a larger space.
How bright is it and what area does it cover?
It produces 6500 lumens from 48W, giving an efficient 135 lm/W. At general lighting levels that covers around 22 m², enough for a single-car garage or a workshop bay from one 1200mm unit.
How do I clean the fitting?
Wipe the sealed housing with a soft, slightly damp cloth once the power is switched off, avoiding harsh solvents that could mark the plastic. Because the unit is IP65 rated, dust and grime stay on the surface and lift off easily without affecting the internal LEDs.
