Description

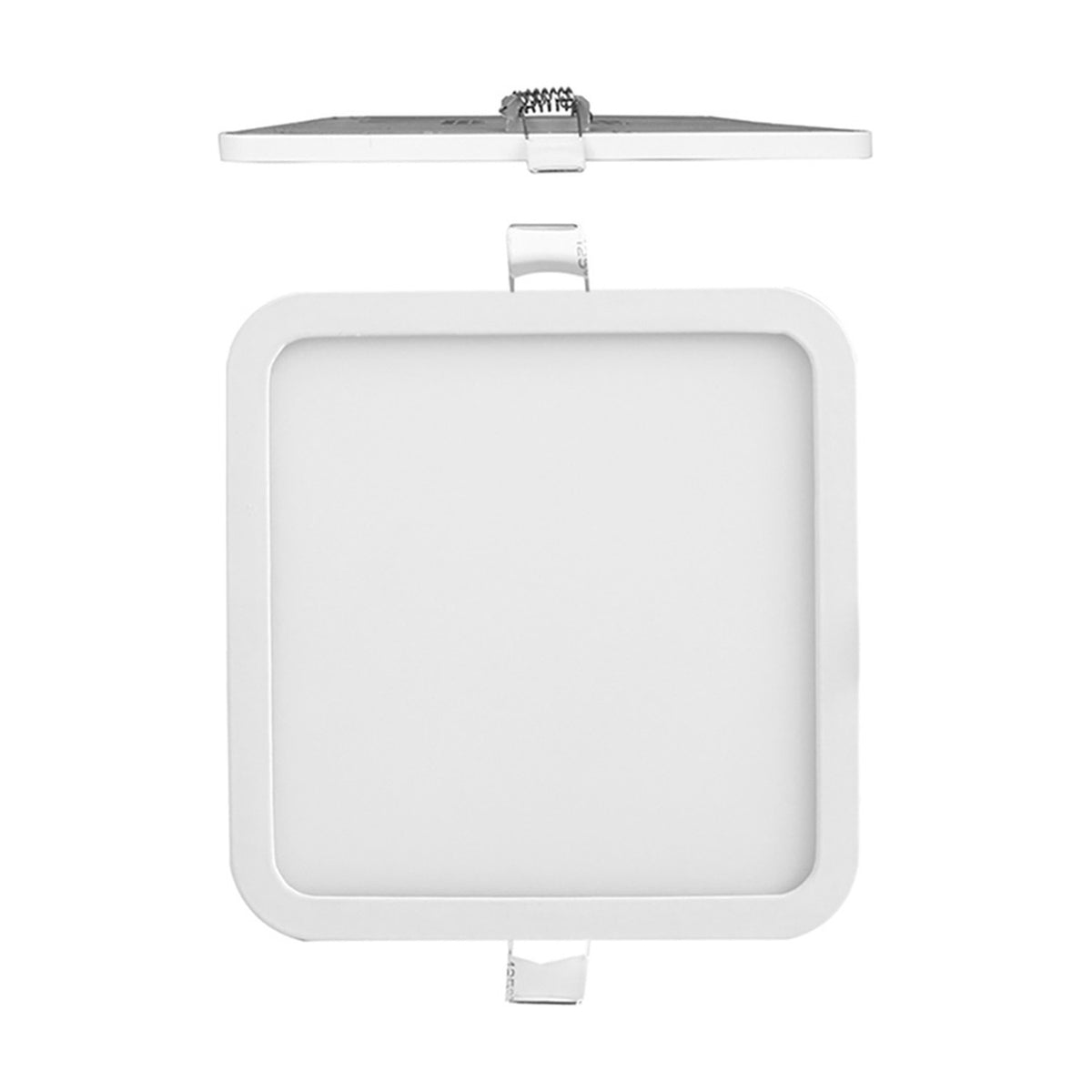

A square face 9cm across, finished in matt white, with a shallow body behind it that sits close to the ceiling line. The LED is built in and draws 6W, giving a warm white light with a broad spread rather than a narrow spot, so a run of them washes a ceiling fairly evenly instead of dotting it with bright pools. The driver comes with it. There is no dimming, so it is designed to work from an ordinary switch.
Hallways, landings and utility rooms are the obvious homes for it, and it earns its place in a run over a kitchen worktop or across the ceiling of a home office. The warm tone keeps the light kind on white paint and pale timber, and the 80mm aperture means the visible trim stays small. We suggest it where a pendant or a surface fitting would take up too much room in the eye, and where a low ceiling wants light that keeps out of the way. Keep it to dry indoor ceilings, well clear of shower and bath zones.

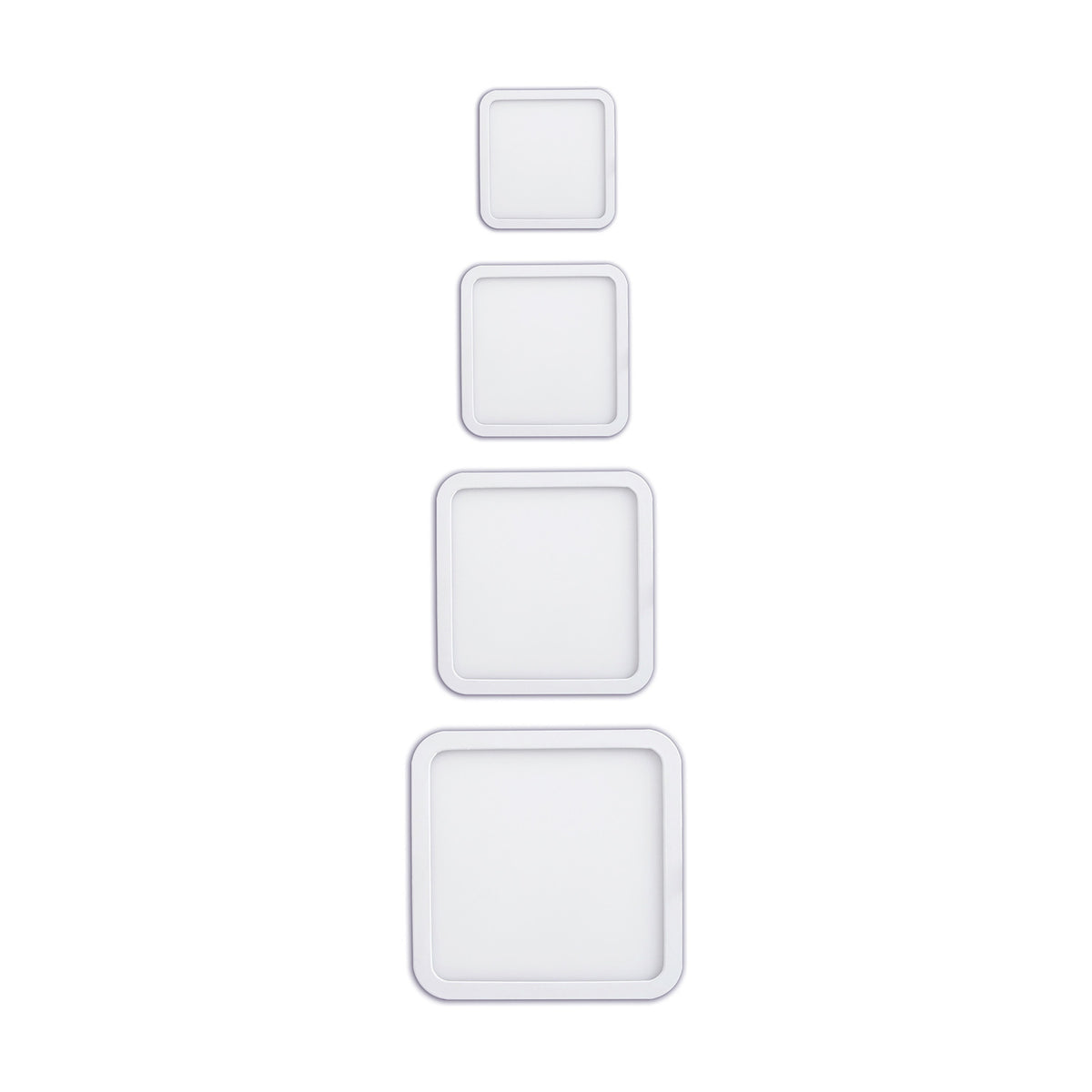

The matt white face reads quietly against a white ceiling and reflects very little, which is much of the point of a slim downlight. Because it sits almost level with the plaster it gathers little dust, and an occasional pass with a soft cloth, power off at the switch first, is all it asks; no polish, no solvents. It carries a three year warranty. If you want the same matt white look on show rather than set into the ceiling, the wider Saona range runs to surface flush fittings in both round and square shapes, several sizes, and in warm or cool white, which makes it straightforward to keep one family of fittings through a flat or a house.
Specification
| Colour |
Matt White |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
0.19KG |
| Length |
90mm |
| Width |
90mm |
| Height |
25mm |
| Cut Out |
80mm |
| Materials Used |
Aluminium, Acrylic |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 6W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
20000hrs |
| LED Brand |
Epistar |
| Qty of SMD |
30 |
| SMD Chipset |
4014 |
| LED Power |
0.2W (±5%) |
| Type of LED |
SMD |
| Lumens per LED |
24-26lm |
| Lumens per Watt (lm/W) |
87lm/W (±5%) |
| Beam Angle |
113° |
| System Flux |
520lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output |
240mA |
| Min/Max. Voltage Output |
16-25V |
| Load Range |
6W |
| Ta |
50°C |
| Tc |
85°C |
| Casing Material |
Aluminium |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
6W (±5%) |
| Input Voltage |
100-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Number of Shades |
1 |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
No |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How bright is it?
It gives 520 lumens from 6W of integrated LED, at 3000K warm white. That is enough for general light in a hallway or utility room when several are used across the ceiling.
What size hole does it need?

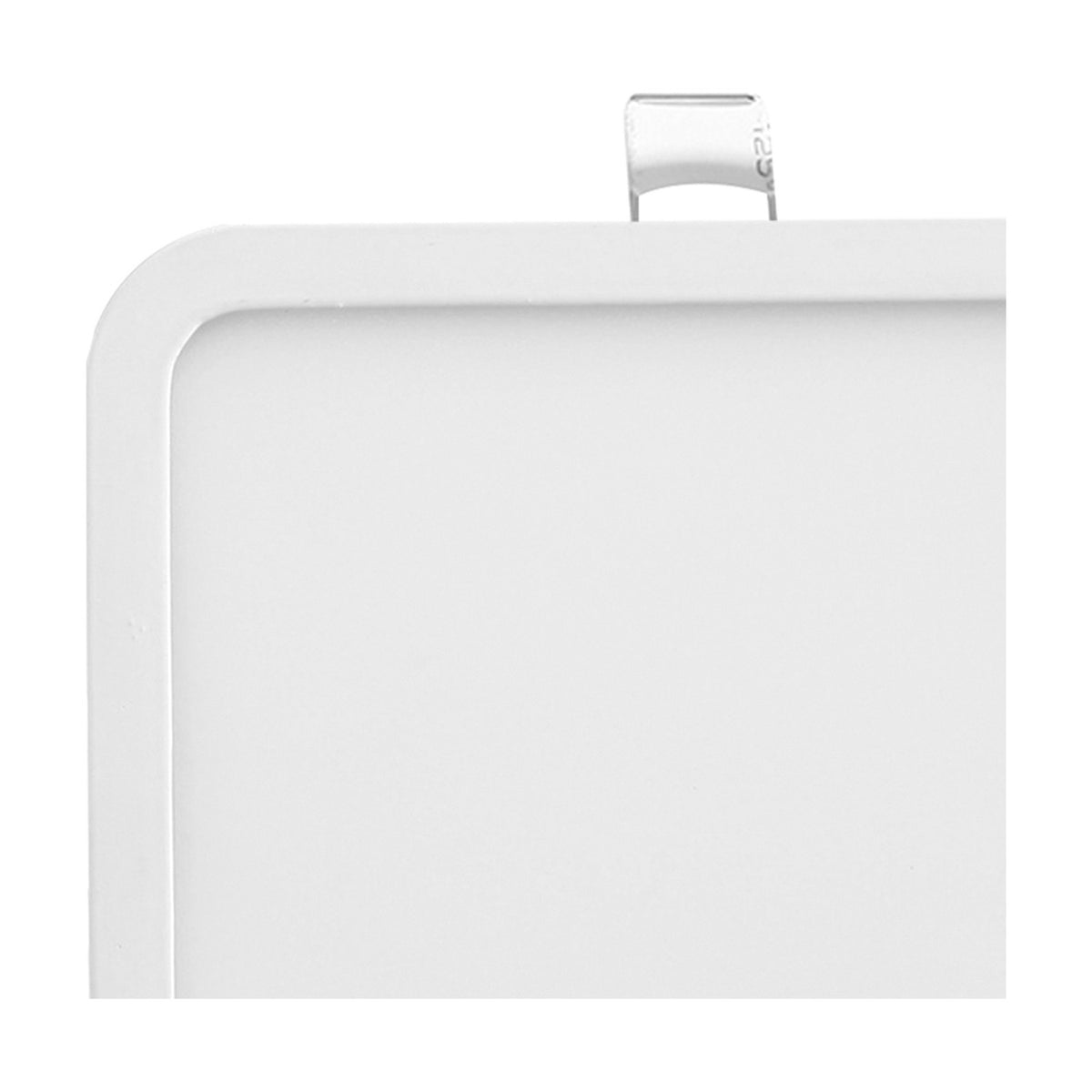

The cut-out is 80mm. The visible face measures 90mm by 90mm, so the trim covers the opening with a small margin around it.
How deep is the fitting?
The body is 25mm high, which is why it is described as ultra slim.
Can I put it on a dimmer?
No. This version is not dimmable and should be run from a standard on/off switch.
Is the LED replaceable?
No, the LED is integrated rather than a separate lamp. It is rated at 30,000 hours average life, so in normal domestic use it should last many years.
Can it go in a bathroom?
It is rated IP20, so it suits dry rooms only. For a bathroom, choose a downlight with a rating suitable for the zone you are lighting.
