QTX DMX Lighting Lead 3-Pin XLR Plug to 3-Pin XLR Socket - 20m

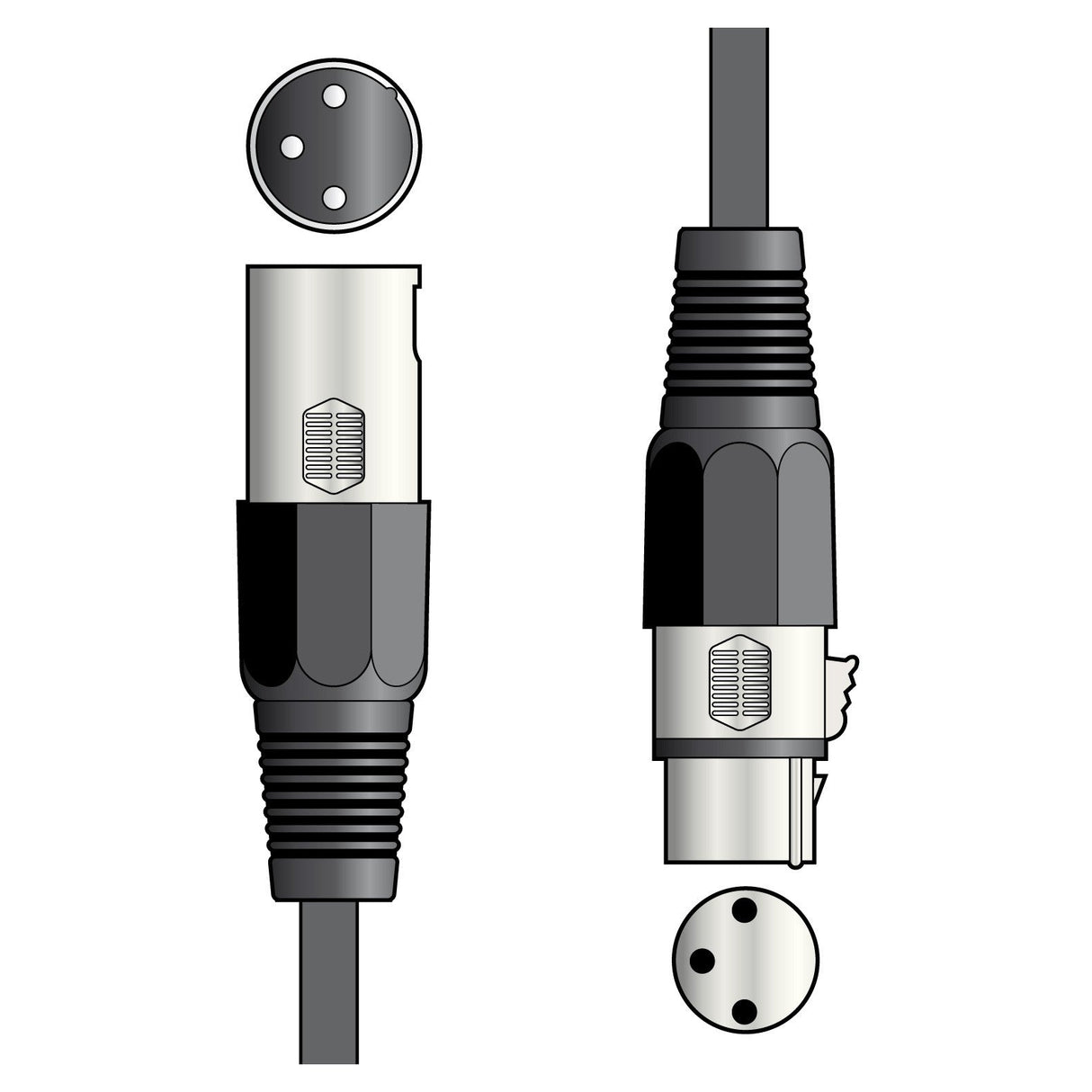

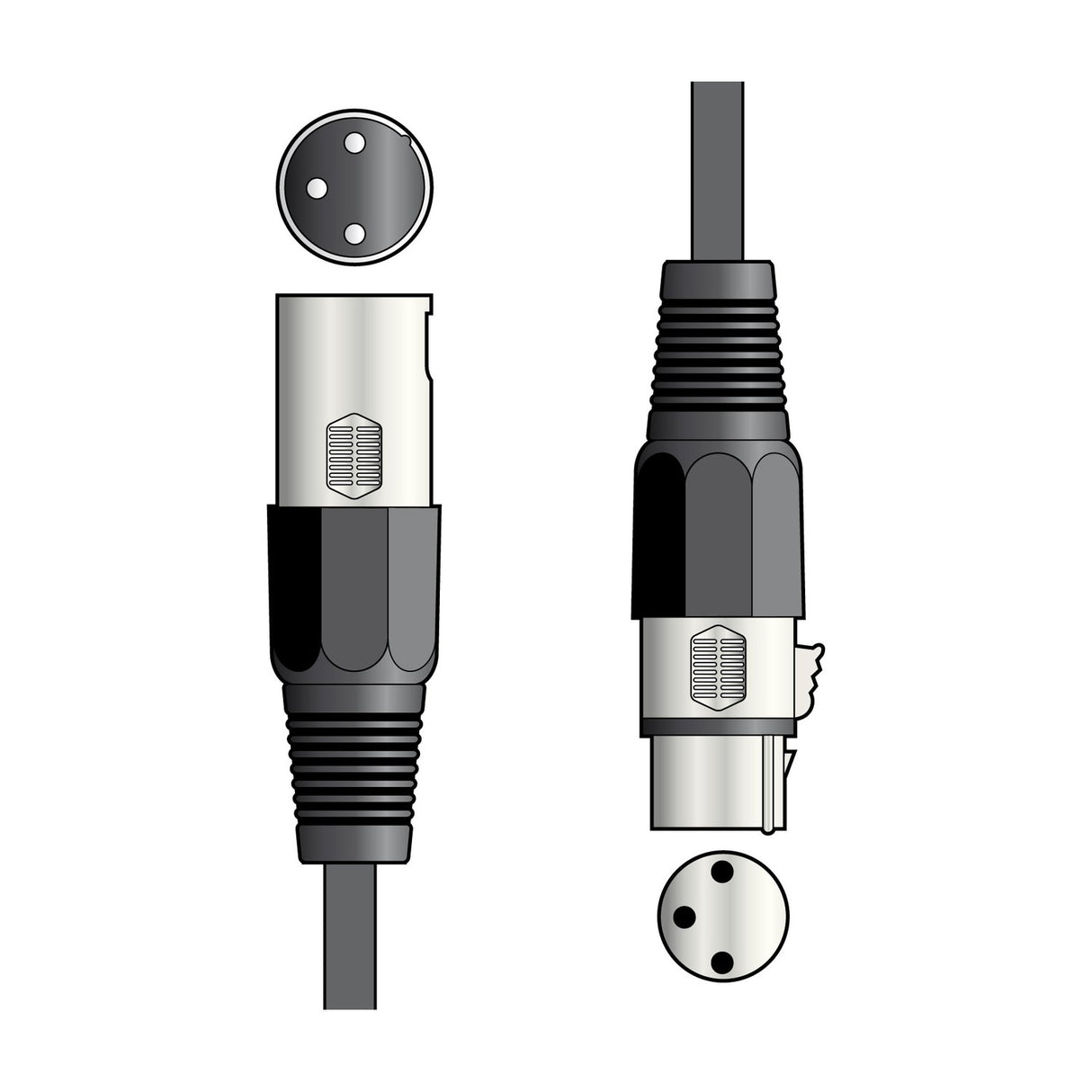

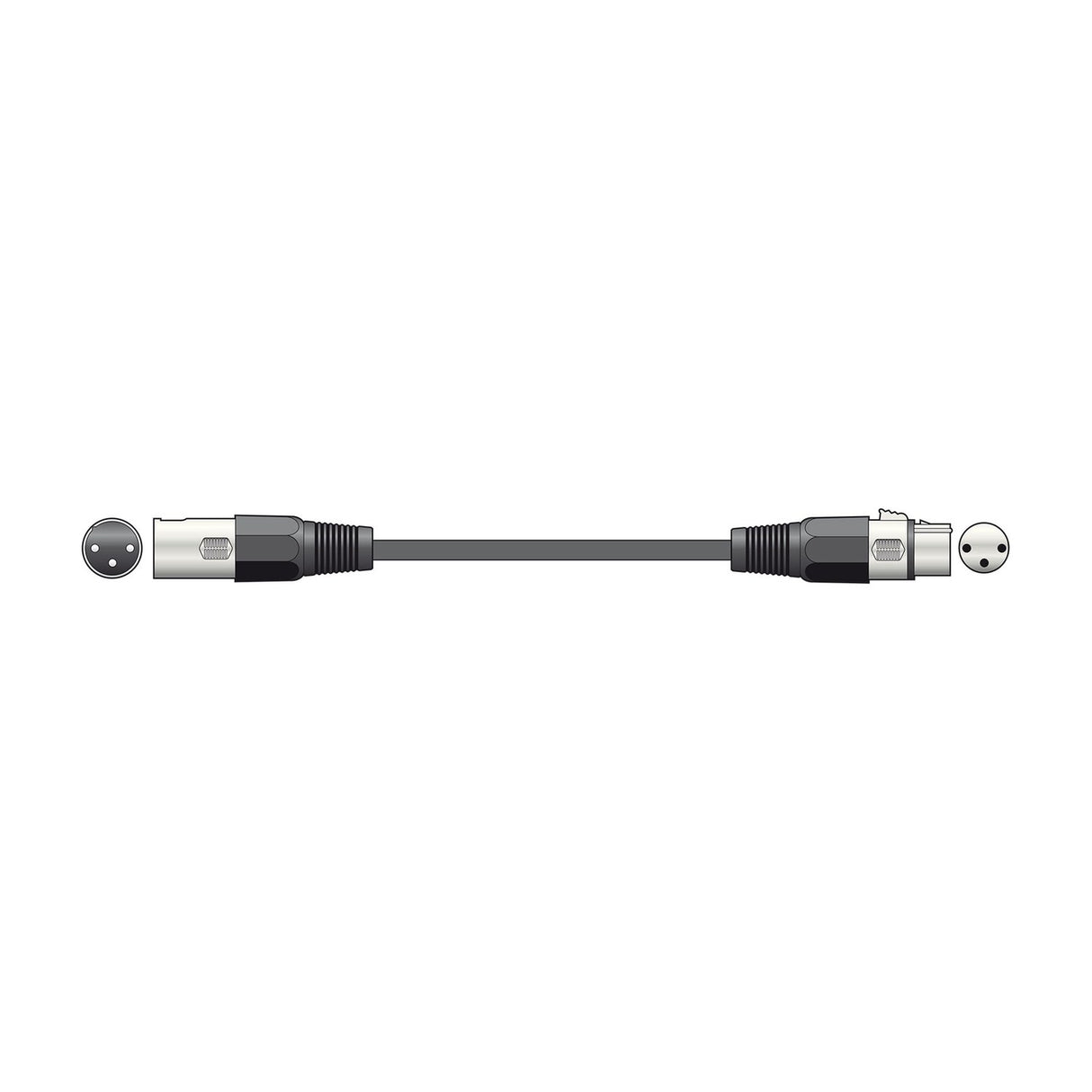

The QTX DMX lighting lead is a 20m cable with a 3-pin XLR male plug at one end and a 3-pin XLR female socket at the other, designed to carry DMX512 control signals between lighting fixtures, controllers and dimmer packs. The 4mm diameter cable uses shielded construction to reduce electrical interference from mains cables, radio transmitters and other stage equipment that can disrupt DMX data transmission.

Designed for stage rigs, event production and installation environments where lighting fixtures need to be chained over distances beyond the reach of a single short cable, the 20m length allows fixtures to be positioned across large performance spaces, warehouse venues and outdoor stages without requiring multiple cable joins. The 3-pin XLR connectors use metal shells with spring-loaded locking tabs that resist accidental disconnection during setup, teardown and live performance.

The cable jacket is rated for repeated coiling and uncoiling without fracturing the internal shielding or conductors, making it suitable for touring rigs where the same cable may be set up and packed down multiple times per week. The 4mm outer diameter gives the cable enough mass to resist tangling when laid across a stage floor but remains flexible enough to route around obstacles without requiring excessive slack. The XLR connectors are numbered 1-3 internally to match the DMX512 pin assignment standard used across most modern lighting fixtures.

What is this cable used for?

This cable carries DMX512 control signals between lighting controllers, dimmers and fixtures in stage, event and installation lighting systems. It allows you to control fixture parameters such as colour, dimming, movement and effects from a central lighting desk or software controller.

Can multiple cables be chained together?

Yes. The 3-pin XLR plug to socket design allows multiple cables to be connected in series to extend the DMX signal chain. DMX512 protocol supports up to 32 fixtures per universe over a maximum recommended cable run of 300-400m before signal degradation becomes an issue, though using a DMX splitter or repeater is recommended for larger installations.

Is this cable compatible with audio XLR equipment?

Physically the connectors will fit, but DMX cable and audio XLR cable use different impedance ratings. DMX cable is typically 110-120 ohm, while audio microphone cable is 50-75 ohm. Using audio cable for long DMX runs or vice versa can cause signal issues. For short runs under 10m the difference is often negligible, but for a 20m cable it is best to use the correct specification for the application.

How is the cable stored between uses?

Coil the cable in loose loops approximately 300-400mm in diameter and secure with a velcro tie or cable wrap. Avoid tight coiling or kinking the cable, as this can damage the internal shielding over time. Store in a dry location away from sharp objects and heavy equipment that might crush the cable jacket.
