Description

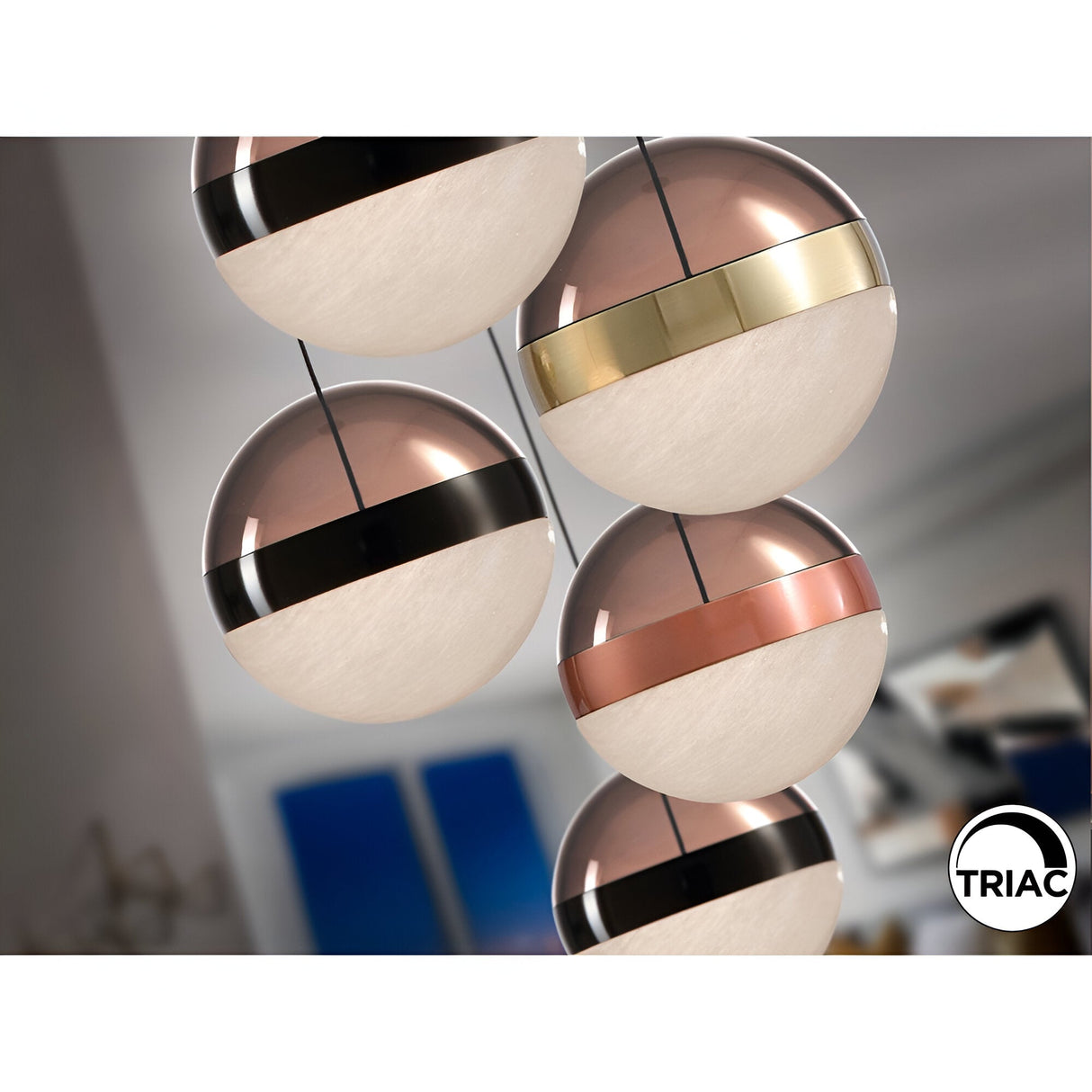

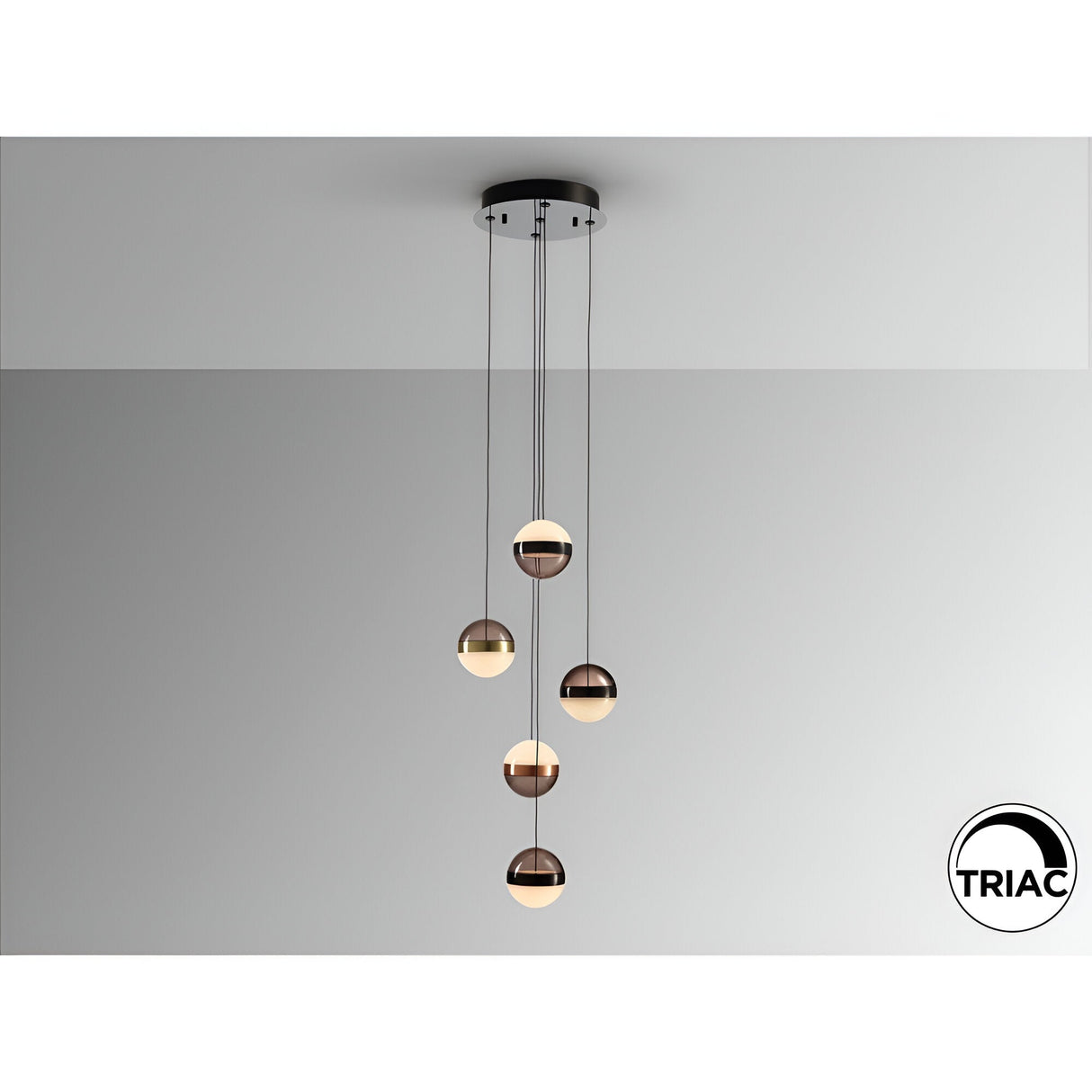

The Schuller Orbes is a 5-light cluster pendant combining smoke-toned glass and polycarbonate spheres with copper and satin brass ring accents, suspended from a matt black canopy. Each sphere houses an integrated LED module, totaling 36W at 3000K across the five pendants, and the fixture delivers 1,671 lumens when fully illuminated. The pendant is dimmable via TRIAC or 0-10V protocols, allowing output to be adjusted from full brightness down to ambient glow.

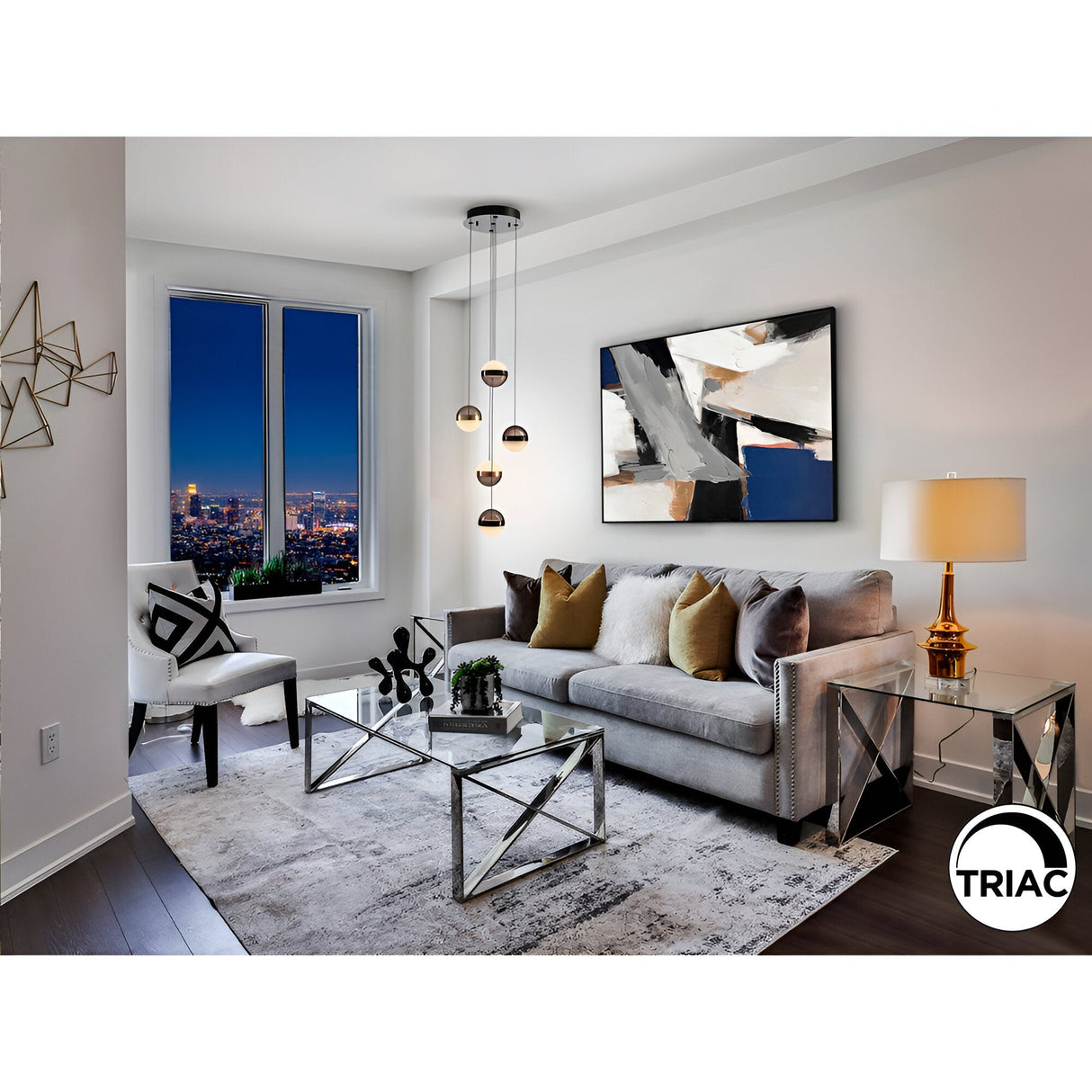

Designed for installation over dining tables, kitchen islands and lounge seating areas, the Orbes suits rooms with ceiling heights between 2.4m and 3m. The drop is adjustable from a minimum of 60cm to a maximum of 170cm, with the five spheres cascading at staggered heights when set to the standard 150cm configuration. The 32cm canopy diameter keeps the ceiling footprint compact while the spread of the individual pendants creates visual interest across a wider area below.
The smoke glass and polycarbonate spheres diffuse the LED light softly, reducing glare while the copper and brass rings add a warm metallic accent that contrasts with the matt black canopy and cabling. The fixture weighs 4.02kg and includes gravity toggles for secure mounting on both flat and sloped ceilings. The IP20 rating restricts use to dry indoor environments, and the Class 1 electrical rating requires an earth connection during installation.
The colour rendering index of >84 reproduces colours accurately under the 3000K warm white light, making the fixture suitable for dining areas where food presentation and skin tones benefit from higher CRI values. The energy class G rating reflects the integrated LED technology available at the time of manufacture.
Specification
| Height |
150cm |
| Dimension |
32cm |
| Minimum Height |
60cm |
| Maximum Height |
170cm |
| Weight |
4.02kg |
| Energy Class |
G |
| IP |
IP20 |
| Electric Class |
Class 1 |
| Power |
36W |
| Voltage |
180/240V |
| Frequency |
50/60Hz |
| Lumen |
1.671lm |
| Colour Temperature |
3000K |
| CRI |
>84 |
| Finish |
Copper, Brass, Black |
Downloads
Product Specification Sheet
Assembly Instruction
Frequently Asked
Is the Orbes dimmable?
Yes. The integrated LED modules are dimmable via TRIAC or 0-10V dimming protocols. Ensure your dimmer switch is compatible with LED lighting and rated for the 36W total load before installation.
What ceiling height is needed?
The Orbes works in rooms with ceiling heights between 2.4m and 3m. The drop is adjustable from 60cm to 170cm, with the standard configuration set at 150cm. For dining tables, position the lowest sphere 700-800mm above the table surface.
Can the sphere heights be adjusted individually?
The five pendants are set at staggered heights during installation by adjusting the cable length for each sphere. The assembly instructions included with the fixture provide guidance on achieving the cascading effect shown in the product images.
Is the LED replaceable?
No. The LED modules are integrated into each sphere and are not user-replaceable. The LEDs are rated for tens of thousands of hours of operation, typically outlasting the decorative lifespan of the fixture itself.
