Mercury Fig 8 Speaker Cable 2 x 7 Strand Grey/Black - 100m Reel

£1199
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

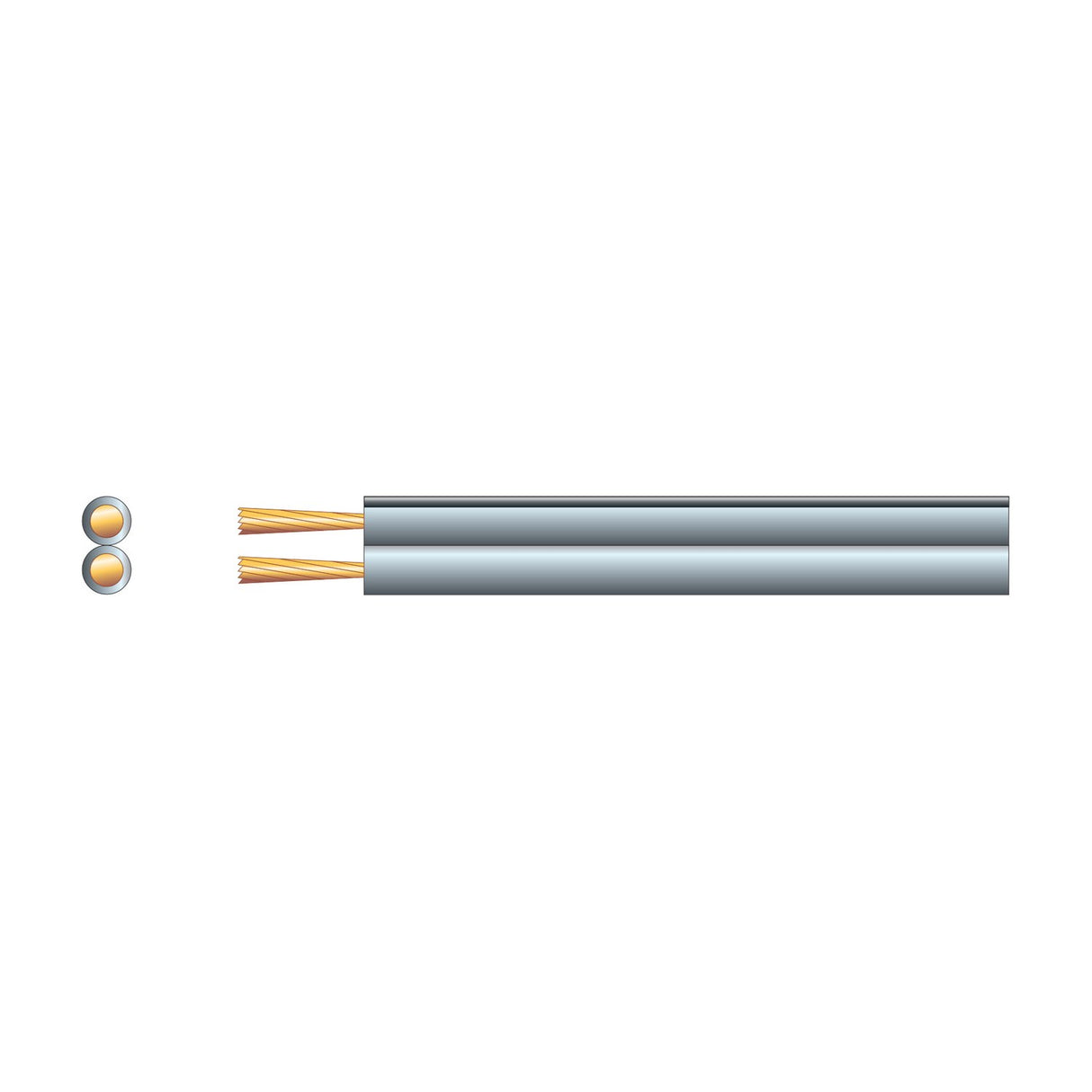

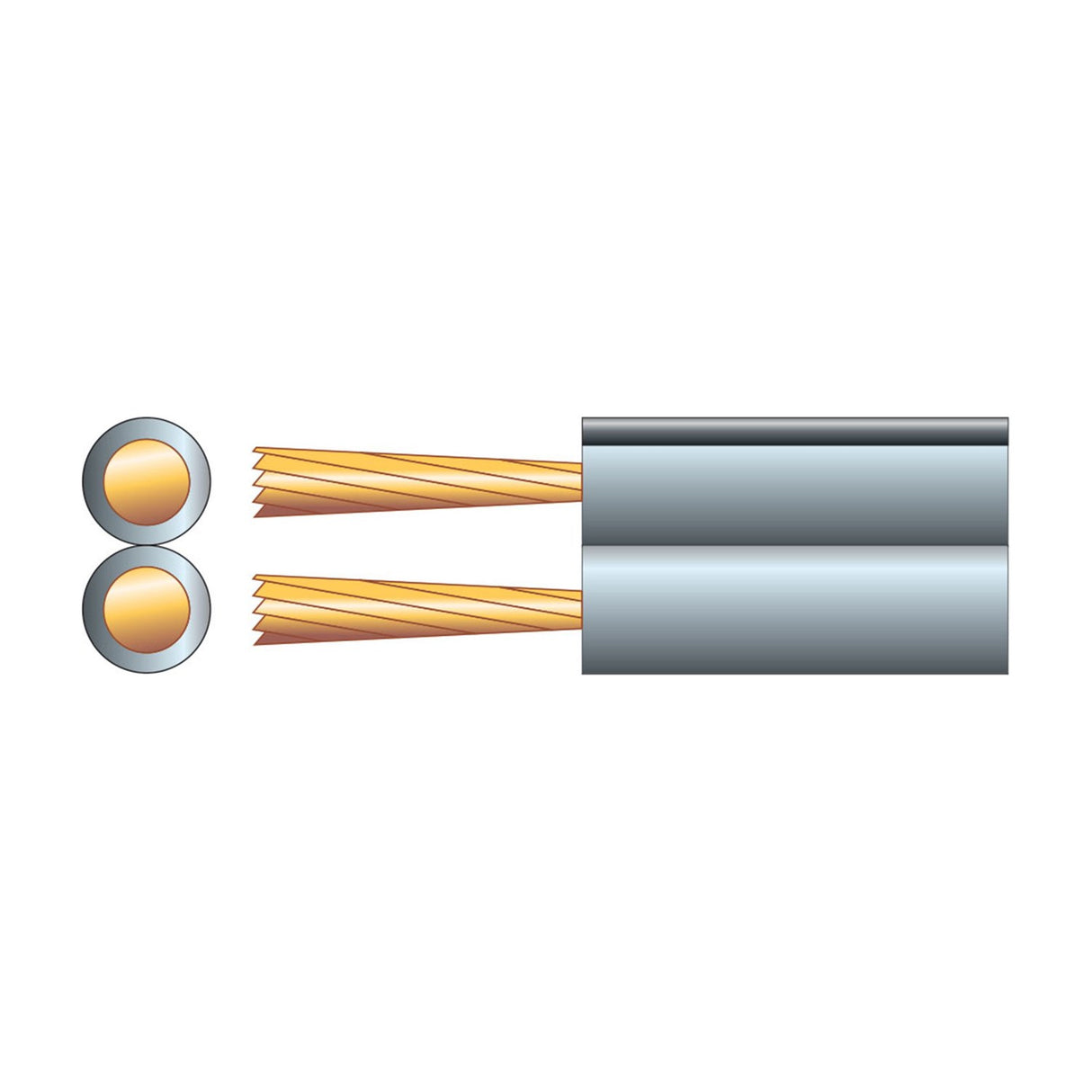

The Mercury Fig 8 speaker cable is a flexible twin-core cable with 2 x 7 strand conductors combining four copper and three copper-clad aluminium strands per core, giving a 0.18mm² cross-sectional area. The grey PVC sheath includes a black polarity line running along one core to simplify positive/negative identification during installation.

Designed for residential and light commercial audio installations where standard speaker runs are needed between amplifiers and passive speakers, the cable handles loads up to 1.0A maximum continuous current. The figure 8 profile with a 1.8 x 3.6mm footprint allows the cable to be run along skirting boards, under carpets or through conduit without excessive bulk. The polarity marking removes the need to mark or test cores during termination.

The 100m reel length suits whole-home audio installs, multi-room distributed systems, and commercial background music setups where multiple speaker runs are needed from a single roll. The mixed copper/CCA construction keeps cost down for projects where conductor purity is less critical than total length coverage. The cable can be terminated with standard bare wire, spade or pin connectors depending on the amplifier and speaker binding posts in use.

Specification
Conductor Copper/Copper Clad Aluminium
Length 100m
CSA 0.18mm²
Strands 2 x (4 x 0.18mmØCu + 3 x 0.18mmØCCA)
Dimensions 1.8 x 3.6mm
Sheath Grey
Polarity Black
Packed quantity 12 reels
Current 1.0A max.
Frequently Asked

What's the maximum speaker run length for this cable?

The 0.18mm² CSA and 1.0A maximum rating suit short to medium runs, typically up to 10-15 metres per speaker for 8-ohm loads at moderate power levels. Longer runs or higher-power systems may need thicker cable to avoid voltage drop affecting sound quality.

What does the black polarity line indicate?

The black line runs along one of the two cores to mark polarity, allowing consistent positive/negative termination at both the amplifier and speaker ends without needing a multimeter or separate marking during installation.

Can this cable be used outdoors?

The grey PVC sheath is designed for indoor use. For outdoor speaker runs the cable should be protected inside conduit or trunking to shield it from UV, moisture and temperature extremes that can degrade the insulation over time.

What's the difference between copper and copper-clad aluminium strands?

Copper-clad aluminium (CCA) strands have an aluminium core with a thin copper coating, reducing material cost compared to pure copper. CCA offers lower conductivity than pure copper, which is why this cable is rated for 1.0A maximum and suits lower-power or shorter-run applications.
