Mercury Fig 8 Power/Speaker Cable 2 x 79 Strand Red/Black - 100m Reel

£8899
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

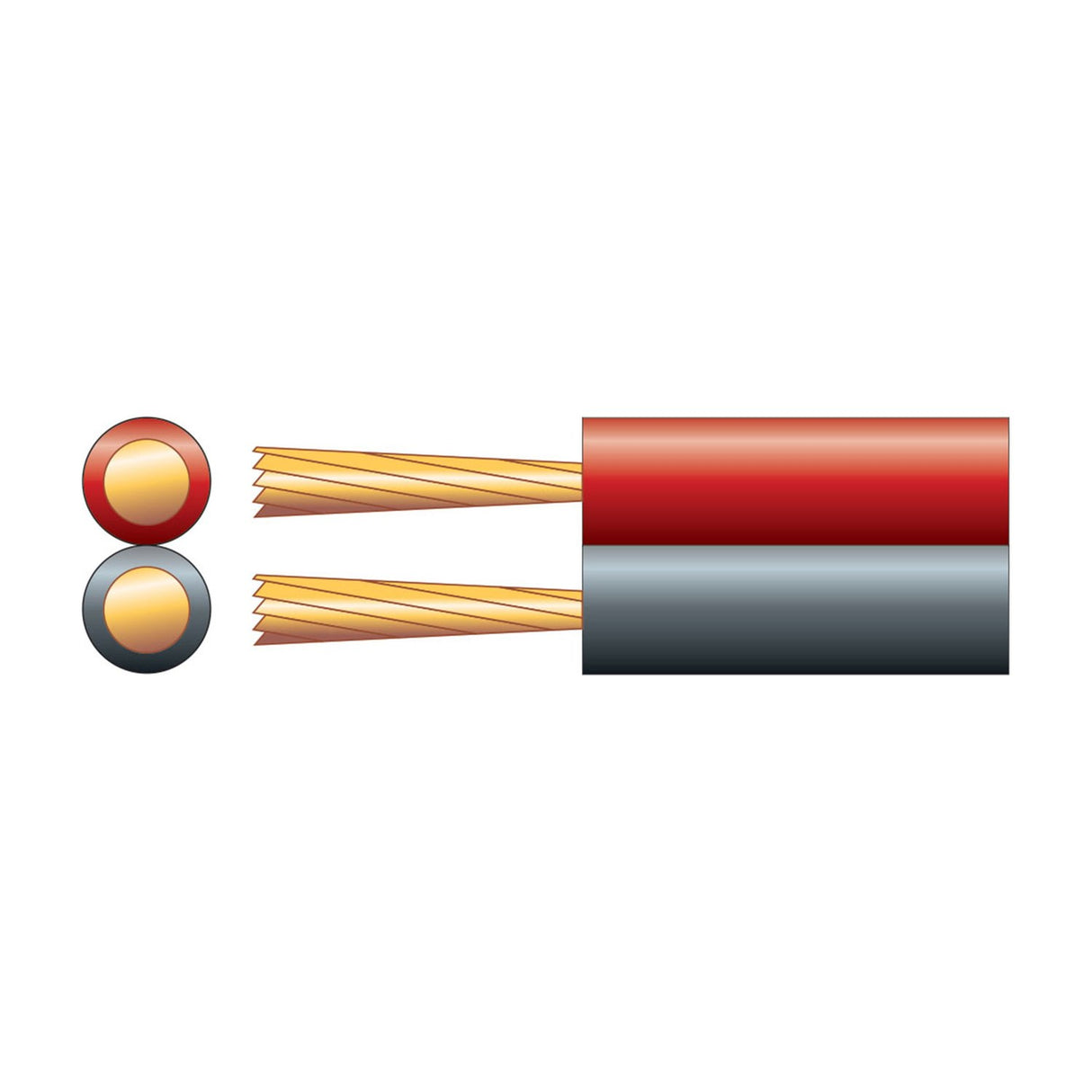

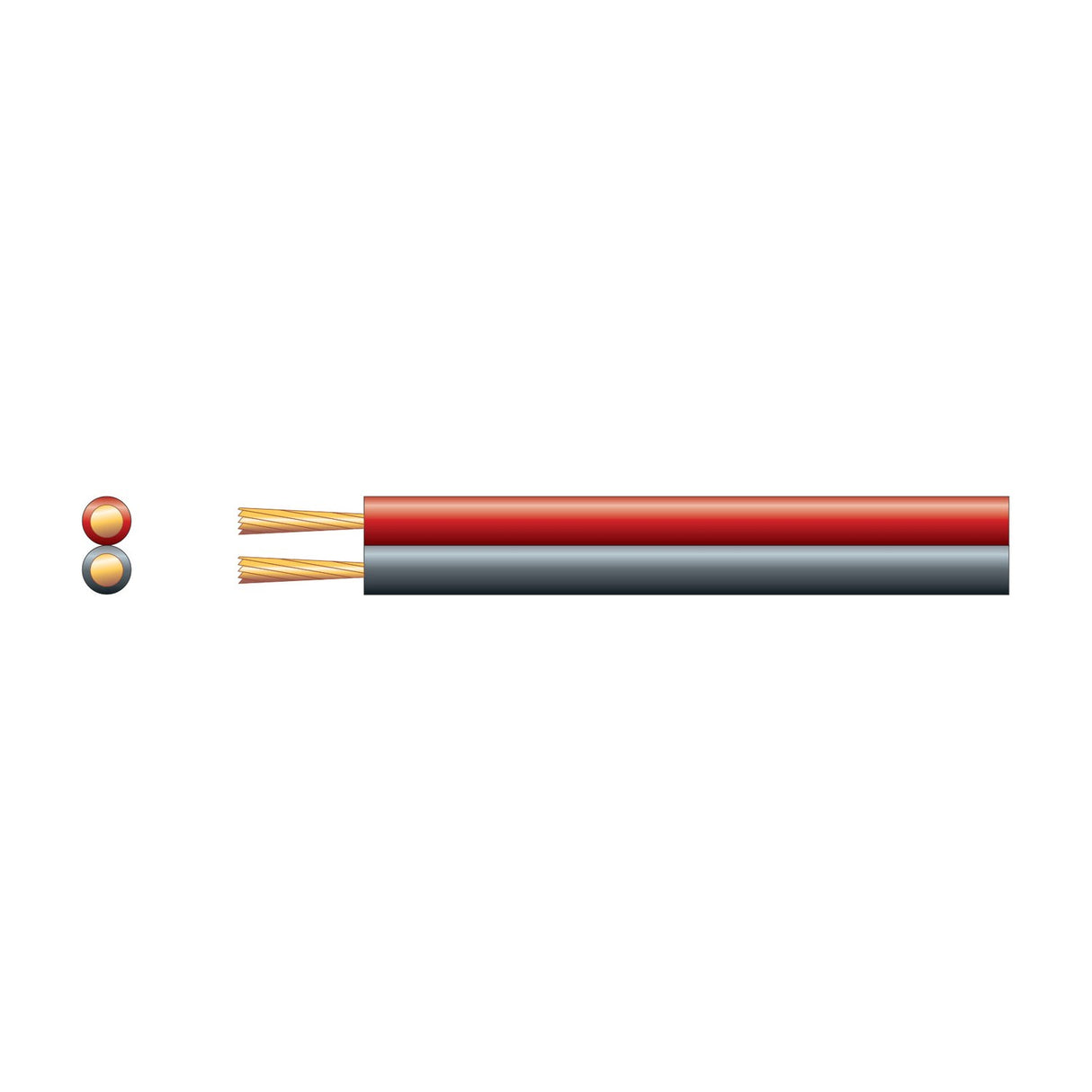

The Mercury Fig 8 is a twin-core figure-8 power and speaker cable with 79 strands per core (40 copper, 39 copper-clad aluminium), giving a combined cross-sectional area of 2.01mm² per conductor. The red and black PVC sheath runs the full 100m length on the reel, with the two cores joined along a central web that splits cleanly when terminating.

Designed for low-voltage automotive wiring, in-car audio installation, PA speaker runs and low-power 12V DC circuits, the cable handles up to 20A continuous current per conductor. The figure-8 profile keeps polarity clear during installation and the joined cores prevent tangling when pulling cable through confined spaces or conduit. The 100m reel suits larger installations without mid-run joins.

The hybrid copper/CCA construction balances conductivity and weight — the 40 pure copper strands carry the majority of the current, while the 39 CCA strands add flexibility and reduce overall cable weight compared to full-copper equivalents. The 4.2 x 8.2mm cross-section is slim enough to route behind trim panels in vehicles or under carpet in mobile audio installations, and the PVC sheath resists abrasion and moisture in typical automotive and indoor audio environments.

Specification
Conductor Copper/Copper Clad Aluminium
Sheath Red/Black
CSA 2.01mm²
Strands 2 x (40 x 0.18mmØCu + 39 x 0.18mmØCCA)
Dimensions 4.2 x 8.2mm
Packed quantity 2 reels
Current 20.0A max.
Length 100m
Frequently Asked

What's the difference between copper and copper-clad aluminium (CCA) strands?

Pure copper strands offer better conductivity than CCA, but CCA reduces weight and cost. This cable uses 40 copper and 39 CCA strands per core to balance performance and practicality. The majority copper content maintains current-carrying capability while the CCA adds flexibility.

Can this cable be used for mains 230V AC?

No. This is a low-voltage cable rated for 12V-24V DC automotive, audio and speaker applications up to 20A. It does not carry the insulation or certification required for mains voltage wiring.

How do I separate the two cores?

The red and black cores are joined by a central web of PVC. Pull the cores apart by hand or cut the web with a knife — the web is designed to split cleanly without damaging the individual core insulation.

What gauge is 2.01mm² equivalent to in AWG?

2.01mm² CSA is approximately 14 AWG. The 79-strand construction per core makes the cable more flexible than solid-core 14 AWG wire, which is useful in automotive installations requiring tight bends.
