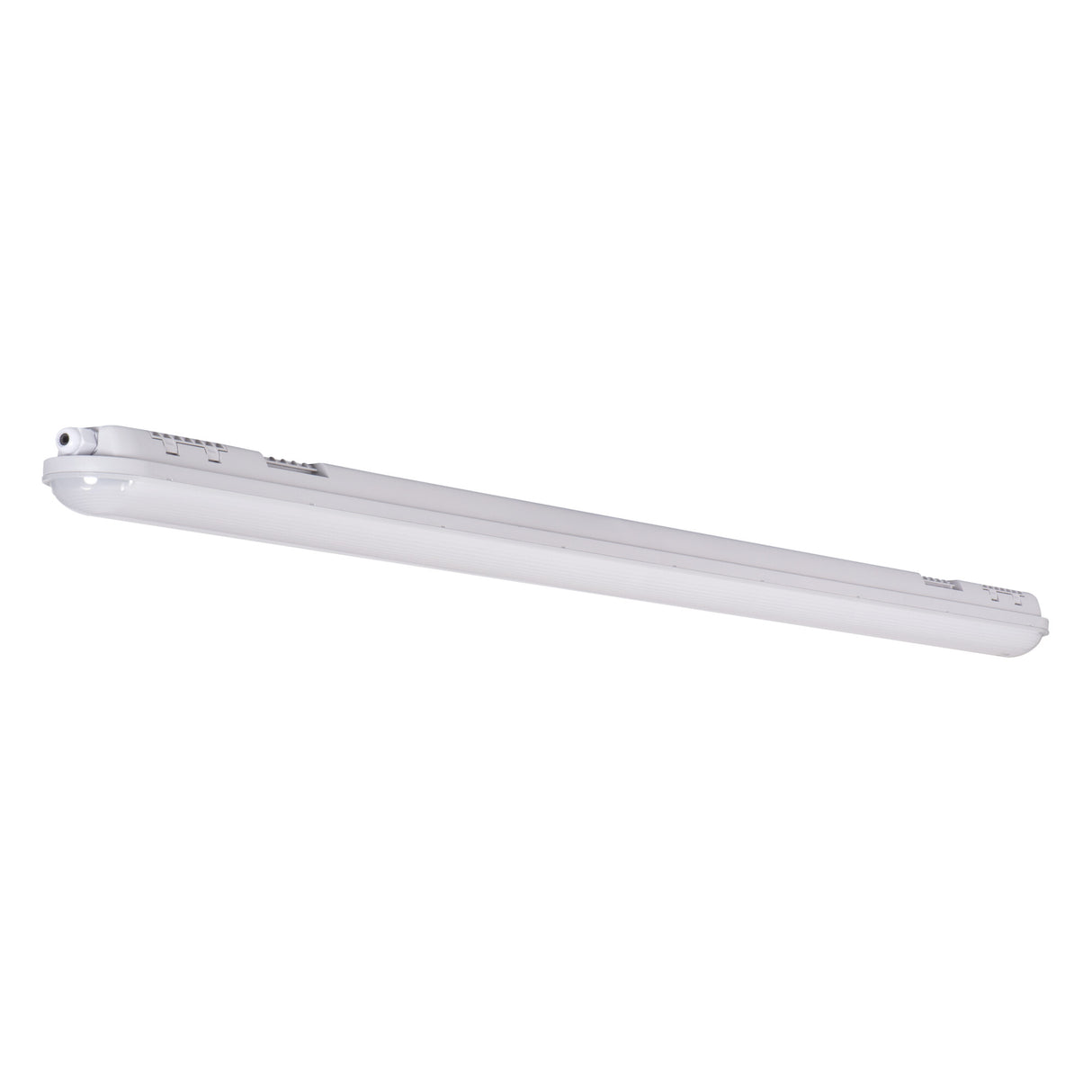

MAH MAX 1480x80 48W LED Batten IP66 110 deg Cool White - Grey

The MAH MAX is a 48W LED batten light that puts out 7680 lumens of crisp 4000K cool white at an efficiency of 160 lm/W. Its 110 degree spread casts an even, wide wash rather than a tight beam, which is exactly what a working space needs. Buyers in the US will recognise this format as an LED shop light or wraparound light, the long linear fitting that runs across a workshop or garage ceiling. The body measures 1480x80 mm in nominal terms, with a rectangular polycarbonate housing that keeps weight down to 1.54 kg.

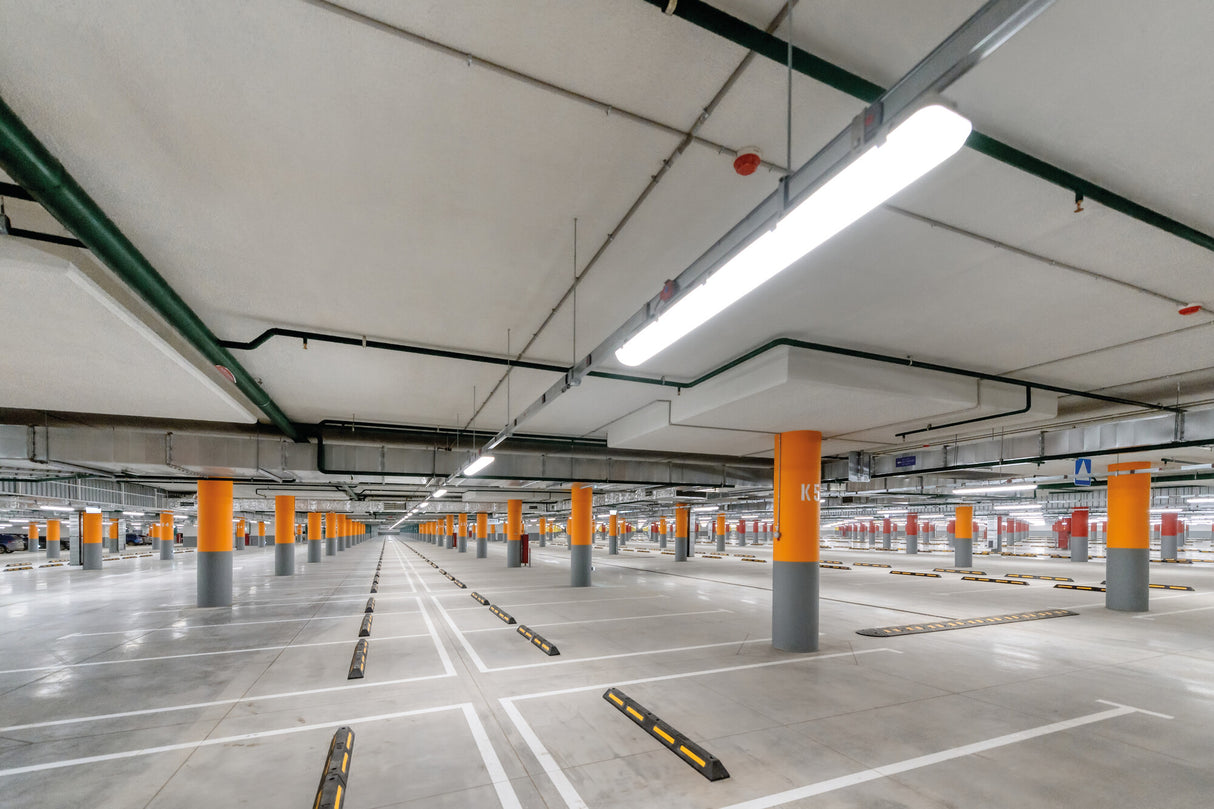

Built around an IP66 rating, this batten earns its place in fully exposed and wet locations as well as the usual indoor utility settings. It suits garages, workshops, car parks, plant rooms and damp stores where dust and water jets are a real concern. At general lighting levels the 7680 lumen output covers around 26 m², so a single fitting handles a modest bay and a linked run will light a longer space evenly. Mount it to a ceiling or wall at standard utility height and the broad 110 degree beam fills the floor below without dark patches.

The housing is moulded polycarbonate in a grey finish, rated IP66 for weatherproofing and IK08 for impact resistance, so it stands up to knocks in a busy working environment. It is a non-dimmable fitting running directly from 220-240V AC mains, with an integrated LED engine rated for 50,000 hours. Fixing is by ceiling or wall mounting using the supplied brackets. We stock the MAH MAX in other wattages across the range for matching longer or shorter runs.

Where can this batten be used?

Its IP66 rating means it is weatherproof and suited to fully exposed outdoor and wet locations, as well as garages, workshops, car parks and damp utility rooms. The polycarbonate body also carries an IK08 impact rating, so it copes well in busy working areas where knocks are likely.

Can several be linked together in a run?

Battens like this are commonly installed in continuous runs to light a longer space evenly. Each MAH MAX is wired from the 220-240V AC mains, so plan the spacing around the 7680 lumen output and 110 degree beam to keep illumination consistent along the length.

How long is it and how much light does it give?

The fitting measures 1480x80 mm nominally and delivers 7680 lumens of 4000K cool white at 160 lm/W. At general lighting levels that covers around 26 m², which makes a single unit suitable for a modest bay and a linked run for larger areas.

How do I clean the fitting?

Isolate the supply first, then wipe the polycarbonate body with a soft damp cloth to remove dust and grime. Avoid abrasive pads or solvents, which can dull the surface, and make sure it is dry before restoring power.
