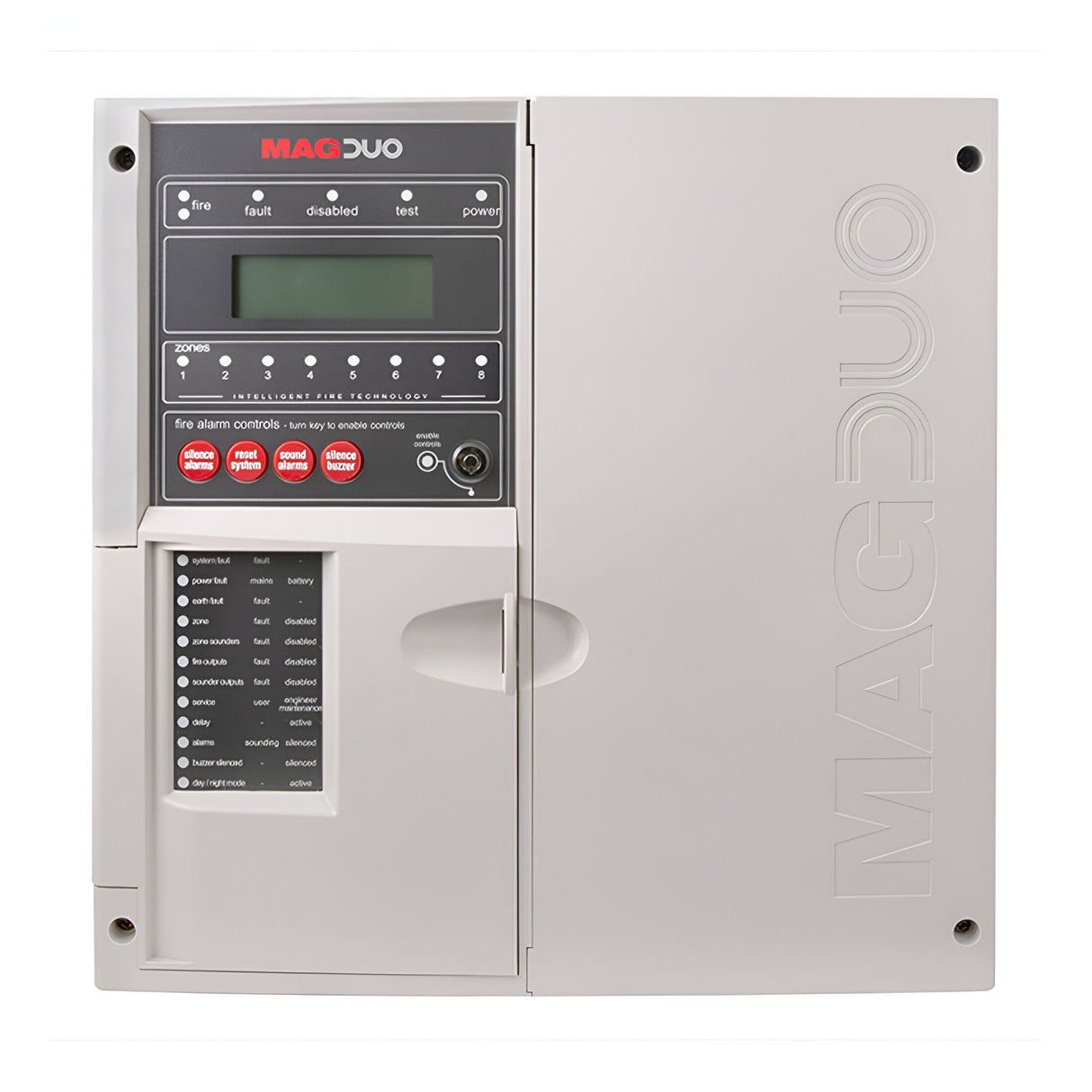

MagDuo 8 Zone 2-Wire Fire Alarm Panel

£42599
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The MagDuo is an 8-zone 2-wire fire alarm control panel certified to EN54-2/4 standards, designed for commercial and residential fire detection systems requiring addressable-style functionality over conventional wiring. Each zone supports up to 32 devices depending on device loading units (DLU), with the panel differentiating between smoke detectors, heat detectors and manual call points to indicate the alarm source type on the 4-line x 20-character LCD display.

The 2-wire topology simplifies installation by carrying power and signalling on the same two-core cable, reducing cable runs and termination complexity compared to conventional 4-wire systems. Active end-of-line monitoring detects wiring faults, device removal and short circuits in real time, logging events to the onboard 500-event memory. The panel includes an alarm confirmation feature to reduce false alarms, three enhanced test modes for commissioning and maintenance, and day/night detection mode per zone to adjust sensitivity based on occupancy patterns.

Housed in a powder-coated steel enclosure measuring 340mm x 350mm x 101mm, the MagDuo accommodates two 12V 2.3Ah batteries (BAT32, sold separately) for standby power, with an optional extended battery box available for two 12V 7.0Ah batteries where longer backup duration is required. The panel supports RS485 connection to up to eight repeater panels for multi-floor or distributed site monitoring. Zones 5-8 can be configured to accept conventional devices with the optional conventional zone card, allowing mixed-system installations during phased upgrades.

The front panel provides fire alarm controls accessible via a turn-key lock, with four control buttons (silence alarms, reset system, sound alarms, silence buzzer) and a key switch to enable or disable specific controls. Status LEDs indicate fire, fault, disabled, test and power conditions at a glance. Delay programming options allow for timed entry/exit sequences where required by site risk assessment.

Specification
Product Net Weight (KG) 2.45
Product Gross Weight (KG) 2.8
Outer Gross Weight (KG) 2.4
Product Length (mm) 340
Product Width (mm) 350
Product Height (mm) 101
Outer Length (mm) 340
Outer Width (mm) 350
Outer Height (mm) 101
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

What batteries does the MagDuo require?

The panel requires two 12V 2.3Ah batteries (ESP part number BAT32, sold separately) for standby power. An optional extended battery box is available to accommodate two 12V 7.0Ah batteries where longer backup duration is needed.

How many devices can be connected per zone?

Each zone supports up to 32 devices, though the actual number depends on the total device loading units (DLU) drawn by the specific detectors and call points fitted. The MagDuo differentiates between smoke detectors, heat detectors and manual call points.

Can conventional devices be used with this panel?

Zones 1-4 are 2-wire addressable only. Zones 5-8 can be configured to accept conventional devices with the optional conventional zone card, allowing mixed-system installations during phased upgrades from conventional to addressable.

What certification does the panel carry?

The MagDuo is certified to EN54-2/4 standards for fire detection and alarm systems. Installation and commissioning must follow BS 5839-1 and local building regulations for the specific site risk category.
