Description
The LTL is a linear track head that fits the wider category American buyers know as track lighting, one of the most-used ways to aim light along a run. It mounts onto three-phase track and draws between 11.3W and 38W depending on the load, delivering up to 5325 lumens with a Ra 90 colour rendering. The white tone is selectable across 3000K, 3500K and 4000K, moving from a warm domestic feel to a neutral working light. A 90 degree beam spreads the output across a generous area rather than concentrating it into a narrow spot.

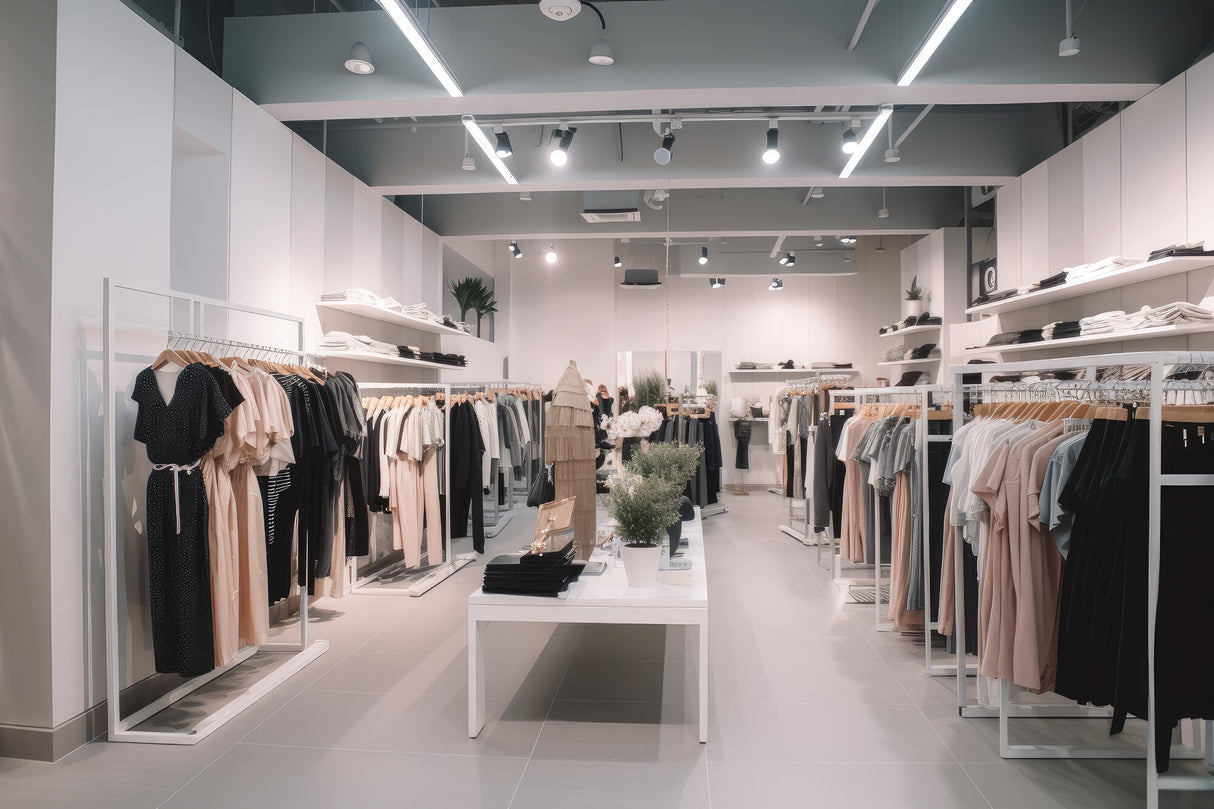

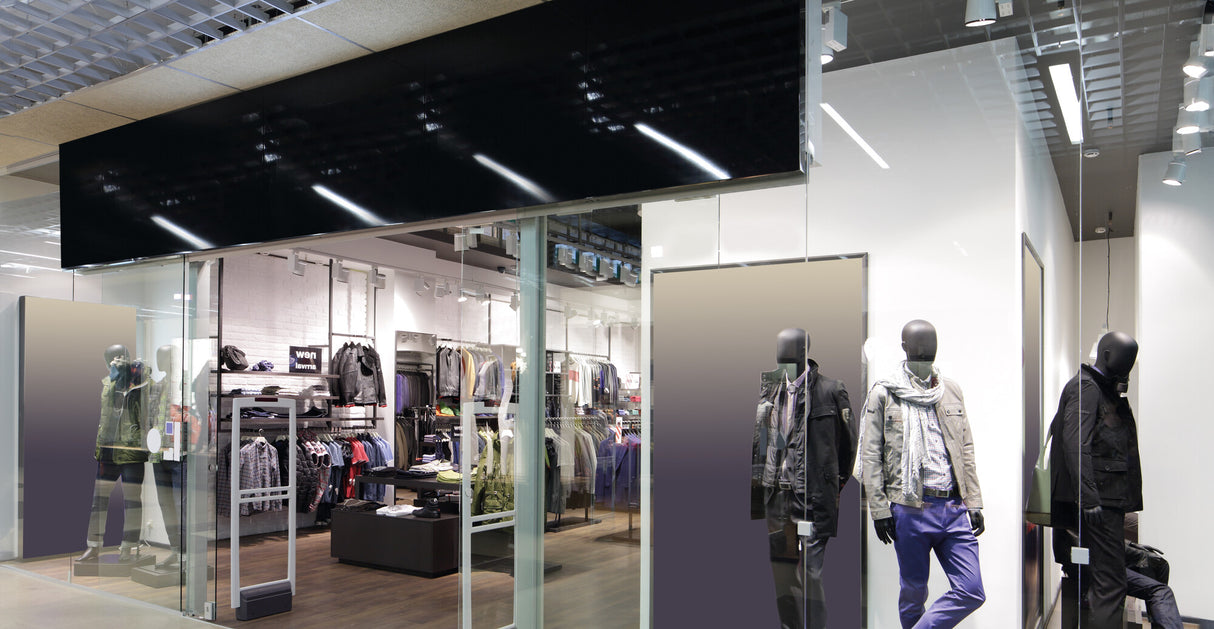

The adjustable head makes the LTL suited to retail displays, kitchen islands, galleries and open-plan rooms where the lit zone needs to follow shelving, artwork or a worktop. Because it sits on track, several heads can be positioned, angled and re-spaced as a layout changes, so the throw can be directed exactly where it is wanted and re-aimed later without rewiring. The 90 degree beam washes a broad face such as a feature wall or a long counter, and the warm-to-neutral white range lets the same fitting serve a relaxed setting or a more functional one. At an indoor IP20 rating it is for dry interiors only, so keep it clear of bathrooms, porches and any exposed location.

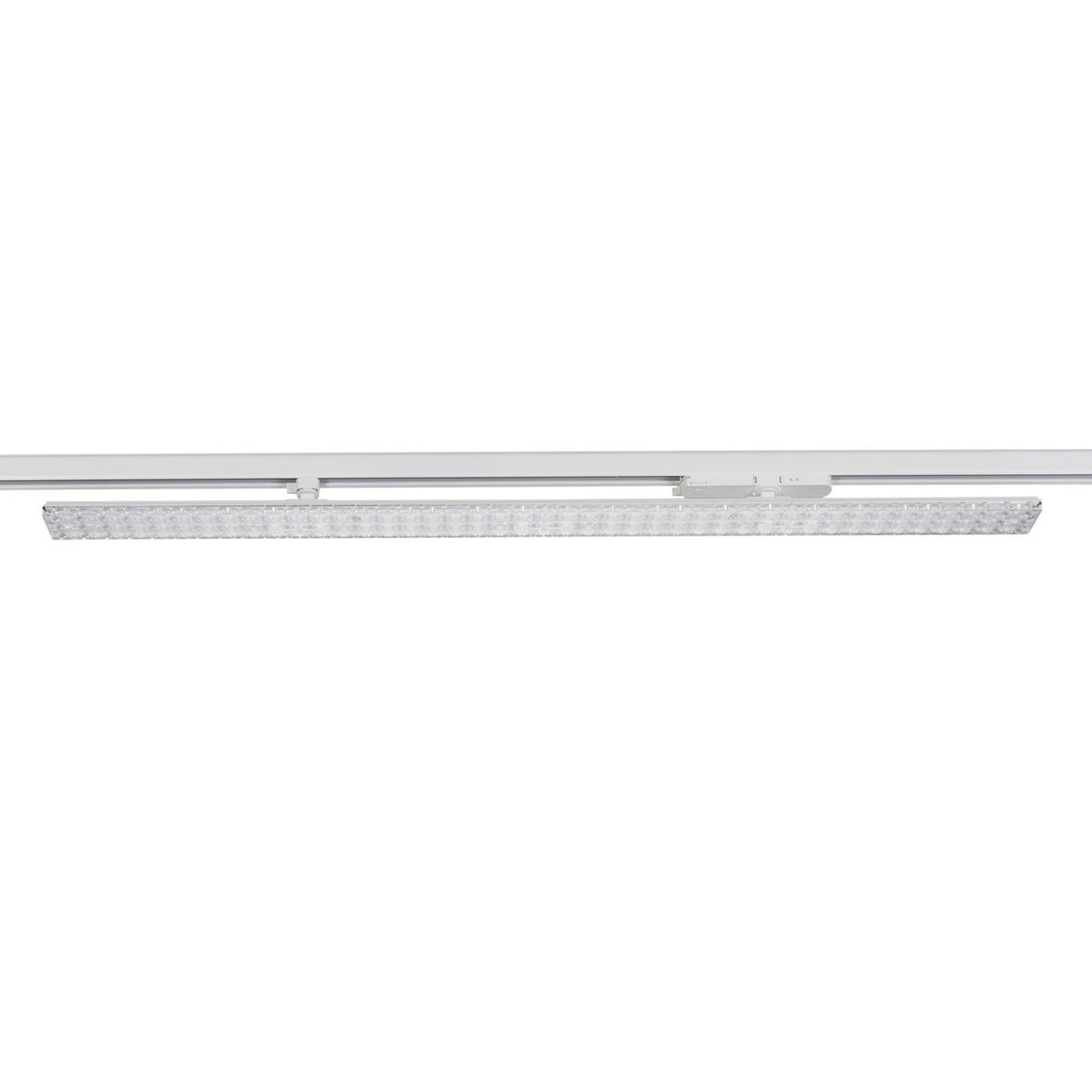

Construction is aluminium alloy in a white finish, measuring 1144 x 61 x 84 mm and weighing 1.26 kg. It runs on 220-240V AC and is not dimmable. No driver is supplied, so the appropriate driver should be specified to suit the installation and the chosen three-phase track. The head locks onto the track and the angle is set by hand once in place. The LTL range includes further track heads and the matching three-phase track and connectors are available alongside it from our wider Kanlux track offering.
Specification
| Power |
11.3 - 38W |
| Voltage |
220-240 AC |
| Luminous flux |
5000(1WW)/5245(2WW)/5325(NW) lm |
| Colour temperature |
3000/3500/4000K |
| Colour rendering (CRI) |
Ra 90 |
| Beam angle |
90° |
| IP rating |
IP20 |
| Dimmable |
No |
| Driver included |
No |
| Mounting |
Track Mounted |
| Lifespan |
50,000 hours |
| Dimensions |
1144 × 61 × 84 mm |
| Weight |
1.26 kg |
| Material |
Aluminium Alloy |
| Finish |
White |
Downloads
Frequently Asked
What is track lighting and how does the LTL work?
Track lighting is a system where one or more light heads clip onto a powered track rather than being fixed at a single point. The LTL is an adjustable head that locks onto three-phase track, drawing power from it and letting you aim the 90 degree beam wherever it is needed. Several heads can share one track run.
What track does the LTL fit and can I add or move heads later?
The LTL is designed for three-phase track and connects directly onto it. Because the heads simply clip and lock into position, you can add further heads, re-space them or re-angle them as a room layout or display changes, without rewiring. This makes it well suited to retail and gallery spaces that get rearranged.
Can I change the colour temperature?
Yes. The LTL is colour selectable across 3000K, 3500K and 4000K, so you can set a warmer domestic tone or a more neutral working light to suit the space. The setting is chosen at installation and applies to that head.
Does the LTL come with a driver?
No, a driver is not included. You should specify a suitable driver to match the installation and the three-phase track being used. The head itself runs from a 220-240V AC supply and is rated IP20 for dry indoor use only.
