Description

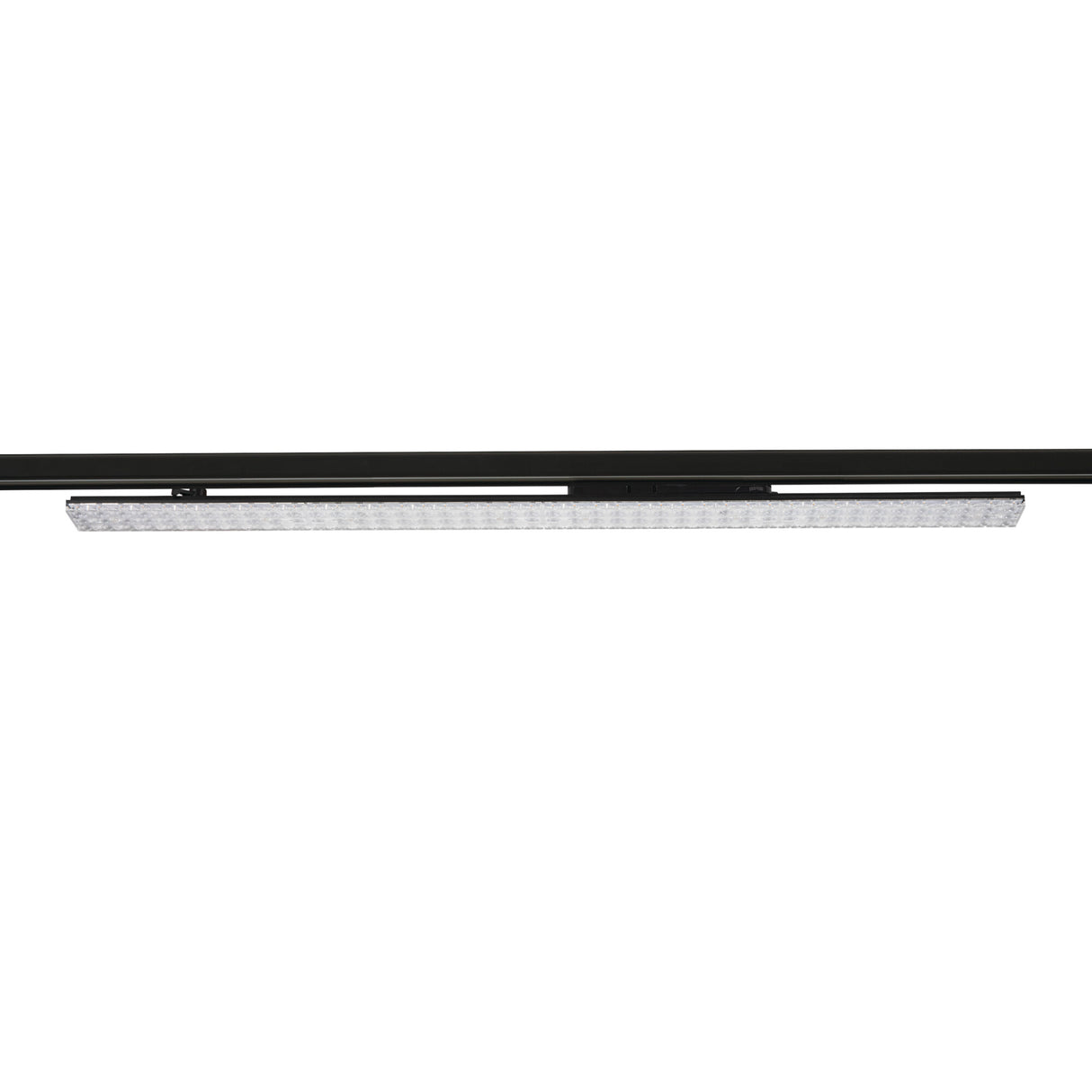

The LTL B is a linear LED track light that mounts onto a three-phase track and draws between 11.3W and 38W, giving up to 5325 lumens depending on the chosen tone. It runs on 220-240V AC mains and offers a selectable colour output across 3000K, 3500K and 4000K, so the same fitting can sit at a warm or a more neutral white. American buyers will recognise this format as track lighting, the long head running along a rail rather than a single spot, with a wide 90 degree beam that washes a broad strip of the surface below.
The wide 90 degree spread and high CRI 90 output make the LTL B well suited to retail floors, galleries, studios and open-plan workspaces where an even line of light is wanted rather than tight pools. Rather than a fixed area, the long body throws a continuous band of illumination along its length, so several heads spaced down a run cover a counter, an aisle or a feature wall evenly. Because it clips onto a three-phase track, the position can be changed as a layout or display changes, and at 1144mm the head is sized to bridge longer spans with fewer fittings.
The body is aluminium alloy in a black finish, measuring 1144 x 61 x 84 mm and weighing 1.20 kg. It carries an IP20 rating and is intended for dry indoor use only. The fitting is non-dimmable and a driver is not included, so a suitable driver must be specified alongside it, and it connects to the track by its standard three-phase adaptor. With a rated life of 50,000 hours and a CRI of Ra 90, it is built for long commercial running hours. The LTL range includes further track heads and spots that share the same track system.
Specification
| Power |
11.3 - 38W |
| Voltage |
220-240 AC |
| Luminous flux |
5000(1WW)/5245(2WW)/5325(NW) lm |
| Colour temperature |
3000/3500/4000K |
| Colour rendering (CRI) |
Ra 90 |
| Beam angle |
90° |
| IP rating |
IP20 |
| Dimmable |
No |
| Driver included |
No |
| Mounting |
Track Mounted |
| Lifespan |
50,000 hours |
| Dimensions |
1144 × 61 × 84 mm |
| Weight |
1.20 kg |
| Material |
Aluminium Alloy |
| Finish |
Black |
Downloads
Frequently Asked
What is track lighting and how does it work?
Track lighting is a system where individual light fittings clip onto a continuous electrified rail rather than being wired into a fixed point. The LTL B sits on a three-phase track and takes its power through the rail, which means a single track run can carry several heads. This lets you light a long space, such as a shop floor or studio, with one connected installation.
What track does the LTL B fit?
The LTL B is built for a three-phase track, which carries multiple circuits so heads can be grouped and switched independently. It uses a standard track adaptor to lock onto the rail. Check that your existing rail is a three-phase type before fitting.
Can I add or move the heads as my layout changes?
Yes. Because the LTL B clips onto the track rather than being hard-wired, it can be repositioned anywhere along the rail and further heads can be added up to the track's rated load. This makes it a practical choice for retail and gallery spaces where displays move regularly.
How do I select the colour temperature?
The LTL B is colour selectable across 3000K, 3500K and 4000K, set on the fitting itself so you can match it to the room. Lower settings give a warmer light suited to retail and hospitality, while 4000K is a cleaner neutral white for workspaces. All settings hold a CRI of Ra 90 for accurate colour.
