Description

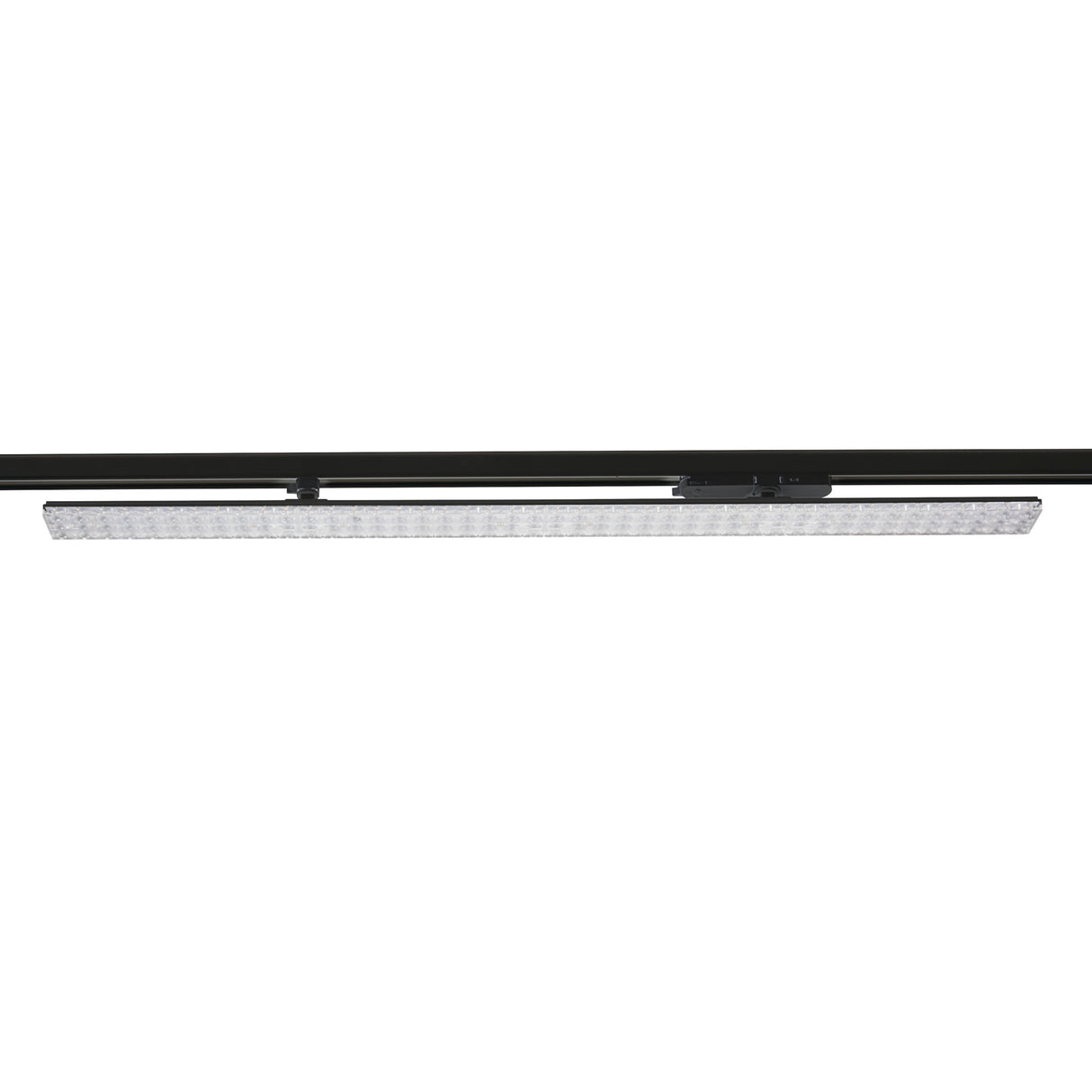

The LTL B ADJ is an adjustable linear track light that fixes to a continuous track run rather than a single fixed point, so the head can be slid and angled along the rail to aim light where it is needed. It draws between 11.3 and 38W and pushes out up to 5325 lumens, with a switchable colour temperature spanning 3000K, 3500K and 4000K and a 90 degree beam. Buyers in the US will know this format as a track light or track head, and its slim 1144mm linear body suits long retail and gallery rails.

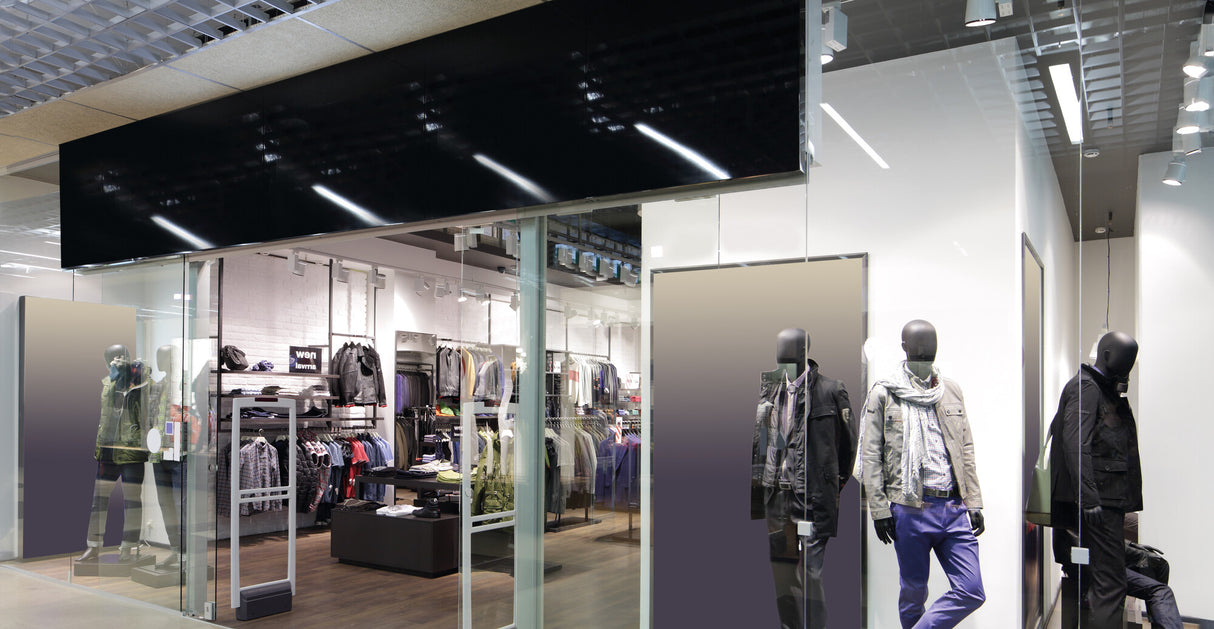

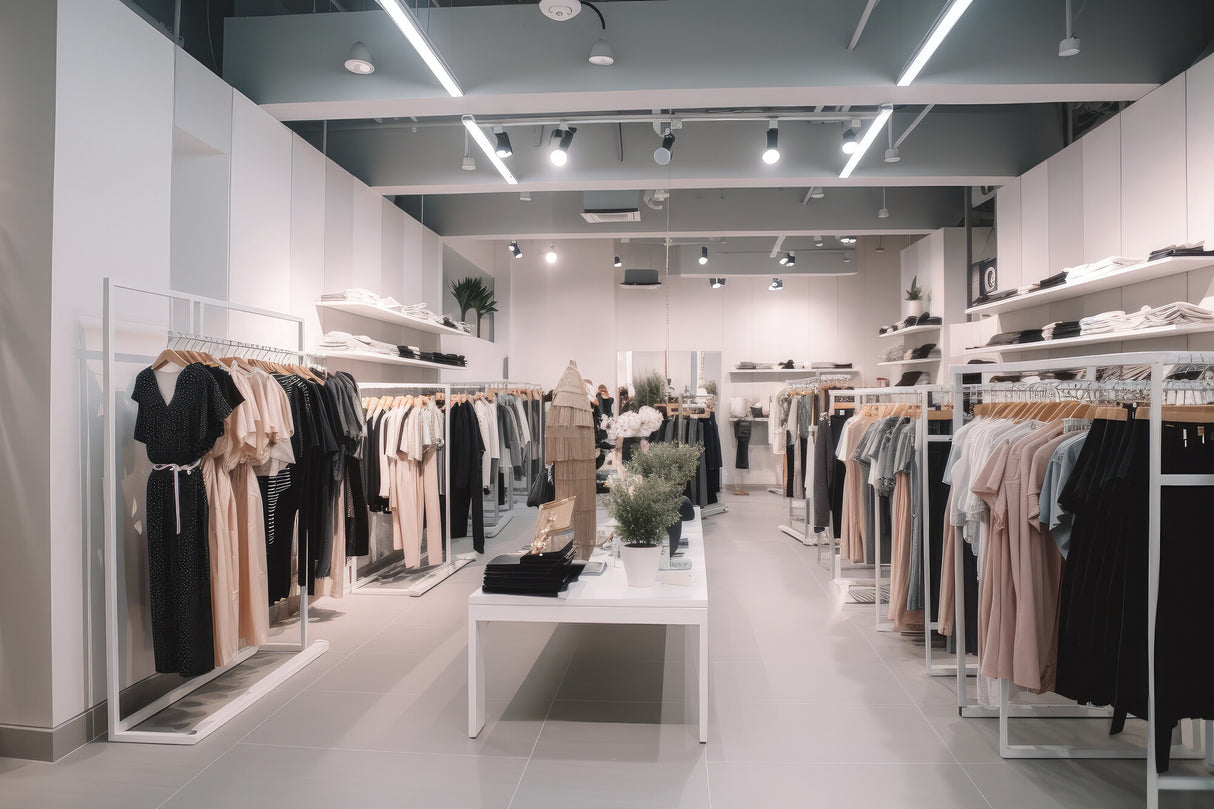

Track lighting of this kind works well in shops, showrooms, studios and open-plan commercial interiors where the lighting layout needs to change as displays move. With a 90 degree spread and an adjustable head, each unit can wash a wall section, pick out a product display or graze a feature, and several heads on one rail let you build coverage along a counter or aisle. Because the head slides and pivots on the track, you can re-aim the throw without rewiring, which makes it a practical choice for spaces that get reconfigured often. It is for dry indoor use only given its IP20 rating, so keep it clear of damp, sheltered-outdoor and bathroom locations.
The body is aluminium alloy in a black finish, measuring 1144 x 61 x 84mm and weighing 1.26kg. It mounts onto a track system rather than directly to the ceiling, and the adjustable head allows precise aiming once fitted. A driver is not supplied, so the appropriate driver must be specified to suit the installation. The fitting is not dimmable, carries a CRI of Ra 90 for accurate colour rendition and is rated for 50,000 hours. The LTL range includes further track heads and rail options to complete a layout.
Specification
| Power |
11.3 - 38W |
| Voltage |
220-240 AC |
| Luminous flux |
5000(1WW)/5245(2WW)/5325(NW) lm |
| Colour temperature |
3000/3500/4000K |
| Colour rendering (CRI) |
Ra 90 |
| Beam angle |
90° |
| IP rating |
IP20 |
| Dimmable |
No |
| Driver included |
No |
| Mounting |
Track Mounted |
| Lifespan |
50,000 hours |
| Dimensions |
1144 × 61 × 84 mm |
| Weight |
1.26 kg |
| Material |
Aluminium Alloy |
| Finish |
Black |
Downloads
Frequently Asked
How does track lighting like this work?
The LTL B ADJ clips onto a powered track rail instead of a single ceiling point, taking its supply directly from the track. You can position the head anywhere along the rail and angle it to aim the beam, and multiple heads can share one run. This lets you light several areas from a single circuit.
What track does it fit and can I add or move heads later?
It is designed to mount on a compatible track system, and the head slides and locks at any point along the rail. You can add further heads or reposition existing ones as your layout changes, without rewiring. Check that your track type matches before ordering.
Can I change the colour temperature?
Yes, the colour temperature is switchable between 3000K, 3500K and 4000K, so you can move from a warmer to a cooler white to suit the space. This is set on the fitting rather than via a wall control. It also has a CRI of Ra 90 for accurate colour rendering.
How do I clean it?
Switch off the supply and let the fitting cool, then wipe the black aluminium body with a soft, dry or slightly damp cloth. Avoid solvents and abrasive cleaners that could mark the finish. Keep moisture away from the head as it is rated IP20 for dry indoor use only.
