Description

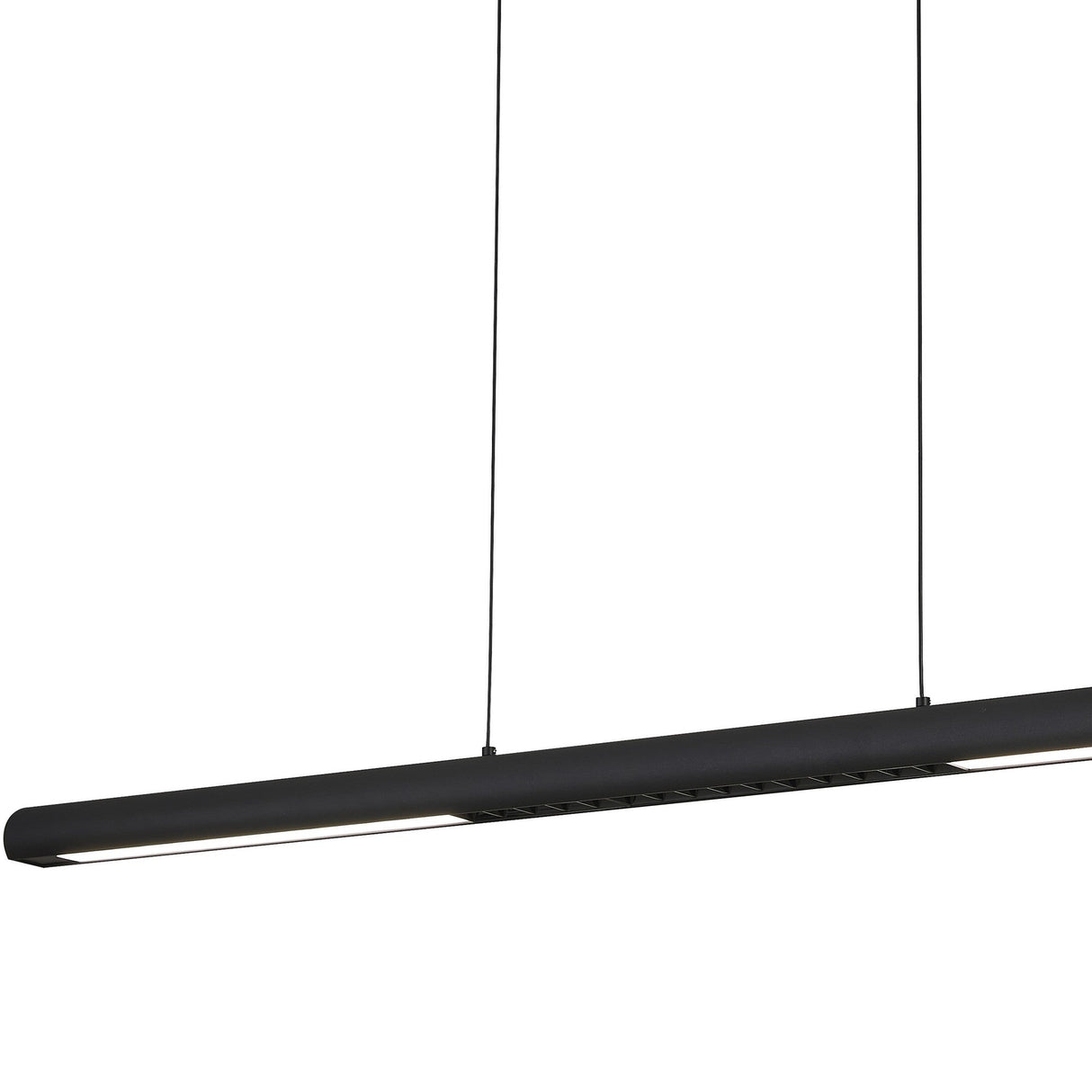

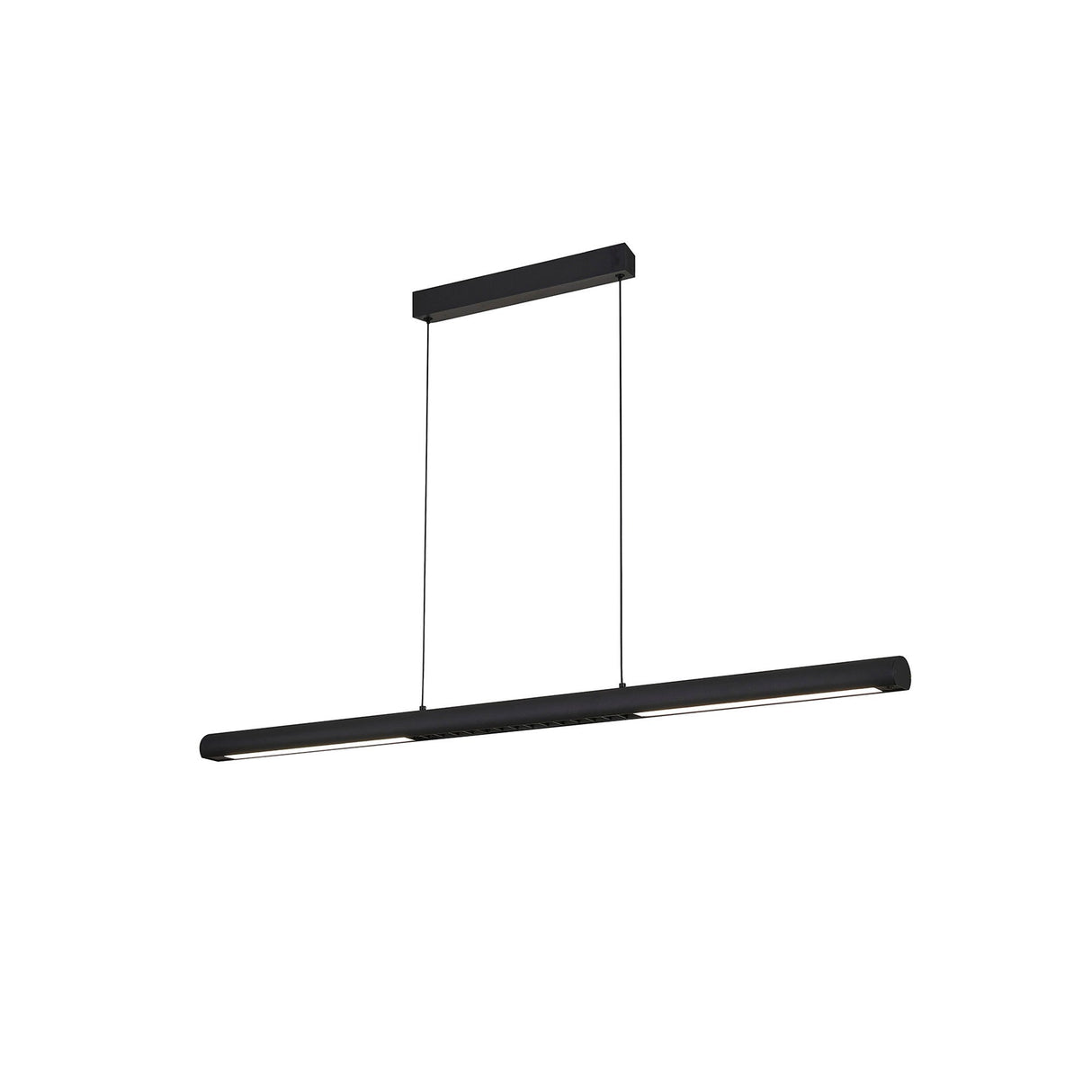

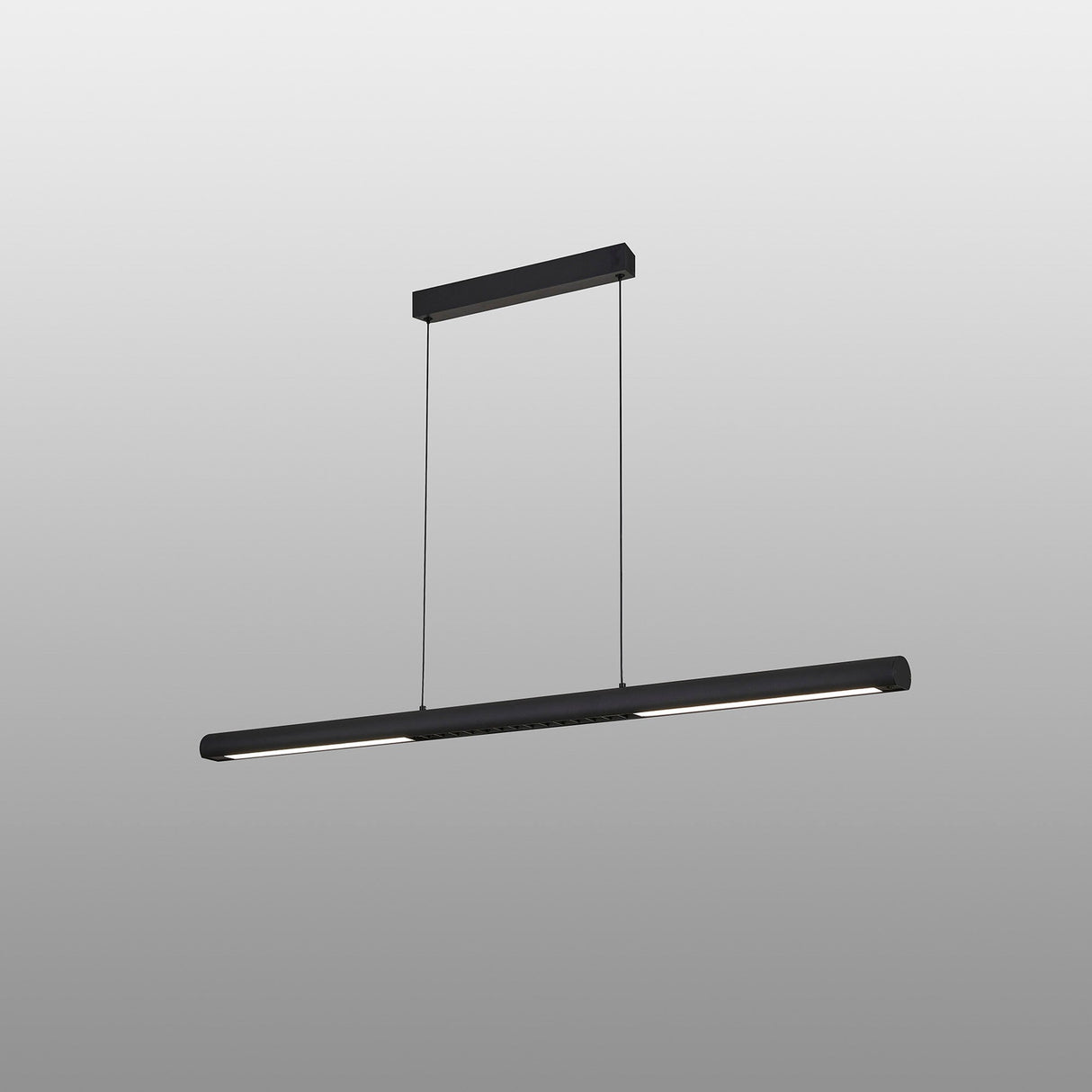

The Lineal is a 1.2m linear suspension light with an integrated 24W LED module delivering 2970 lumens of warm 3000K light through a slender 48mm-wide aluminium extrusion. The sand black finish is applied to the entire body and canopy, giving a low-sheen matte surface that minimises reflections and works as a neutral accent in both light and dark interiors.

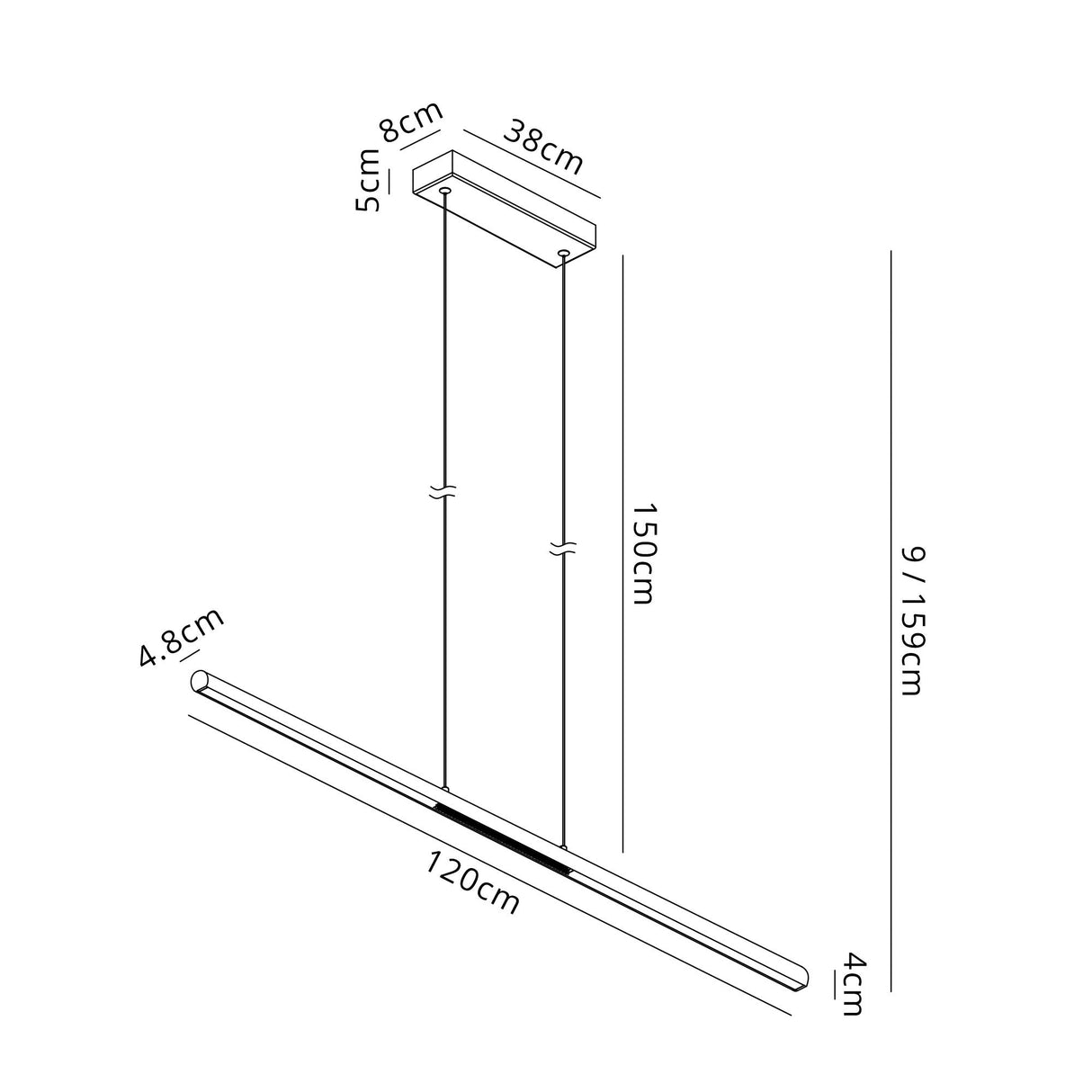

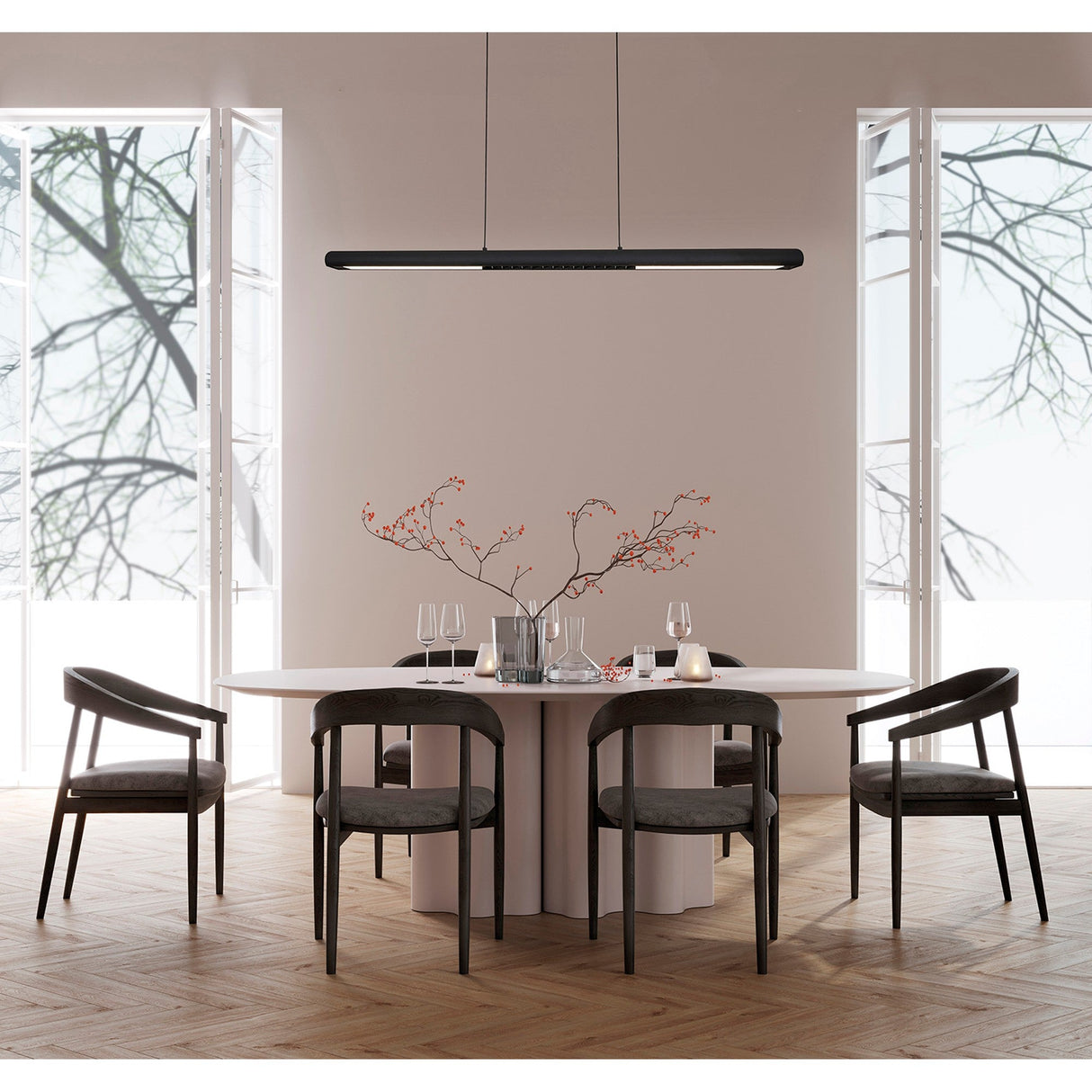

Designed for kitchen islands, dining tables and counter runs where directional downlight is needed without the bulk of a traditional pendant, the Lineal hangs on twin adjustable cables that allow the drop to be set between 90mm and 1590mm during installation. The narrow 48mm width keeps the fitting visually minimal when viewed from below, while the 1200mm length provides coverage over a 1.5-2m island or table without multiple fittings.
The integrated LED runs the full length of the aluminium housing, creating an even light distribution along the entire 1.2m bar rather than discrete hotspots. The 2970 lumen output at 3000K gives sufficient task light for food preparation, reading and dining without glare, and the LED efficiency of 123 lumens per watt makes it suitable for continuous daily use. The aluminium body acts as a passive heatsink to manage LED temperature without needing external fans or vents.
From Mantra, a Spanish manufacturer established in Barcelona in 1999, the Lineal series combines architectural simplicity with functional LED performance. The 2.1kg total weight includes the canopy, cables and driver, and the fitting mounts to a standard UK ceiling rose.
Specification
| Colour Finish 1 |
Sand Black |
| Length |
1200mm |
| Width |
48mm |
| Minimum Drop |
90mm |
| Maximum Drop |
1590mm |
| Number Of Bulbs |
1 |
| Lamp Socket |
Integrated LED |
| Colour Temperature |
3000K Warm White |
| Lumen |
2970lm |
| Power Consumption |
24W |
| Voltage |
220-240V~50/60Hz |
| Dimmable |
No |
| Weight |
2.1KG |
| Warranty |
3 Year |
Frequently Asked
Is the Lineal dimmable?
No. The integrated LED driver does not support dimming. The fitting operates at full output on a standard switched circuit.
What ceiling height is needed?
The adjustable drop allows the fitting to be set between 90mm and 1590mm below the ceiling. For a kitchen island or dining table, a typical drop of 700-900mm above the surface works in rooms with ceiling heights of 2.4m or higher.
Can the light be replaced when the LED fails?
The LED module is integrated into the housing and not user-replaceable. The LED is rated for 25,000+ hours of operation, which equates to approximately 10-15 years of typical household use before any degradation in output. Mantra provides a 3-year warranty on the fitting.
What island or table length does the 1.2m version suit?
The 1200mm light bar provides good coverage over a 1.5-2m island or dining table. For longer surfaces, either a larger model in the Lineal series or multiple fittings spaced along the run would be needed.
