Description

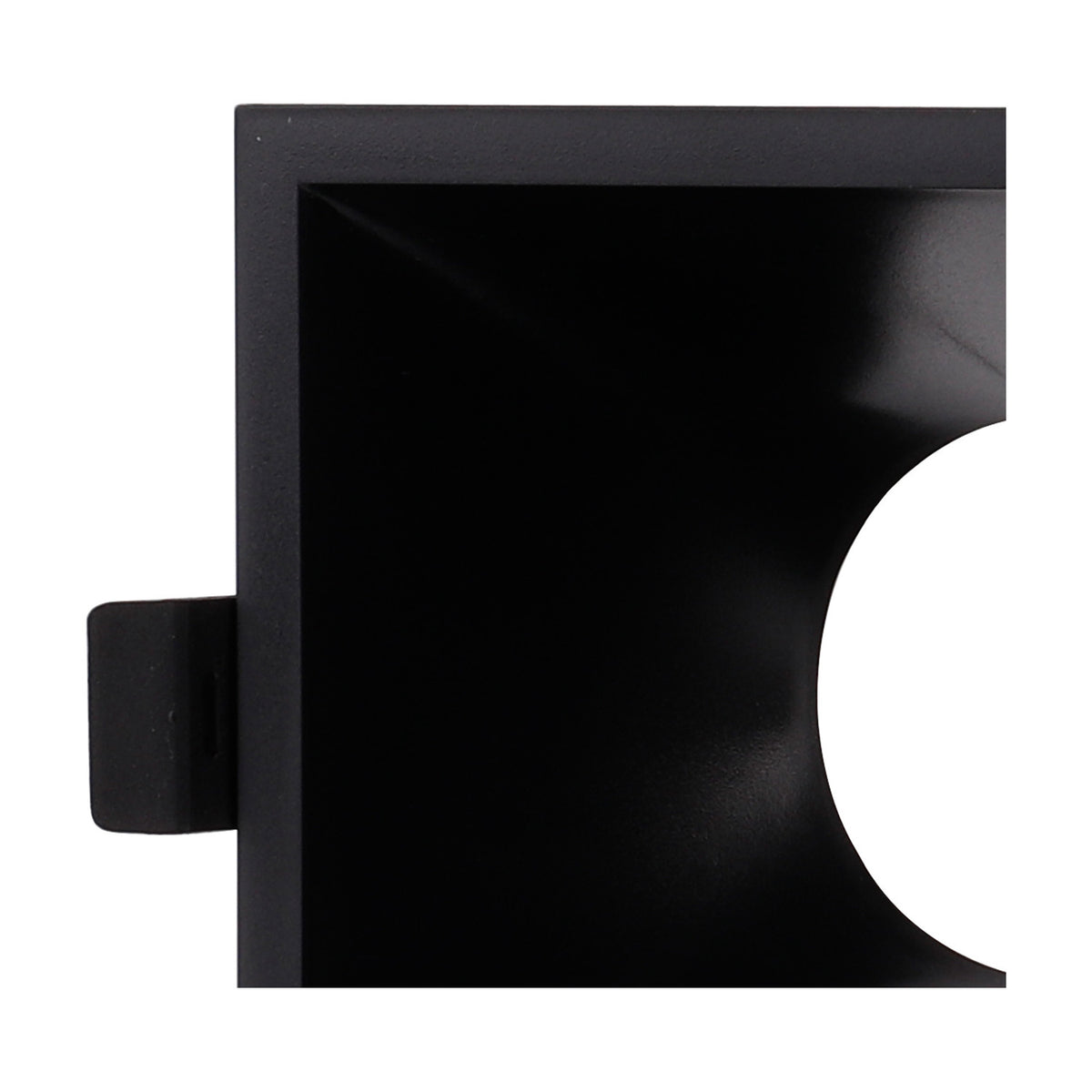

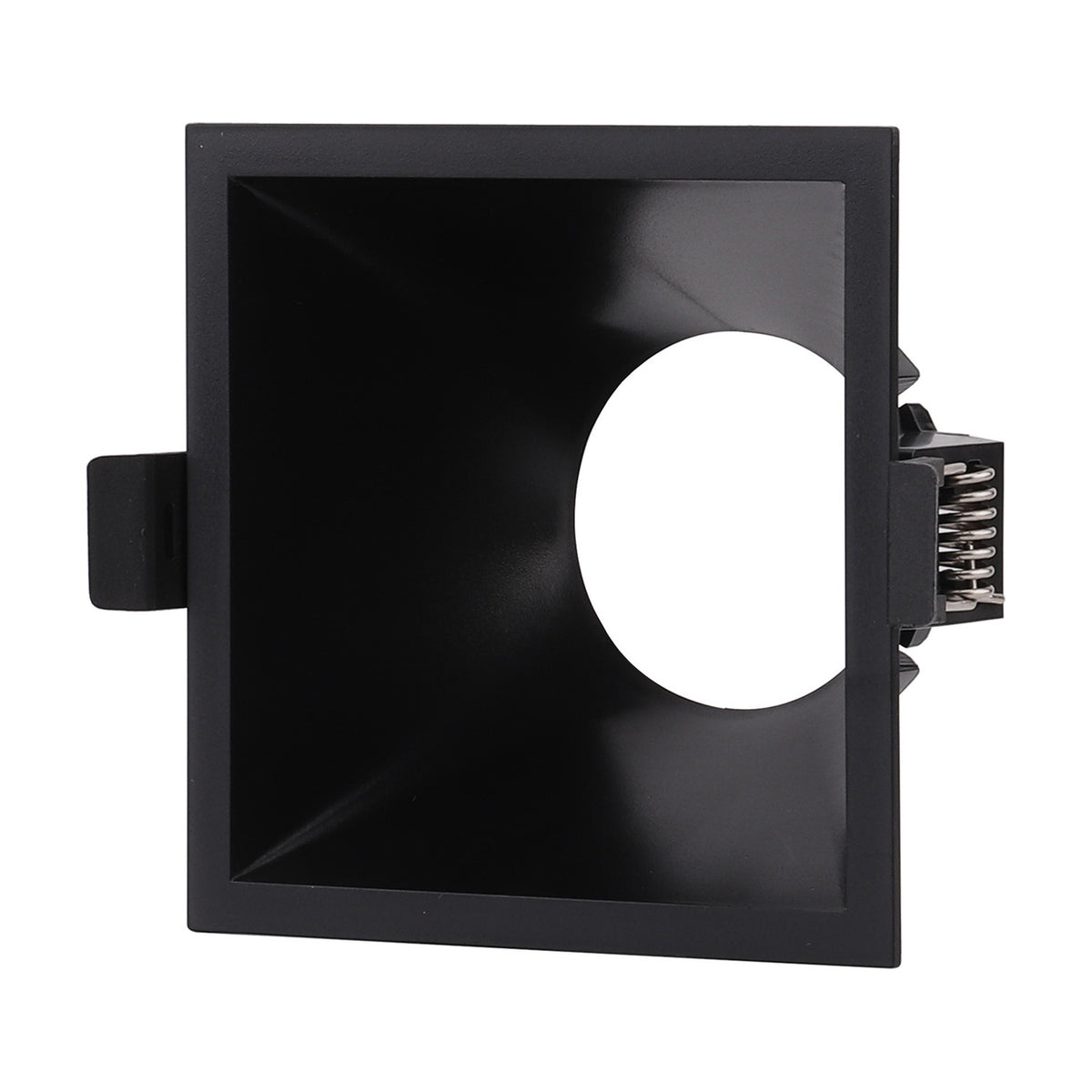

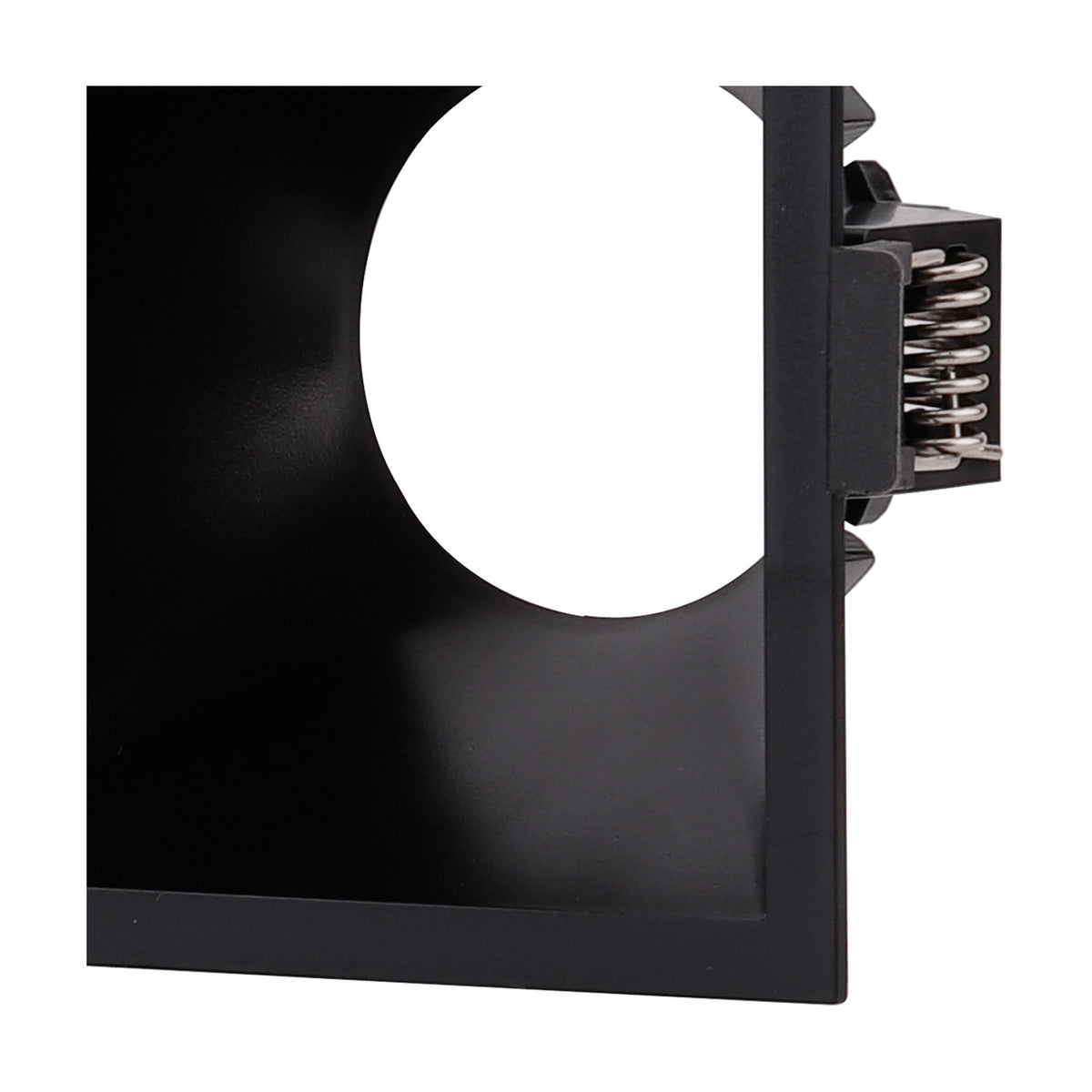

This is a small square recessed spotlight with a black face and a funnel centre, so the lamp sits back from the front edge and away from your eyeline. The face measures 93mm square and the fitting is shallow behind it. It takes one GU10 lamp up to 12W, and the lampholder is already wired in, so a reflector LED capsule simply twists into place. Dimming works where the lamp fitted is a dimmable type; no dimmer is supplied. Nothing about it shouts, which is rather the point in a ceiling that already has a lot going on.
We use this square profile where a scheme wants crisp corners rather than circles, and it suits kitchens, hallways, landings, living rooms and bedrooms equally well. Because the funnel recesses the lamp, it is comfortable over a dining table or a kitchen island, where a flatter fitting can catch the eye. Keep it to dry rooms indoors, well away from showers and splashes. Space several along a run for even, low key light, or use it on its own to pick out a shelf, a doorway or a picture.
The trim, funnel and body carry the same black finish, so the fitting reads as one piece once a lamp is in, and it is double insulated. Cleaning asks very little: turn the power off, let the lamp go cold, then run a dry cloth around the face to lift dust from the corners. Avoid sprays and solvents on the black, which can dull it. It carries a two year warranty. We stock the same square funnel in white, round faces in black and white, and an angled funnel if you would rather tilt the beam. Lamps are not included.
Specification
| Colour |
Black |
| Ceiling Mountable |
Yes |
| Wall Mountable |
Yes |
| Weight |
0.04KG |
| Length |
93mm |
| Width |
93mm |
| Height |
53mm |
| Cut Out |
85mm |
| Materials Used |
Polycarbonate |
| Energy Class |
A++ to B |
| Max Energy Class |
A++ |
| Min Energy Class |
B |
| Lamp |
1 x GU10 12W max (lamps not included) |
| Lamp Cap |
GU10 |
| Recommended Lamp |
LED (50mm Reflector) |
| Light Distribution |
Down |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
Dependent On Lamps Used (±5%) |
| Input Voltage |
100-240V~50/60Hz |
| Dimmable |
Yes - Dimmable Lamps Required |
| Dimmer Included |
No |
| IP Rating |
IP20 |
| Warranty |
2yrs |
| UKCA/CE |
Yes |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
No |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
What lamp should I use with it?
A GU10 LED reflector lamp with a 50mm head is the recommended choice, rated no higher than 12W. The lampholder comes fitted, so you only need to buy the lamp.
Can I dim it?
Yes, provided the GU10 lamp you fit is a dimmable version and it is paired with a suitable dimmer. No dimmer is supplied with the spotlight.
What size is the aperture?
The circular aperture is 85mm, while the visible square face measures 93mm by 93mm.
How deep is the fitting?
Overall height is 53mm, so it sits shallow behind the surface.
Is it suitable for a bathroom?
It is rated IP20, so keep it to dry rooms. Choose a fitting with a higher protection rating for zones near a bath or shower.
How do I keep the black finish looking good?
Switch off at the wall, let the lamp cool, then dust the face with a dry cloth. Skip polishes, solvents and abrasive pads, as these can leave the black patchy.
