Description

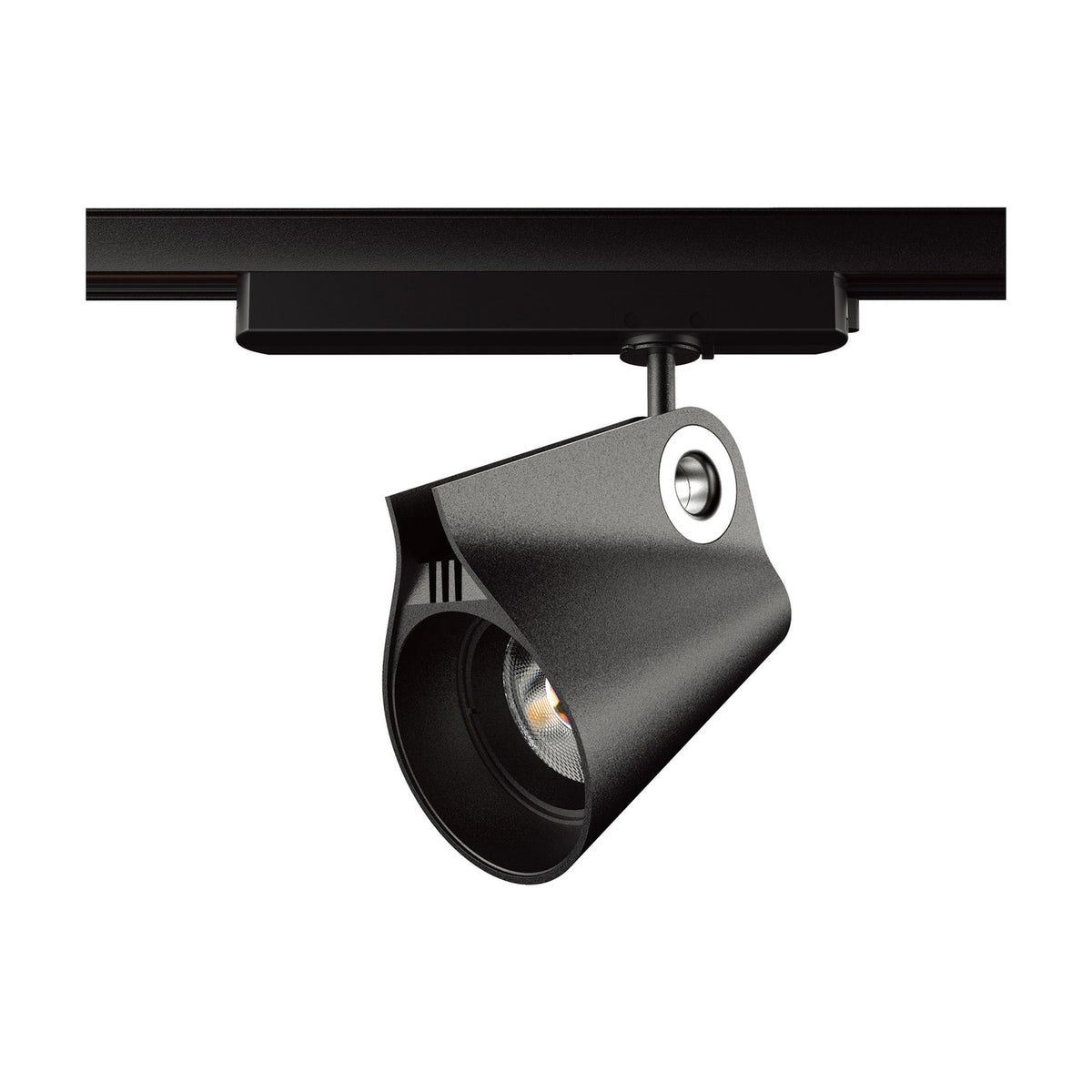

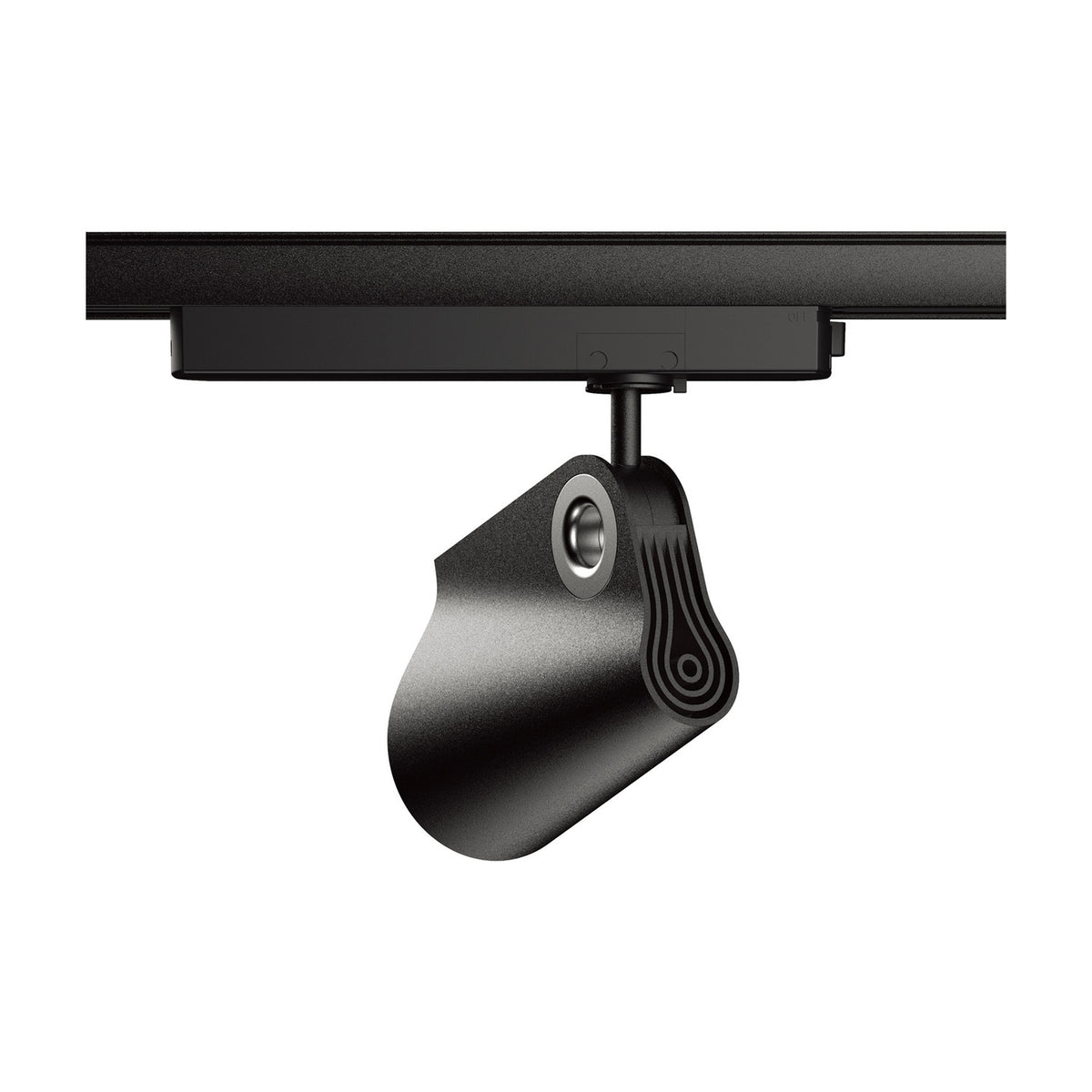

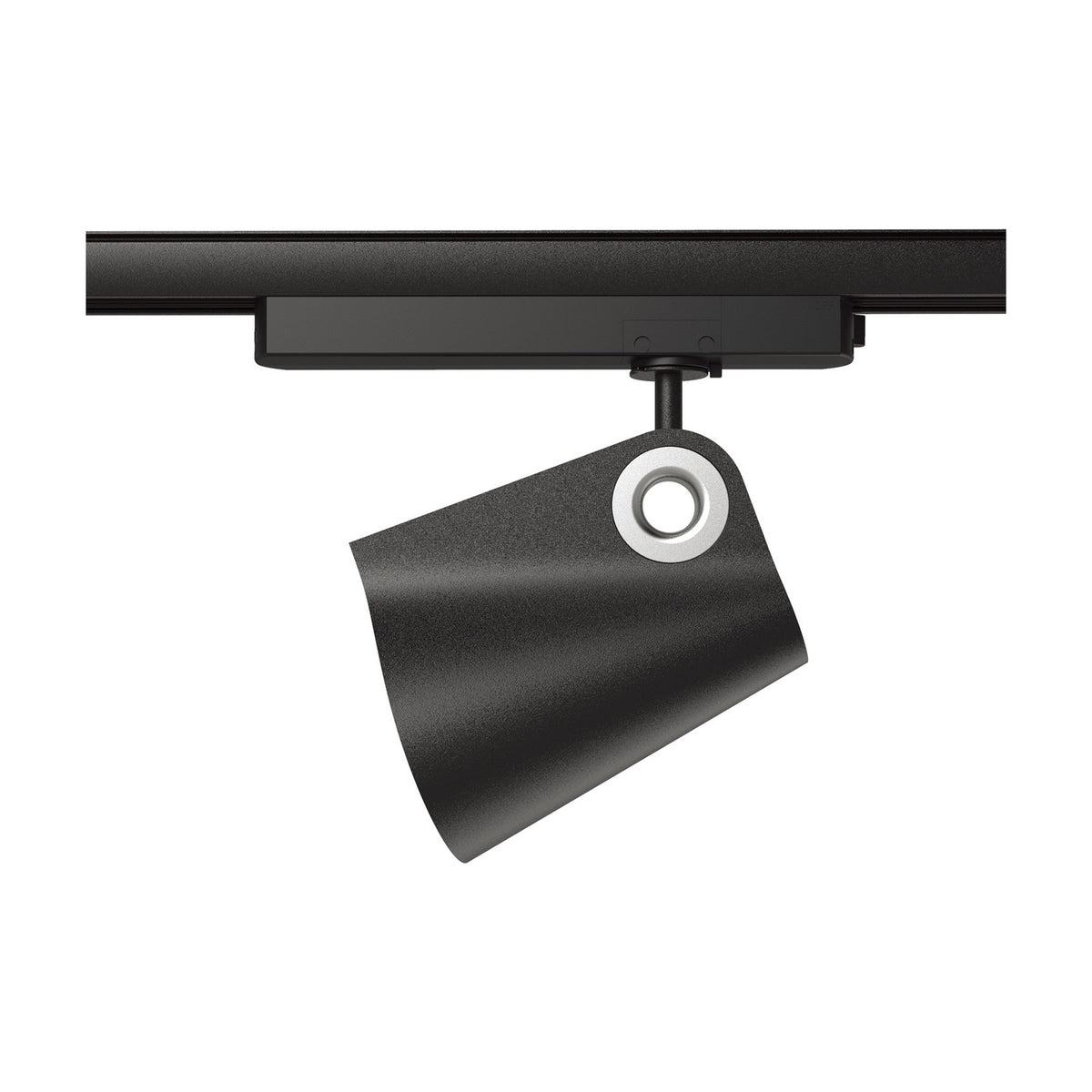

A compact track head that drops a tight, controlled pool of light exactly where you aim it. The LED is built in and draws 35W, with its driver on board, so the head locks into a compatible track and takes power from it. Its light is 4000K cool white, nearer daylight than candlelight, and it is not dimmable, so it runs from a plain on and off switch. The head measures 23cm and is finished in black throughout.
Narrow beams like this earn their keep where light needs to land on something specific rather than wash across a room: pictures along a long wall, shelves of books or glassware, a worktop, the display side of a shop or studio. Because heads share a track, a run can be spaced, added to and rebalanced as a room changes, which is why we keep coming back to track for galleries, studios and open plan kitchens. Cool white suits detail work, so this is the one we would choose for a kitchen island, a workshop bench or a home office.
The body is double insulated and the driver sits inside the head, so there is nothing to find a home for. Keep it to interior rooms that stay dry; it is not made for bathrooms, porches or anywhere open to the weather. To clean, switch off at the wall, allow the housing to lose its heat, then take dust off the black finish with a dry cloth, avoiding solvents and anything abrasive around the front. Because the LED is integrated there is no lamp to replace, and it carries a five year warranty. We stock the same head in white, and both finishes in a warmer white; a honeycomb cover is also available if you want to soften glare.
Specification
| Colour |
Black |
| Weight |
1.00KG |
| Width |
227mm |
| Height |
127mm |
| Materials Used |
Die-cast Aluminium |
| Energy Class |
E |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
E |
| Min Energy Class |
E |
| Lamp |
1 x 35W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
4000K Cool White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
50000hrs |
| LED Brand |
Bridgelux |
| LED Power |
35W (±5%) |
| Type of LED |
COB |
| Lumens per Watt (lm/W) |
110lm/W (±5%) |
| Beam Angle |
38° |
| System Flux |
3850lm (±5%) |
| CRI |
>90 |
| Light Distribution |
Single Direction |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
35W (±5%) |
| Input Voltage |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Warranty |
5yrs |
| UKCA/CE |
Yes |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How much light does it give out?
System output is 3850 lumens at 4000K cool white, with a colour rendering index above 90, so colours and textures hold up well under it.
How wide is the beam?
It is a 38 degree beam, narrow enough to pick out a picture, a shelf or a section of worktop without spilling across the whole wall.
Can I dim it?
No. It is a non-dimmable head, so it should be wired to a standard switched circuit rather than a dimmer.
Do I need a separate driver or transformer?
No, the driver is included within the head, and the LED is integrated at 35W.
What size is it?
The head is 227mm wide and 127mm high, and weighs 1kg.
Is it suitable for a bathroom or a covered outdoor area?
No. It is rated IP20, which means dry interior rooms only.
